Advanced Machine & Engineering Co.    Rockford, IL 61103
Jul 18, 2008 Triag Micro Clamps feature dowel pins or precision dowel screws to provide precise positioning. Vise modules have high work piece density per given machine envelope and deliver 900-4,600 lb of clamping force. Compact, low profile, and flexible units come with smooth or serrated, hardened, and ground jaws or soft jaws. Parallels, locating stops, and variety of other accessories are also available.

Electro Standards Laboratories    Cranston, RI 02921 3403

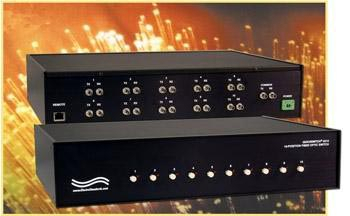

Jul 18, 2008 QuickSwitch Model 6212 ST Duplex 10-Position Fiber Optic Switch allows users to switch 1 common ST duplex port to any one of 10 ST duplex multimode ports using either local front panel pushbutton access or remote GUI or Telnet commands. Using mirror technology, IP addressable network switch can support gigabyte data rate while maintaining all fiber optic signals in fiber optic light transmission media. Switch maintains its position and continues to pass data in event of power failure.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139
Jul 18, 2008 Suited for small and medium wood shops, Binks Comet 4/12(TM) pump is designed with air powered 12:1 two-ball piston pump that is capable of producing 0.4 gpm at 60 cycles/min. Created to apply water-borne and solvent-borne coatings, it can spray wood coatings at fluid outlet pressures from 300-1,200 psi. Available in wall-mount, cart-mount, or tripod-mount outfits, pump features balanced fluid section for steady, even coating flow and hard chrome coated SS pump rod.

FEI Company    Hillsboro, OR 97124
Jul 18, 2008 With optional environmental enclosure to isolate instrument from thermal and acoustic interferences, Magellan XHR SEM enables rapid 3D surface imaging at different angles and at resolutions below 1 nm. Magellan 400 is optimized for scientific research, while Magellan 400L is optimized for semiconductor labs. Magellan 400L has load-lock feature that speeds-up sample throughput, and includes retractable solid state backscatter electron detector and S2 compliance kit.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Jul 18, 2008 Available in 11.68 x 9.65 x 7.50 mm SIP3 package, AMSR-78Z Series switching regulators provide regulated output voltages ranging from 1.5-15 Vdc, producing maximum output currents of 500 mA at up to 97% efficiency rate that remains virtually constant over entire input range. Wide input ranges (up to 6:1) extend from 4.75-34 Vdc to 18-34 Vdc, allowing units to be powered from unregulated sources. Units operate at full output power without heatsinking or forced-air cooling below +85°C.

New Vista    Baltimore, MD 21205

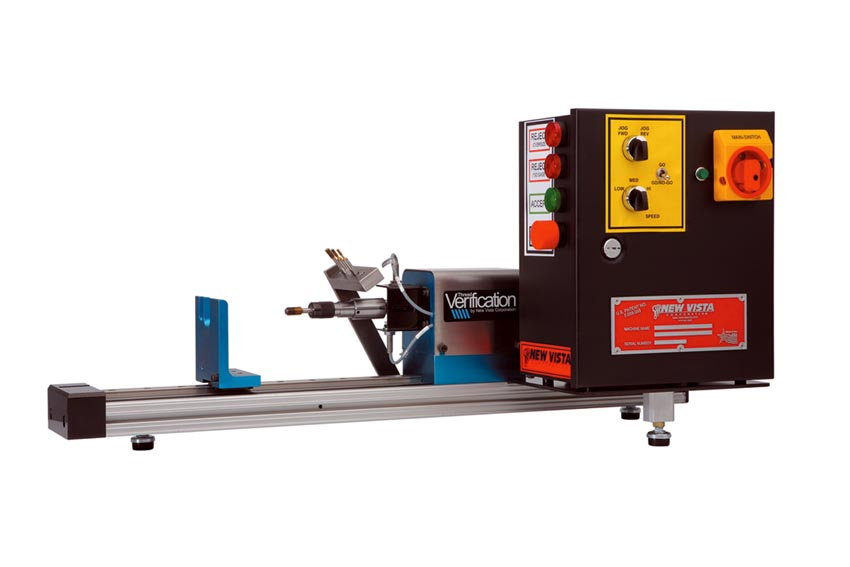

Jul 18, 2008 Designed for use in inspection of internal/external threads in production parts, TVM-SC Thread Verification Module checks thread size, depth, and quality by powering gage probe into and back out of thread. Models are available with torque from 10-250 in.-oz, for inspecting threads from M3 to M50. Suited for applications where there can be variety of part types and thread sizes, unit meets both high and low volume demand, and offers GO gaging, NO GO gaging, and combination gaging.

CRAIC Technologies Inc.    San Dimas, CA 91773
Jul 18, 2008 Designed specifically for industrial processes, ImageUV(TM) v2.0 collects, analyzes, and processes images from CRAIC microscopes and micro spectrophotometers fitted for UV, visible, and NIR micro-imaging. Featuring imaging and processing recipes to create new imaging recipes, software incorporates 2 modes of operation such as production level with recipe driven image processing and password protected engineering mode for creating those recipes and for research.

WSF Industries Inc.    Buffalo, NY 14217
Jul 18, 2008 Built for manufacture and service of electric motors, Vacuum Pressure Impregnation (VPI) tank provides 100 psig internal pressure and full vacuum at 100°F maximum temperature. Featuring Rapidoor® fast-actuating closure, tank is installed in compact full-pit layout, and its atmospheric storage tank is set below floor level to facilitate product loading and unloading. NEMA 12 control panel, vacuum and hydraulic systems, and chiller are located at floor grade to facilitate operator access.

CNC Indexing & Feeding Technologies    Wakeman, OH 44889
Jul 18, 2008 Featuring 200 rpm rotational speed, 0.0004 in. spindle runout, and 515 psi hydraulic pressure, Model GSI DNC-400 direct drive rotary indexing table ensures smooth machining without deflection under heavy loads in high-speed, high-accuracy contouring operations. It offers maximum torque of 590 lb-ft and brake torque of 1,844 lb-ft. With 15.75 in. dia and 661 lb weight, product provides maximum horizontal and vertical loading capacity of 1,100 and 661 lb, respectively.

Skyray XRF    Georgetown, DE 19947
Jul 18, 2008 Suited for on-the-spot analysis, portable Model EDX-660 has Micro-XRF system housed within hard-body travel case holding micro-computer and XRF chamber with proportional counter detection system. Including turret stage that can hold up to 16 samples at once, Model EDX-6000B compact desktop unit automatically analyzes multiple samples. Model EDX-660 suits mining and geological applications, while EDX-6000B aids RoHS testing, metallurgy, and building materials analysis.

Kontron    Poway, CA 92064

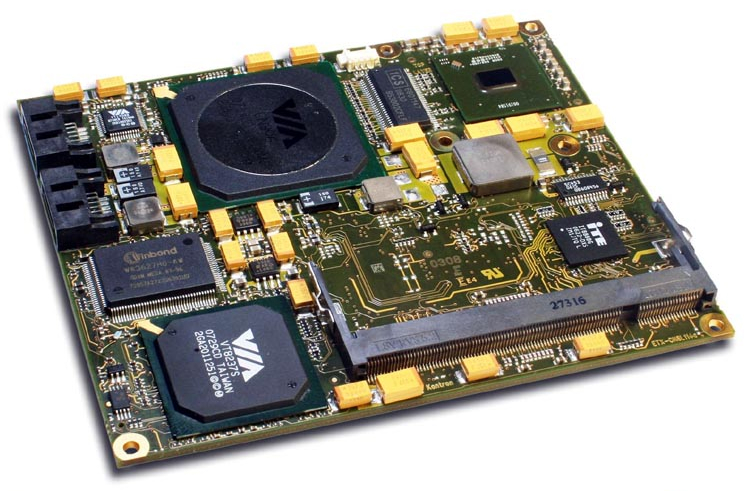

Jul 18, 2008 Based on VIA CN896 chipset, Kontron ETX®-CN8 Computer-on-Module supports up to 2 GB of DDR2 RAM, 2 RAID-capable SATA II interfaces (300 MB/sec), USB 2.0, and all other standard ETX® 3.0 interfaces. Consuming 10.5 W at full load, it suits infotainment, gaming, medical technology, and HMI/thin clients for automation. With up to 128 Mb of integrated graphics memory, unit supports dual screen operation with resolutions up to WUXGA via VGA and UXGA via DVI/LVDS with 18/24 bit.

Elma Electronic Inc.    Fremont, CA 94538
Jul 18, 2008 Designed for empty slots in MicroTCA chassis, AMC Air Baffle/Filler Boards come in both full and mid sizes and in single module format. AMC air baffle can be plugged into unused slots in MicroTCA chassis to redirect or contain airflow, which helps keep cool air within critical parts of enclosure. Cards also act as filler board, preventing open slots and helping to protect chassis from outside elements such as dust.

Qosina Corp.    Edgewood, NY 11717 8329
Jul 18, 2008 Hemostasis valves function as seal by preventing air and fluid leakage around wires and instruments. Able to click into open and semi-open positions and lock with thumb lever, one-handed hemostasis valve (Part #33057) has 2 channels. Straight primary channel has silicone gasket, while angled secondary channel can be used for pressure monitoring and flushing. Self-sealing hemostasis valve (Part #33058) is high pressure and luer activated, and can connect to standard catheters.

Metronics, Inc.    Bedford, NH 03110 6818
Jul 18, 2008 Quadra-Chek 330 (QC-330) includes Measure Magic® technology that automatically determines feature type based on probed points. Compatible with virtually any manual CMM, it includes USB port for flash drives and printers as well as RS-232 port for communication to any computer. With high-resolution LCD monitor for 3D measurements display and operator control, QC-330 can record measurement activities and store them as a program to streamline difficult and repetitive measurements.

Murata Power Solutions, Inc.    Mansfield, MA 02048

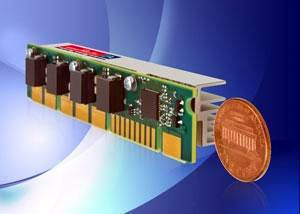

Jul 18, 2008 Housed in package that achieves installed height of 0.807 in., VR110B080CA-1C single inline packaged voltage regulator module has single 7-bit DAC programmable output of 0.8375-1.6 Vdc, and maximum output current of 80 A. It features input voltage of 12 Vdc, full load efficiency of 88%, and operating temperature range of 0-65ºC. With overall length and width of 3.6 x 0.75 in., unit offers differential remote sense, remote enable, dynamic VID capability, and tri-state output when disabled.

OMAX Corp.    Kent, WA 98032
Jul 18, 2008 Measuring 265 x 152 in., Model 80X JetMachining® Center has Intelli-TRAX traction drive that enables expansion of cutting envelope to 20 ft. It features X-Y travel of 165 x 80 in., Intelli-MAX® Software, programmable motorized Z-axis with precision MAXJET® 5 Nozzle Assembly, high pressure direct drive pump, and rapid water level control for submerged cutting. System can calculate velocity of tool path at over 2,000 points/in., enabling complete control over motion of abrasivejet.

Panasonic Security & Digital Imaging Company / Vision System    Secaucus, NJ 07094
Jul 18, 2008 Suited for IP camera-based video surveillance systems, i-Pro WJ-ND400 Network Video Recorder (NVR) can record up to 64 network cameras simultaneously with multi-format recording in MPEG-4 and JPEG. It offers metadata associated VMD for search capabilities, 2x and 4x digital zoom on live/recorded video, and camera control for pan/tilt, zoom, focus, brightness, preset position, and auto mode. Unit features multiple display modes, RAID 5/6, and embedded real-time OS.

austriamicrosystems AG    Premstatten   Austria

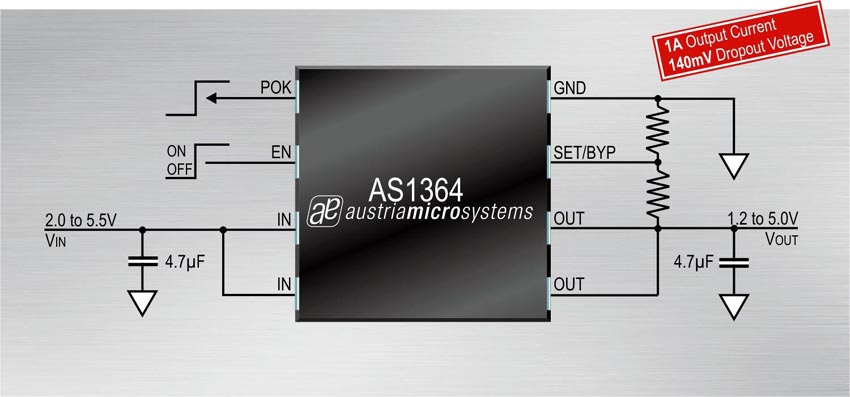

Jul 18, 2008 Suited for dual/triple standard-cell and single Li-ion battery powered applications, Model AS1364 LDO offers dropout voltage of 140 mV at 1 A with quiescent current of 35 µA during operation and 10 nA during shutdown. It is available as adjustable version or with pre-programmed output voltages in range between 1.2-5.0 V with output voltage accuracy of 0.75%. Unit comes in 3 x 3 mm 8-pin package suitable for -40 to +85°C operating environments range.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 18, 2008 Batch Formulation Management for Proficy® Batch Execution 5.1 software defines formulation recipe containing Global Parameters and Product Formulation values against master recipe. Platform serves as addition to application suite comprised of batch analysis, production/genealogy, quality, and efficiency modules. It is compatible with systems that provide process control technologies and allows users to integrate batch operations from control systems to business systems.

General Software Inc.    Bellevue, WA 98004
Jul 18, 2008 Embedded BIOS® with StrongFrame® Technology addresses entire product lifecycle, from board bring-up, configuration prototyping, testing with system diagnostics, and product manufacturing to in-field diagnostics and software reload. Validated with Intel® Core(TM)2 Duo processor T9400, configurable solution fully supports Mobile Intel GM45 Express and Intel 5100 MCH chipsets. It offers deployment tools as well as support for multiple core versions and module versions in same framework.
