Silicon Storage Technology Inc.    Sunnyvale, CA 94086
Jul 08, 2008 Based on 8051 instruction set, Model SST89C58RC 8-bit FlashFlex MCU supports operating voltages from 2.7-5.5 V for implementation in applications with variety of power supply requirements such as HDTVs, A/V receivers, notebook PCs, DVD/Blu-ray players, and RF modules. Available in 6 x 6 mm QFN package, it includes 2 system management buses (SMBus), each supporting up to 400 Kbit/sec data throughput. Unit comes with 1 KB of on-chip RAM and up to 34 KB of embedded SuperFlash memory.

Viewsonic Corp.    Walnut, CA 91789
Jul 08, 2008 Measuring 26 in., Model VA2626wm LCD monitor features multiple inputs such as HDMI, VGA, and DVI and HDCP compatibility, allowing for Blu-Ray(TM) disc player, cable box, satellite box, or gaming console connections. With 2.5 W dual stereo speakers, it offers contrast ratio of 6,000:1 and native resolution of 1,920 x 1,200.

Capital Safety    Red Wing, MN 55066-5005
Jul 07, 2008 Available in high-visibility orange and yellow, Delta Vest(TM) features breathable polyester fabric and reflective materials. Blue cotton model is also available to help retain heat in cooler climates. Vest incorporates Delta(TM) II harness, featuring adjustable straps with quick-connect, pass-thru, or tongue buckle connections to ensure proper fit. Harnesses are available in 4 sizes and incorporate 5 points of adjustability, sub-pelvic strap, and spring-loaded, stand-up D-ring.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jul 07, 2008 Illuminating green or red depending on conditions, PL22STC Series enables at-a-glance on/off load status monitoring via single device designed for 0.87 in. through holes. Green LED illuminates when powered on 2 of 3 terminals (2 and 0), and red LED illuminates when powered on 2 other terminals (1 and 0). Both LEDs are rated to last at least 100,000 hr and exhibit 100 cd/m2 brightness. Offered in IP65 housing, RoHS-compliant product can be powered by range of voltage options.

Honeywell International, Inc.    Morristown, NJ 07960
Jul 07, 2008 Serving applications that require barcode scanning and keypad data entry, Dolphin® 9900 combines data collection, voice and data communication, and GPS technologies with ergonomic and ruggedized design. Adaptus® Imaging Technology is also included along with Wi-Fi certified 802.11b/g radio and multi-mode wireless connectivity. Rated IP64, industrial-grade solution is powered by Microsoft Windows Mobile v6 with Intel® PXA 270 624 MHz processor with 256 MB RAM x 1 GB FLASH memory.

PRIMA LASER TOOLS    Chicopee, MA 01020
Jul 07, 2008 Available with 2,500, 3,500, or 4,000 W CO2 laser resonator, DOMINO offers working capacity of 120 x 60 x 16 in. and provides combined X-Y-Z axes speed of 5,900 in./min, with positioning accuracy and repeatability of 0.001 in. Laser head performs 360° continuous rotation with A axis and ±135° with B axis. Featuring cantilever design, machine includes high-speed CNC control, quick piercing function, direct drive cutting/welding heads, and synthetic granite frame that eliminates vibration.

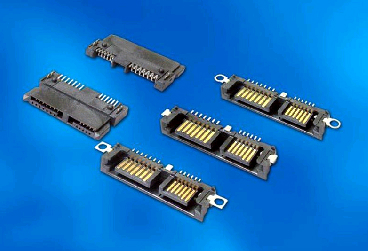

FCI    Etters, PA 17319
Jul 07, 2008 Designed to enable connection of slimline form factor drive to Serial ATA interface, Slimline Connector preserves design of signal portion of SATA connector and accommodates SATA signal cables. Unit offers durability of 500 cycles, and withstands mating/unmating forces of 45 N/10 N. Available in 13-position version, connector is suited for removable optical disk drive interfaces, desktop/ notebook PCs, gaming equipment, and internal/external ODD drives.

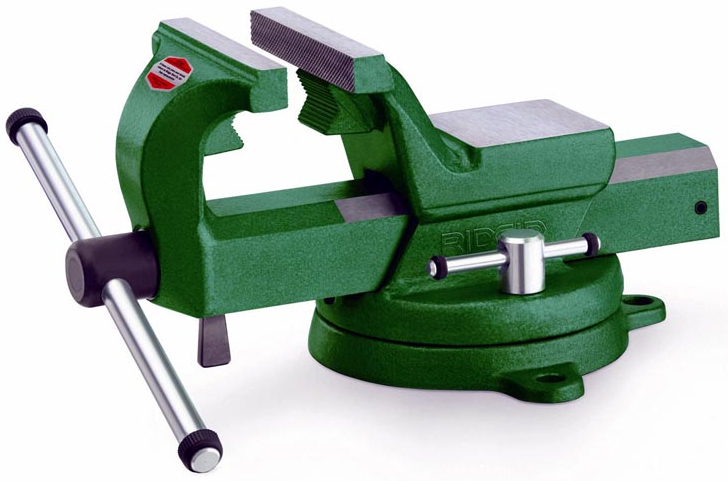

Emerson Process Management    Austin, TX 78754
Jul 07, 2008 Offered in two sizes, 4½ in. (XF-45) and 5 in. (XF-50), RIGID® Quick-Acting Vises combine indestructible forged steel construction and quick-action trigger that facilitates adjustment to objects of all sizes. Usability is also enhanced via 360° forged steel swivel base, while clamping precision and strength are promoted via jaw alignment system and forged pipe jaws, respectively. Oversized, hardened jaws and anvil promote clamping efficiency on all work surfaces.

Appleton Mfg. Div., Productive Solutions, Inc.    Neenah, WI 54957 0618
Jul 07, 2008 Powered by 36 V motor, Big Wheel RollMover(TM) pushes rolls of tissue, toweling, and nonwovens across plant floors or onto trolley conveyors without damaging outer surfaces. Drive-roller diameter optimizes contact with surface of master-sized rolls without creating indents and marks, while elevated point of contact minimizes chances of getting pinned under rolls at end of travel. Also available, tapered drive-rollers keep ends of drive wheel from marking soft materials.

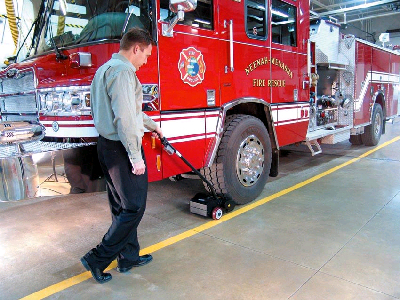

Appleton Mfg. Div., Productive Solutions, Inc.    Neenah, WI 54957 0618
Jul 07, 2008 Suited for moving large chassis or heavy vehicles during and after manufacturing, tether-free, battery-powered Roll Mover(TM) lets single operator move rollable loads without tangle air hoses. Toggle handle with variable-speed throttle facilitates operating efficiency, while rugged gearbox turns industrial-grade drive rollers. Quick-charge battery, combined with overall rugged construction, provides for extended use in demanding work environments.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jul 07, 2008 Featuring non-intrusive design, Series STC is comprised of models that incrementally cover surface temperature measurements in -50 to +500°F and -40 to +260°C ranges with accuracy of ±2% and resolution less than 4% of scale. Devices survive ambient conditions from 14 to 302°F and are constructed with steel wetted materials, 2 in. dial with glass lens, and bimetal spiral spring sensing element. Uses include commercial, residential, and institutional HVAC applications.

Hubbell Lighting Div.    Christiansburg, VA 24073
Jul 07, 2008 Available in 3 narrow aperture linear styles, Microlyne(TM) Rectilinear Fixtures can be placed at, below, or above ceiling plane. Units come in cable mount, surface mount, wall mount, or recessed in 3.5 and 2.5 in. apertures. Modular housing styles may be mounted in single or row configurations. Featuring parabolic louver, Microlyne 1T5 is 85.5% efficient, while Mini has 83.5% efficiency rating, and Microlyne T5, with glowing opal lens, reaches 57.5% efficiency.

Z-Communications, Inc.    San Diego, CA 92126
Jul 07, 2008 Operating from 1,560-1,580 MHz with tuning voltage range of 0.5-4.5 Vdc, CLV1570B-LF features typical phase noise of -108 dBc/Hz @ 10 KHz offset and typical tuning sensitivity of 25 MHz/V. It is designed to operate at 5 Vdc supply while drawing 24 mA over -40 to 85ºC range and has typical second harmonic suppression of -25 dBc. Supplied in 0.50 x 0.50 x 0.13 in. MINI package with low shield, VCO is suited for microwave radio applications.

Westermo    Stora Sundby   Sweden
Jul 07, 2008 Featuring built-in 4-port Ethernet switch, Wolverine Models DDW-221 and DDW-222 offer transfer rates up to 5.7 Mbit/s and operating distance of 10 km. Redundant protocol can be used on SHDSL interface or on built-in Ethernet switch. It uses FRNT technology to re-configure network in event of any link or hardware failure. Model DDW-222 includes RS-232 serial adapter and 10-port Virtual Com port re-direct software, which re-directs Com port to IP address.

Schunk    Morrisville, NC 27560
Jul 07, 2008 Manipulated via MCS external controller, EGN 80 and 160 servo electric 2-finger parallel grippers have 8 and 16 mm stroke per finger, respectively. Design allows flexible adjustment and control of gripping force, speed, position, and acceleration of gripper fingers. Along with gripping forces up to 1,000 N, products offer capability of pre-positioning gripper fingers to minimize closing times and maximize cycle rates.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Jul 07, 2008 Modified for spring clamp air open, Model 700 features hardened and ground 4140 top jaws that grip OD of drive shaft slip yokes. Chuck jaws have excess material milled away to reduce centrifugal forces, while hardened and ground alloy steel spline driver is mounted to chuck face to facilitate loading and driving of shaft as it spins to 3,500 rpm for balancing. TIR is equal to 1/10,000, cycle time is 60 sec, and accuracies range from 0.0001-0.00001 in.

American Casting & Manufacturing Corp.    Plainview, NY 11803
Jul 07, 2008 Used for tamper-evident and security applications, Model PSW-97 plunger seal locks come pre-numbered with 7 sequential digits and 12 in., 3-Ply galvanized wire (pre-inserted or loose). High security tamper evident self-locking plastic seal, designed for use with wire, is made with styrene or acetate plastic with stainless steel locking plunger and supplied with lettering and numbering. All colors available, including clear.

Master Bond, Inc.    Hackensack, NJ 07601
Jul 07, 2008 Formulated to cure at room temperature, 2-component Supreme 11AOHT can be applied without sagging or dripping. It has mixing ratio of 1:1, operating temperature of -100 to +400°F, thermal conductivity of 10 BTU/in/ft²/hr/°F, and dielectric strength of greater than 400 V/mil. Suited for applications involving thermal cycling, product adheres to most metals, ceramics, glass, rubbers, and plastics. Bonds are resistant to water, oil, and most organic solvents.

Kennametal, Inc.    Latrobe, PA 15650-0231
Jul 07, 2008 Engineered specifically for extended-length boring applications from 4:1 up to 6:1 diameter-to-length ratio, Heavy Metal-Boring Bars handle finishing and medium-machining ID turning, grooving, and threading tasks. They feature heavy metal construction with brazed steel heads and help reduce failure possibilities while in use. Bars are available in variety of sizes, including 8, 10, 12, 16, and 20 mm and 3/8, 1/2, 5/8, ¾, and 1 in.

Telequip Corporation    Salem, NH 03079
Jul 07, 2008 Able to dispense coins for approximately 200 transactions, T-Flex(TM) Coin Dispenser offers Even Depletion dispense option that provides optimal coin use for long runs, and Minimum Dispense feature that releases least amount of coins necessary. With compact design that integrates into any business environment, it helps accelerate speed of customer service. It is adaptable to variety of currencies including U.S. Dollar, Canadian Dollar, and Euro.
