Sandvik Coromant Co.    Fair Lawn, NJ 07410

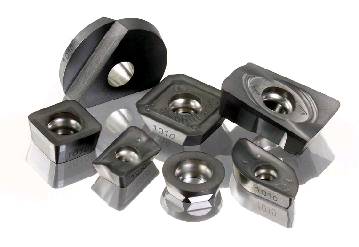

Jul 11, 2008 For wear resistance necessary to mill hardened steel, GC1010 features thin PVD coating combined with fine-grained hard substrate, providing sustained surface finish and tight tolerances during long cutting cycles. Insert excels in processes ranging from roughing to finishing of tool steels, ISO-H hardened steels, and ISO-P steels. It can also be used to optimize productivity in finishing of ISO-K cast irons.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

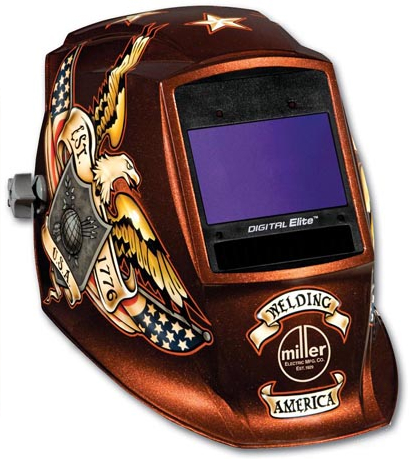

Jul 11, 2008 Featuring auto-darkening response time of 1/20,000 of 1 sec, Vintage USA helmet is stylized with 1929 Miller Logo, bald eagle, crest, US Flags, and patriotic stars. Elite version provides Auto-On/Auto-Off and Grind Mode in addition to 5 outside and 2 inside replacement cover lenses, fatigue-reducing comfort cushion, and helmet bag. Digital Elite includes programmable grinding, welding, cutting, and electromagnetic modes. Latter is used when arc is present but sensors are obscured.

Melexis Inc.    Concord, NH 03301
Jul 11, 2008 Available in 24 pin SOIC package that is compatible with lead free SMD processes, MLX75605 embeds 650 nm light source, 150 Mbps driver IC, and 150 Mbps monolithic receiver IC. LED driver IC includes on chip calibration circuitry, allowing user to trim transmitter light output, and in this way light output is within narrow distribution over -40 to +95°C temperature range. Receiver features integrated ferrule receptacles of both receiver and transmitter pigtails, and eye safe light output.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jul 11, 2008 Capable of clamping input ESD waveform of 15 kV to less than 7 V in matter of nanoseconds, Models ESD7L5.0D and NUP4212 protect ESD sensitive ICs. Offered in 1.2 x 1.2 x 0.5 mm SOT-723 package, ESD7L5.0D protects 2 high speed data lines at 0.5 pF capacitance/line as well as D+ and D- lines of USB2.0 port. Available in 1.6 x 1.6 x 0.5 mm UDFN-6 package, NUP4212 protects 4 high speed data lines at 0.7 pF/line and 2 Vcc power lines as well as D+, D-, and Vcc line on 2 USB ports.

Grupo Premo    Barcelona   Spain
Jul 11, 2008 Measuring 76 x 16 x 5.5 mm for SMD assembly, PREMO antenna suits applications in 125 kHz low frequency base stations, and can be used in vehicles passive entry applications or TPMS (Tire Pressure Monitoring system). Transmitter antenna has inductance range of 200 µH to 1 mH with quality factors between 80 and 150.

Grupo Premo    Barcelona   Spain

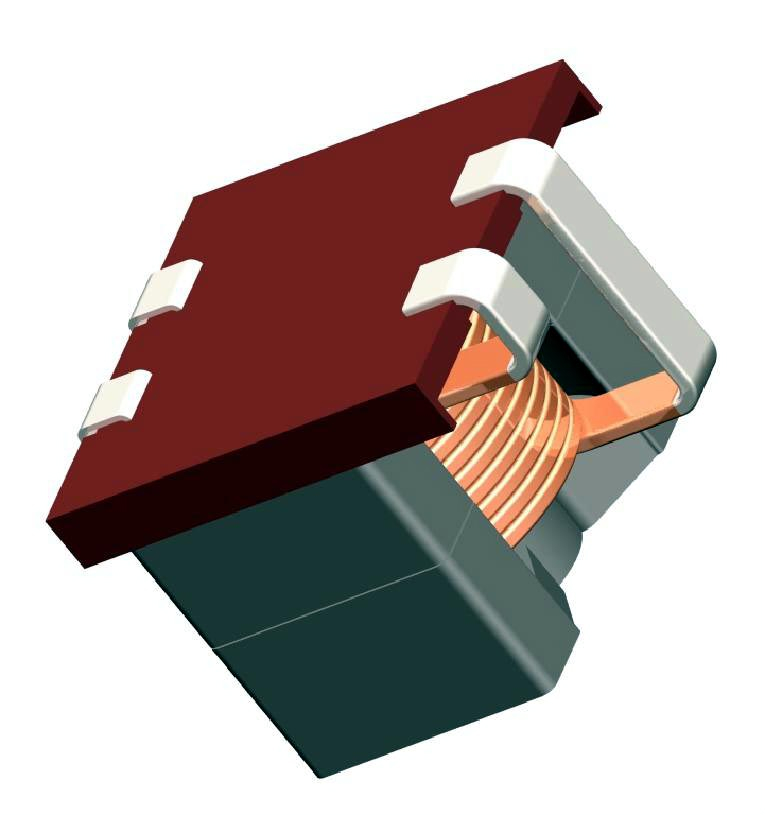

Jul 11, 2008 Measuring 23 x 25 x 19 mm, PQ20 power inductor features 1.5-33 µH inductance range, up to 62 A current capability, and -40 to 125ºC operating temperature range. Meeting AECQ-200C standard, choke uses flat wire in winding to ensure maximum power management with less than 1.6 mW dc resistance. Placed in plastic base, it is suited for use in battery control unit, dc/dc converter and inverter, engine control unit, starter generator, transmission control unit, and water pump.

Grupo Premo    Barcelona   Spain
Jul 11, 2008 Available in 5.1 x 2.3 x 2.4 mm size, Telecoil TC0502 is a coil with ferrite core which offers high sensitivity in frequency range of 30-40 kHz. Customizable unit is winded with thin copper wire up to 12 µm and its inductance range is 20-170 mH. Meeting ISO/TS 16949:02 and ISO 9001:2000 standards, it is designed for hearing aid systems industry.

Richelieu Hardware Ltd.    Saint Laurent, QC H4S1V4

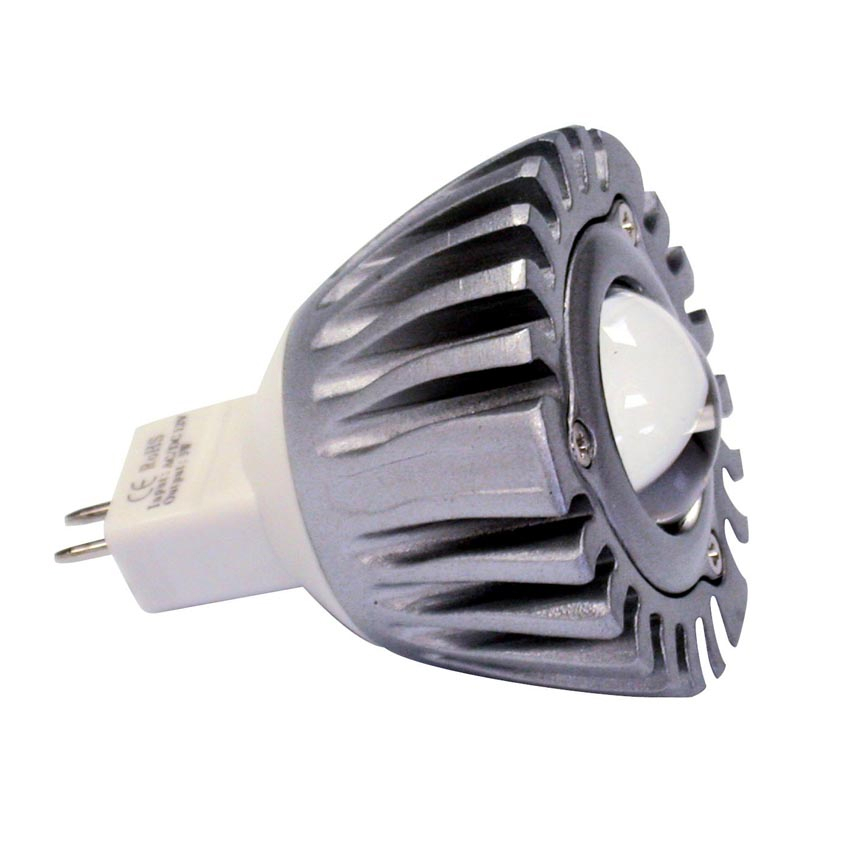

Jul 11, 2008 Enabling users to retrofit their halogen MR16 30 W fixtures, LED MR16 3 W Series suits applications such as retail and architectural lighting in showrooms and exhibits. Offered in cool and warm white, Series comes in 2 models, one that projects direct light beam at 30º, and second which projects wider beam at 45°. Featuring optical grade PMMA clear lens, molded aluminum with silvery anodized finish housing, and GU5.3 base (MR16), units provide low heat without UV or IR light radiation.

Ideal Industries, Inc.    Sycamore, IL 60178
Jul 11, 2008 Suited for forming new screw threads, cleaning out obstructions, or retapping burred and stripped threads, IDEAL Triple Tap features Santoprene® textured handle that reduces risk of repetitive strain injuries and provides slip-resistant grip, even when wet, while resisting damaging oils, fluids, perspiration, and abrasions. Rugged and compact tool is available in 3 thread sizes including 6-32, 8-32, and 10-24 (part number 35-411), or 6-32, 8-32, and 10-32 (part number 35-412).

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939

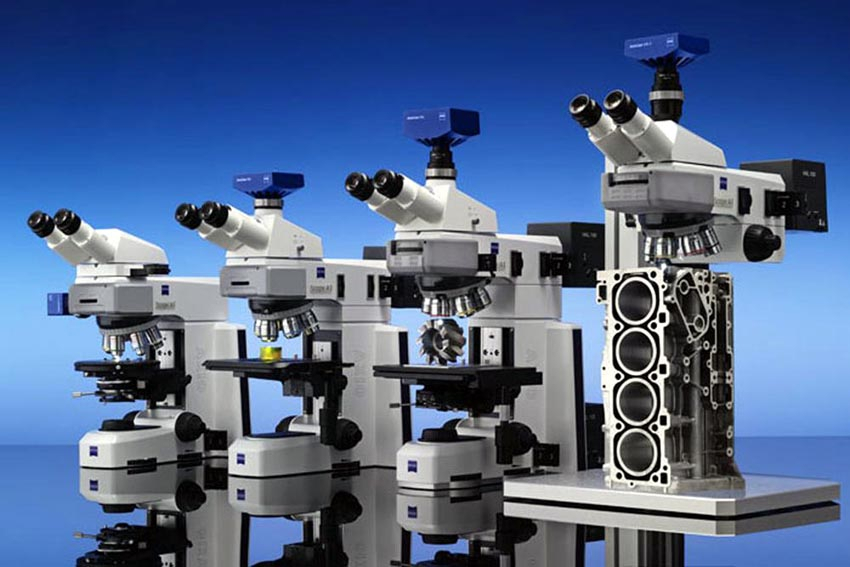

Jul 11, 2008 Designed for routine applications in materials microscopy, Axio Scope.A1 includes 5 microscope upper bodies, 3 lower bodies, and 2 Vario columns which can be selected for respective requirements and combined into optimally customized microscope system. Sample area height can be continuously set up to 380 mm high, depending on configuration. Enabling C-DIC and PlasDIC techniques, unit offers 2-position sliders and 4- and 6-position reflector turrets as reflector modules.

Garmin International, Inc.    Olathe, KS 66062
Jul 11, 2008 Offering turn-by-turn, text-to-speech, voice-prompted directions, nuvi® 860 uses full menu speech control to make driving safer. Push-to-talk wireless remote, mounted to steering wheel, is used to activate voice commands, and built-in FM transmitter can route audio through vehicle's stereo. Along with emergency location assistance, functionality encompasses complex points of interest searches, completely hands-free interaction with mobile phone, and automatic route recalculation.

Laird Technologies    Chesterfield, MO 63017
Jul 11, 2008 Suitable for terminal, PoS, automatic meter reading, and M2M applications, External Wireless Antenna features knuckle/swivel snap-in or SMA/TNC/RPTNC connector option, allowing for integration into variety of devices. Operating frequencies include 824-894, 880-960, 1575, 1710-1880, 1850-1990, 1920-2170, and 2400-2500 MHz. With 7 bands operating simultaneously, blade-style antenna provides performance across Cellular Quadband GSM, UMTS/3G, GPS, and WiFi/WLAN frequencies.

Northrop Grumman Corp.    Los Angeles, CA 90067-2199
Jul 11, 2008 Available in radar-only and chart-radar configurations, VisionMaster FT(TM) 250 features automatic clutter-suppression technology, ensuring detection and tracking of small radar targets in presence of sea or rain clutter. Unit uses high-resolution LCD screen and contains all below-deck components, including processor and interfaces, in single console. Radar complies with IEC 62388 CAT 2 technical requirements and meets IMO carriage requirements for vessels of 5,000-10,000 gross tonnage.

Syncro Soft Ltd.    Craiova RO-200813  Romania
Jul 11, 2008 Oxygen XML Editor and Oxygen XML Author v9.3 offer support for editing, transforming, and validating documents composing Office Open XML package directly through archive support. Users can extract, validate, edit, and process XML data stored in OpenDocument files, enabling use of data from ODF documents together with validation and transformations to other file formats. With Compare Directories tool, users can compare and merge files in ZIP archives.

Ericsson Microelectronics      Sweden
Jul 11, 2008 Housed in eighth brick sized package, Model PKB4302NG features input voltage of 38-55 V and comes in through hole and baseplate variations. Fixed ratio, intermediate bus converter offers efficiency rating of 97% at 48 Vin from 50-100% load. Designed to meet insulation requirements of EN60950, unit includes remote on/off, over-temperature protection, output over-current and over-voltage protection, as well as input under-voltage protection.

IOGEAR    Irvine, CA 92618
Jul 11, 2008 Consisting of 12-in-1 Pocket Card Reader/Writer and 56-in-1 Memory Card Reader/Writer, Universal Memory Banks enable users to upload files and images from cell phones, digital cameras, and PDAs, eliminating multiple adapters and cable clutter. Both USB 2.0-compliant devices simultaneously read and write multiple cards at speeds up to 480 Mbps, and offer hot swap feature for replacing storage cards without restarting computer.

Humphrey, Mitchell & Co.    St. Louis, MO 63146
Jul 11, 2008 Available as on-premise (licensed) installation or SaaS hosted environment, FastTrackGov provides municipal and county government with suite of tools for automated business license and permit issuance, tracking, and reporting. It leverages technology and process controls included in Microsoft Dynamics(TM) CRM v4.0, including workflow and scheduling, while also taking advantage of familiar UI to facilitate operations.

Elitecore Technologies Ltd.    Ahmedabad 380 006  India
Jul 11, 2008 With Cyberoam, users are protected against risks of failing regulatory compliance, data leakage, spread of malicious content, and unproductive downloads. Firmware includes HTTPS URL Filtering, which blocks web-based proxies and malicious websites hosted over SSL by categorizing domain names in site database. Cyberoam also reports filenames uploaded via webmail attachments or to storage sites, and prevents spyware in network from sending out sensitive data.

InfinityQS International, Inc.    Chantilly, VA 20151
Jul 11, 2008 Remote Alarm Monitor Service, Remote Event Monitor Service, and OPC Data Collection Service perform quality data monitoring on shop floor with real-time event logging and alarming. With these Windows-based services, companies who use ProFicient software can manage quality by exception without requiring human intervention unless pre-defined quality event occurs. ProFicient user does not need to be logged into system in order for system to start addressing quality issues.

Tips Inc.    Georgetown, TX 78628
Jul 11, 2008 LogMate® AlarmKB(TM) (Knowledge Base) compares 2 alarm profiles and highlights differences in summary of contrasting settings. Consistently updated, AlarmKB Import Utility (AKBIU(TM)) simplifies audit process by importing control system settings from native configuration files into AlarmKB. Configuration files are imported and compared in few keystrokes, and imports can be performed on-demand or set to run on predefined schedule.
