Tharo Systems Inc.    Brunswick, OH 44212 0798
Jul 14, 2008 Featuring XML support for SAP enterprise management systems, EASYLABEL® 5 Platinum includes XML monitor that will watch file directory or TCP/IP port and will automatically print RFID or bar code labels when compatible XML file is received. Program provides direct connection to SAP or any other application capable of generating properly formatted XML file, and will make printing RFID or bar code labels from supply chain or manufacturing software seamless.

AFC Industries, Inc.    College Point, NY 11356

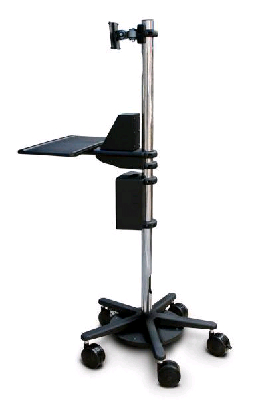

Jul 14, 2008 Measuring 26.5 in. in diameter and 72 in. in height, Pole Cart is built around single upright support, with adjustable monitor, keyboard, CPU, and writing platform. Handles are height adjustable and can be rotated completely around support. Available in variety of colors, workstation is suited for small, highly trafficked spaces and for uses that require frequent movement.

Lista International Corp.    Holliston, MA 01746

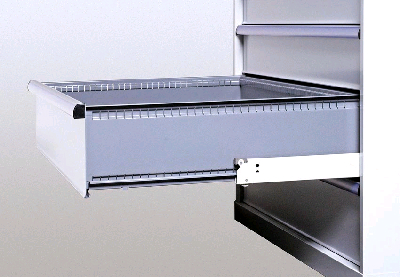

Jul 14, 2008 Intended for modular storage drawer cabinets and Storage Wall® systems, suspension system incorporates guide track that wraps under drawer body for stability and strength. System utilizes quiet Polyoxymethylene bearings, combining fatigue resistance and low friction. Available in 2 full-extension weight capacities of 440 and 165 lb, drawers extend 100% from cabinet housing, allowing ergonomic access to all contents.

Hartwig, Inc.    Wichita, KS 67216
Jul 14, 2008 Offering 5-axis interpolated machining, Tricept T9000 can perform milling, drilling, routing, deburring and finishing, optical inspection and touch probing, fastener/rivet installation, and friction stir welding. Each strut delivers 990 mm stroke, giving machining reach of metric/inch in both X and Y and metric/inch in Z. Equipped with 6,000 rpm, 50 hp HSK63 spindle, machine delivers ±0.038 mm positioning accuracy and ±0.010 mm repeatability.

Bosch Rexroth Corp., Industrial Hydraulics Div.    Bethlehem, PA 18017
Jul 14, 2008 Incorporating F Series pump and motor technology, Hydrostatic Fan Drives work in range of ambient temperatures from -40º to 212ºF. Units dissipate heat transferred by engine coolant as it flow through radiator. For moderate fan outputs of up to 20 kW, systems incorporating hydraulic fixed displacement pump with bypass control represent best solution. Applications include construction machines, agriculture and forestry vehicles, and road and rail vehicles.

Konecranes Americas, Inc.    Springfield, OH 45502
Jul 14, 2008 Designed to cover all capacities and site conditions from barge unloading to ocean-going bulk carriers, AGD Grab Unloader is optimized for minimal energy and rope consumption but can lift 16-65 tons (standard) or up to 100 tons (optional). Automatic unloading options are standard, and design facilitates access to all maintenance points and locations. Unloading capacity is 3,000 tph max, outreach capacity is 30-50 m, and backreach capacity is 40 m max.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 14, 2008 Resistant to nuclear, chemical, and biological (NBC) threats, Thermorad 700 Series NBCCS fluoroelastomers are suited for cable jackets and wire insulation in applications requiring NBC contamination survivability (NBCCS). Grades are available to cover -55 to +125°C (Thermorad 770), -55 to +175°C (Thermorad 780), and -65 to +200°C (Thermorad 790) temperature ranges and are offered as option in custom multi-core cabling products. Each grade is thoroughly tested.

NIBCO, Inc.    Elkhart, IN 46516
Jul 14, 2008 Featuring nylon-coated finish and EPDM-encapsulated disc for good closure during shut downs, GD6765-8N grooved butterfly valve is gear-operated for slow-close functionality to protect piping from water shock. It is UL-/ULC-listed to 350 psi water working pressure and UL-listed for indoor/outdoor use. Additionally, F697-0 Class 250 iron body gate valve is rated to 300 psi and carries FM/NYC MEA approvals. Grooved double door silent check valve, KG900-W 350, is also available.

Sealevel Systems Inc.    Liberty, SC 29657
Jul 14, 2008 Along with 2 USB 1.1 hub ports, SeaLINK+4M.SC and SeaLINK+8M.SC respectively offer 4 and 8 serial ports that are software-configurable for RS-232, RS-422, or RS-485. Both devices, configured at one computer and deployed to others, maintain electrical interface settings locally and use state-machine architecture that supports 921.6 Kbps data rates. Serial ports appear as standard COM ports to host computer and provide up to 500 mA (each) to connected 5 V peripherals.

Chemline Inc.    St. Louis, MO 63103
Jul 14, 2008 With mix ratio of 4A:1B, Monomid(TM) Epoxy Flooring System forms cleanable, high-gloss finish. It offers 5 mils DFT in one coat when applied over Monomid Clear Sealer and can be applied over various other primers for application on steel. Solution supports addition of anti-slip aggregate or sand and also offers moisture resistance. In 3 hr at 77ºF, coating dries to touch to form abrasion- and chemical-resistant finish. Use is suited for industries requiring low odor and VOC levels.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 14, 2008 Suited for applications where output is regulated current, TPS40211 drives high-power LEDs when input voltage is less than voltage to turn on LEDs. LED driver features 4.5-52 V wide-input voltage, programmable closed soft start, over current protection with automatic retry, and programmable oscillator frequency. Designed for boost, flyback, SEPIC and LED driver topologies, it has fixed frequency current mode control that offers improved transient response and simplified loop compensation.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136

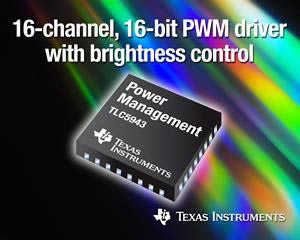

Jul 14, 2008 With 16-bit (65,536 steps) grayscale control with spectrum PWM, TLC5943 16-channel, 50 mA constant-current sink LED driver improves image quality and reduces flicker noise in monochrome, multicolor, and full-color LED displays, as well as LED signboards and display backlighting. It features 7-bit (128 steps) global brightness control for all channels with sink current, 30 MHz data transfer rate, 3.0-5.5 V VCC, and ±1.5% channel-to-channel and ±3% device-to-device constant current accuracy.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 14, 2008 Featuring 25 kHz bandwidth, 2 µV/C offset drift, and up to 97 dB SNR, ADS1174 (4-channel) and ADS1178 (8-channel) 16-bit A/D converters offer 2 operating modes that allow for 52 kSPS speed and 7 mW/channel power dissipation. Delta-sigma ADCs have chopper-stabilized modulator and onboard decimation filter that suppresses modulator and out-of-band noise, providing usable signal bandwidth up to 90% of Nyquist rate with stopband attenuation of 100 dB.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 14, 2008 Enabling real-time data applications, XIO2213A PCIe to 1394b controller offers interoperability by supporting 3 bilingual 1394 A/B cable ports at 100, 200, 400, and 800 Mbps. Internal dedicated PCI bus operates at 32-bit, 66 MHz and has pre-fetch agent to optimize PCIe packets for maximum 1394 performance. Unit has packet throughput that exceeds 87 Mbps, 100 MHz differential PCIe common reference clock/125 MHz single-ended reference clock, PCIe adaptive equalization, and eight 3.3 V GPIOs.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 14, 2008 Compliant to ATCA and MicroTCA, Models TPS2359 and TPS2358 single-chip, dual-slot hot swap controllers are suited for applications in wireless base stations, telecom and computing systems. Model TPS2359 has 2 fully integrated 3.3 V channels to provide inrush control, over-current protection, and FET ORing control functionality, and programmable 12 V current limits. Model TPS2358 controller has dedicated output pins and configuration capability using external components.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136

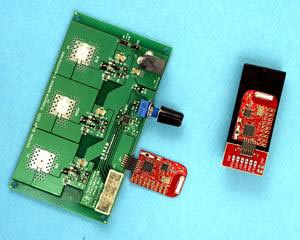

Jul 14, 2008 With ability to control color and brightness of lamp or run automatic color light animation program, TPS62260LED wireless RGB LED design kit combines with eZ430-RF2500 development tool to design new color lighting for commercial, professional, and architectural applications. Designers generate color with 3 OSRAM high-brightness LEDs (red, green, and blue). MSP430F2131 low power MCU controls brightness of each LED with constant current generated by 3 TPS62260 LED drivers, one for each LED.

Octava    Norcross, GA 30071
Jul 14, 2008 HDMI to Ethernet Extender enables transmission of 1,080P HD HDMI digital video and audio over pair of standard Ethernet CAT 5/6 cables. It includes set of HDMI transmitter and receiver which has external power supply that does not require power from HD source. HDMI Ethernet converter features Active Drive and Compensation circuitry that ensures error free video transmission, and typical connection lengths of 300 ft (1,080i) and 150 ft (1,080p).

International Rectifier Corp.    El Segundo, CA 90245

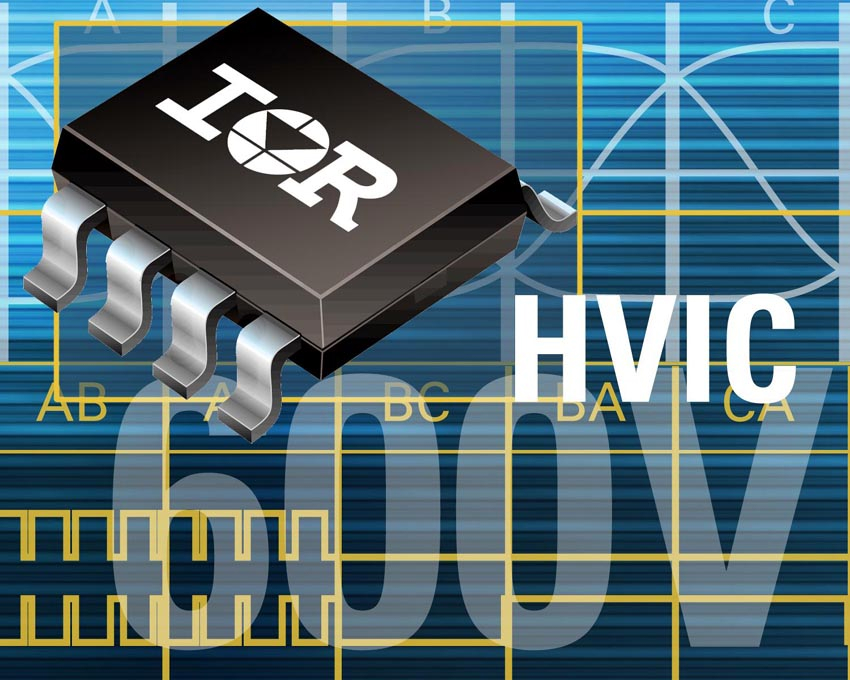

Jul 14, 2008 Available in 8-lead SOIC, IRS260xD Series power MOSFET and IGBT drivers are designed for sinusoidal and trapezoidal motor control. Model IRS2607D high- and low-side driver features outputs in phase with inputs. With 540 nsec internal dead-time, IRS2608D half-bridge driver offers high-side output in phase with HIN input and low-side output out of phase with LIN input, while IRS2609D features high-side output in phase with IN input and shut down input to turn off both channels.

Metal Mechanics, Inc.    Schoolcraft, MI 49087
Jul 14, 2008 Integrating robot load station, trim station, part unload mechanism, and scrap dump station, automated trim press is based upon shuttle process that rolls under press while robot loads metal casting. Part then gets trimmed and shuttle moves away from press to dump scrap into conveying unit. Automated rollover unit can be adjusted for different size scrap and integrated into any size Metal Mechanics trim press. It quickly evacuates scrap and flash away from casting trimming process.

Seco-Larm    Irvine, CA 92606-5012

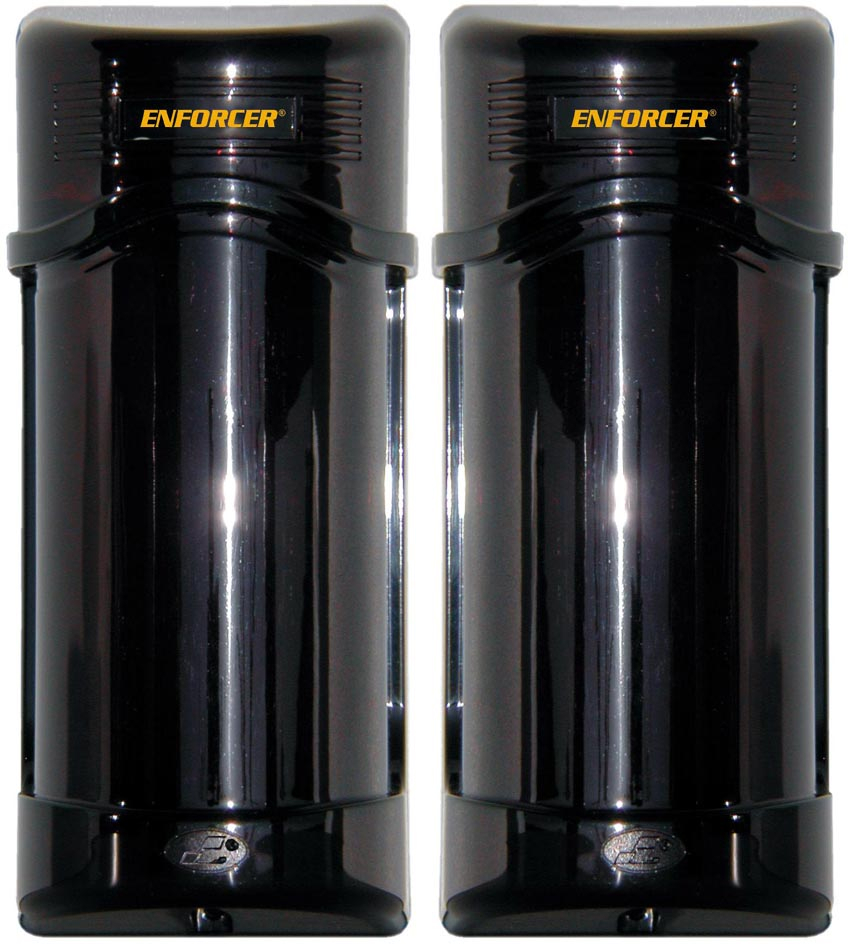

Jul 14, 2008 Featuring 4 selectable channel frequencies, ENFORCER E-964-D390Q Multi-Frequency Twin Photobeam Detector provides perimeter protection by reducing crosstalk between multiple units. It has range of up to 390 ft, and features built-in laser-alignment system and twin beams that minimize false alarms from falling leaves and birds. Detector includes lensed optics to reinforce beam strength and provide immunity to false alarms due to rain or snow mist.
