Viking Corp., The    Hastings, MI 49058 9706
Aug 04, 2008 Model VK457 flat plate pendent sprinkler has temperature rating of 165°F. Available in 9 standard finishes, sprinkler is offered with 2 cover plate options: 2¾ in. dia cover plate for installations where aesthetics are priority, and 3 5/16 in. cover plate that offers horizontal foregiveability for maximum installation flexibility. Installation tools allow users to remove sprinklers' protective caps and install cover plates from floor, without need for using ladder.

Zontec Inc.    Cincinnati, OH 45240

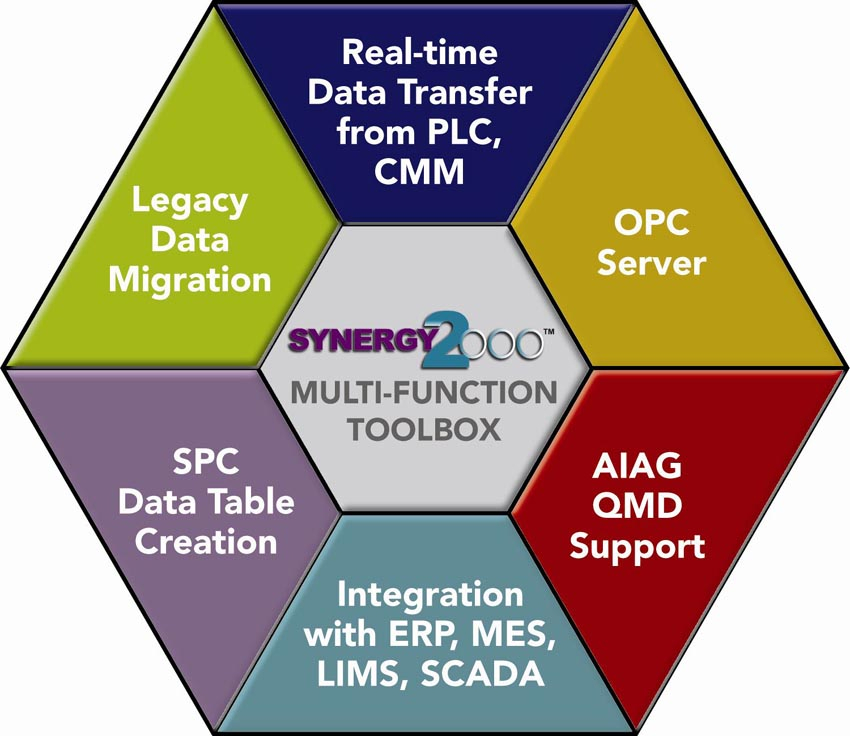

Aug 04, 2008 Using Synergy 2000(TM) Multi-function Toolbox users can achieve compatibility with previously isolated systems, enabling them to perform SPC charting, analysis, traceability, and reporting on any data regardless of its origin. Toolbox is designed for real-time data collection from CMMs, PLCs, and other process control devices; integrating data from ERP, LIMS, SCADA, and other manufacturing systems; and migrating legacy data from other SPC programs, business applications, and databases.

ID Technology Corp.    Fort Worth, TX 76106

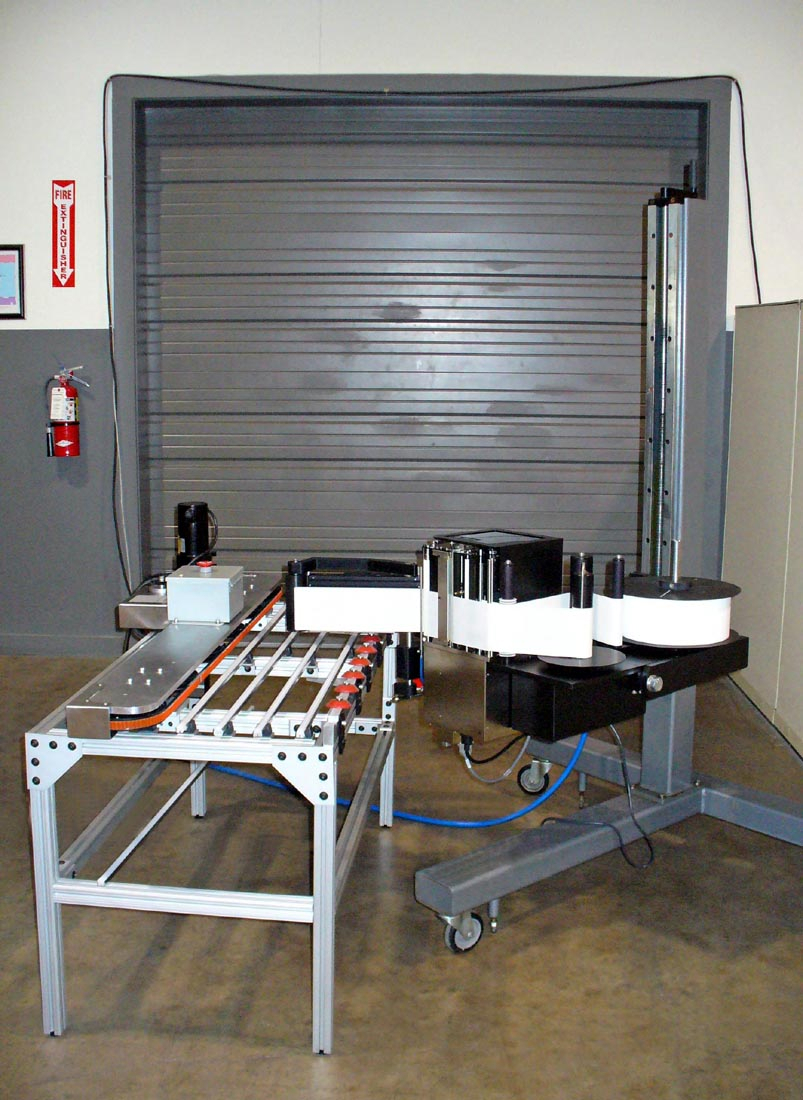

Aug 04, 2008 Featuring conveyor with variable speed side belt and rollers that drive empty carton through system, Model IDT 250 Printer Applicator is used to print and apply multi/single panel labels to empty boxes. It accommodates cartons from 10-24 in., and utilizes thermal transfer technology to print and apply variable information labels on-line, producing barcodes, text, and graphics at speeds up to 12 ips on various label substrates. Options include range of scanners, verifiers, and counters.

Altech Corp.    Flemington, NJ 08822

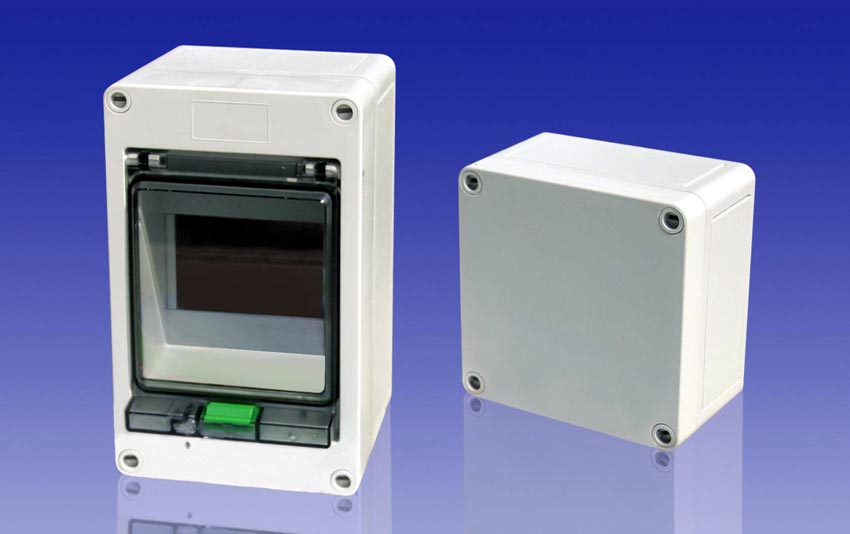

Aug 04, 2008 Rated up to IP65, small- to medium-size enclosures protect control and measuring equipment against dust, water, and corrosion in harsh operating environments. TK Series includes 13 enclosures in several cover heights with overall sizes ranging from 50 x 52 to 360 x 254 mm, Series has gray/tinted transparent covers, low base, and multiple fixing points. With overall sizes ranging from 130 x 94 to 361 x 254 mm, EK Series houses IEC components, such as DIN rail mount circuit breakers.

AMETEK Technical & Industrial Products    Kent, OH 44240
Aug 04, 2008 Available in 3 different lengths with rated power of 0.22 hp at 1,750 rpm and 1.0 hp at 3,450 rpm, MCG® MA34000 Series has integral single quadrant drive for 3-phase electronic commutation. It features pre-wired drive and feedback connections for low EMI and low audible noise, Hall sensors for closed loop velocity control, and integral electronics, which can be tailored for specific operating parameters.

Phoenix Contact    Harrisburg, PA 17111 0100

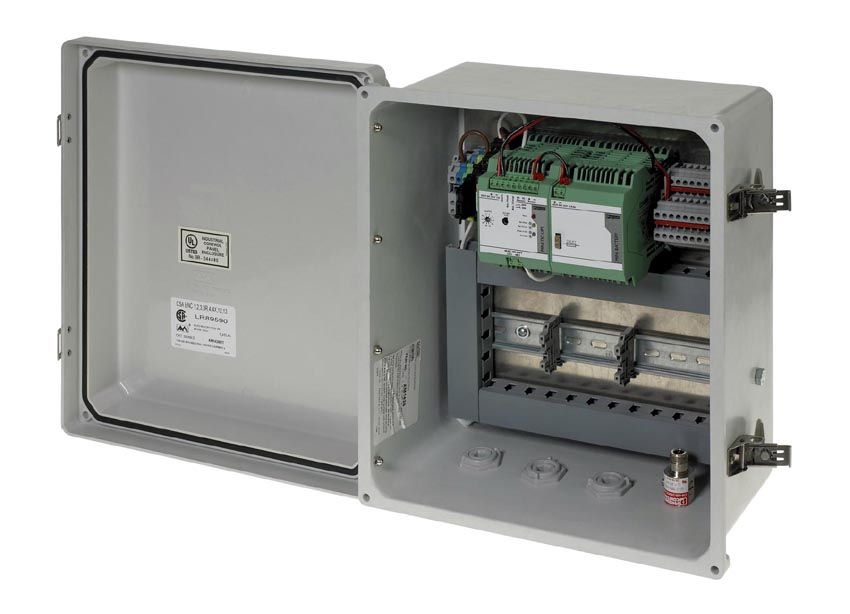

Aug 04, 2008 Including 24 Vdc power supply, UPS system, surge protection, and antenna adapter, RAD-SYS-NEMA4X-900 enclosure simplifies installation of industrial wireless radio modems and small RTU devices. Power supply with backup prevents failure of critical operations due to power dips and brown-outs, while surge arrestor protects against lightning and surges. Dual latching lockable lid prevents unauthorized access, and pre-wired power rail has space for Trusted Wireless or GSM/GPRS radio modem.

Crystek Corp.    Fort Myers, FL 33913

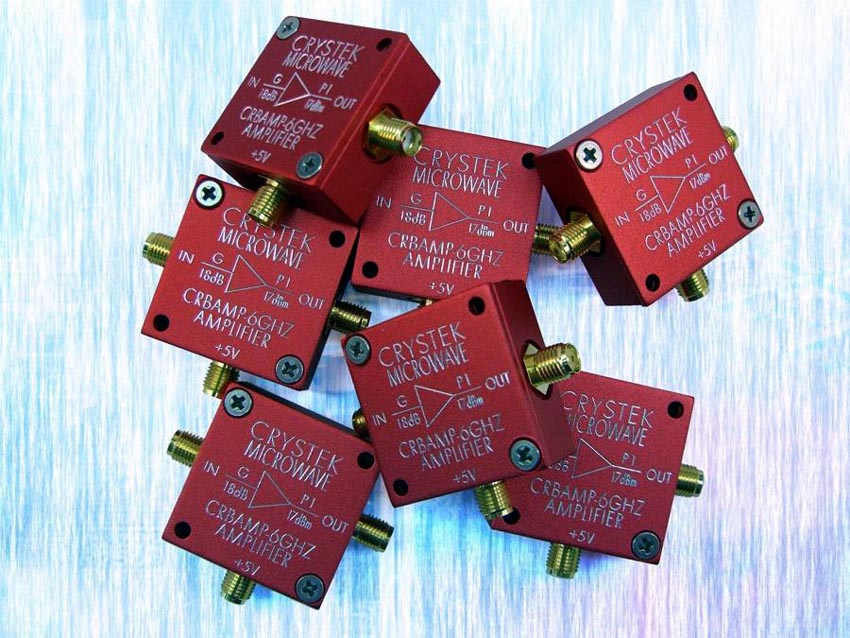

Aug 04, 2008 Housed in 1.25 x 1.25 x 0.59 in. aluminum enclosure with 3 SMA connectors, Model CRBAMP-100-6000 RedBox is low-noise general purpose connectorized amplifier featuring signal gain of 18 dB with output power of 17 dBm (P1dB). It also features typical noise figure of 3.5 dB with IP3 of +30 dBm. Suited for IF or RF buffer amplifiers, base stations, high-reliability applications, and general lab use, unit operates from single +5 V supply consuming only 60 mA.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Aug 04, 2008 Incorporating MAThread® anti cross-threading captive screw technology, PEM® floating access fasteners compensate for up to .060 in. mating thread misalignment. Type PF11MW with knurled cap meets operator access area requirements similar to UL 508, while PF12MW with smooth cap meets service access area requirements similar to UL 1950. With #4-40 to ¼-20 and M3 to M6 thread sizes, they suit close centerline-to-edge applications and can be installed on painted surfaces without marring.

Madison Company    Branford, CT 06405

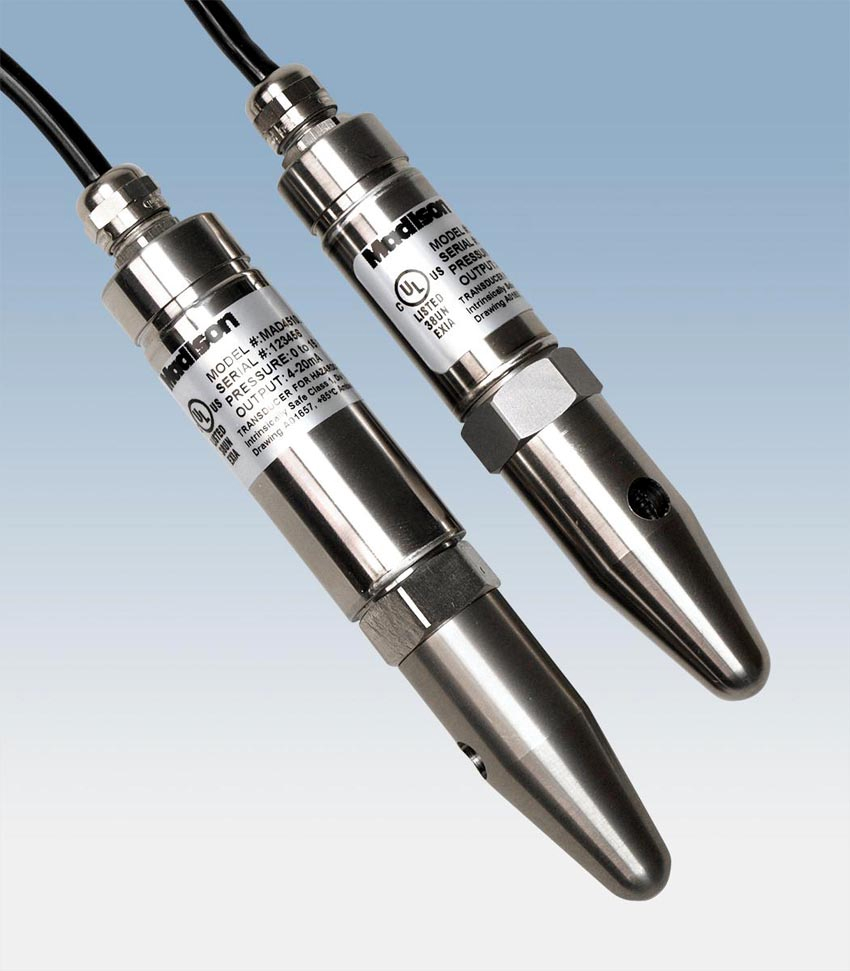

Aug 04, 2008 Constructed from high-strength stainless steel, models MAD4500 and MAD4510 are approved to UL/cUL913 (CSA 157) Class I Div 1, Groups C, and D for use in intrinsically safe areas with approved barrier. They utilize diaphragm technology and solid state design that provide high accuracy in various vessel configurations with liquid pressure up to 100 psig. Compatible with range of liquids, units are suitable for ground water level depth measurement and earthen and concrete dams.

Technifor, Inc.    Charlotte, NC 28273

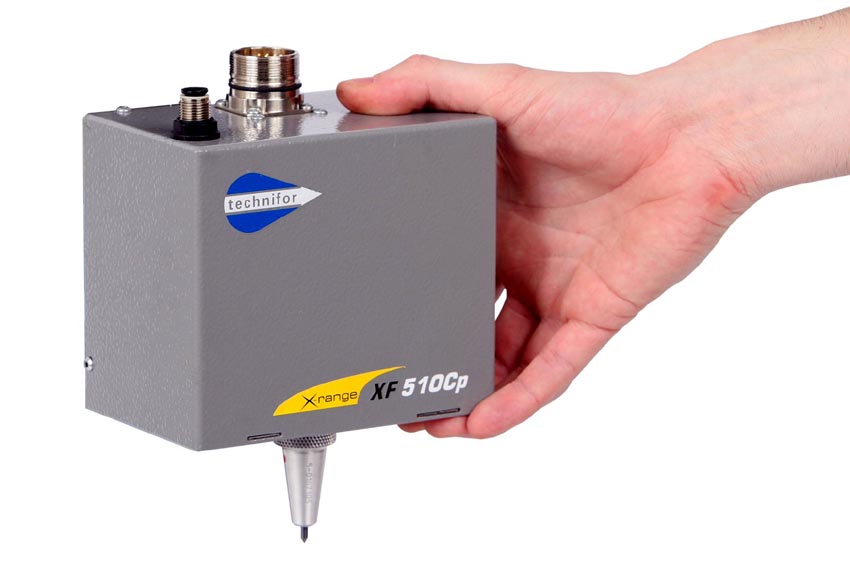

Aug 04, 2008 Able to mark metallic and plastic parts of various shapes and sizes, XF510Cp incorporates backward and forward movement to mark parts. Featuring RS232, USB, Ethernet connections, and 8 Input/4 Output card, unit has 5 lb marking head that measures 5.4 x 3.4 x 4.5 in. It has optimized 50 x 20 mm marking area with character height of 0.5-49.5 mm, and can be programmed for fixed texts, variables, linear, angular, radial marking with high memory capacity of up to 1,000 marking files.

CINTEC America Inc.    Washington, DC 20015
Aug 04, 2008 CINTEC Design Anchor System stabilizes and strengthens terra cotta structure. Main steel body of anchor is surrounded by fabric sock. Anchor is placed in oversized drill hole joining materials to be anchored together, fluid grout is injected under pressure through middle of anchor. When it reaches remote end, it passes through flood holes into fabric sock, inflating assembly. System has 2-hr plus fire rating and can be installed to be invisible.

ARI-Armaturen    Stukenbrock   United Kingdom
Aug 04, 2008 CONA All-in-One solution integrates steam trap, isolation valves, strainer, check valve and blowdown valve and requires just two pipe connections. Multi-valve system performs functions such as isolation, safety, control and steam trapping, and suits industrial applications including main line draining, steam distributing and tracing systems, as well as process industry.

REGO-FIX Tool Corp.    Indianapolis, IN 46268

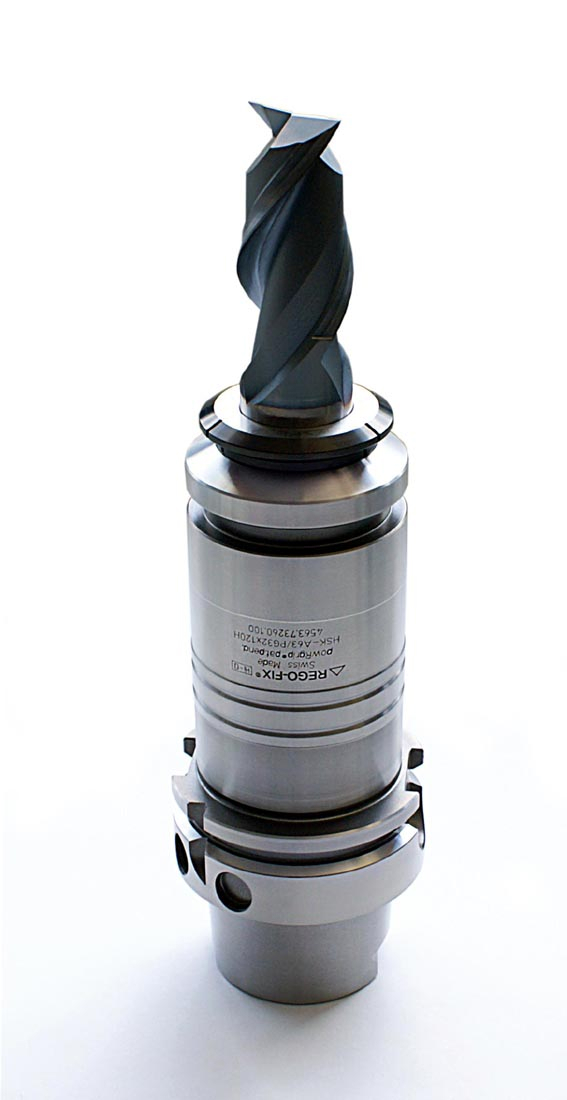

Aug 04, 2008 Comprised of toolholder and collet, powRgrip® PG 32 uses mechanical properties of holder material to generate gripping force with run-out below 0.0001 in. Available in metric and inch diameters up to 25 mm and 1 in., respectively, system is suited for high speed machining applications, and offers range of taper selection, including CAT, BT, HSK and TC versions. It takes less than 10 sec to press in any tool or remove it from holder.

White Hydraulics, Inc.    Hopkinsville, KY 42241 1127
Aug 04, 2008 Intended for medium duty mobile and industrial applications, WP Series hydraulic motors feature flow rates up to 16 gpm, torque to 4,320 lb-in., and pressures up to 2,320 psi at continuous ratings. Units have 3-zone spool valve design, high pressure shaft seal, and check valves. Twelve displacements are available ranging from 1.5-243.7 in³/revolution, along with 10 shaft options, 3 mounting options, and variety of porting options to meet SAE and European requirements.

Cleaver-Brooks    Milwaukee, WI 53201
Aug 04, 2008 Optimized Boiler Package includes 250-800 hp boiler that burns either natural gas or #2 oil, integral burner, 2-stage condensing economizer, Level Master, and Hawk ICS control system with parallel positioning. It also features deaerator that prevents corrosion of boiler surfaces, steam supply piping, and condensate return lines, combustion air fan which allows a motor to operate only at its required speed, and trim system that continuously senses oxygen content.

Dynapar    Gurnee, IL 60031

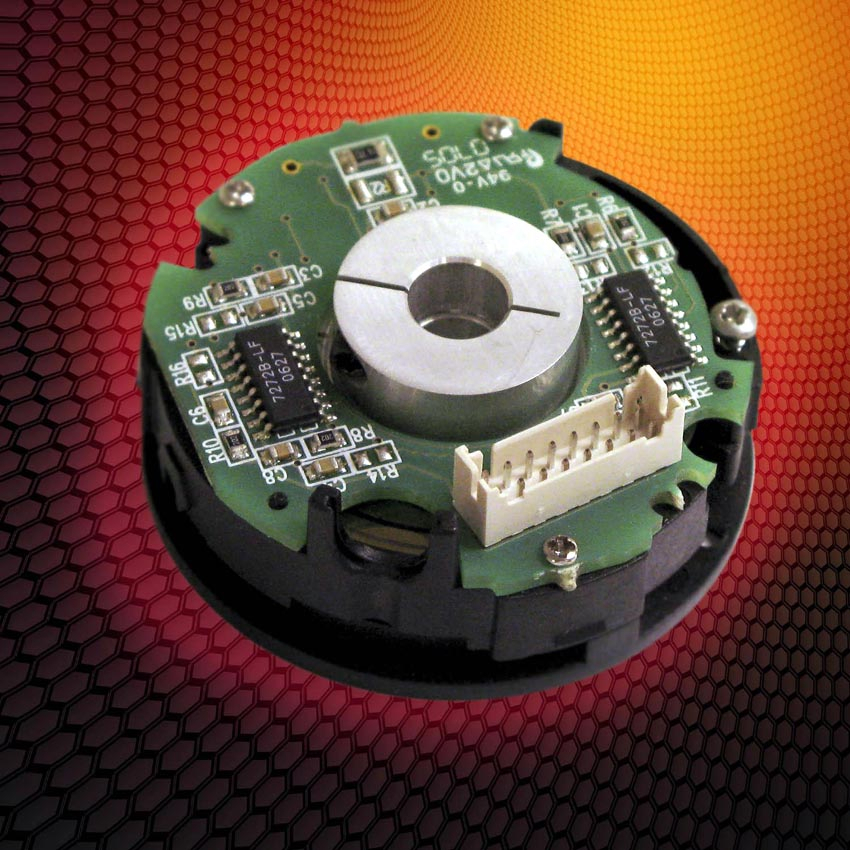

Aug 04, 2008 With low profile that enables mounting onto stepper and servo motors, M53 modular commutation encoder has direct-read phased array ASIC that provides 2,500 ppr. It comes with commutation tracks for 4, 6, or 8 pole brushless motors, and uses built-in gapping mechanism that requires no special tools or parts that can get lost or damaged. With ability to accommodate motor shafts from ¼ to ½ in. including metric sizes, encoder is suitable for use with variety of motors.

GE Co., GE Consumer Products    Louisville, KY 40225
Aug 04, 2008 Designed to perform for more than 50,000 hr, GE LED Cove Lighting System provides 280 useable lumens/ft and consumes just 6.5 W of energy. Unit eliminates light-quality inconsistencies and incorrect color temperatures or differing brightness levels in replacement lamps. It can be dimmed when connected to electronic low-voltage reverse phase control dimmer, and features 120° uniform beam pattern that produces bright and even warm-white light that eliminates socket shadows.

Michell Instruments    Rowley, MA 01969
Aug 04, 2008 Programmable for ºF, ºC, and up to 3,000 ppm, Easidew TX I.S Dew Point Transmitter is suitable for use in wide range of moisture controlled processes and environments. It operates over wide temperature range of -150 to 70ºF, pressures up to 5,800 psi, and achieves accuracy of better than ±1.8ºF. Incorporating NEMA 4 housing and HDPE sensor guard, unit is certified for use in hazardous locations to Div 1, Class 1, Groups A, B, C, and D through FM, CSA, and ATEX.

Hilti Inc.    Tulsa, OK 74121
Aug 04, 2008 Designed for reinforced concrete, granite curbstone, slabs, bricks, metal beams, and steel pipes, Models DCH 230 and DCH 300 Electric Diamond Cutters have cutting depth adjustment mechanism to reach depths of 3.4 and 4.7 in. Hilti Smart Power electronic control system constantly regulates motor power to suit material being cut and pressure applied to tool. Employing ergonomic in-line design with grip and cutting blades in exactly same axis, units allow precise guidance with less pressure.

IMS Company    Chagrin Falls, OH 44023

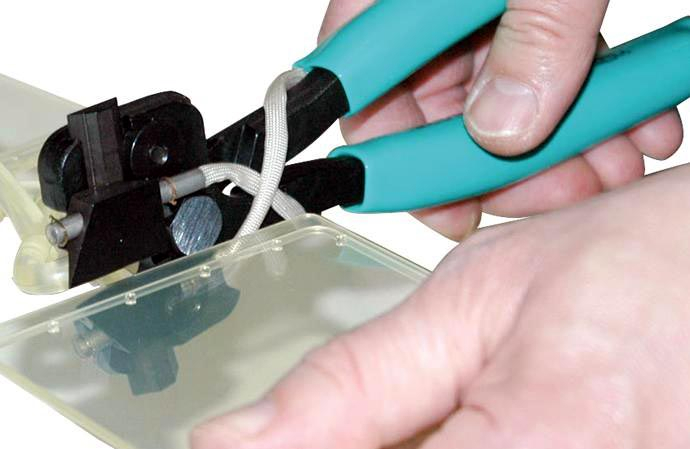

Aug 04, 2008 Eliminating violent pulling apart of molecules, IMS Heated Gate Cutters allow large gates to be cut with minimal stress on part and on worker by reducing most cracking, fracturing, and whitening around gates, leaving smooth surface. Precision temperature controller holds temperature steady, while foamed insulation keeps handles cool. Engineered from scratch to be heated, units have field-replaceable components including blades.
