Electronics Assembly, Henkel Corporation    Irvine, CA 92606
Dec 12, 2007 Suitable for laptops and gaming consoles that may experience only occasional vibration, 1-component Loctite® 3508 is pre-applied at corners of CSP pad site using standard dispensing system. It can be applied in-line with existing equipment with curing taking place during normal solder reflow process. Reworkable, lead-free compatible material enables total ball collapse and self-alignment properties to compensate for slight component-to-pad misalignment during placement.

Imsys Technologies AB    SE-194 61 Upplands Väsby   Sweden
Dec 12, 2007 Bridging gap between high-level source code and gate level execution, IM3910 Reconfigurable System-on-Chip features integral Java Virtual Machine, making it suited for automation networking, battery-powered devices, Internet connected equipment, and Java-enabled remote control, point of purchase systems, and facility management. Device supports dual 10/100 Ethernet ports, 3 UARTS with 920 kbit/s, I2C or 20 Mb/s SPI port, and 8 DMA channels.

ProMinent Fluid Controls, Inc.    Pittsburgh, PA 15275
Dec 12, 2007 Used for removal of colloidal solids from liquids, double decker Ultromat® systems come in versions for use with powder polymers only (AFD series), liquid polymers only (ATD series), or both (ATFD series). Separate batching/aging and dosing tanks allow batch to be prepared in aging tank while contents of dosing tank are being used. Subsequently, prepared batch can then be transferred to dosing tank. Fully automatic, turnkey units can produce 0.05-0.5% flocculant dosing solutions.

Lee Spring    Brooklyn, NY 11220
Dec 12, 2007 REDUX Wave Springs are manufactured from single strand of Type 17-7 PH stainless steel flat wire formed in continuous precise coil with uniform diameters and waves. They are available for hole diameters from .375-1.25 in. to meet load requirement from 4-30 lb. Custom designs in variety of materials are also offered.

CAMI Research Inc.    Acton, MA 01720

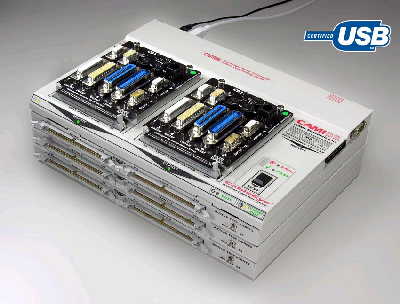

Dec 12, 2007 Using built-in scripting for pre-programming, PC-based CableEye can test cable, log test result to archive, print report, print label, or take conditional actions depending on pass or fail result. When program's language preference is changed from English to Spanish, screen labels, dialog boxes, advisory screens, and error messages appear in Spanish text to benefit operator. Program may be changed from one language to another at login.

Abloy Security, Inc.    Irving, TX 75063 2665
Dec 12, 2007 Designed to fit snugly over meter coupling nut, SHUT-OUT® Defender prevents redirection of piping to bypass residential meters, defending against theft for maximum asset security. Constructed of hardened steel, unit features High Security ABLOY® cylinder with steel body and hardened steel, chrome-plated face. Spring-free construction prevents jamming for smooth operation. Lock is resistant to physical attack and tampering, as well as wear, dirt, moisture, corrosion, and freezing.

IBASE Technology Inc.    Taipei   Taiwan

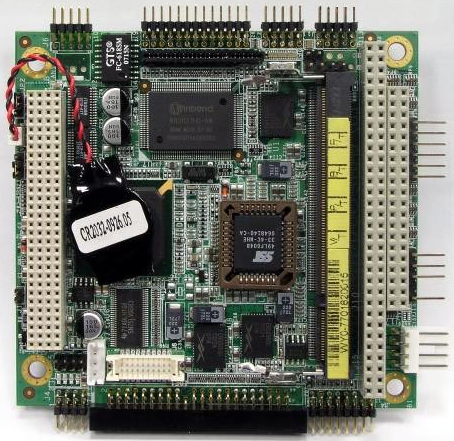

Dec 12, 2007 Occupying 90 x 96 mm footprint, IBASE IB704 does not require fan, is rated for -20 to +70°C operation, and suits space-constrained applications. It features AMD Geode CS5536 companion device, optimized to work with 0.9 W, 500 MHz AMD Geode LX 800 processor. One SO-DIMM socket supports up to 1 GB DDR SDRAM, and integrated VGA controller supports CRT, TFT, and LVDS LCDs. Connectivity is provided by PC/104+ and 10/100 BaseT Ethernet interfaces as well as 4 USB 2.0 and 2 serial ports.

CTC International, Inc.    West Caldwell, NJ 07006
Dec 12, 2007 Engineered for splicing variety of materials, including cable tapes used in coaxial cable production, cantilevered Model S-EBL-DSB-ACV always applies first tape to top side of web, without having to turret unwinding spindles. Splicer mechanism opens for splice preparation, and can be set up to provide overlap type splice. Unwind system is specifically designed to accommodate traverse wound spools or pancake wound rolls of tapes common to wire and cable manufacture.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Dec 12, 2007 Variable capacitance model 7290D exhibits thermal stability and global accuracy required for acceleration measurement in laboratory test, automotive, and aerospace applications. Gas damping and internal over-range stops enable anisotropically etched, silicon sensing element to withstand shock and acceleration loads. Delivering 2.5% total dynamic accuracy over entire military spec range of -55 to +125°C, product operates with excitation of 8.0-30.0 Vdc.

Revvo Caster Co., Inc., The    West Seneca, NY 14224

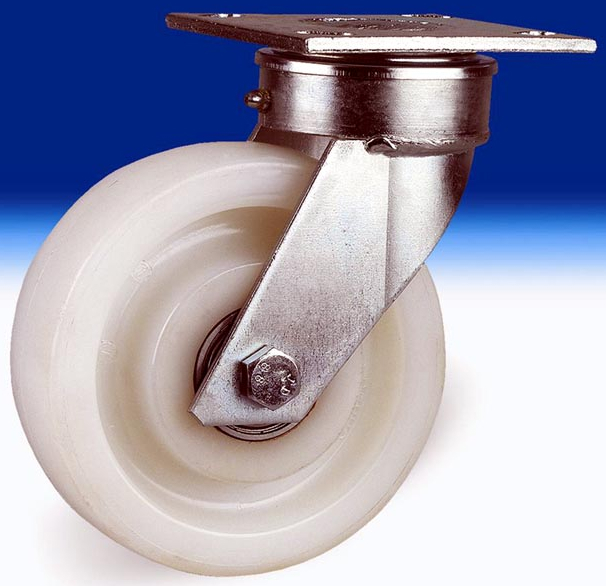

Dec 12, 2007 Available in swivel and rigid models, K Series features kingpinless top plate design and corrosion-resistant zinc plating. Steel frame promotes impact resistance as well as turning and tracking capabilities. Designed for medium-duty towing, casters support up to 1,760 lb for 6 in. dia wheel and 2,200 lb for 8 in. dia wheel. Swivel head has full ballrace of 2 3/8 in. dia, with steel ball bearings in hardened raceways. Hand-operated wheel lock or 2-way directional lock are available.

Asahi/America    Malden, MA 02148

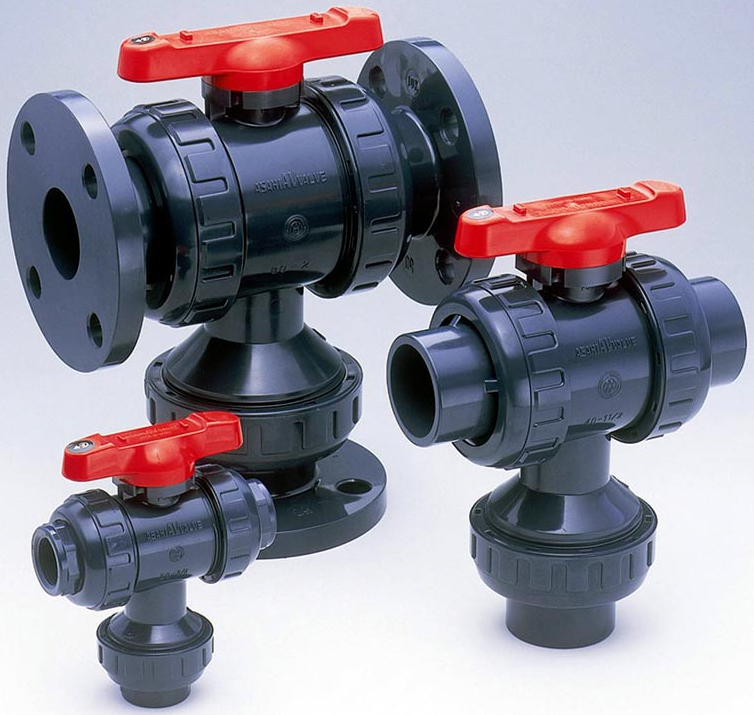

Dec 12, 2007 Offered in sizes from ½-2 in., 3-way Type 23 Multiport ball valve is available with Cross Port Ball. Molded flow corridor inside ball cavity allows for separate L-port flow pattern in valve that also has Straight Through flow pattern. Able to be configured to allow for L-Port, T-Port, and Straight Through flow patterns in one valve body, design lets operators switch between all 3 options by rotating valve handle.

Eurotherm Controls    Leesburg, VA 20175
Dec 12, 2007 Able to be used in true power, phase angle firing, or burst firing modes to suit application at hand, EPower employs load sharing and load shedding techniques to minimize power demand and expenditure. Integral load sharing technology ensures group of loads, up to 63, can be switched on/off in manner that evens out average power demand. Load shedding feature, also included, lets users define maximum allowable peak demand.

Advantech Automation Corp.    Cincinnati, OH 45240

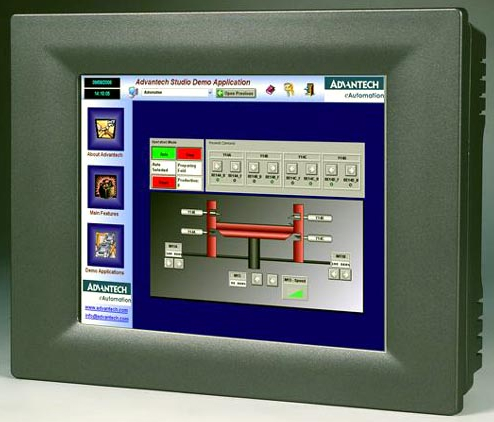

Dec 12, 2007 Suited for small-sized operator interface applications in industrial environments, TPC-662G is powered via AMD LX800 processor and comes in plastic housing with NEMA4/IP65 front panel. In addition to resistive touch screen, non-volatile solid-state storage, and fanless operation, computer offers 8-bit PC/104 expansion slot, CompactFlash slot, RS-485 with automatic flow control, and CAN-bus 2.0B protocol capability. Unit supports Windows XP/CE and WinXPe.

Messer - MG Systems & Welding, Inc.    Menomonee Falls, WI 53051
Dec 12, 2007 Available for TMC 4500ST Cutting Machine, Heavy-Duty Drill can be combined with normal plasma and oxyfuel cutting for single handling of part. Drill unit is activated and spindle rpm and feed rate are set automatically via CNC commands or manually by operator. Drilling up to 1¾ in. diameter, unit offers 4 in. drill stroke, which is feed-rate controlled to minimize tool breakage. Additional features include 50 taper spindle, automatic tool exchange, and mist coolant.

OnStat Power    Stamford, CT 06902

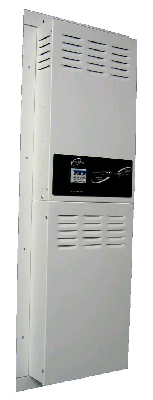

Dec 12, 2007 Measuring 14 in. wide, battery-operated SILENT SENTRY(TM) mounts flush on or between wall studs 16 in. O.C. Automatic transfer switch allows system to activate instantly and automatically recharge for 24/7 protection. Unit connects to supply power either by hardwiring or via standard extension cord. With 2,000, 2,500, or 3,000 W capacity and up to 4 KWH of stored energy, system can support sump/well pumps, gas/oil fueled heating systems, and other mission critical needs.

MMD Components    Rancho Santa Margarita, CA 92688

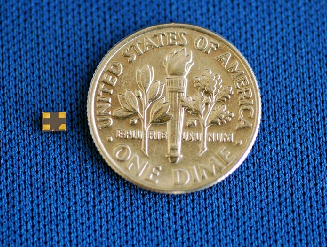

Dec 12, 2007 Housed in hermetically sealed, surface-mount ceramic packages, MXH Series operates at supply voltages of 1.6 Vdc minimum, with max power consumption during full operation as low as 8 mA. Units feature operating temperature of -40 to +85°C, frequency stability as tight as ±25 ppm, max start-up time of 10 ms, and rise/fall time of 4 ns. Measuring 2 x 2.5 mm, RoHS-compliant devices are suited for mobile and cordless phones, digital cameras, PDAs, and notebook computers.

Advantech Co. Ltd    Irvine, CA 92618
Dec 12, 2007 Powered by Intel® Q965/ICH8DO chipset, Model AIMB-564 supports Intel® Core(TM)2 Duo processors and implements Active Management Technology to enable remote management. Unit handles up to 8 GB dual-channel DDR2 533/667/800 MHz memory, with 1,066/800/533 MHz FSB. Drive connections for up to 7 SATA II and 1 eSATA HDD are designed with software RAID 0, 1, 5, 10 support, making AIMB-564 suitable for storage-intensive applications. Trusted Platform Module can be plugged in for added security.

Rino Industries Ltd.    Chesterfield S41 9RN  United Kingdom
Dec 12, 2007 Designed for use mainly under high-duty, oil-lubricated conditions, DP4 series offers static and dynamic friction coefficient that lends to optimized wear resistance. Design also resists cavitation and flow erosion damage of polymer bearing surface by lubricant. While able to be used in sliding, oscillating, reciprocating, and rotating applications, products also work with non-lubricating fluids and in light-duty, unlubricated applications.

Linear Technology Corp.    Milpitas, CA 95035
Dec 12, 2007 Offered in 4 x 4 mm, 16-Pin QFN package, LT3517 and LT3518 are 45 V DC/DC converters that sense output current at high side of LED and enable buck, buck-boost, or boost configurations. They feature 1.3 and 2.3 A switch current limits, respectively, and operate from 3-30 V input. While LT3518 can drive up to ten 350 mA white LEDs from 12 V input, LT3517 can drive 5. Both have fixed frequency, current mode architecture and offer efficiencies up to 90% in boost mode.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Dec 12, 2007 Supplied in protective metal casing, Series DPMX has 3½-digit display - available with 2.3 in. LED segments in red, green, or blue - that can be viewed from across room or in dark areas. Features include 90-250 Vac universal power supply, user-selectable process inputs, and mounting bracket that can be adjusted up to 180°. Suited for most types of process measurement applications, unit offers accuracy of ±1% FS + 1 count and sampling rate of 3 readings/sec.
