Fairchild Semiconductor    San Jose, CA 95134
Aug 01, 2008 Model FXL2SD106 has built-in automatic direction control that allows device to sense and control direction data should flow. Along with ESD protection on B side of 12 kV, it also offers output enable control feature that allows designers to disable outputs to save power when product is not in use. FXL2SD106 is packaged in 2.5 x 3.5, 16-pin DQFN packaging that features no signal pins in center, allowing designers to easily bond this package to board.

DeVilbiss , ITW Industrial Finishing    Glendale Heights, IL 60139

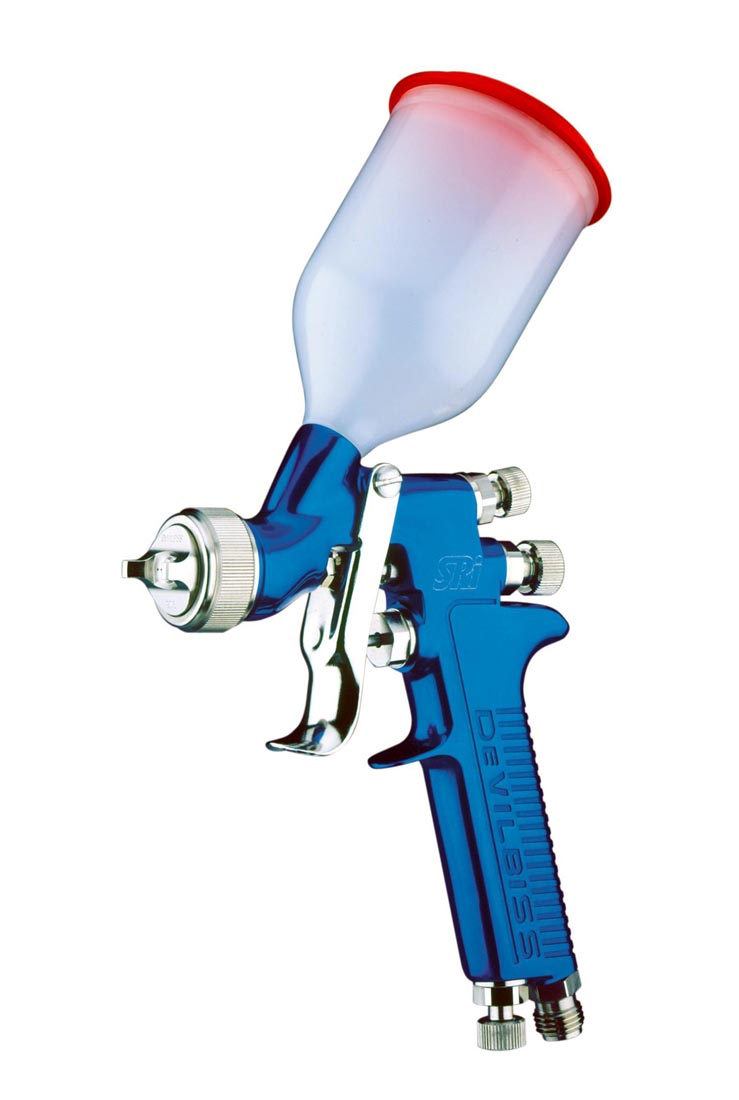

Aug 01, 2008 Available in both Trans-Tech and HVLP technologies, DeVilbiss SRi(TM) features full fan and spot patterns, full size air and fluid controls, and cheater valve for precision air adjustments. Single-finger trigger adjusts from fine feathering to fade-outs and provides uniform material distribution. Disposable cups thread into gun body and feature color coded, drip-free lids for easy material identification.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Aug 01, 2008 FCA-22 Analyzer System monitors free chlorine in drinking water, rinse water, cooling water, and other fresh water samples from 0.05-20.0 ppm Cl2, 5-9 pH, and at temperatures from 32- 122°F. Constant head flow control device maintains optimum water flow past sensor over 10-80 gph incoming flows. Incorporated pH sensor provides compensation for samples from 6.5-9 pH, and Cl2 sensor's polarographic, gold/silver PFTE membrane construction extends sensor life.

GF Piping Systems    Tustin, CA 92780-7258
Aug 01, 2008 Featuring foul-proof DryLoc connector and Ryton® sensor body to provide chemical compatibility for use in wide range of applications, Models 2724-2726 Signet DryLoc pH/ORP Sensors can mount into standard Signet 0.50-4 in. fittings as well as Georg Fischer tees and off-the-shelf reducing tees ¾ in. or larger. Retrofitting into existing ¾ or 1 in. tees can be done by using reducer bushing. Sensing elements are available in various configurations, and all provide 4-20 mA output.

Applied Motion Products, Inc.    Watsonville, CA 95076

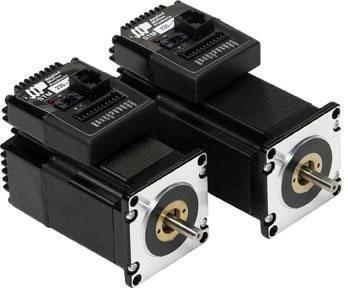

Aug 01, 2008 Featuring advanced current control, anti-resonance technology, torque ripple smoothing, and microstep emulation, STM Drive+Motor solution delivers optimized stepper performance suited for variety of automation applications. It is available in lengths of 92.4 and 114.4 mm with output torque of up to 125 and 245 oz-in., respectively. Unit has 3 digital inputs, one digital output, and analog output, RS232 or RS485 communication interface, and optional 1,000 line encoder.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 01, 2008 Featuring programming screen and universal mounting options, Bebco EPS® 6000 Series Purge/Pressurization System can be used with enclosures up to 250 ft³. Purging system contains controller, pneumatic, electrical I/O, and programming interface with back-lit LCD in type 4X, IP66-rated housing. Suited for offshore, refinery, and pharmaceutical applications, IECEx, cULus, and ATEX directive certified system has exposed parts that are made of 316L stainless steel.

Adhesives Research, Inc.    Glen Rock, PA 17327
Aug 01, 2008 ARclad® 92262 and ARclad® 92264 electrically conductive adhesives exhibit adhesion to film and metal substrates, including Kapton®, gold, and stainless steel. ARclad® 92262 1.8 mil adhesive bonds to EMI shields, ground plane assemblies, and electrical interconnections. Designed for capacitance sensors, multi-pin connectors, and other fine pitch signal applications, ARclad® 92264 2.0 mil adhesive allows overlapping of multiple contacts without electrical cross-talk occurring.

McPherson, Inc.    Chelmsford, MA 01824

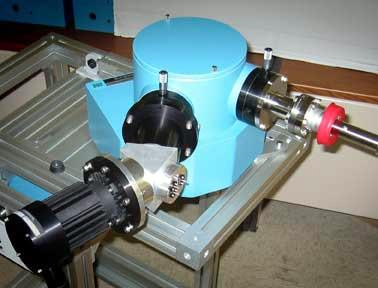

Aug 01, 2008 With ability to test varied long- and short-wavelength UV regions, Ultraviolet Photon Excitation system provides in-laboratory access to vacuum-ultraviolet for material analysis, spectral calibration, and photo-excitation spectroscopy. It combines properties of computer optimized, all-reflective, spectrally tunable monochromator with MgF₂ window Deuterium and/or windowless hollow cathode light source. Light source emission wavelengths include 30.4, 58.4, 73.7, 102, and 121.6 nm.

The Imaging Source, LLC    Charlotte, NC 28226

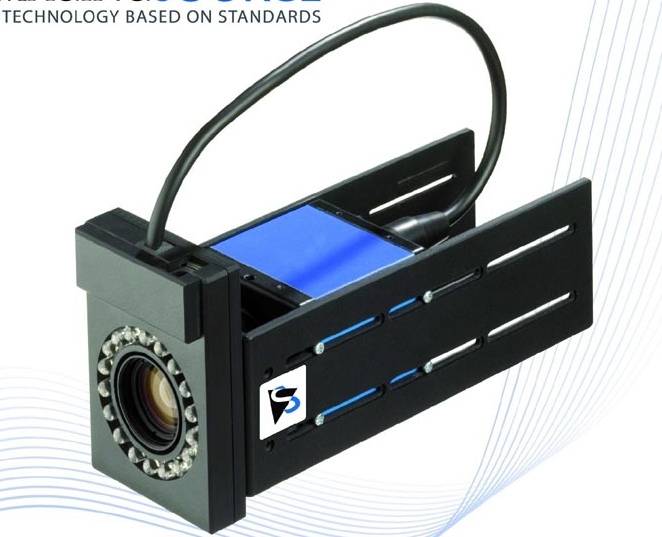

Aug 01, 2008 With ability to seamlessly integrate with Imaging Source USB, FireWire, and GigE camera, LED lighting modules can be set via IC Capture, IC Imaging Control, or by customized software. IC Capture application allows users to set all camera parameters, save singular images and image sequences, and display live video streams. IC Imaging Control SDK consists of .NET component, ActiveX control, and C++ class library for Windows XP and Windows Vista.

Mahr Federal Inc.    Providence, RI 02905
Aug 01, 2008 Incorporating 4-axis Power PC controller with automatic tailstock and 3D scanning probe head, GMX 400 is suited for universal and specialized gear manufacturing processes. Equipped for stand-alone shop floor or gear lab applications, unit can be fully networked for transfer of measuring results and machine corrections. It allows fully automatic correction of alignment errors using Wobble angle compensation software, and single cycle measurement and analysis of multiple gear shafts.

Pass & Seymour/Legrand    Syracuse, NY 13221
Aug 01, 2008 Available in single- and double-gang versions in multiple box sizes, P&S PlugTail(TM) Metal-Box Kits feature pre-installed P&S PlugTail(TM) connectors, ground wire pre-mounted to box, and factory-installed mud ring. At device-out, contractors can remove P&S PlugTail(TM) poly-bag protection and install device. Suited for light commercial construction projects where quick and consistent installation is critical, units eliminate need for protective cover plate.

Bayspec Co    Fremont, CA 94539
Aug 01, 2008 Measuring 110 x 88 x 39 mm², SuperGamut(TM) f/2 NIR spectrometer allows integration into portable/handheld test equipment. It has solid-state design based on in-house Volume Phase Gratings(TM) in conjunction with linear photodiode arrays. Unit is suited for wide range of applications including process automation technology, petrochemical facilities, pharmaceuticals, food processing, agricultural feed monitoring, semiconductor wafer monitoring, and pulp/paper monitoring.

BEX, Inc.    Livonia, MI 48150 5031

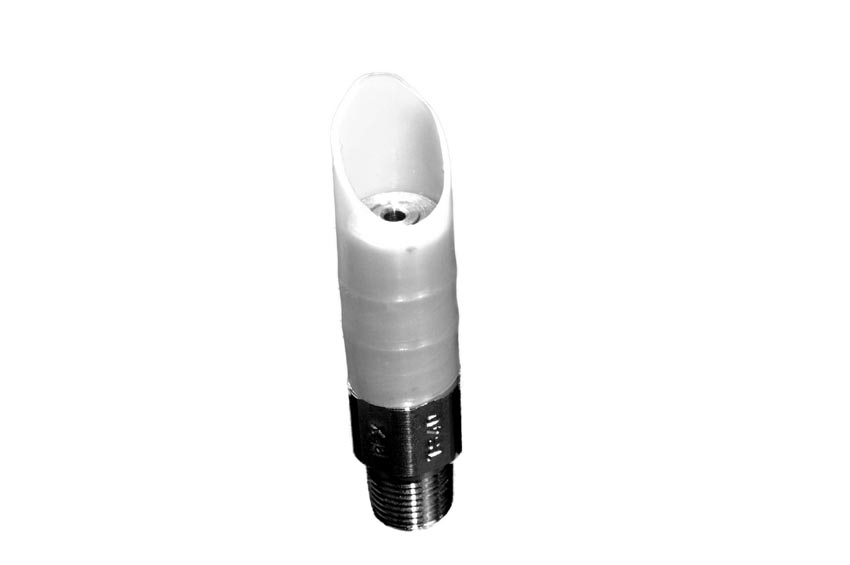

Aug 01, 2008 Designed for high-pressure trimming applications in pulp and paper industry, BEX WT series nozzles feature wear resistant synthetic ruby insert. They produce steady laminar stream of liquid at up to 2,000 psi of pressure. Adjustable Teflon® shield protects orifice from loose strands of fiber (produced by high-pressure trimming action) that could otherwise plug orifice.

Thermo Fisher Scientific    Waltham, MA 02454
Aug 01, 2008 Utilizing Sandia National Laboratory fit2db spectroscopic identification technology, Matrix ARIS Mobile Detection System offers real-time results for radiation survey, patrol, and isotope identification. It consists of gamma and neutron probes, ARIS radioisotope identification system, and rugged laptop. Lightweight design allows for easy mounting into any standard SUV, boat, or other vehicle, as well as portable packaging such as large suitcase.

HD Electric Co.    Waukegan, IL 60085

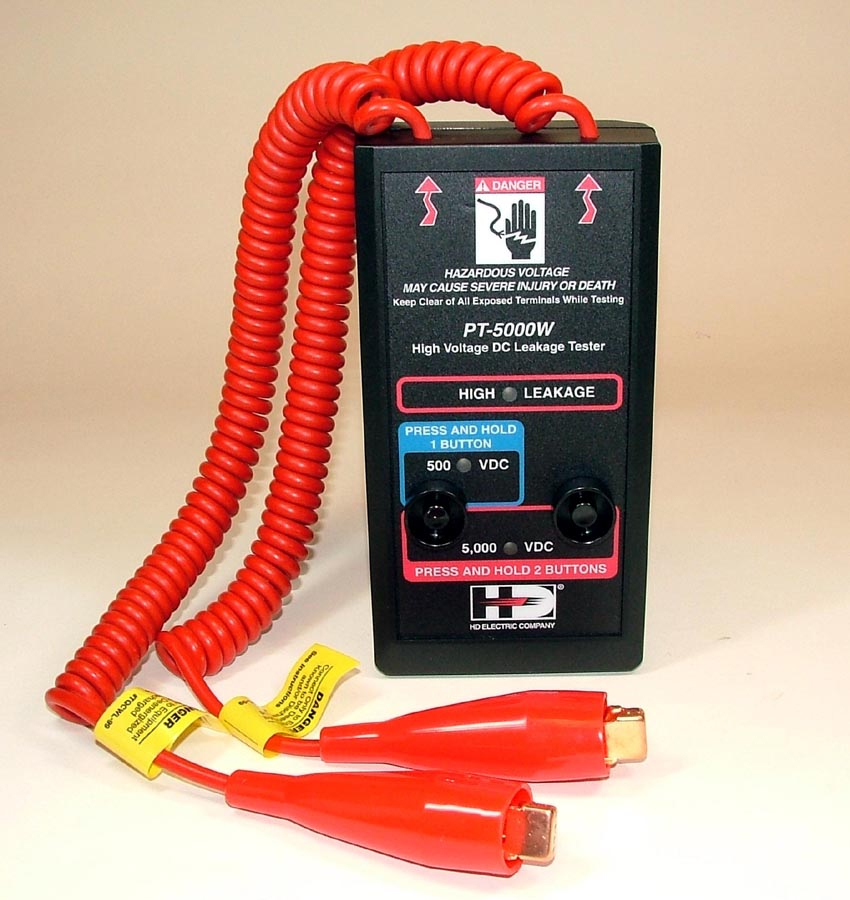

Aug 01, 2008 Model PT-5000W High Voltage DC Leakage Tester is designed to test primary distribution voltage or secondary voltage equipment for faults or high leakage currents. It can only be used on cables or equipment that have been verified to be de-energized and discharged. Suited for checking for leakage on cables, transformers, capacitors, joints, terminations, and insulators, unit allows test voltage to be set to either 500 or 5,000 Vdc.

Next Generation Power Engineering, Inc.    Jacksonville, FL 32246
Aug 01, 2008 Measuring 42 x 26 x 30 in. and weighing 375 lb, two-in-one, diesel-powered Generator Compressor produces 20 cfm at 150 psi and 5 kW of electrical power. Heavy-duty, powder-coated, belt-driven Schulz air compressor has all CNC-machined parts and operates at 1,000 rpm. Featuring vortex combustion system and 2-cylinder Kubota Z482 engine, water-cooled gen-set runs at mid-speed, peak torque at 2,800 rpm.

Bodine Electric Company    Northfield, IL 60093

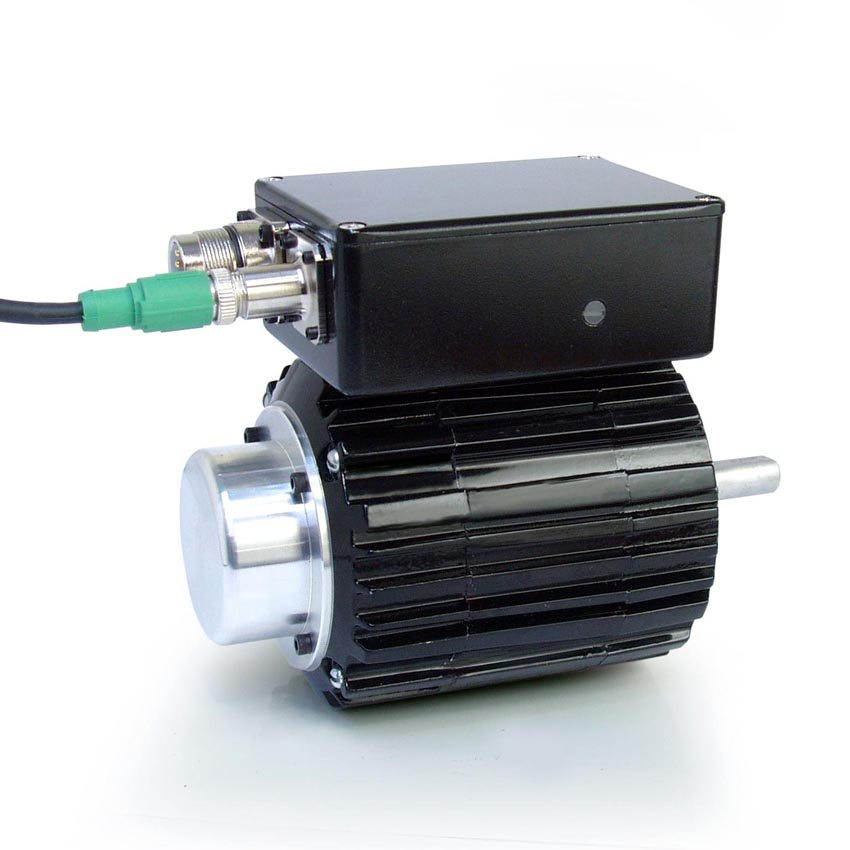

Aug 01, 2008 Featuring digital PWM interface for speed control, INTEGRAmotor(TM) 34B/FV offers ¼ hp (187 W) and operates from regulated 24 Vdc power supply. Integrated control accepts inputs from external motion controller or PLC, while enclosed 1,024 ppr, 2-channel optical encoder provides closed loop feedback to external controller. IP44 rated, 34B-frame unit can be combined with range of parallel shaft, right angle, or hollow shaft integral gearheads.

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany

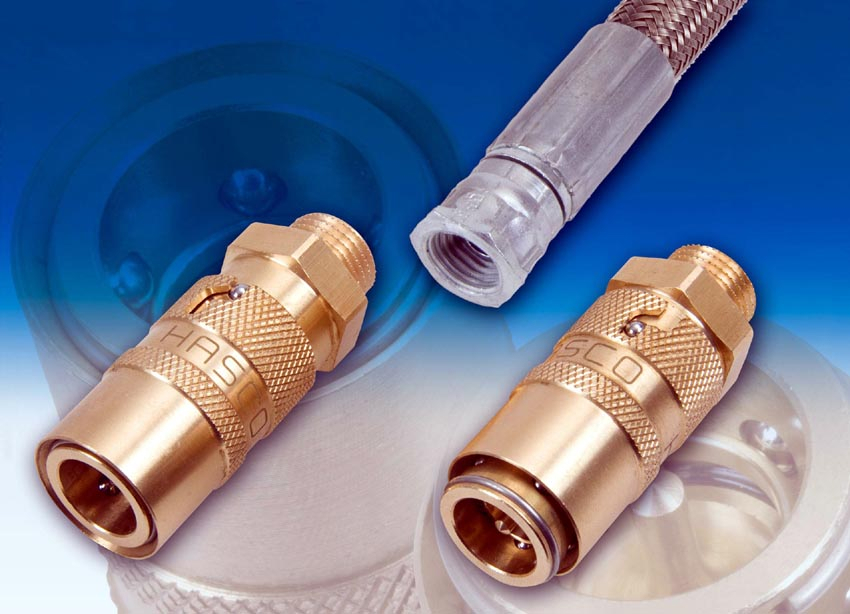

Aug 01, 2008 Compatible with HASCO cooling system, HASCO Safety Coupling Z80700 is operated by bayonet-type mount to prevent unintentional decoupling of cooling system. Capable of avoiding leakages, it can be used for clean room applications. Unit is available as straight design with connecting thread in nominal dia of 9-13 mm, and is suited for use with oil, water, and air.

Igus, Inc.    East Providence, RI 02914 0349
Aug 01, 2008 With installation height of 1.22 in., DryLin® ZLW-0630 self-lubricating actuator features toothed-belt linear drive equipped with hard-anodized aluminum profile, DryLin W compact linear guide, iglide® J plastic sliding elements, and plastic end blocks. Weighing 1.76 lb, maintenance-free unit has 2 ft stroke and operates at speeds up to 6.5 fps. DryLin ZLW is suited for quickly positioning small loads.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 01, 2008 Made of fiberglass-reinforced polypropylene plastic, Cabinet U-Handles are ergonomically-designed, and come with matte black finish. Mounting holes are counterbored for socket cap screws. Both dimensions of cabinet U-handles, including inch and metric, are interchangeable. Various size fasteners and kit packaging are also available.
