UQM Technologies    Frederick, CO 80530
Aug 05, 2008 Suited for automotive applications including all-electric, plug-in hybrid, and series hybrid vehicles, UQM® proprietary permanent magnet propulsion system has continuous power rating of 60 hp, 118 lb-ft continuous torque, and peak torque of 221 lb-ft. It features optimized four-quadrant performance, speed and voltage control, and system energy efficiency of over 90%. With diameter of 11 in. and weight of 90 lb, motor fits in subcompact passenger vehicles.

Connect One Semiconductors, Inc.    Phoenix, AZ 85023
Aug 05, 2008 Supporting WLAN and all cellular standards, iChip CO2144 enables embedded developers to connect embedded devices to any kind of IP network. It includes 10/100BaseT Ethernet MAC and supports 10 simultaneous TCP/UDP sockets, 2 listening TCP sockets, SMTP, MIME, POP3, FTP/Secure FTP, Telnet, and HTTP/HTTPS clients, and SerialNet(TM) mode for serial-to-IP bridging. RoHS-compliant chip operates at industrial temperature range of -40 to 85°C and includes WLAN and Internet encryption algorithms.

Allegro MicroSystems Inc.    Worcester, MA 01615
Aug 05, 2008 Available in 48L eLQFP package, Model A4935KJP-T is suited for systems that use sinusoidal control of motor phase currents. Automotive grade 3-phase MOSFET pre-driver IC integrates regulating charge pump that provides full gate drive capability for battery voltages down to 7 V and reduced gate drive for battery voltages as low as 5.5 V. It features fault diagnostics and reporting to decode and identify faults as well as top-off charge pump and boot strap charge management.

Sealevel Systems Inc.    Liberty, SC 29657
Aug 05, 2008 SeaLINK+4.SC and SeaLINK+8.SC offer 4 or 8 serial ports that are software configurable for RS-232, RS-422, or RS-485, eliminating need to open the enclosure to change jumper settings or dip switches. Devices maintain their electrical interface settings locally, allowing host computer to be repaired or upgraded without reconfiguring serial ports. They include USB type B connectors to help prevent unintentional disconnection from standard USB cables.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Aug 05, 2008 MOD Material On Demand system integrates 2 plastic hoppers capable of holding up to 800 lb each with designed-in bench scales all secured within powder coated steel frame, and enables measured amount of material to be dispensed. Machine operators draw material from one hopper during production and when it is empty, material is drawn from second hopper without halting production. Empty hopper is removed by forklift and replaced with fully loaded hopper without idling staff or machinery.

IDEC Corporation    Sunnyvale, CA 94089-2209
Aug 05, 2008 Available in traditional brick design with 10, 16, or 24 built-in I/Os, 12 Vdc MicroSmart Pentra can handle solar applications, including traffic signs, lighting controls, road sign controls, and tracking systems. It is also suited for remote water pumping stations and injection systems in gas and oil industry, as well as vehicle applications such as utility trucks, trains, vans, and buses. Unit supports double-word and floating point math, and has WindLDR v5.32 programming software.

BlueCielo ECM Solutions    2288 BA Rijswijk   Netherlands
Aug 05, 2008 InnoCielo Publisher 2008 can render engineering documents into universally readable formats and store them in a target system. With Queue Management, InnoCielo Meridian Enterprise users can access publishing queue from PowerUser or OfficeUser desktop clients, allowing publishing jobs to be viewed, restarted, and cancelled. PDF Merge module allows multiple documents in different source formats and linked by references or properties to be consolidated into single PDF rendering.

Siemens PLM Software    Plano, TX 75024
Aug 05, 2008 Parasolid® v20.0 includes face delete and change functions to support complex topologies and blend capping controls that allow complex blend configurations to be constructed with simple steps. It can automatically optimize model tolerances, resulting in quality and productivity improvements across multiple operations. Software enables SMP hardware to generate facet data for visualization and downstream applications, reducing time needed for design validation and manufacture.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Aug 04, 2008 Rated 50 mA at 35 Vdc, SH Series comes in non-illuminated models as well as illuminated styles using single or bi-colored LED options. Dielectric strength is 500 Vrms minimum with insulation resistance greater than 100 MW. Units are available with pre-engraved process symbols and 3.3 mm square post for custom actuator designs. Operating from -40 to 85°C, switches feature polycarbonate cover, Valox base, and silver-plated copper alloy contact and terminals.

Emuge Corp.    West Boylston, MA 01583-2121
Aug 04, 2008 Intended for high-volume machining, Alu-Jet-Cut End Mills are capable of cutting speeds in excess of 3,000 sfpm. Wear-resistant carbide substrate helps resist vibrations that could otherwise lead to premature chipping of cutting edges. Chip conveyor provides control over chip shape and directional flow to maximize chip evacuation capacity. Made with through-coolant capability, roughing cutters feature 3 flutes while finishing cutters have 3 or 4 flutes.

Eriez Magnetics    Erie, PA 16506

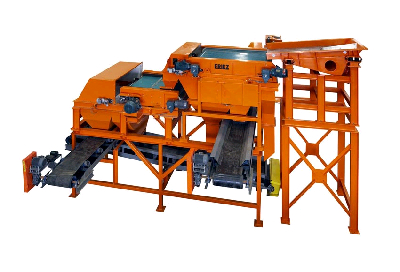

Aug 04, 2008 Using ProSort and FineSort(TM), scrap handlers can recover nearly 90% of metals passing through scrap yard. Airless Prosort uses metal sensors aligned with electromagnetically driven paddles to separate valuable metals from waste. Able to recover metals less than 1 in. diameter, FineSort receives discarded fines that have passed through initial screening process and uses magnetic components to separate ferrous and non-ferrous metals from fines waste.

NIBCO, Inc.    Elkhart, IN 46516 4714
Aug 04, 2008 Ranging from 2-12 in., 285 PSI butterfly valve is offered in wafer-style (WD 5022) and lug-style (LD 5022) as bare-stem, lever-operated, or manual gear-operated valves. Each is built with impact resistant, ductile iron body and features stainless steel trim with EPDM molded-in liner, which promotes bi-directional dead end service. Also included, one-piece solid stem (geometric drive) promotes smooth operation via superior alignment.

Shat-R-Shield, Inc.    Salisbury, NC 28147

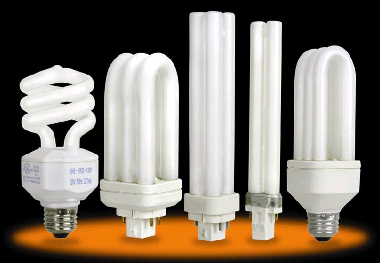

Aug 04, 2008 Replacing incandescent bulbs in commercial and industrial applications, Shat-R-Shield CFLs feature outer plastic coating that provides protective safety envelope for glass tubing, mercury, and phosphors if lamp is accidentally broken. Lamps comply with regulations, safety programs, and policies concerning protective lighting requirements, making them suited for food processors, foodservice, and manufacturing companies that have zero tolerance for unprotected glass in workplace.

GE Co., GE Consumer Products    Louisville, KY 40225
Aug 04, 2008 Based on IEC 61850 and intended for protection and control systems, Multilin HardFiber System is made up of HardFiber Brick, HardFiber Cross Connect Panel, HardFiber Outdoor Fiber Cables, and Universal Relay IEC 61850 Process Card. System eliminates need to install and maintain thousands of copper wires used for signaling and monitoring in electrical substations, and provides identical interface to all primary system equipment.

Danaher Motion/Portescap    Radford, VA 24141

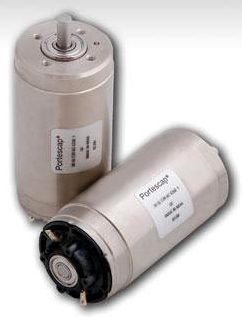

Aug 04, 2008 Customizable for use with range of gearboxes and encoders, 35GLT multi-layer coil brush dc motors are available with 5 winding types in voltage range of 24-90 V. Offered in 35 mm housing, RoHS-compliant units weigh just 360 g, have low ambient heat dissipation, and can also be customized with fiber wrap insulation. They are suited for use in food processing, door automation, feed and assembly tool, seat automation, missile actuation, and hospital bed applications.

Meller Optics, Inc.    Providence, RI 02940

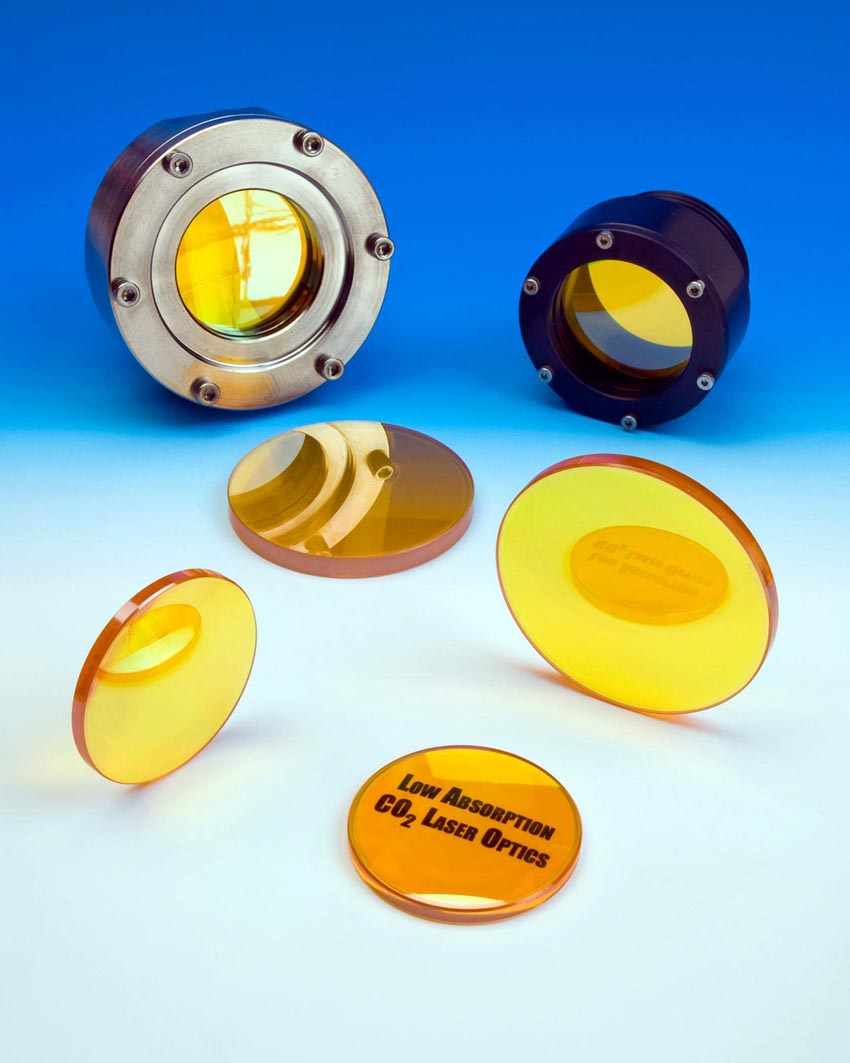

Aug 04, 2008 Able to prevent overheating, Cool-Cut(TM) CO₂ Laser Lenses are specially coated to absorb less than 0.15% of laser energy, which protects against thermal damage and provides focal length stability to assure consistent cut quality. They are available in 1.5 and 2.0 in. dia sizes, from 0.236-0.380 in. thick, with focal lengths from 1-25 in. in 0.5 in. increments. Surface quality is 40-20 scratch-dig, and transmission is greater than 99.0% at 10.6 µm.

RNR Plastics, Inc.    Raynham, MA 02767

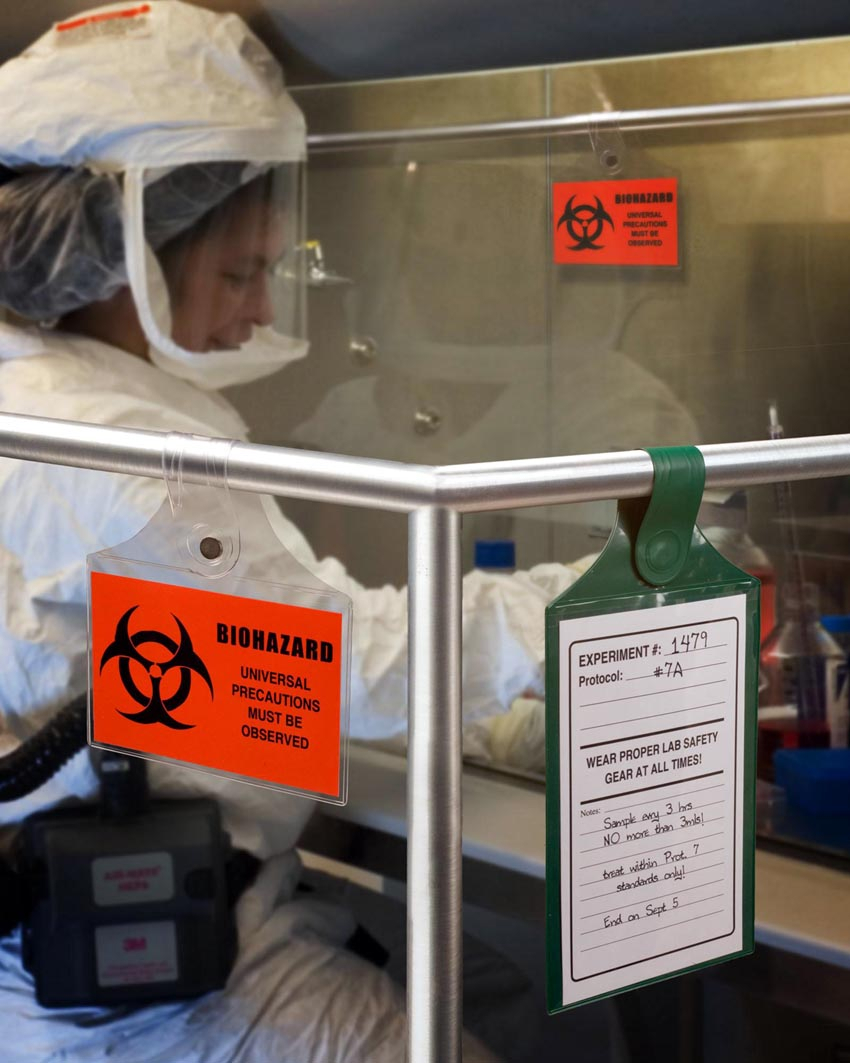

Aug 04, 2008 Displaying custom messages virtually anywhere on railings or tubing, RNR Magna-Hinge(TM) Vinyl Sign Holders feature reinforced strap with 2 encapsulated rare earth magnets that can wrap around railings, tubing, or closed handles and attach securely to each other. Offered in range of colors, splash-resistant units also come in tamper-evident versions. Made from 10 ga PVC, they permit barcode scanning, and come in 4 x 6 to 8½ x 11 in. sizes and can also be custom designed.

Components Corp.    Denville, NJ 07834
Aug 04, 2008 Featuring 0.125 or 0.100 in. centers, TP-104, -105, and -106 test points can accommodate 0.062 in. thick PCBs. Provided precut to any of 30 positions, loop-style TP-104 and oval-loop style TP-106 test points feature 0.063 in. mounting holes, while TP-105 is available in up to 40 positions, has loop profile for positive loop retention, and fits into 0.035-0.042 in. hole. Devices are designed to ensure secure, non-slip grip of alligator clips, probes, J-hooks, tips, and grabbers.

JAI, Inc.    San Jose, CA 95134
Aug 04, 2008 Built around Sony ICX625 2/3 in. CCD sensor, Models BM-500GE (monochrome) and BB-500GE (raw Bayer color) can operate at 15 fps with full 5 megapixel resolution. Units feature Sequence Trigger Mode, which allows users to pre-define on-the-fly changes to gain, shutter, and/or region of interest settings for repeating sequence of up to 10 consecutive triggers. They also feature auto-iris lens control and programmable I/O ports for connection with external factory automation equipment.

Viking Corp., The    Hastings, MI 49058 9706
Aug 04, 2008 Model VK457 flat plate pendent sprinkler has temperature rating of 165°F. Available in 9 standard finishes, sprinkler is offered with 2 cover plate options: 2¾ in. dia cover plate for installations where aesthetics are priority, and 3 5/16 in. cover plate that offers horizontal foregiveability for maximum installation flexibility. Installation tools allow users to remove sprinklers' protective caps and install cover plates from floor, without need for using ladder.
