Chemetall Oakite Products, Inc.    Berkeley Heights, NJ 07922 2712
Jan 10, 2008 Providing iron phosphate coating for ferrous metals, Chem Cote 3010 works at temperatures below 90°F, eliminating use of any burner. It is pre-paint treatment for iron and steel that makes resulting surface highly resistant to corrosion.

Cypress Semiconductor Corp.    San Jose, CA 95134
Jan 10, 2008 Model CY3209 ExpressEVK has 4 sections, each containing separate PSoC device. Sections can be networked via I2C interfaces to test combinations of functions using PSoC Express(TM) visual embedded design tool. Kit offers hardware, software, and design examples to help implement variety of functions, including PSoC CapSense(TM) capacitive touch interfaces, drag and drop USB programming, LCD and LED control, accelerometer, tilt, or drop sensing, and voltage monitoring.

Schunk    Morrisville, NC 27560
Jan 10, 2008 Model MCS controls all servo-electric automation modules including EGN, EZN, PEH, PG, and EVG electric gripper series, PR, PW, PSM, PDU, and SRU-MD rotary modules, as well as PRL series modules. It can be controlled via Profibus, CAN-Bus, or RS-232 standard bus systems, and can also communicate via Bluetooth interface. Capable of combining groups of commands into large units for execution, unit automatically acknowledges each command with error or completion message.

Dematic Corp.    Grand Rapids, MI 49505
Jan 10, 2008 Designed for applications that require discrete order fulfillment of low to moderate volume split case items, PickCart with Voice merges batch picking methodology with voice directed technology. It features 3-4 shelves to accommodate shipping cartons or containers for multiple orders and each batch pick cart can accommodate up to 40 orders, depending on product sizes. PickDirector software releases orders to work floor and directs each order picker on pick path via voice commands.

Comus International    Clifton, NJ 07012
Jan 10, 2008 Providing high insulation resistance of 1,014 W, MDAS Series mercury-free, dry reed relays come with internal electrostatic shield. Relays are specifically designed for ATE markets, measurement equipment, and test and control systems.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Buchanan, MI 49107-1801
Jan 10, 2008 Integrating CAD and layout tools, MTpro simplifies conveyor system planning and application by using 3D solid model and electronic catalog technology to put all required product information within easy reach. Users can transfer 3D models and 2D drawings into their own systems via direct interfaces to all common CAD programs. Software also enables retroactive modifications to components and parts list information in selected CAD systems.

Asymtek    Carlsbad, CA 92008
Jan 10, 2008 With 750 mm/sec speed and 1 g peak acceleration, Select Coat® SL-940E accommodates product sizes up to 500 mm. Welded 1-piece structure of frame enables high acceleration and velocity with up to 2.5 kg payload, while rotary encoders ensure positional accuracy for precise coating operations. Conformal coating system has dispensing area of 19.7 x 18.7 in. which enables flexibility during production to add multiple board arrays or to coat large substrates.

DxO Labs    92100 Boulogne   France
Jan 10, 2008 Based on DxO programmable and configurable SIMD RTL core optimized for on-the-fly image processing, DxO IPE, DxO ISP, and DxO DOP families of solutions help mobile phone designers overcome limitations of ever shrinking pixels used in high resolution, small form factor camera modules. Solutions feature Enhanced Depth of Field (EDoF) technology, anti-aliasing demosaicing, sensor/pixel level noise compensation, and DSC-class auto exposure and auto white balance.

Laird Technologies    Chesterfield, MO 63017
Jan 10, 2008 Compliant with ETSI EN 301.525 CS pattern specifications, 2.5 GHz Dual Slant 45 Wimax Base Station Antenna helps operators create trouble-free wireless network. It features 65° half-power beamwidth and 7 dBi gain in compact package, and includes tilt bracket system that accommodates up to 4 in. dia mounting poles. Maximum null fill of -25° ensures consistent signal level throughout wireless coverage area, while well controlled upper side lobes reduce interference.

Schunk    Morrisville, NC 27560
Jan 10, 2008 Offered in sizes 80 and 160, EGN Series electric 2-finger parallel grippers have stroke/finger of 8 and 16 mm, respectively. Designed for high payloads, they feature gripping forces of up to 1,000 N, multi-tooth guide, wedge-hook kinematics, and integrated Bluetooth interface. Unit is controlled by MCS external controller which is used for standardized control of all servo-electric components from SCHUNK, and facilitates programming, pre-configuration, and commissioning.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Jan 10, 2008 Equipped with completely contained belt, Series 5200 QWIK Conveyor ensures worker safety by eliminating catenary sag and reducing pinch points of belt as it moves around pulley and along frame. UHMW plastic hold-down strips contain belt by wrapping around ends of conveyor, reducing chances of getting finger caught during operation. Suited for variety of industrial, automation, and packaging applications, conveyor comes in straights, curves, and cleats.

AR RF/Microwave Instrumentation    Souderton, PA 18964
Jan 10, 2008 Featuring internal impedance transformer with selectable output impedance values of 12.5, 25, 50, 100, 200, and 400 W, A3 amplifiers are suited for R&D applications and general purpose lab use. Models 800A3 (800 W), 1500A3 (1,500 W), and 5000A3 (5,000 W) cover 10 kHz to 3 MHz frequency range. External impedance transformer is also available for applications requiring extended range from 8-2,000 W.

Parker Hannifin Corp    Greenfield, TN 38230
Jan 10, 2008 H2PEM Series Hydrogen Generators produce over 510 cc/min of 99.9995% pure and clean hydrogen. Units feature PEM electrochemical cell protection system with microprocessor controls, water hydration circulation system, USB capability with software options for remote monitoring/control, blue intensity back lighted display, automatic water fill options, and data logging performance controls for preventive maintenance with reporting tools for use in regulated environments.

Parker Hannifin Corp    Greenfield, TN 38230
Jan 10, 2008 Including Models Nitrovap-1LV and Nitrovap-2LV, Balston® NitroVap nitrogen generators produce over 350 Lpm of pure evaporation grade nitrogen. Non-electrical bench or wall mounted units require less than 1 ft² of bench space and can supply over 100 evaporator nozzle positions. Nitrogen is produced by utilizing combination of filtration and membrane separation technologies, and coalescing filters remove all contaminants down to 0.01 micron.

Chomerics, Div. Of Parker Hannifin Corp    Woburn, MA 01801
Jan 10, 2008 PREMIER(TM) PEI-140 amorphous thermoplastic features high temperature tolerance, chemical resistance, and UL 94V-0 flammability rating for electronics shielding up to 85 dB in aerospace applications. It complies with avionics smoke density requirements in event of on-board fire, as well as with RoHS, WEEE, EPA, EU, and TCO specifications. Product helps optimize stable electrical, mechanical, and physical performance for EMI shielding in continuous use at temperatures up to 340°F.

Steinmeyer Inc.    Bedford, MA 01730
Jan 09, 2008 Manufactured from anodized aluminum, model KT 310 - 210 - DC incorporates preloaded cross roller bearings, precision ground ball screws, limit switches, and dc motors with rotary encoders in 310 x 310 x 80 mm package. Travel in both axes is 200 mm, positioning accuracy is 5 µm, straightness/flatness is 3 µm, and repeatability is ±1 µm. With optional linear encoders, repeatability is ±0.1 µm. Motors, encoders, and cabling are all located inside table body.

ADLINK Technology Inc.    Irvine, CA 92618

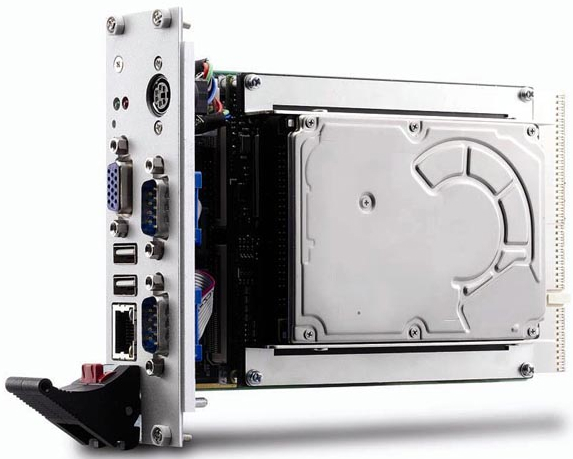

Jan 09, 2008 Designed in dual-slot form factor, cPCI-3600 series is based on AMD Geode(TM) LX 800 processor and AMD Geode(TM) CS5536 companion device and designed to consume less than 10 W at full load. Board includes 256 MB DDR 400 MHz memory (soldered) and one SODIMM socket that supports up to 1 GB of RAM. Along with two 10/100 Ethernet ports and onboard 2.5 in. IDE HDD port, it provides CompactFlash® socket; USB, serial, and parallel ports; as well as PS/2 keyboard/mouse and AC'97 audio interfaces.

Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148
Jan 09, 2008 Available with 18, 30, 48, and 60 I/O, ModICE Modular Integrated Connector Enclosure System with breather offers design options for applications that will experience thermal or altitude cycling. Membrane vents are designed to equalize pressure differential between enclosure and ambient while maintaining IP67 and IP69K seal ratings. Enclosure is suited for on highway, agricultural, construction, and recreational applications.

Manncorp    Willow Grove, PA 19090
Jan 09, 2008 Forced hot air Pb-free CR reflow system, CR6000, is computer-controlled, measures 12.5 ft long model, and has 6 individually managed upper and lower heat zones. Designed to meet temperature and process control requirements of lead-free processes, system's large-oven capabilities include DT of ±2ºC edge-to-edge heating conformity integrated with 3-channel profiler and motor-adjustable 17.7 in. pin conveyor over 22.4 in. stainless steel mesh belt.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Jan 09, 2008 Available with or without enclosure, Model K30E includes 50 hp PC-controlled hydraulic power down feed for smooth consistent operation, and LED beams for wheel wear compensation and rapid return after cut is finished. Enclosed units have internal lights for visibility, and all machines feature hydraulic clamping and flood coolant system. Different horsepower motors are available, depending on material being cut and cycle time required.
