BFG Technologies, Inc.    Lake Forest, IL 60045
Aug 06, 2008 GeForce® 9800 GTX H2OC 512 MB graphics card with ThermoIntelligence® custom copper water block has single slot design, freeing up valuable space for other add-in cards. Built using Arctic Silver® thermal compound, it includes ½ and 3/8 in. fittings (barbs) allowing for integration into most water cooling system loops. Micro fittings are included to support 2- or 3-way NVIDIA SLI(TM) configurations. Unit features 780 MHz core clock, 1,944 MHz shader clock, and 2,320 MHz memory data rate.

BFG Technologies, Inc.    Lake Forest, IL 60045
Aug 06, 2008 Offering ThermoIntelligence® custom cooling solution, GeForce® 8800 GT OCX(TM) and 9600 GT OCX feature 512 Mb GDDR3 memory, and copper, 2-slot fansink that has chrome nickel plating and green LED lighting. Variable speed fan keeps GPU cool when system temperature rises. GeForce® 9600 GT has 725 MHz core clock, 1,850 MHz shader clock, and 1,950 MHz memory data rate, while GeForce® 8800 GT has 700 MHz core clock, 1,728 MHz shader clock, and 2,000 MHz memory data rate.

Conversion Devices Inc.    Huntington Beach, CA 92649
Aug 06, 2008 Measuring 1.39 x 3.0 x 5.0 in., Model SMM201 features power density of 13.33 W/in³, 85-264 Vac input with active power factor correction to minimize input harmonic distortion, and safety ground leakage current of less than 140 µA at 132 Vac and 280 µA at 220 Vac input. As single output model, it features high current main output with 12-60 Vdc voltages up to 200 W, while dual output model has second output with voltages ranging from 3.3-12 V with current rating up to 5 A.

Citrix Systems, Inc.    Fort Lauderdale, FL 33309
Aug 06, 2008 Integrating with Citrix XenDesktop(TM), Citrix Access Gateway v8.1 features SmartAccess technology that allows IT departments to provide access to specific applications and data based on user's identity, location, and results of any end point analysis of client device. Configuration wizards help accelerate deployment in virtual desktop environment by automating several commonly performed XenDesktop configuration tasks. MSI packaging for Windows automates client installation.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 06, 2008 Including programmable features such as resolution, bandwidth, and tracking rate for configurability, RD-19240FS-100 resolver-to-digital converter operates in temperature range of -55 to +125°C and is repeatable to 1 LSB in 14-bit mode. Offered in 10 x 10 mm MQFP package, unit has built-in-test output which monitors for loss of signal, reference frequency, or tracking.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 06, 2008 Designed for avionics lab applications requiring interface to MIL-STD-1553 and/or ARINC 429 data buses, Model BU-65591U offers 2 dual redundant 1553 channels, 4 ARINC 429 receive channels, 2 ARINC 429 transmit channels, 7 Digital Discrete I/Os, and IRIG-B time synchronization input. It includes both 1553 and 429 C SDK and drivers for Windows® 2000/XP. Graphical bus analysis and simulation tools for MIL-STD-1553 and ARINC 429, along with ARINC 615 data loading software are available.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 06, 2008 Used with BU-65590/91U MIL-STD-1553/ARINC429 USB Devices, dataMARS Software Analysis Suite is designed for portable and lab avionics bus analysis and flight line recording. It offers monitoring ability through real-time displays and triggers, and post-analysis ability through recorded data replay, reports, and search functionality. Users can import ICDs, allowing real-time conversions of raw data to applicable engineering units, resulting in numerical and graphical views of communication data.

Lin Engineering    Santa Clara, CA 95054
Aug 06, 2008 Delivering up to 3 A of peak current, Model R356 supports microstepping resolutions ranging from 2x to 256x to enable up to 51,200 miniature steps for every full revolution (or 360°) on bipolar, 1.8° stepper motor. It includes fully programmable ramps/speeds, software selectable hold and move currents, 4 user configurable digital I/Os, and 2 dedicated inputs. RS485 communication allows commands to be issued from Windows® based HyperTerminal® program or from Lin Control GUI.

Eximo    Smithfield   Australia
Aug 06, 2008 Comprising of standard Speedlock components to facilitate quick replacement or addition of parts and assembly, industrial fume arms include built-in valve to allow users to adjust airflow for any application. It also features duct throttle valve, reducing cone, standard and modular ducting Lock Rings, and some Flex ducting. All brackets are external for unimpeded airflow through fume arm. Suited for vapor and fine powders, arms click into normal Eximo ducting ranging from 80-250 mm.

Lee Company, The    Westbrook, CT 06498 0424
Aug 06, 2008 Weighing 6 g, Model 281 Zero Leak PRI is designed for thermal relief and low flow hydraulic pressure relief applications where zero leakage is needed. Flow rates range from few mLs per minute for thermal relief applications and up to 250 mL/min for low flow pressure relief applications. Working temperature is -65 to +275ºF, while cracking pressure is preset with capabilities ranging from 1,300-4,700 psid.

BlueCielo ECM Solutions    2288 BA Rijswijk   Netherlands
Aug 06, 2008 Supporting InnoCielo Meridian Enterprise and Maximo, InnoCielo Asset Management Module 2008 connects enterprise asset management environments such as Datastream, FAMIS, Maximo, SAP PM, and Ultimo to InnoCielo Meridian Enterprise. Software manages all technical assets such as pumps, vessels, and process lines, as well as relationship with their relevant technical documents. Available in English and German, it can also be used in combination with the InnoCielo Shop Floor Client.

VXI Technology Inc.    Irvine, CA 92614
Aug 06, 2008 LXI Class A compliant EX1000A Series instruments integrate signal conditioning, digitization, and software to offer complete DAQ solution for precision temperature and voltage measurements. Open-architecture 1U modules also incorporate complete end-to-end self-calibration, and support sampling rates of up to 1,000 Sa/sec/ch with typical accuracies of ±0.2°C (temperature) or 0.05% + 10 µV (voltage). Thermocouple and voltage channels can be combined in 16, 32, or 48 channel configurations.

BitWise Controls, LLC    Larkspur, CO 80118
Aug 05, 2008 Suited for A/V integrators, BC4 standards-based control system network interface allows IP-based software and control systems to monitor and control hardware devices. Modularity enables matching of base units and expansion modules to fit any application. Powered by 802.3af PoE or 12 Vdc wall supply, system is comprised of base unit and various plug-in expansion I/O modules housed in 4.5 x 5 x 1 in. steel enclosure, which also contains network adaptor and temperature sensor.

Sherwin-Williams    Cleveland, OH 44115
Aug 05, 2008 Suited for interior/exterior use in industrial, marine, and commercial applications, Polylon HP Polyurethane provides high gloss and color retention as well as resistance to chemicals, abrasion, and impact. High-solids solution, with VOC level under 250 g/L, comes in range of colors as 2-component polyester-aliphatic urethane coating. It is also resistant to splashes, spillage, and fumes from dilute acids, alkalis, solvents, and fuels.

Sherwin-Williams    Cleveland, OH 44115
Aug 05, 2008 Featuring Ozone Transport Commission (OTC)-compliant and Hazardous Air Pollutant (HAPS)-free formulation, Waterbased Acrolon 100 retains appearances over range of chemical, weather, and mechanical conditions. It is environmentally friendly, has VOC level under 100 g/L, and promotes color and gloss retention. Along with various marine and industrial applications, areas of use can include USDA-inspected facilities.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Aug 05, 2008 Able to produce results within 3 min, WaterWorks(TM) Total Iron detects ferric as well as ferrous forms of iron without requiring meter. User adds contents of one iron powder pillow to supplied vial, fills vial with water sample, closes vial with screw cap, and shakes sample for 20 sec. Product meets National Secondary Drinking Water Regulations, set forth by USEPA, which recommend iron level of no more than 0.3 ppm. Detection levels for this visual test are 0, 0.3, 0.5, 1, 3, and 5 ppm.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Aug 05, 2008 Featuring integral locking mechanism that secures elbow into position, 45° Syphon Elbow is intended for installation on blind rolls or rolls with hand hole access. All components of elbow are constructed of stainless steel to provide corrosion-resistance. In addition, 45° angle results in less cantilever weight compared to long bent syphon pipe, causing less stress on horizontal syphon pipe thread connection.

Murata Power Solutions, Inc.    Mansfield, MA 02048

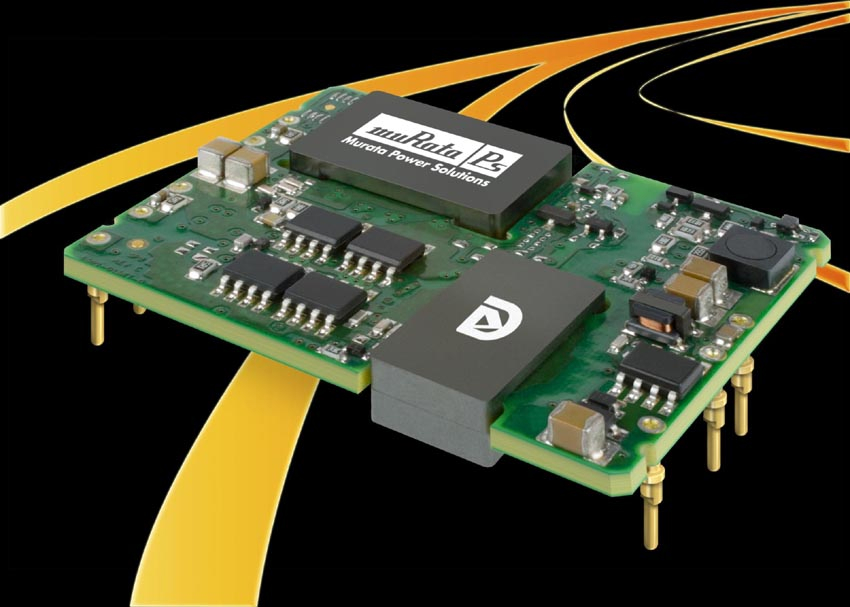

Aug 05, 2008 Delivering 50-60 W from 1.6 x 2 x 0.4 in. PCB-mounted, open-frame package, UEI-series isolated, wide-range DC/DC converters include 4:1 input voltages of 9-36 and 18-75 Vdc. Operating from -40 to +85ºC, they have full magnetic and optical isolation of up to 2,250 Vdc that provides basic insulation. Units feature input under-voltage lockout, over-temperature protection, over-current hiccup, auto restart, output overvoltage protection, and reverse conduction immunity.

Lee Company, The    Westbrook, CT 06498 0424

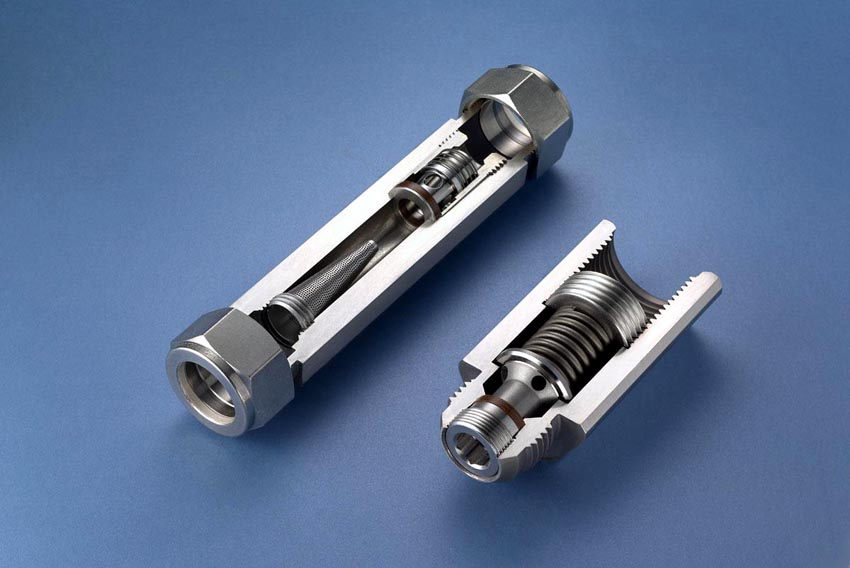

Aug 05, 2008 Power Generation Chek® Valves are field serviceable, allowing users to disassemble and service valves using rebuild kit. Featuring low leakage and high flow, units are suited for use in purge air, water injection, and liquid fuel applications. Available with or without removable, washable Hi-Bar® Safety Screen, valves can be designed according to specific customer requirements.

Interroll Corp.    Wilmington, NC 28405
Aug 05, 2008 Designed specifically for decline conveyors with fail safe requirement, Model EC100B RollerDrive features spring loaded fail safe brake that prevents drifting on inclines while ensuring smooth operation and low noise emission. Mechanical rotor-locking break is spring-loaded and cycles with main power; it does not cycle with each start and stop of the conveyor. As long as the power bus is on, the magnetic force created by solenoid keeps rotor free.
