Sauer-Danfoss    Ames, IA 50010
Jan 15, 2008 Available in 10, 12, and 16 series standard cavity sizes, Proportional Flow Control Cartridge Valves work in conjunction with hydraulic ICs to regulate fluid flow that controls specific equipment operations. All valves come standard with M19P and D14E coils, which are tolerant of adverse conditions ranging from voltage extremes to high temperatures and water ingression. Pressure capability is 3,770 psi and max flow rate is 32 gpm.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jan 15, 2008 Featuring trunk in/trunk out wiring T-connector, R2 FieldConnex® Segment Protectors can be disconnected while leaving trunk communications uninterrupted, and inherently prevent over-termination that can cause start-up and commission problems. Units provide IP20 protection with DIN rail mounting in 4, 6, 8, 10, and 12 spur configurations. They include removable terminals with retaining screws as well as LEDs for power, communications, and short circuit status indication.

NKK Switches    Scottsdale, AZ 85260-3420
Jan 15, 2008 Designed to handle large inrush currents, JWL Series DC-rated Switches are dust-resistant with interior seal of PPS between actuator and contact area. Housing and case are heat-resistant polyamide meeting UL 94V-0 standards. Snap-in mounted devices are rated 16 A at 125/250 Vac as well as 5 A at 72 Vdc for applications such as power distribution. Available with flat or barrier flanges, switches can be configured with SPST, SPDT, DPST, or DPDT circuits.

Nordson Corp., Packaging Systems    Duluth, GA 30097
Jan 15, 2008 Combining melter and adhesive feed system, ProBlue® Fulfill(TM) System automatically maintains desired adhesive levels in melter tanks. Integrated capacitance sensor detects low adhesive levels and transmits signal to suction lance. Using vacuum, system conveys adhesive as pellets, pastilles, and mini-slats from supplied closed adhesive storage container directly to melter tank. Adding small quantities of adhesive at regular intervals prevents sealed tank from running dry.

Nyden Corp.    San Jose, CA 95134
Jan 15, 2008 Designed to execute trapezoidal and S-curve shape acceleration/deceleration motion profiles, ICD200 Stepper Driver/Controller offers designers Sensor Mode, Absolute Position Mode, and Relative Position Mode. Unit is rated at 1.2 A/phase for unipolar stepper motors and 0.6 A/phase for bipolar motors. With input power of 24 Vdc and power consumption of 36 W, single-axis system provides micro-stepping functionalities with max resolution of 20,000 steps/rev.

Broadcom Corp.    San Jose, CA 95110
Jan 15, 2008 Manufactured in 65 nm process technology, Model BCM7335 features PVR functionality that supports standards for direct broadcast satellite STBs based on DVB-S2, DVB-S, and 8PSK. Integrating dual tuner/demodulator and AVC decoders that support multiple video formats, unit operates on dual-threaded MIPS® CPU core running at 450 MHz resulting in 950 DMIPS performance. Chip supports UMA and non-UMA memory architectures utilizing 400 MHz clock and 32 + 16-bit wide DDR2 memory interface.

DSP Group, Inc.    Santa Clara, CA 95054
Jan 15, 2008 Providing wireless multimedia-enabled platform, XpandR supports DECT and Wi-Fi, and enables HD voice, streaming, and sharing of video and music, email, and web browsing. Program uses open LINUX code for seamless software portability and is equally suited for multimedia web devices such as Internet radios, portable multimedia players with video, wireless security cameras, Wi-Fi/DECT video phones, fixed video phones with DECT handsets, and Wi-Fi video phones.

STMicroelectronics    Lexington, MA 02421
Jan 15, 2008 Hardware platform DTV150 provides demodulation, full HD video processing, high-quality audio, and video switching functions for integrated digital TV (iDTV) sets. It is built around STi1010 single-chip iDTV processor, which enables use of same chip for digital and analog broadcast decoding and for video TV processing. Processor supports displays up to 1080p, including full 1080i deinterlacing, and includes embedded HDMI, dual LVDS output, and USB 2.0 interface.

Cobra Electronics Corp.    Chicago, IL 60707 4000
Jan 15, 2008 In addition to models CPI 475 to CPI 2575 that provide continuous power values from 400 to 2,500 W, respectively, power inverters include portable models for smaller applications. Model CPI 200 CH, which fits in a car cup holder, offers 200 W of continuous power and 400 W surge. Providing 150 W continuous and 300 W peak, CPI 150 BK includes cigarette lighter plug and airline connector power cable. Model CPI 130 fits directly in cigarette lighter and supplies 130 W continuous, 260 W peak.

Degree Controls Inc.    Milford, NH 03055
Jan 15, 2008 Used with engineered thermal solutions for electronic equipment, ATCA-compliant dual IPMI bus fan tray controller offers multiple filter clog and maintenance schemes as well as fan failure prediction and monitoring. Real-time selection of fan tray mode enables synchronized, closed-loop control of RPMs. Controller also offers real-time IPMI-based configuration of alarm thresholds and fan control curve set points as well as access to fan speeds, PWM values, and CLEI code data.

Mesa Electronics    Richmond, CA 94806-1950
Jan 15, 2008 Designed for use with 2 brush type motors or other inductive loads, 7I29 is rated at 15 A continuous @ 175 Vdc per axis. Selectable overcurrent limits for each bridge is .75 and 1.5 times rated current. MOSFETs and gate drivers promote efficiency and minimize dead time to support switching rates to 100 KHz, while gate power is derived from logic side power so that drivers are functional down to 0 V motor power supply. Driver includes encoder input conditioning.

StandUpStix    Lafayette, CA 94549
Jan 15, 2008 Made of ABS plastic, interlocking sticks fit into bore of door's hardware, locking together to hold 2 or more doors at 90° angle. Stand Up Stix are used for standard bored doors, while Hold Up Hinge is intended for hinged doors. Products are lightweight, safe, and will not damage doors.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Jan 15, 2008 Two-wire temperature transmitters, Sitran TR200 and Sitran TR300, do not require additional power supply when connected in 4-20 mA loops. TR200 transmitter is PC configured while TR300 is configured using HART interface. Both devices use diagnostics LED that indicates function status to detect open or short circuits. Transmitters support standard RTDs and thermocouples, as well as resistance and voltage inputs.

Onset Computer Corp.    Bourne, MA 02532
Jan 15, 2008 To provide remote access to energy and HVAC/R systems data, HOBO® Remote Monitoring System combines industrial-grade data logging hardware with built-in GSM cellular communications and HOBOlink(TM) web-enabled software platform. Latter lets users access current and historical data, set alarm notifications and relay activations, as well as manage and control HOBO Remote Monitoring systems from any Internet connection. System supports various sensors for measuring range of parameters.

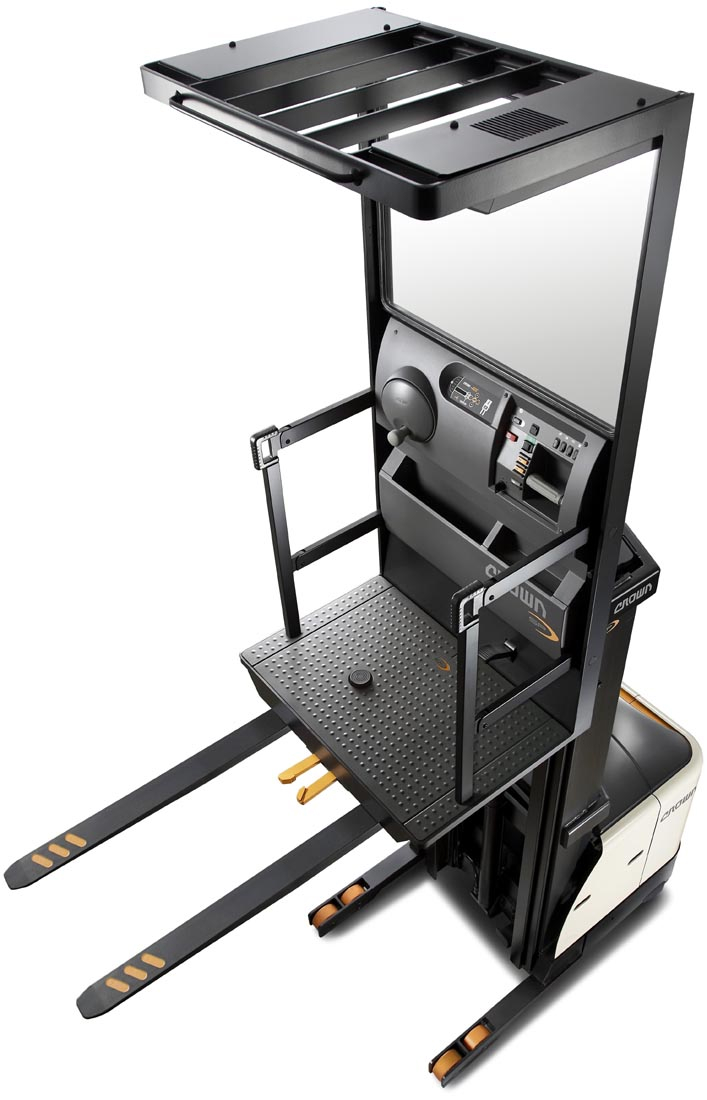

Crown Equipment Corp.    New Bremen, OH 45869
Jan 15, 2008 Whether used for pallet handling, picking at heights, or transport applications, SP 3500 Series is built for stability, safety, and security. Access 1 2 3® Comprehensive System Control delivers real-time braking, steering, and linear speed control adjustments under changing conditions, and Load Path Stability Design distributes force evenly through mast, platform, frame, and drive unit. Solution also incorporates wide-screen platform window and twist grip control handle.

Alps Electric    Raleigh, NC 27607
Jan 15, 2008 HSPP Series piezoresistive type pressure sensor includes 4.5 x 4.5 x 1.0 and 7.0 x 7.0 x 8.0 mm units for absolute and gauge pressure detection, respectively. Digital circuit and temperature correction circuit allow sensor to perform high-resolution detection at pressure intervals of 0.01 kPa. Gauge pressure sensor combines a pressure feed port and terminals.

Fluke Corp.    Everett, WA 98203
Jan 15, 2008 As factory x-ray calibrated NIST/PTB traceable meter, 07-QRX QA RADCHEX is used by QA personnel, service engineers, and biomedical technicians to calibrate, troubleshoot, test, and document CR system performance. It replaces need for imaging plate and plate reader and can be positioned anywhere CR imaging plate is used. While interface and self-contained design accelerate testing, internal readout device eliminates need for laptop interface.

Bosch Rexroth Corp.    Hoffman Estates, IL 60192
Jan 15, 2008 Combining motion and logic with robotic control, IndraMotion MLC controller is capable of up to 64 axes of control with ability to handle up to 8 robotic kinematics simultaneously. It uses standard IEC programming controls for robotic functions and features dynamic belt synchronization for multiple conveyors as well as integrated vision system interface. With more than 100 ready-to-use kinematics for Delta, SCARA, and Cartesian style robots, unit offers full 6-axis path planner.

Sensory Analytics, LLC    Greensboro, NC 27407
Jan 15, 2008 Featuring 5-axis capabilities, SpecMetrix® RA Coating Quality Assurance Cell can measure films and wet/dry coatings over any substrate, material, and color. Designed for packaging, aerospace, electronics, and medical device industries, automated system helps measure barrier and protective coatings, over-varnish, inside spray, primer, and performance coatings. Integrated with SensorMetric(TM) software, it enables real-time measurement and automated recording/storage of data.

BAE Systems    Wayne, NJ 07474 0975
Jan 15, 2008 Measuring less than 1E-9 upsets/bit-day SEU, Radiation-Hardened Single-Chip SpaceWire Interface is radiation-hardened to 200 krad (Si) total dose, and is latch-up immune. Chip consists of 4 SpaceWire ports and 2 peripheral component interconnect buses connected by 6-port router, multi-GB memory interface supported by direct memory access controller, and embedded microcontroller for packet processing/standalone operation.
