MedeAnalytics, Inc.    Emeryville, CA 94608
Jul 05, 2011 Featuring adaptable workflow, Patient Access Intelligence 11 presents intelligent financial clearance work lists across facilities, departments, and individual users. Critical functions such as patient payment estimation, charity care screening, financial counseling, demographic validation, and insurance eligibility can be personalized across audiences, with intelligent rules aiding decision making. End-to-end audit trail and advanced analytics measure organizational performance.

Imaging Source LLC, The    Charlotte, NC 28226
Jul 05, 2011 Housed in aluminum casing, 2 Megapixel Industrial Cameras are available as monochrome and color variants, with or without IR cut filter. Units can output 15 frames/sec at resolution up to 1,600 x 1,200 pixels. With optional trigger input and digital I/O, cameras are suited for machine vision, automation, traffic surveillance, and quality control, as well as medicine, logistic, and security applications.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jul 05, 2011 Rugged 3U cPCI Serial Ethernet Interface board, G211F, accommodates 4 fiber optic Ethernet transceiver channels (1000Base-SX) for connections over distances up to 1,800 ft. Connected to backplane via PCIe x4 link and managed via IEEE 802.3x-compliant Ethernet controller, board's 4 channels transfer data at up to 1,000 Mbps when used simultaneously. Full and half duplex operation are supported depending on chosen transceiver, and board may also be configured with 2 redundant channel pairs.

Power Technology, Inc.    Little Rock, AR 72219 1117
Jul 01, 2011 Rated at 20 mW, IQ Instrument Quality Green Laser Diode Module is designed to address needs of high-end OEM applications requiring stable wavelength and output power. Unit offers active temperature control, adjustable focus, and choice of beam circularization and modulated versions. Applications include laser-induced fluorescence, spectroscopy, data storage, flow cytometry, cancer detection, remote optical sensing, holography, and illumination.

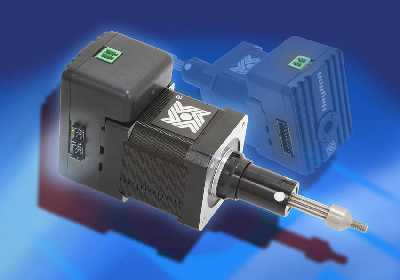

Haydon Kerk Motion Solutions    Waterbury, CT 06705
Jul 01, 2011 Integrating electronic drive and fully programmable control unit with linear actuator, IDEA Drive Platform features single supply voltage of 12-48 Vdc, 2.6 Arms max rated current per phase, and 8 opto-isolated general purpose I/O. Inputs are rated for 5-24 Vdc, 4 mA max per input, while outputs are open collector, 5-24 Vdc, 200 mA max per output. Immune to electrical noise, RS-485 protocol lets device operate over 1,000 ft network without need for termination resistors.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Jul 01, 2011 Suited for hand test and temperature characterization as well as debugging in femtocell development, Model CBT-BGA-6015 has stamped spring pin contactor with 19 g actuation force per ball and cycle life of 500,000 insertions. Contactor features self inductance of 0.93 nH, insertion loss of less than 1 dB at 23.2 GHz, and contact resistance of less than 16 mW. Specific configuration of package to be tested in socket is BGA, 52.5 x 52.5 mm, 1 mm pitch, 2097 position, 51 x 51 ball array.

Krones AG    Franklin, WI 53132

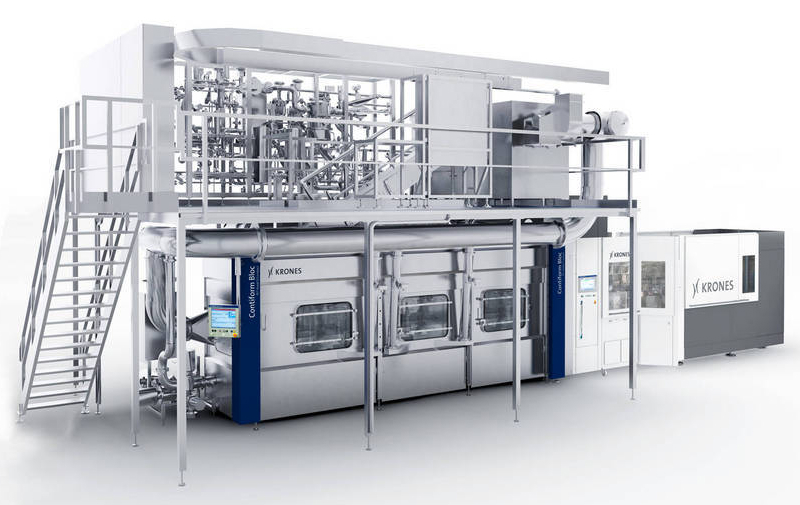

Jul 01, 2011 Capable of handling PET-aseptics for mid-tier companies, PET-Asept D Compact is based on technology acceptance-tested by FDA and does not require any sterile-water UHT system in order to operate. Containers and isolator are steriziled with gaseous hydrogen peroxide; machine itself is cleaned using caustic and acid. Output range is 6,000-12,000 containers/hr, and machine can be installed as stand-alone line component or monobloc-synchronized with stretch blow-molding machine.

RF Precision Products    San Diego, CA 92126

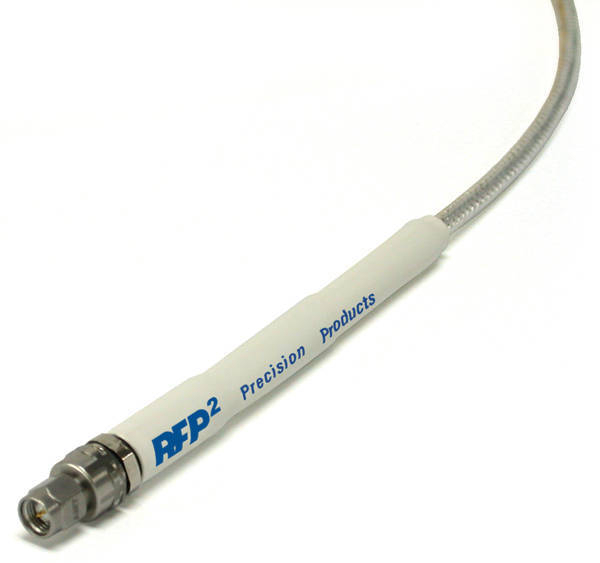

Jul 01, 2011 Featuring triple shielding with low-loss dielectric and high-temperature jacketing, phase stable cables experience minimal phase effects when flexed multiple times. Connectors are made of stainless steel for extended attachment and feature strain relief support designed for armoring as option. Suited for applications up to 26.5 GHz, cables come in 24, 36, and 48 in. off-the-shelf lengths, and custom lengths are available.

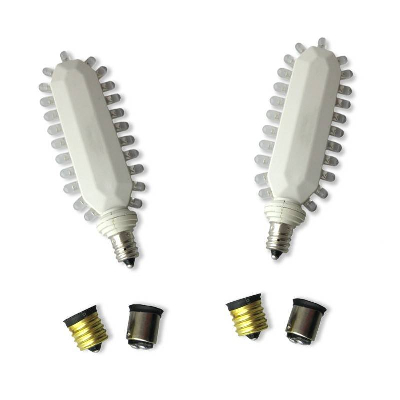

Elemental LED    Emeryville, CA 94608
Jul 01, 2011 Available in both red and green, LED Exit Sign Replacement Kits include 2 ETL certified 12 Vdc LED bulbs with E26/27 candelabra base and 2 pairs of retrofit connectors that fit almost all exit sign models. Kits offer smooth, even light and exhibit no spotting, fading, flickering, or buzzing. Consuming 2.8 W, LEDs last approximately 80,000 hours, which is typically 8-10 years.

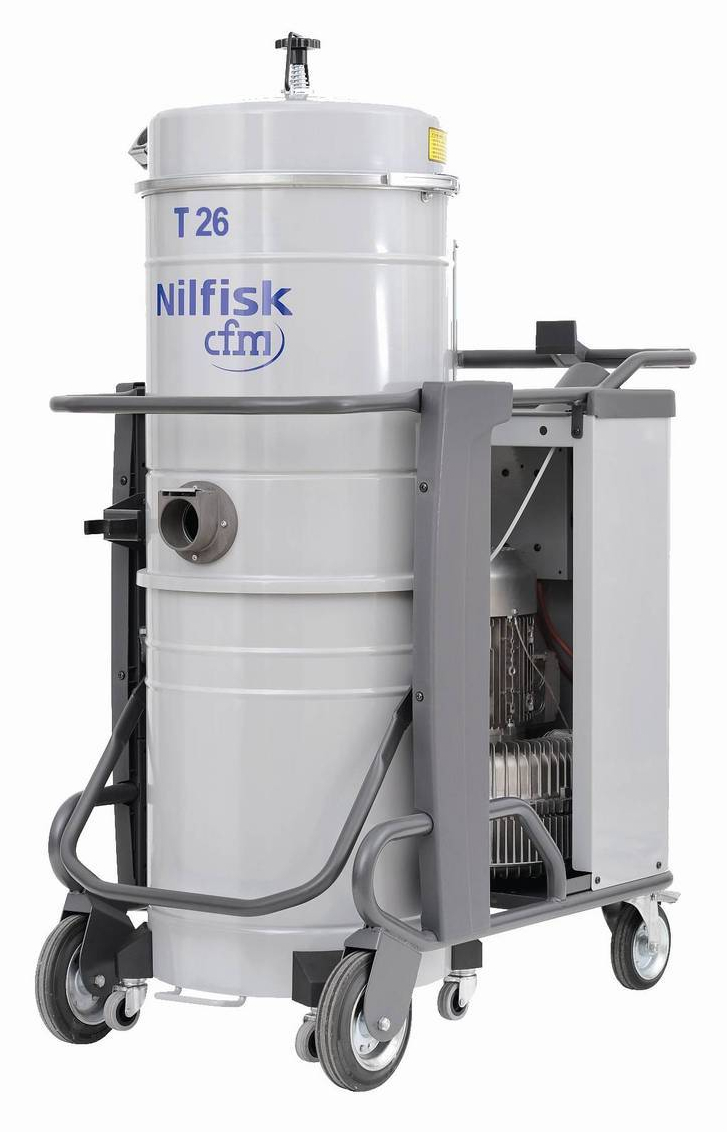

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Jul 01, 2011 Comprised of 3-phase, continuous-duty vacuum cleaners constructed of heavy-duty steel and polypropylene, T-Series meets industrial demands of manufacturing facilities for collection of powders, liquids, dust, and debris. Manual filter shaker helps maintain max suction power, while release lever lowers wheeled collection container and acts as handle for disposal of collected debris. Optional HEPA filter ensures 99.995% of particles down to and including 0.18 microns are retained.

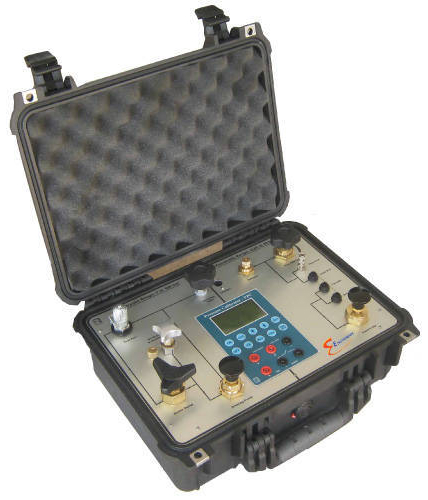

E Instruments International LLC    Langhorne, PA 19047
Jul 01, 2011 Featuring built-in hand pumps offering independent pneumatic and hydraulic calibration capabilities, PPC P/H Dual Portable Pressure Calibrator has respective pneumatic and hydraulic ranges up to 300 and 6,000 psi and overall accuracy of ±0.05% FS + 1 digit. Standard features, in addition to temperature compensation from 0 to 50°C, include low battery indicator, audio and visual alarms for over pressure, and rechargeable battery.

MICRO-EPSILON AMERICA    Raleigh, NC 27617

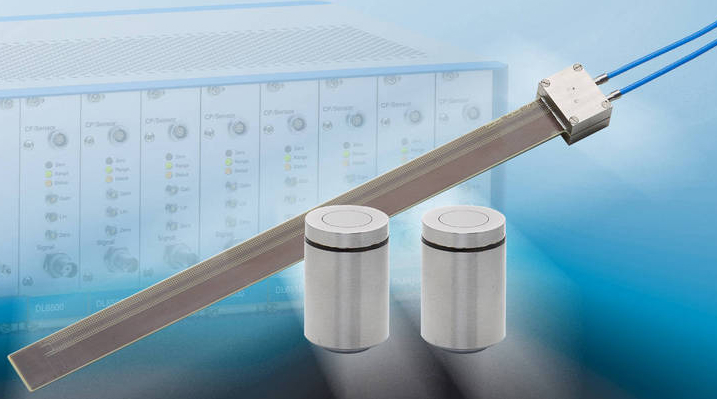

Jul 01, 2011 Used to measure gap width, capaNCDT CSG uses sensor electrodes and differential method to determine gap widths from 0.9-4.9 mm while moving sensor into gap. Sensor electrodes are applied to top front and back on 20 cm wide circuit board, and flexible probe enables sensor to be used in applications where measurement object is difficult to access. Also available, capaNCDT CSE offers 2.5X larger measuring range and is equipped with shielding electrode that is set back.

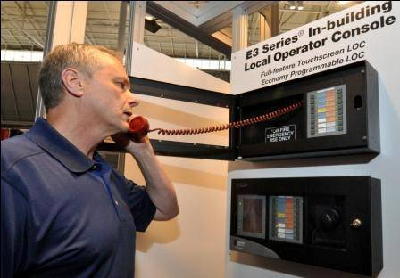

Gamewell-FCI    Northford, CT 06472
Jul 01, 2011 Designed to meet mass notification requirements of Local Operating Consoles as mandated by DoD in its Unified Facilities Criteria document 4-021-1, LOC-TEL utilizes telephone and 16 programmable switches to direct pre-recorded and live voice messages to any designated area within facility.

LEONI Fiber Optics Inc    Williamsburg, VA 23188
Jul 01, 2011 Used for communication and control, High Flex Fiber Optic Cables are offered in Plastic Optical Fiber (POF), Plastic Coated Fiber (PCF), HCS, and glass variants. These customized infrastructure cables and assemblies, depending on choice, can survive temperatures down to -40°C or up to +70°C. Torsion approved and tested, plug-and-play solutions are available with UV-resistant and rodent proof protective tubing and choice of connectors: HP, HFBR 4521, FSMA, ST, HP, SC, and F05.

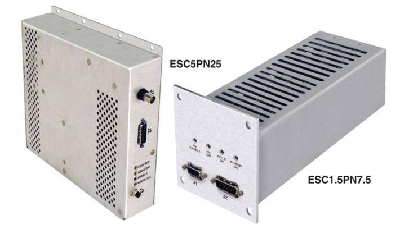

Spellman High Voltage Electronics Corp.    Hauppauge, NY 11788
Jul 01, 2011 Housed in 9 x 1.5 x 6.1 in. package designed for OEMs, ESC Series provides accurate voltage required for semiconductor-based electrostatic chuck wafer applications. Regulated units precisely secure wafers during lengthy process cycles. Versions are available with ground referenced reversible output as well as with true floating bipolar output and associated floating center tap point. Fault diagnostic circuitry monitors power supply functionality and communicates status to user interface.

Polymer Solutions International    Medford, NJ 08055
Jul 01, 2011 Formed without crevices and cavities capable of harboring bacteria, mold, and other contaminants, ProStack® One-Piece Hygienic Pallet has see-through, open-grid top deck; smooth finish; and flow-through design that facilitate sanitization and inspections. Product is edge-rackable up to 2,200 lb and measures 40 x 48 x 6.25 in. Available in full perimeter picture frame or 3-stringer models, pallet is rated for 30,000 lb static or 5,000 lb dynamic loads and weighs 45-48 lb.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615

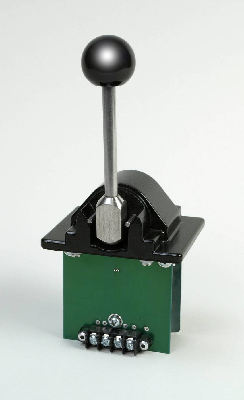

Jul 01, 2011 Featuring non-contacting Hall-effect device with proportional output from 0.5-4.5 Vdc, Model PRO-5H offers resistance to EMI and has NEMA 4 weatherproof cast housing for wet or dirty environments. Optional features include variety of amplifier and PWM circuits, various handle designs, and mechanical interlock. Joystick is suited for scissor lifts, aerial work platforms, bucket trucks and cranes, as well as agricultural, mining, and forestry equipment.

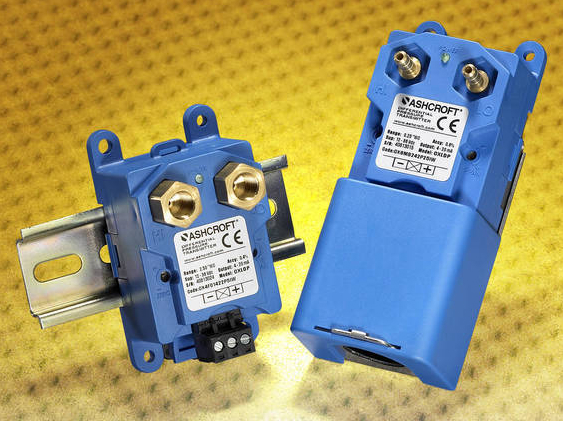

Ashcroft Inc.    Stratford, CT 06614
Jul 01, 2011 Able to be mounted on DIN rail, conduit, or wall, CXLdp provides stable static or differential pressure measurement in HVAC comfort control systems. Detachable terminal block electrical connector also enables installation into panel without power interruption. Available in ranges from 0/0.1-0/25.0 in. H20 and accuracies of ±0.8 and 0.4% FS, transmitter provides over-pressure capability, LED status light, and CE EMI/RFI immunity rating.

Rig-A-Lite Co., Inc.    Houston, TX 77075
Jul 01, 2011 Supporting up to 150 W incandescent or 32 W compact fluorescent lamps, AVP Series features aluminum housing suitable for use in hazardous, marine, and watertight environments. Twist lock lamp holder is offered for CFL fixtures to minimize impact of vibration. Available in pendant, wall, or ceiling mount models, fixtures are suitable for marine vessels, marine repair facilities, oil and gas exploration and production, industrial manufacturing, and food processing applications.

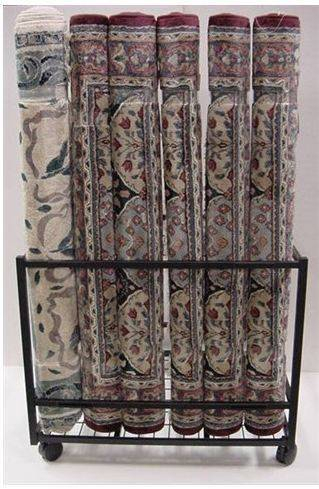

Indcom Services, Inc.    Anderson, SC 29621
Jul 01, 2011 Serving two purposes, Metal Display Grids are used to ship rugs as well as display them in stores. Rugs are ready to be displayed at point of purchase immediately after stretch wrap is undone. Constructed to be structurally sound, these welded and powder coated racks can be customized to application requirements and sized to meet box and rug demands.
