TURCK, Inc.    Plymouth, MN 55441
Sep 11, 2008 Featuring EMC and ESD immunity, BCC Series detects level of plastic pellets in hopper while withstanding environmental interference. Mounted on plastic sight glass or in hopper containing plastic pellets for point level detection, it can also be mounted directly in metal hopper without any reduction in range. Laterally-mounted shield protects sensor from being affected by metal hopper, while integrated processor helps detect different types of plastics without any adjustment.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 11, 2008 Suited for testing FPD and CRT displays as well as LCD panels in PC and TV manufacturing, Agilent U8101A display tester supports all major analog (S-Video, YPbPr, CVBS, and VGA) and digital (HDMI and DVI) interfaces. Able to recall up to 16 test sequences and patterns, it uses 5.7 in. color LCD display and Windows(TM)-based GUI for test pattern selection. Unit is USB capabile for high-definition pattern and image transfer to tester.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 11, 2008 Model 33210A is 10 MHz Function/Arbitrary Waveform Generator that provides stable, accurate, and low-distortion signals with up to 10 built-in waveforms needed for bench and system applications. It includes USB 2.0, 10/100 Base-T Ethernet (LAN) and GPIB interfaces as standard features, enabling quick connectivity to PC or network. High frequency unit can also be remotely operated from any browser by connecting to its built-in web page.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 11, 2008 Suited for communications and aerospace and automotive electronics, N8480 Series thermocouple power sensors incorporate built-in EEPROM for storing calibration factors, which enables automatic loading of calibration factors. Models N8481A and N8482A feature frequency ranges of 10 MHz to 18 GHz and 100 kHz to 6 GHz, while Model N8485A has frequency range of 10 MHz to 26.5 GHz or 10 MHz to 33 GHz.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Sep 11, 2008 Available in stand-alone and bin vent configurations, Torit PowerCore® dust collectors can capture both large and small dust particles in wood, grain, cement, and plastics manufacturing operations. Measuring 7 in. long and combining Ultra-Web® surface-loading technology with fluted-media design, single PowerCore filter pack can replace 6 traditional 8 ft long fabric filter bags and can be removed from clean side of collector with one hand in minutes without using tools.

Dotworkz Systems, Inc.    San Diego, CA 92110
Sep 11, 2008 D2 IP camera enclosure integrates Zarlink converter module that operates on 12 or optional 24 Vdc power, and offers direct connection between 10/100Base-TX STP/UTP and 100Base-FX to extend network reach up to 2,000 m. It can be customized to withstand temperatures ranging from -40 to +155°F with Dotworkz CoolDome or Ring-of-Fire climate systems. Made from impact-resistant polycarbonate thermalplastic, unit does not rust/corrode, and is IP66 rated against dust, water, and salt-water.

Deltek, Inc.    Herndon, VA 20171
Sep 11, 2008 Providing project accounting solution for small to medium U.S. government contractors and project-focused businesses, GCS Premier v5.0 comes with user interface that offers role-based navigation and process-driven workflows. Premier Billing embeds functionality within Microsoft Excel 2007 to aid billing processes. Pre-built and customizable templates facilitate fast invoicing, while data security is maintained to ensure Defense Contractors Audit Agency (DCAA) compliance.

Actenum Corporation    Vancouver BC V6B 5C6  Canada
Sep 11, 2008 Rig Activity Scheduler (RAS) v3.0 incorporates automated, interactive capability for scheduling complex drilling operations. Rig cost model allows multiple contract, availability date, day rate, and transportation cost information to be incorporated into drilling plans and schedules, while GIS integration supports rig transportation computations based on multiple factors, including available road network, transportation speed, and movement restrictions.

KWJ Engineering Inc.    Newark, CA 94560
Sep 11, 2008 Able to run on replaceable watch battery, Pocket CO Model 300 nanotechnology-enabled instrument with digital readout protects from low-level and high-level exposure to CO, and gives time weighted average, maximum, and total exposure readings. Key-fob sized unit is suited for professionals and recreational users alike, including pilots, boaters, truckers, campers, building inspectors, firefighters, and first responders.

Emerson Process Management    Austin, TX 78754
Sep 11, 2008 Featuring no moving parts, Model 2200S 2-wire Micro Motion® Coriolis meter delivers +0.10% liquid flow and +0.0005 g/cm³ liquid density accuracy in continuous process and mass balance applications. Suitable for integral or extended mount, loop powered unit can be seamlessly integrated into existing control systems. Transmitter is equipped with MVD(TM) digital processing technology, and delivers multivariable and diagnostic information via HART® communications.

WinAgents Software Group    Saransk   Russian Federation
Sep 11, 2008 WinAgents TFTP Server v4.0 can be used to backup/recover network devices configurations, store files in IVR systems, and boot diskless workstations. With built-in cache system, it can process simultaneous requests for files transmission and all files can be transmitted using only one UDP port. Remote server administration enables users to remotely configure server, examine current TFTP sessions and server work logs, and change server settings without restarting the server.

AXIOMTEK    Taipei   Taiwan
Sep 11, 2008 Powered by Intel® Q965 Express chipset, Model PANEL1173-841 supports Intel® Core(TM)2 Duo processor with up to 3 GB of dual channel DDR2 system memory and 533/667/800/1,066 MHz FSB. High performance industrial PC adopts rugged NEMA 4/IP65 compliant front bezel, and is equipped with 17 in. SXGA TFT LCD with resolution up to 1,280 x 1,024. Featuring 2 PCI expansion slots, it also supports 2 SATA interfaces, 3 COM ports, 4 USB 2.0, and 2 Gigabit LAN.

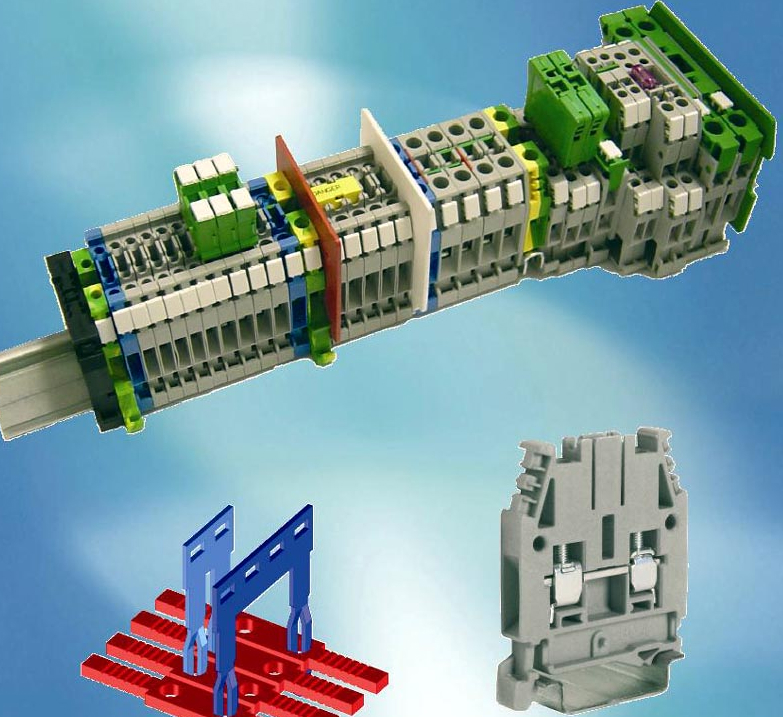

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Sep 10, 2008 DIN rail mounted, EZ Jump terminal blocks provide 2 locations and housing insulation for PTC jumpers. Characteristics include grey color for multiple product compatibility, RoHs compliant materials, and housings molded of UL94V0 polyamide. Blocks are available in single, multiple, functional, and fuse levels as well as screw clamp and spring clamp wire terminations. Terminal blocks and PTC Easy Bridge System can be ordered as individual items or as complete assembly.

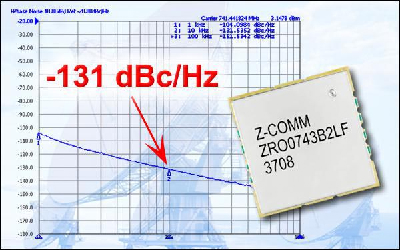

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 738-748 MHz with tuning voltage of 0-6 Vdc, coaxial resonator based Model ZRO0743B2LF features typical phase noise of -131 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 2 MHz/V. Device delivers typical output power of 9 dBm at 8 Vdc supply while drawing 23 mA over the temperature range of -40 to 85ºC. Housed in ZMX-14-SM package measuring 0.75 x 0.75 x 0.22 in., RoHS-compliant VCO features typical 2nd harmonic suppression of -20 dBc.

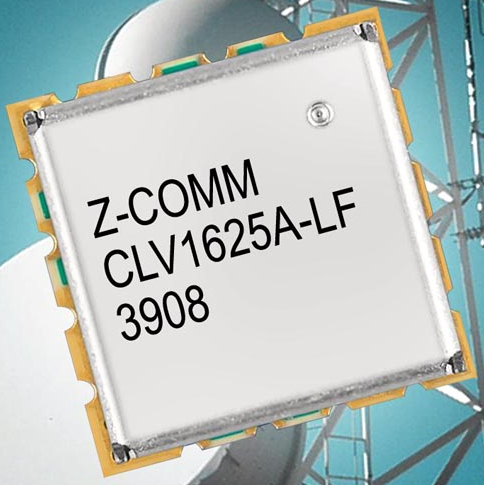

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 1,510-1,740 MHz with tuning voltage range of 0.5-11.5 Vdc, RoHS-compliant CLV1625A-LF features typ phase noise of -107 dBc/Hz @ 10 kHz offset and typ tuning sensitivity of 28 MHz/V. Product delivers typ output power of 0 dBm at 3.3 Vdc supply while drawing 23 mA (typ) over -40 to +85ºC range. It features typical second harmonic suppression of -15 dBc and comes in 0.50 x 0.50 x 0.13 in. MINI package with low shield.

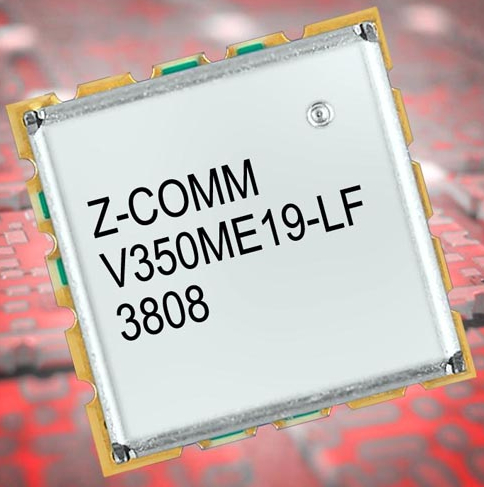

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 300-600 MHz with tuning voltage range of 0-10 Vdc, RoHS-compliant V350ME19-LF features typical phase noise of -99 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 35 MHz/V. It is designed to deliver typical output power of 5 dBm at 5 Vdc supply while drawing 14 mA (typ) over -40 to +85ºC range. Supplied in 0.50 x 0.50 x 0.22 in. MINI package, VCO is suited for test equipment and CATV applications requiring wide tuning range and low phase noise.

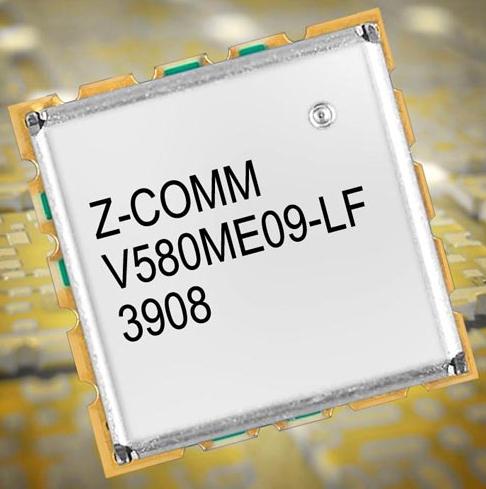

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 805-825 MHz with tuning voltage range of 0.5-4.5 Vdc, RoHS-compliant V580ME09-LF features phase noise of -111 dBc/Hz @ 10 kHz offset (typ) and typical tuning sensitivity of 42 MHz/V. It is designed to deliver typical output power of 5.5 dBm at 5 Vdc supply while drawing 21 mA (typ) over -30 to +85ºC range and comes in 0.50 x 0.50 x 0.13 in. MINI package. Areas of use include data links and digital cellular applications that require low phase noise performance.

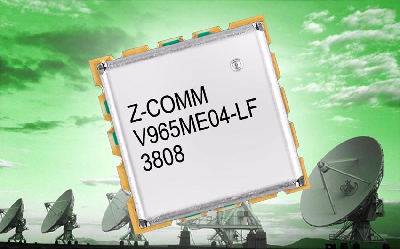

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 6,500-6,550 MHz with tuning voltage range of 0.5-4.5 Vdc, Model V965ME04-LF features typical phase noise of -85 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 100 MHz/V. Device delivers output power of -2.5 dBm at 5 Vdc supply over temperature range of -40 to 85°C. Housed in MINI package with low shield measuring 0.50 x 0.50 x 0.13 in., RoHS-compliant VCO is suited for automated surface mount assembly and reflow.

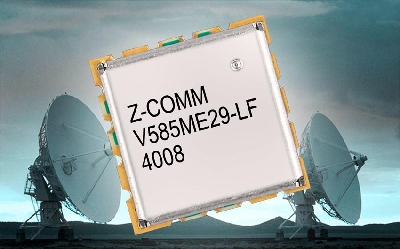

Z-Communications, Inc.    San Diego, CA 92126
Sep 10, 2008 Operating from 1,470-1,650 MHz with tuning voltage of 1-12 Vdc, L-band Model V585ME29-LF features typical phase noise of -103 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 36 MHz/V. Device delivers output power of 7 dBm at 5 Vdc supply while drawing 17 mA over temperature range of -40 to 85°C. Housed in MINI package measuring 0.50 x 0.50 x 0.22 in., RoHS-compliant VCO is suited for satellite communication and cellular base station applications.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Sep 10, 2008 Available in captive, non-captive, and external linear designs, 28000 series (Size 11) double stack hybrid linear actuators feature resolutions from .000125-.002 in. per step and can also be micro-stepped. They occupy 1.1 in. square space and deliver up to 30 lb thrust. In addition to standard configurations, products can be custom-designed to application requirements. Elements of construction include engineering thermoplastics in rotor drive nut and stainless steel acme lead screw.
