Sil-pro    Delano, MN 55328
Oct 01, 2008 Quick Turn Tooling service provides molds and parts in as little as 3 days, depending on configuration. Other options include 5-, 10-, and 15-day turnaround. Services may include full first article data, and other options include silicone production molding, assembly, and test services. Offering covers liquid silicone molding, gum stock molding, insert molding, and bonding silicone parts to plastics, metal, and other silicone parts using medical-grade adhesives.

Astro-Med, Inc.    West Warwick, RI 02893
Oct 01, 2008 Suited for short-run applications, Vivo! electrophotographic digital label printing system enables on-demand production of variable label content such as photos, graphics, and barcodes. Toner-based solution prints photo-quality color labels on roll-fed label stock. Design optimizes media handling through print engine and facilitates label re-loading process.

KORENIX Technologies    Taipei 231  Taiwan

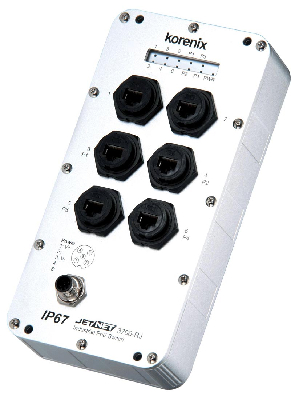

Oct 01, 2008 Made of corrosion-resistant and non-combustible aluminum, JetNet 3706-RJ is equipped with six IP67-rated RJ45 Ethernet ports, which provide waterproof and dust-tight connection. Each enclosure is designed with 50 mm top face plate to survive constant shock and heavy impact. Switch is suited for data transmission and power delivery in outdoor, offshore, and railway applications as well as factory automation, coal mines, petrochemical factories, and food/beverage industries.

Parker Hannifin Corp., The Filtration & Separation Div.    Tewksbury, MA 01876
Oct 01, 2008 Available in 3 models, Balston® FID-3500 Gas Stations will produce up to 3.5 lpm of hydrocarbon-free air from existing compressed air supply and 500 cc/min of fuel-grade hydrogen from deionized water. Units include ergonomic cabinet, visual operational status display, automatic water filling for continuous operation, and closed-loop water management system. With generators, cylinder gas users can supply, control, and automate their gas supplies.

Techno Sommer Automatic    New Hyde Park, NY 11040
Oct 01, 2008 Designed for food-handling applications, GGL3060 features corrosion-resistant, stainless steel design that is sealed to IP69K standards and withstands high-pressure and high-temperature washdown cleanings. Angular design provides up to 24 lb-ft of gripping torque, and ability to swing open to 180° enables jaws to clear material below gripper. Solution meets DIN 1672-2 guidelines for hygienic food production machinery, and also features jaw position sensors.

Murata Power Solutions, Inc.    Mansfield, MA 02048

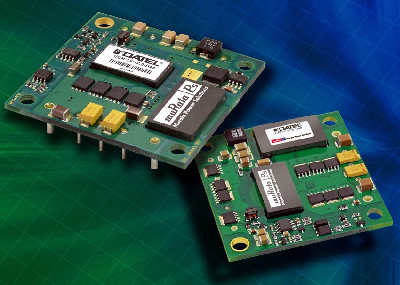

Oct 01, 2008 Featuring open-frame construction, HPH Series delivers 360 W of power and 70 A output current, while UCH Series provides 50 and 150 W of output power and max output current of 40 A. HPH models offer choice of fully regulated single outputs ranging from 3.3-12 Vdc and input voltage of 36-75 Vdc. With outputs from 2.5-15 Vdc, UCH models offer choice of 36-75 or 18-36 Vdc input voltages. Both RoHS-compliant converter types measure 61 x 58.4 x 10.2 mm and operate from -40 to +85°C.

Emerson Network Power    St. Louis, MO 63136

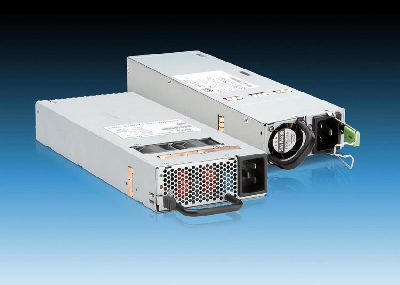

Oct 01, 2008 Rated at 1,200 W and 2,000 W, respectively, Models DS1200-3 and DS2000-3 generate main payload output of 12 Vdc and auxiliary output of 3.3 Vdc for powering standby circuitry. Both digitally programmable units are equipped with I2C interface and use PMBus(TM) communications protocol. They feature 90-264 Vac input voltage range, power factor correction, serial EEPROM, and fan cooling with automatic speed control. Measuring 1.6 in. high, units are suited for 1U rack-mounting equipment.

Schneider Electric    Palatine, IL 60067-7399
Oct 01, 2008 Featuring 4 configurable alarm points and ability to differentiate between low-load levels and zero-current flow, Square D® PowerLogic® Branch Circuit Power Meter monitors up to 84 branch circuits as well as main incoming feeds in any power distribution unit and remote power panel. It integrates into PowerLogic system or other existing networks using Modbus® communications and monitors loads from ¼-100 A, reporting on power, energy, and demand for each branch circuit.

Vicor Corp.    Andover, MA 01810 5424
Oct 01, 2008 Featuring 94.5% efficiency, VIB0101THJ, 120 W, 1/32nd brick footprint BCM(TM) bus converter is 48-12 V surface-mount, non-regulated half-chip unit enabling low impedance interconnect to system board. Utilizing Sine Amplitude Converter (SAC(TM)) for power density of 840 W/in³, it also features low junction-to-board and junction-to-case thermal resistance. It can be used to power non-isolated POL converters or as isolated voltage source for various applications.

JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Oct 01, 2008 Available in 400 and 750 W models, MAC Servo Motor Systems consist of AC servo motor, hall-sensor, encoder, power supply, driver and positioning controller, as well as facilities for Profibus, CAN, and Nano PLC modules. Motors include pulse/direction or quadrature inputs for electronic gearing, 6th-order servo filter, software-controlled end-of-travel stops, and positioning via digital interface. Set up by Windows MacTalk software, motors only require connection of 115 or 230 Vac mains voltage.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407

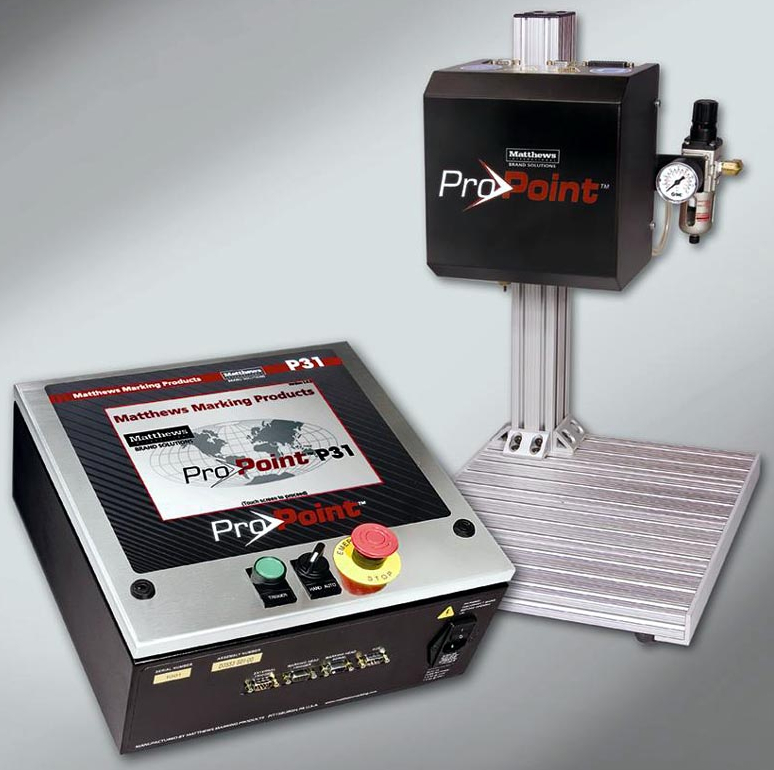

Oct 01, 2008 Used for for permanent industrial indent marking, ProPoint P31 prints within 1 x 3 in. window and incorporates 10.4 in. color GUI that facilitates set-up and modification of mark. It is suited for various applications - automotive, electronic, aviation, consumer products, machine shops - where permanent mark showing product name, serial number, shift number, or other information provides traceability for life of product.

Solartron Metrology    Gastonia, NC 28054

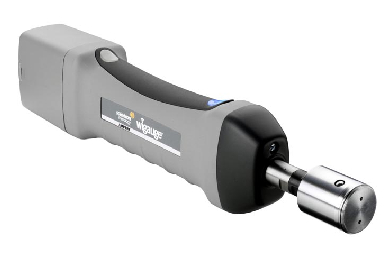

Oct 01, 2008 Eliminating need for cables to download measurement data, class 1 Bluetooth wigauge(TM) has range of 15 m or more for data transmission, even in hostile environments. IP65-rated gauge is compatible with industry standard M6 and M10 gauge head threads, and features user-selectable resolution up to 0.1 µm. Attached NiMH battery pack delivers up to 10 hours of continuous data transmission, and can be removed for off line recharging.

Pacific Bearing Co.    Rockford, IL 61125
Oct 01, 2008 Comprised of 2-piece assembly, Uni-guide can be dropped into most applications. Rail and carriage composition is of lightweight anodized aluminum, and bottom of slide is keyed for precision alignment. Carriage is self-lubricating, with Frelon GOLD® liner to create extreme environment-tolerable design, and allows particulates to be wiped harmlessly off shaft. Offered with customizable options such as locking vices and conveyors, guide may be driven by ball screw, lead screw, or motor.

DDP Supply    El Segundo, CA 90245

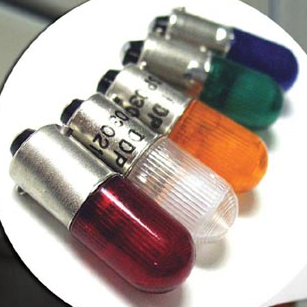

Oct 01, 2008 Designed to help lower power consumption and maintenance, 120MBLS-X-CX 120 Vac line voltage lamp has operating life upwards of 100,000 hr and is suited for industrial indicator lighting applications. Wide-angle LED operates to 130 Vac (max) while drawing less than 8 mA, and included shunt resistor eliminates transient current and prevents false positive indication by LED. With typical light output of 15lm, lamp comes in red, amber, blue, green, and white.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

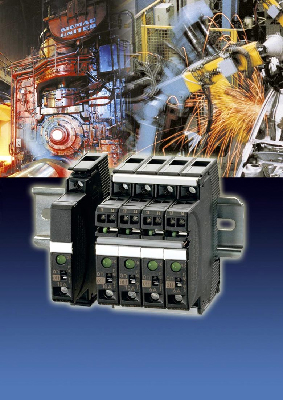

Oct 01, 2008 Available in fixed current ratings from 0.5-12 A, DIN rail mounted Model ESX10-T features Class I, Div 2 - Group A, B, C, and D, UL 1604 certification. Device combines electronic trip characteristics and active current limitation to allow selective disconnection of loads connected to 24 Vdc power supplies. Active current limitation limits highest possible current to 1.3-1.8 times rated capacity and is capable of switching on capacitive loads up to 20,000 µF.

Kooltronic Inc.    Pennington, NJ 08534

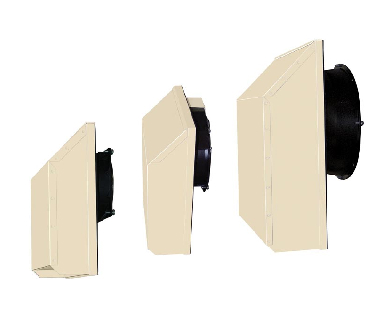

Oct 01, 2008 Constructed of painted steel, Advantage Sentry Series offers cooling solution where filtered, ambient air can be used to cool components that can tolerate temperatures slightly higher than ambient. Units offer integral finger protection and have synthetic filter media. Available in 8 models ranging from 32-988 cfm, fans feature standard voltages of 115 and 230 Vac, and are also available in optional dc voltages.

Del City    Menomonee Falls, WI 53051

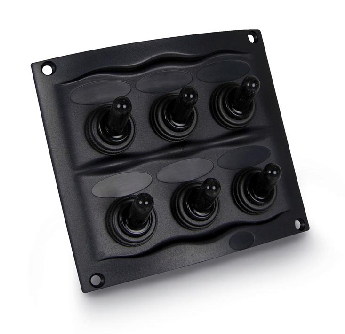

Oct 01, 2008 Designed to protect circuits from harsh environmental conditions, 12 V Toggle and Rocker Switch Panels are crafted to withstand marine settings but are resilient enough to tolerate various applications. Six-position toggle models are furnished with rubberized boots for extra protection, while 6-position rocker switches are also equipped with LED lights to indicate when they are activated. Four-position rocker models are secured with rubber gasket molding that redirects water away from switches.

LED Worklight    Ottawa K2B 8G8  Canada
Oct 01, 2008 Comprised of pair of battery-powered LED lights that clip on to each side of safety glasses, VER01 headlight enables hands-free lighting for technicians who are faced with low light conditions. It swivels and turns in all directions so that lighting can be directed where it is needed. Compact and lightweight light comes with 2 extra sets of batteries.

CS Unitec, Inc.    Norwalk, CT 06850
Oct 01, 2008 Manufactured from aluminum-bronze or copper-beryllium alloys, Non-Sparking, Non-Magnetic safety tools meet ATEX regulations for safe use in Ex areas where hazardous, flammable or combustible vapors, liquids, dusts, or residues may be present. Line of safety tools consists of hammers, flange wedges, striking wrenches, impact sockets, screwdrivers, and shovels. Each tool is laser engraved for proper Ex Zone classifications indicating zones for which it can be used.

Safety Technology International    Waterford, MI 48327

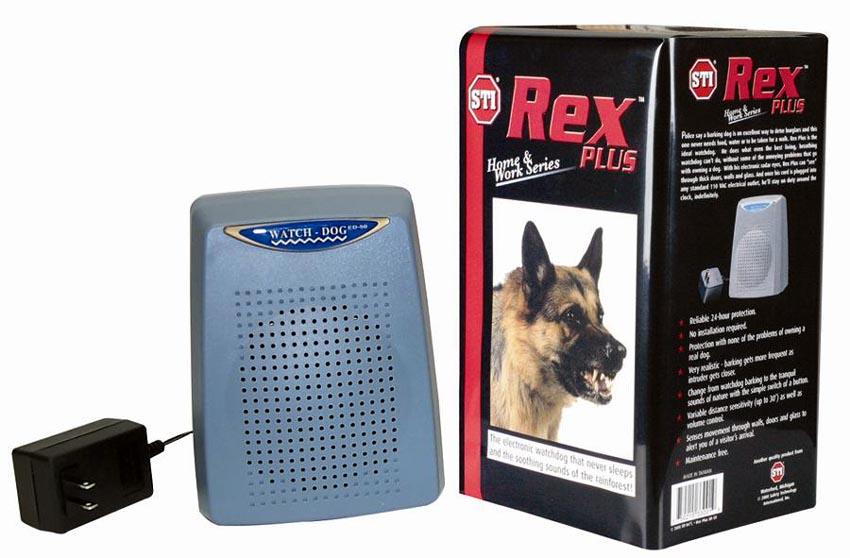

Oct 01, 2008 Featuring up to 30 ft variable distance sensitivity, Rex Plus (ED-50) requires 110 Vac electrical outlet to protect homes and businesses from burglars, thieves, and intruders. It can see through thick doors, walls, and glass with electronic radar eyes and produces barking alarm when intruder approaches protected area. Any indoor location can be selected where movement is to be detected. Unit offers continuous sounds of rainforest to announce arrival of visitors or barking dog for 15-20 sec.
