Synopsys, Inc.    Mountain View, CA 94043 4033
Mar 03, 2008 IC Compiler v2007.12 enables concurrent methodology where planning occurs in tandem with implementation, delivering fast time to tapeout. It also features clock tree synthesis technology that reduces clock buffering area to help improve routing congestion and power dissipation. Skew optimization enables improved timing closure for challenging designs, while integrated clock-gate merging capability helps reduce clock tree power.

TE Connectivity Ltd.    Berwyn, PA 19312
Feb 29, 2008 Developed on LH3 0.5 µm pHEMT process and supplied in RoHS-compliant SOT-26 SMT plastic package, M/A-COM MAAL-007304 and MAAL-007306 have noise figures less than 1 dB across respective designed frequency ranges of up to 3 or 2 GHz. They employ monolithic, 2-stage, self-biased design and operate from one 3.0 V supply. Supplied in RoHS-compliant SC-70 SMT plastic package, MAAL-008550 employs single-stage self-biased design and achieves 0.75 dB noise figure up to 2.3 GHz.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Feb 29, 2008 Surface-mount chip resistors of ULR Series feature Inductance and TCR values, along with power rating, that promote optimal thermal performance and minimized power consumption in circuit designs. RoHS-compliant products suit high-volume, high-current power electronics applications involving current detection and monitoring. Specifications include power ratings of 1, 1.5, 2, 2.5, and 3 W at 80°C; resistance from 0.5-10 mW; tolerances of ±1% and ±5%; and TCRs as low as ±50 ppm/°C.

Linear Technology Corp.    Milpitas, CA 95035
Feb 29, 2008 With polarity selection and buffered reference output, Model LTC2919 monitors 2 positive or negative supplies for undervoltage and overvoltage conditions. Two inputs have nominal 0.5 V threshold and ±1.5% accuracy. In addition, LTC2919 monitors supply voltage at 2.5, 3.3, or 5 V at fixed -10% UV. Adjustable trip thresholds are set with external resistive divider network. Offered in MSOP-10 and 3 x 2 mm DFN-10 packages, supervisor draws 50 µA and operates from -40 to +125°C.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Feb 29, 2008 Constructed from 316 and 316L stainless steel, intrinsically safe Series IS626 senses pressure of gases and liquids in hazardous environments. Pressure sensor offers 0.25% full scale accuracy on ranges from full vacuum, compound, 0-15 to 0-5,000 psig. Available with ¼ in. male or female NPT or BSPT process connection, transmitter uses 3 ft cable or 4-pin M-12 connector for electrical connection.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 29, 2008 Housed in 0603 package, Power Metal Strip® WSL0603...18 offers resistance range of 0.015-0.1 W at standard tolerances of ±0.5% and ±1.0%. Device features ±75 ppm/°C TRC and thermal EMF of less than 3 µV/°C, while offering frequency response to 50 MHz and inductance from 0.5-5 nH. With temperature capacity to +170°C, resistor is intended for current-sensing applications in dc-dc converters, battery management systems, and VRMs in computer and telecommunications systems.

Techne Inc.    Burlington, NJ 08016
Feb 29, 2008 Operating over temperature range of ambient to 100°C, Dri-Block® DB-2TC accommodates 2 aluminum insert blocks with independent digital temperature controls, making it suited for multiple users or for applications where samples have to be transferred between 2 temperatures quickly. Unit has heat-up rate of 30-100°C in 19 minutes with temperature stability of ±0.1°C. Compact design allows heater to be placed in fume cabinets where corrosive/toxic chemicals are used.

Techne Inc.    Burlington, NJ 08016
Feb 29, 2008 Featuring total energy transfer system, temperature-controlled Filter Fluorometers come in 3 models, 2 using photomultiplier detectors and 1 using photodiode detector. All models can display results as either raw fluorescence or in concentration units based on 1-6 calibration points. User interface enables methods to be created and stored, while Intelligent Filter Modules ensure correct excitation and emission filters are fitted.

Techne Inc.    Burlington, NJ 08016
Feb 29, 2008 Jenway 67 series UV/Visible spectrophotometers include color TFT LCD displays along with QWheel for fine cursor control. Secure multiuser operation enables each user to access their methods, data, and settings by entry of individual PIN codes. Personal settings can be saved to removable SD or multimedia memory cards and device can be customized via removable and interchangeable sampling accessories.

Acopian Technical Co.    Easton, PA 18044
Feb 29, 2008 Compliant with requirements of UL508, Narrow Profile WN8 series of power supplies can be used on input of 90-265 Vac or 110-350 Vdc. Equipped with power factor correction and output inhibit capability, applying between 3-25 Vdc to inhibit terminal will disable output. Rated for operation over 0-71°C, 100 kHz switchers have line and load regulation of ±0.05%. Other features include remote sensing capability and overload, over-voltage, short-circuit, and thermal protection.

GaleWrap    Douglasville, GA 30134
Feb 29, 2008 Measuring 114 x 96 x 98 in., Standard Manual Model Yellow Jacket 110® secures palletized loads directly on forks of forklift. Horizontally positioned stretch-wrap dispenser moves around and under load as Yellow Jacket 110 is manually advanced across length of load. Featuring adjustable tensioning for range of 0-150% film post stretch, product can wrap standard pallet size up to 68 in. diagonal and uses any machine-grade film up to 20 in. wide.

Weldcraft    Appleton, WI 54911
Feb 29, 2008 Facilitating ordering while minimizing inventory, 4 torch packages are designed for air-cooled applications from 150-200 A, and 2 torch packages include 250 or 350 A torch for water-cooled applications. Additionally, packages provide 25 ft power cable and cable cover (water cooled packages), power cable adapter, and 15 ft ground cable. Gas hoses and water hoses are also provided, as required, while Smith Equipment flow meter regulator and welding accessory kit are standard.

Vi-Cas Mfg. Co., Inc.    Cincinnati, OH 45236
Feb 29, 2008 Available in diameters as small as 2 mm, mini vacuum cups are designed to fit any type of vacuum equipment used for placement of small parts. Various styles and sizes are available, including anti-static versions for handling electronic components and sensitive materials. Cups are suited for handling injection molded parts, applying labels, pick-and-place operations, and packaging applications. Custom and reverse-engineered designs can be accommodated.

Pilz Automation Safety L.P.    Canton, MI 48187
Feb 29, 2008 Pilz PSENvip creates protected fields that are constantly monitored and represented on camera unit display, stopping press within 3 ms if object breaches field. Suitable for press brakes up to 32.8 ft long, system comprises of LED-based light source and camera connected to PNOZmulti modular safety controller or programmable safety system. Transmitter and receiver are mounted on upper die and are resistant to vibration and interference, as well as diffused light.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Feb 29, 2008 Eco-Saver(TM) Briquetting Systems feature high-pressure hydraulic ram that compacts shredded paper, cardboard, and other light materials for recycling or disposal. Systems include disintegrator, evacuation equipment to transfer particles and dust from disintegrator to hopper, briquetting press, transfer tubes, and briquette collection boxes. Standard briquette sizes range from 2.5-3.2 in. dia. Available in 3 models, systems can be manually operated or fully automated.

Label Value    Tampa, FL 33634
Feb 29, 2008 Suitable for use with Primera LX 400 and LX 810 color label printers, High Gloss Labels are available in various sizes ranging from 1.5 x 1.5 in. up to 4 x 6 in., including a 2.5 in. circle. Labels are made with bright white high gloss material and general purpose permanent adhesive and are tested to not smudge.

Contrinex AG    Old Saybrook, CT 06475

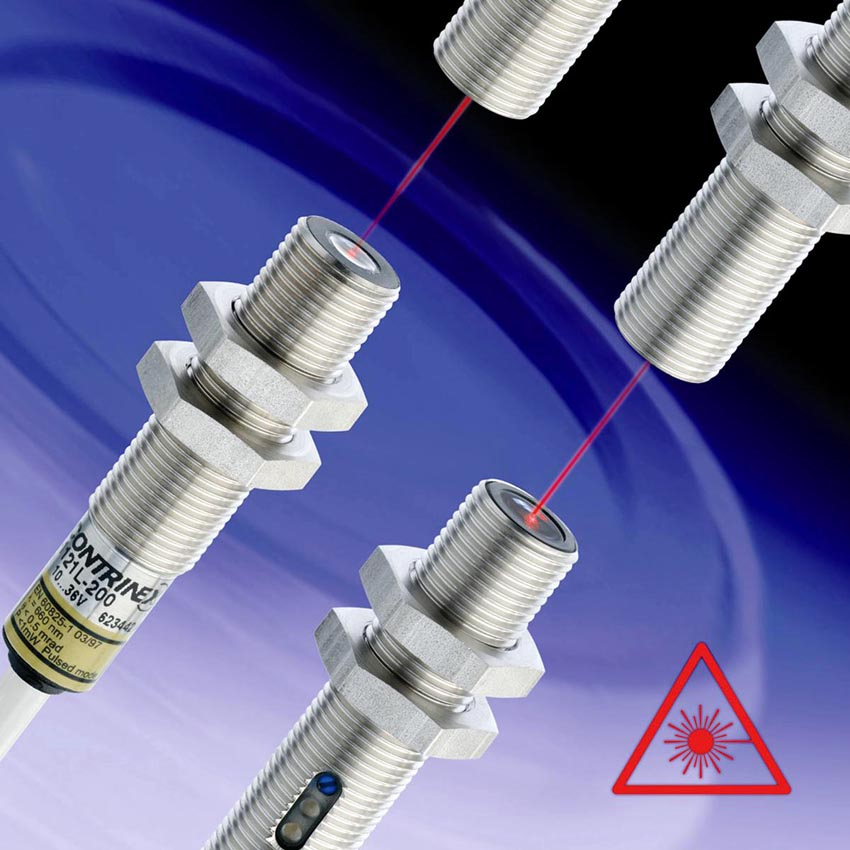

Feb 29, 2008 Protected to IP67, immune to interference from other light sources, resistant to high shock levels, and protected against effects of electro-magnetic radiation, Model M12 sensor is suited for processes such as welding where fumes, soot, and sparks create extremely hostile environment. With body length of 50 mm and operating range of 50 m, stainless steel sensor features operating supply voltage from 10-30 Vdc, 5 kHz switched output frequency, and current rating of 200 mA.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Feb 29, 2008 Designed for use with coolers, refrigerated dryers, separators, filters, and liquid separators, Model AMD 1550 removes condensate and contaminants from air system. It features working pressures to 230 psi and discharge capacity of 53 gal/hr, and maintains liquid seal. Light-weight and modular unit comes in rugged and corrosion-resistant metal housing.

Connor-Winfield Corp., The    Aurora, IL 60505

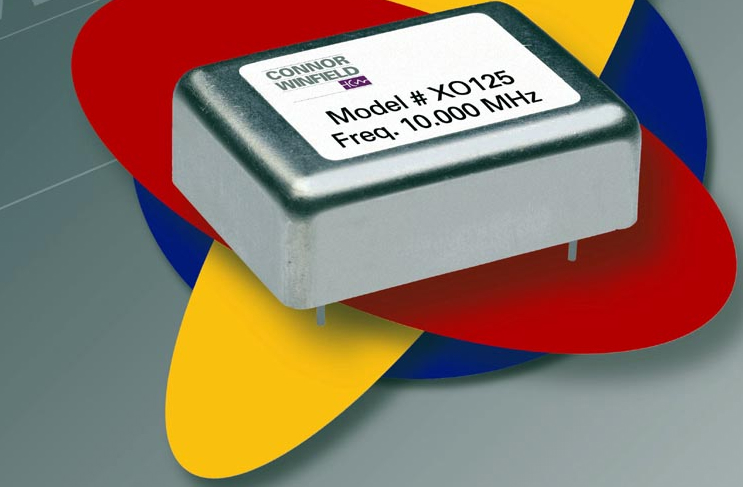

Feb 29, 2008 Model XO125 is 5 V Voltage Controlled Oven Compensated Controlled Crystal Oscillator(VCOCXO) that comes with HCMOS output. It is designed for Stratum 3E applications requiring low aging rate and tight frequency stability, and offers standard frequencies at 10 and 12.8 MHz. RoHS compliant unit features voltage control, frequency stability of 10 ppb maximum, aging rate of 1 ppb/day maximum, and temperature range of 0-70°C.

NavSync Ltd.    Aurora, IL 60505
Feb 29, 2008 Based on NemeriX NX3 high sensitivity A-GPS single chip receiver, TrineX CW27 is self-contained GPS receiver module that takes up only 24 x 24 mm of PCB space, and connects directly to host system through UART using NMEA protocols. It delivers enhanced GPS tracking, down to -159 dBm, enabling tracking in many obstructed view environments such as urban canyons. Developed for mobile hardware platforms running off batteries, unit operates from single 3.3 Vdc supply.
