Schneider Electric    Palatine, IL 60067-7399
Sep 24, 2008 Designed for installation within row of racks, 300 mm direct expansion APC InRow RD provides scalable solution to add cooling as demand increases, up to 10 kW. Including variable speed fans, it captures hot exhaust air directly from aisle and distributes cool air through front of unit to ensure that temperatures are held at setpoint conditions. System is controlled by micropocessor through 4-line alphanumeric display and managed centrally through APC InfraStruXure Manager.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
Sep 24, 2008 Suited for direct parts marking and unique identification coding on variety of metal, plastic, and other hard-to-mark materials, Videojet® 7210 and 7310 pulsed fiber laser coders deliver coding speeds up to 350 and 700 cps, respectively. Units use special air-cooled optical fiber as laser medium, provide compact mechanical design with small marking head and straight-out or 90° beam options, and offer remote application diagnostics and controls.

Rohm & Haas Co.    Philadelphia, PA 19106 2399
Sep 24, 2008 Paraloid(TM) BPMS 250, when added at levels as low as 2% of sustainable polylactic acid mixtures, increases melt elasticity without affecting clarity of final product. It adds higher melt strength as PLA is processed during film and sheet extrusion, blown film extrusion, or calendering. High molecular weight acrylic additive complies with U.S. Food and Drug Administration requirements and EU Directive 2002/72/EC, and also meets food packaging safety regulations.

Sola/Hevi-Duty, EGS Electrical Group    Rosemont, IL 60018
Sep 24, 2008 SCP-X power supplies feature 24 Vdc output that meets Class 2 requirements for limited power. Supplies are sealed in metal case and mini-change connectors simplify connectivity for distributed I/O devices. SCP100S24X-CP for use in physical layer of Ethernet/IP control power applications where power supply output is connected to ground, while SCP100S24X-DVN can be used in physical layer of DeviceNet(TM) applications where power supply output is isolated from ground.

Taiwan Commate Computer Inc.    Taipei Hsien   Taiwan

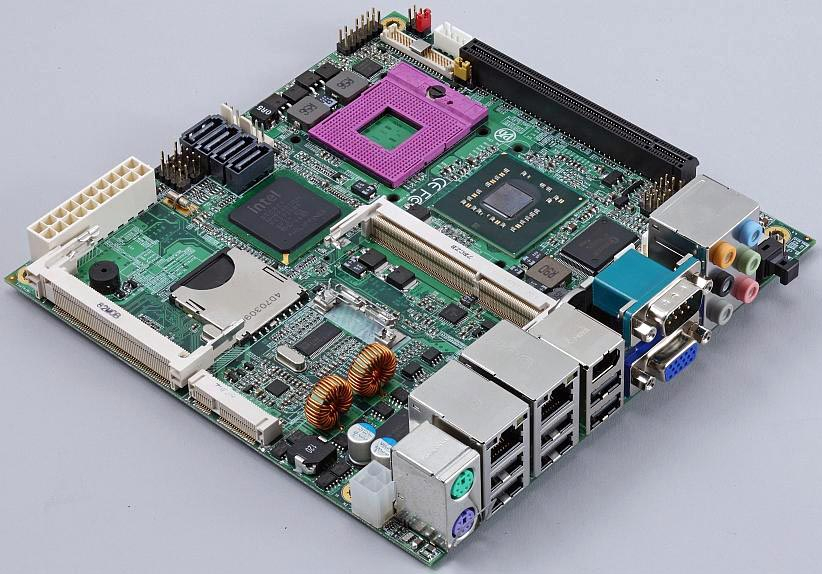

Sep 23, 2008 Validated with Mobile GM45 Express chipset, LV-67B incorporates Intel® Socket P pin-out compatible with Intel Core 2 Duo Mobile Penryn or Core 2 Extreme processors featuring 667/800/1066 MHz FSB. Visual capabilities are fostered via Mobile Intel Graphics Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds to 533 MHz. Board supports SO-DIMM memory slots for DDR3 SDRAM up to 2 Gb and also offers various I/O, connectivity, and expansion options.

Kurt J. Lesker Co.    Livermore, CA 94550

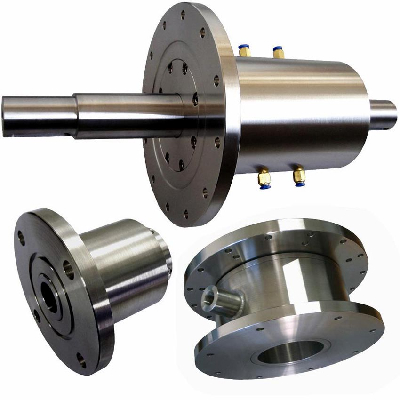

Sep 23, 2008 Available in solid- and hollow-shaft models, Ferrofluid-Sealed Rotary Drives feature rotating shaft mounted inside stationary body. Gap between them is filled with fluid containing colloidal suspension of magnetic particles. Under influence of magnets in drive's body, ferrofluid forms liquid O-rings that vacuum-seal shaft. Drives are suited for vacuum applications requiring rotary motion, such as sample stages, barrel coaters, platens, planetaries, and roll/web coaters.

LaCie USA    Hillsboro, OR 97124

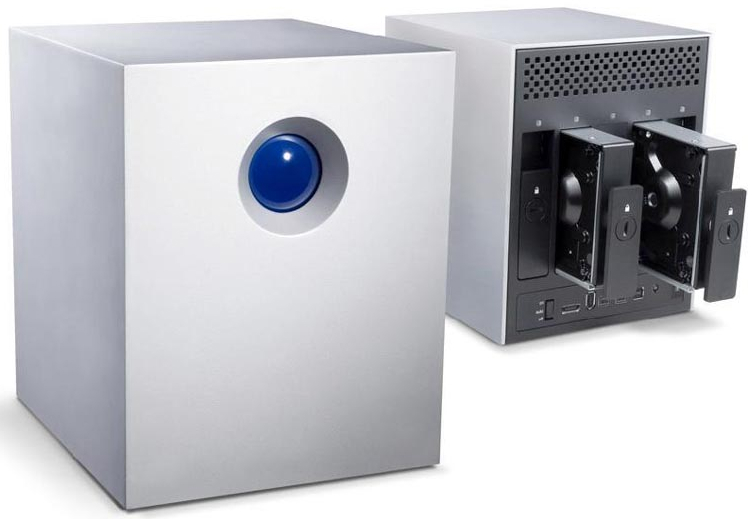

Sep 23, 2008 Available in 2, 4, or 6 TB capacities, 4big Quadra offers 4 hot-swappable disks for non-stop data access. It supports 7 RAID modes, including RAID 0 and 5, for optimal performance and data protection. Native RAID controller conserves computer resources, and burst transfer rates reach 200-230 MB/sec via eSATA. Compatible with Time Machine(TM), stackable and chainable unit comes with Genie Backup Manager Pro(TM) and Intego Backup Manager Pro(TM) for customizable backup and computer recovery.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada

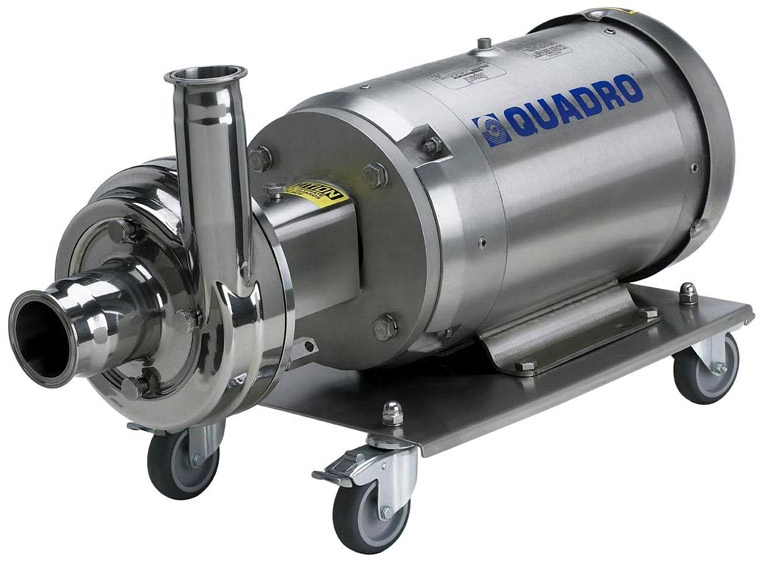

Sep 23, 2008 Targeting food and beverage industry, ShearFX Series features 4 different models ranging from 10-75 hp with capacities up to 250 gpm. Multiple tooling styles are available, allowing balance between shear energy and pumping efficiency. Design of pump and tooling offer ease of installation and maintenance while meeting stringent hygienic standards for being CIP-able and SIP-able. Various other options are available including selection of motors, controls, and portable bases.

SKF USA, Inc.    Lansdale, PA 19446
Sep 23, 2008 Available in 4 standard models, SKF® Mech-Tronix Spindle Systems incorporate spindle, pre-programmed variable speed AC drive, and spindle cooling chiller/circulator. Speeds up to 11,800 rpm and 20 hp at maximum rpm can be achieved, depending on model. Motor choices include totally enclosed liquid-cooled units and totally enclosed non-ventilated types. Embedded thermistor motor protection senses overheating conditions before serious damage occurs.

Softelec    Munich D-80995  Germany
Sep 23, 2008 Offering various functions for operation inside AutoCAD and in stand-alone mode, VPHybridCAD v10 supports AutoCAD 2004-2009 and complies with AutoCAD 2009 ribbon style UI. All VPHybridCAD products, such as VPraster and VPstudio, include PDF file import features for supporting most variations of PDF files with embedded raster images as well as PDF data containing vector elements. Text editing, element combination, and line style treatment capabilities are also included.

Phaseda LLC    Beaverton, OR 97005
Sep 23, 2008 Featuring multiple function options, MS-series includes single- and double-pole, On/Off, On/On, On/Off/On, and momentary configurations. Terminals are solder lug, PC through-hole type, and switch has UL rating of 5 A, 125 Vac. Fully compliant with RoHS standards, series is rated for over 10,000 electrical life cycles. Available rubber cap affords protection from dust and water.

American Safety Vest    East Providence, RI 02914
Sep 23, 2008 Featuring Velcro(TM) front closure, ANSI II Vests are available in fluorescent orange material with lime reflective striping or fluorescent lime material with silver reflective striping. Class I vest has 2 thick horizontal stripes across bottom-middle portion and suits areas with vehicle speeds under 25 mph. Class II and III vests have 2 horizontal and 2 vertical stripes made of 1 3/8 in. and 2 in. wide reflective material for areas rated from 25-50 mph and over 50 mph, respectively.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Sep 23, 2008 Delivering last chance protection for existing valves on longwall shields, MSB Replacement Elements are constructed of stainless steel and available in various sizes/styles. All feature plasma welds as well as hex slot in cap that facilitates element removal. Media construction promotes minimal pressure drops across element and extended life cycle.

Hardinge Workholding Division    Elmira, NY 14902
Sep 23, 2008 With large diameter bearings and fail-safe clamp system, Model GD210LP allows part weights up to 220 lb. Table has 210 mm precision ground slotted face plate, offers rotation up to 40 rpm, and uses up to 233 lb-ft of clamping torque to handle off-center drilling, cross-axis milling, and other high-force cutting applications. Operated as standalone unit or as true 4th axis direct connected to machine, table provides ±15 arc-sec accuracy and ±3 arc-sec repeatability.

Devcon    Danvers, MA 01923
Sep 23, 2008 Available in liquid and gel formulations, Tru-Bond(TM) 18400 Series pressure-sensitive adhesives bond metals, glass, ceramics, and plastics, including difficult-to-bond materials such as polyethylene and polypropylene panels. Solvent-free products can be applied in wide range of film thicknesses or bead widths, either by hand or with automated dispensing equipment. Once exposed to UV light, adhesives cure instantly to optically clear, non-yellowing finish.

AMETEK Prestolite Power & Switch    Troy, OH 45373
Sep 23, 2008 Utilizing MOSFET high-frequency power conversion circuitry, Prestolite Advanced Charger Eclipse Series recharges any 100% discharged lead-acid battery, flooded or sealed, as well as NiCad batteries. Series adapts to variety of charging requirements, including opportunity charging and multiple battery types with 3 equalize options, delayed start, and time of day block-out periods. With microprocessor control, chargers allow battery to determine charge cycle rate based on state of discharge.

Manncorp    Willow Grove, PA 19090
Sep 23, 2008 Measuring 50 x 30 in., lead-free Model C250 is equipped with adjustable corrosion-resistant finger conveyor, automatic defluxing, IR preheating, air-knife cooling, and low-volume solder pot. Machine is available in either single or dual wave configurations for through-hole and surface mount assemblies. It also includes built-in solder pot loading, maintenance platform with locking support mechanism, and dial-adjustable wave height control.

Storch Magnetics, Div. Storch Products Co., Inc.    Livonia, MI 48153 1356
Sep 23, 2008 Designed to remove hazardous metal debris from floors, worksites, and roadways, Magnetic Road Sweepers use either permanent magnet or electromagnet for vehicle-mounted applications, including forklifts and skid-steers. Units come in 4, 5, 6, 7, and 8 ft wide models, with magnet measuring length of unit by 10 in. wide and 3 in. deep. Made from 304 stainless steel, sweepers are engineered with release lever mounted on side and 3 in. sweeping height.

FIPA, Inc.    Atlanta, GA 30318
Sep 23, 2008 Using hydrogenated nitrile rubber as base material, Bellows Suction Cups are unaffected by ozone and offer resistance to oils with high proportion of additives. Ten models are available, 6 with 2.5 folds and 4 with 1.5 folds. They are low marking and resist abrasion and wear. Able to handle temperatures up to 160°C, suction cups are suited for removing hot plastic parts from their molds and transporting them to next step in production.

SIXNET    Clifton Park, NY 12065 0767
Sep 23, 2008 Designed to fit EIA, WECO, and ETSI racks, 26-port Model EK26 and 32-port Model EK32 feature up to 8 Gigabit ports for 10/100/1000 RJ45 Ethernet links including 4 that accept 100 Mb or 1,000 Mb SFP fiber optic transceivers. Up to 16 fast Ethernet ports can be either 10/100 RJ45 or fiber optic for noise immune links up to 120 km. Software features include RSTP for fast redundant rings, IGMP for multicast filtering, and VLAN for traffic segregation.
