JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Oct 01, 2008 Available in 400 and 750 W models, MAC Servo Motor Systems consist of AC servo motor, hall-sensor, encoder, power supply, driver and positioning controller, as well as facilities for Profibus, CAN, and Nano PLC modules. Motors include pulse/direction or quadrature inputs for electronic gearing, 6th-order servo filter, software-controlled end-of-travel stops, and positioning via digital interface. Set up by Windows MacTalk software, motors only require connection of 115 or 230 Vac mains voltage.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407
Oct 01, 2008 Used for for permanent industrial indent marking, ProPoint P31 prints within 1 x 3 in. window and incorporates 10.4 in. color GUI that facilitates set-up and modification of mark. It is suited for various applications - automotive, electronic, aviation, consumer products, machine shops - where permanent mark showing product name, serial number, shift number, or other information provides traceability for life of product.

Solartron Metrology    Gastonia, NC 28054
Oct 01, 2008 Eliminating need for cables to download measurement data, class 1 Bluetooth wigauge(TM) has range of 15 m or more for data transmission, even in hostile environments. IP65-rated gauge is compatible with industry standard M6 and M10 gauge head threads, and features user-selectable resolution up to 0.1 µm. Attached NiMH battery pack delivers up to 10 hours of continuous data transmission, and can be removed for off line recharging.

Pacific Bearing Co.    Rockford, IL 61125
Oct 01, 2008 Comprised of 2-piece assembly, Uni-guide can be dropped into most applications. Rail and carriage composition is of lightweight anodized aluminum, and bottom of slide is keyed for precision alignment. Carriage is self-lubricating, with Frelon GOLD® liner to create extreme environment-tolerable design, and allows particulates to be wiped harmlessly off shaft. Offered with customizable options such as locking vices and conveyors, guide may be driven by ball screw, lead screw, or motor.

DDP Supply    El Segundo, CA 90245
Oct 01, 2008 Designed to help lower power consumption and maintenance, 120MBLS-X-CX 120 Vac line voltage lamp has operating life upwards of 100,000 hr and is suited for industrial indicator lighting applications. Wide-angle LED operates to 130 Vac (max) while drawing less than 8 mA, and included shunt resistor eliminates transient current and prevents false positive indication by LED. With typical light output of 15lm, lamp comes in red, amber, blue, green, and white.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060
Oct 01, 2008 Available in fixed current ratings from 0.5-12 A, DIN rail mounted Model ESX10-T features Class I, Div 2 - Group A, B, C, and D, UL 1604 certification. Device combines electronic trip characteristics and active current limitation to allow selective disconnection of loads connected to 24 Vdc power supplies. Active current limitation limits highest possible current to 1.3-1.8 times rated capacity and is capable of switching on capacitive loads up to 20,000 µF.

Kooltronic Inc.    Pennington, NJ 08534
Oct 01, 2008 Constructed of painted steel, Advantage Sentry Series offers cooling solution where filtered, ambient air can be used to cool components that can tolerate temperatures slightly higher than ambient. Units offer integral finger protection and have synthetic filter media. Available in 8 models ranging from 32-988 cfm, fans feature standard voltages of 115 and 230 Vac, and are also available in optional dc voltages.

Del City    Menomonee Falls, WI 53051
Oct 01, 2008 Designed to protect circuits from harsh environmental conditions, 12 V Toggle and Rocker Switch Panels are crafted to withstand marine settings but are resilient enough to tolerate various applications. Six-position toggle models are furnished with rubberized boots for extra protection, while 6-position rocker switches are also equipped with LED lights to indicate when they are activated. Four-position rocker models are secured with rubber gasket molding that redirects water away from switches.

LED Worklight    Ottawa K2B 8G8  Canada
Oct 01, 2008 Comprised of pair of battery-powered LED lights that clip on to each side of safety glasses, VER01 headlight enables hands-free lighting for technicians who are faced with low light conditions. It swivels and turns in all directions so that lighting can be directed where it is needed. Compact and lightweight light comes with 2 extra sets of batteries.

CS Unitec, Inc.    Norwalk, CT 06850
Oct 01, 2008 Manufactured from aluminum-bronze or copper-beryllium alloys, Non-Sparking, Non-Magnetic safety tools meet ATEX regulations for safe use in Ex areas where hazardous, flammable or combustible vapors, liquids, dusts, or residues may be present. Line of safety tools consists of hammers, flange wedges, striking wrenches, impact sockets, screwdrivers, and shovels. Each tool is laser engraved for proper Ex Zone classifications indicating zones for which it can be used.

Safety Technology International    Waterford, MI 48327
Oct 01, 2008 Featuring up to 30 ft variable distance sensitivity, Rex Plus (ED-50) requires 110 Vac electrical outlet to protect homes and businesses from burglars, thieves, and intruders. It can see through thick doors, walls, and glass with electronic radar eyes and produces barking alarm when intruder approaches protected area. Any indoor location can be selected where movement is to be detected. Unit offers continuous sounds of rainforest to announce arrival of visitors or barking dog for 15-20 sec.

Jones & Shipman Plc    Leicester Leicester LE3 2LF  United Kingdom
Oct 01, 2008 Providing creepfeed, surface, and profile grinding in multi-axis configuration and GE-Fanuc® intelligent terminal CNC control from 2,025 x 1,500 mm footprint, Dominator 624 CNC Machine is suited for machine shops where space is at premium. By using cuboid machine bed design and mounting wheelhead on carrier assembly to provide 'Z' axis, work table then moves vertically to provide 'Y' axis. It offers grinding length of 600 mm x grinding width of 200 mm from 400 mm work table.

Dymax Corp.    Torrington, CT 06790
Oct 01, 2008 With spectral sensitivity from 395-465 nm (visible portion of spectrum), ACCU-CAL 50 V radiometer measures intensities from 1 mW/cm² to 40 W/cm² and visible light energy emitted from lightguides (3, 5, and 8 mm), flood systems, and conveyors. It provides monitoring control for light curing processes. Specially designed photo sensor assembly protects photo sensor from high temperatures sometimes associated with high-intensity spot lamps.

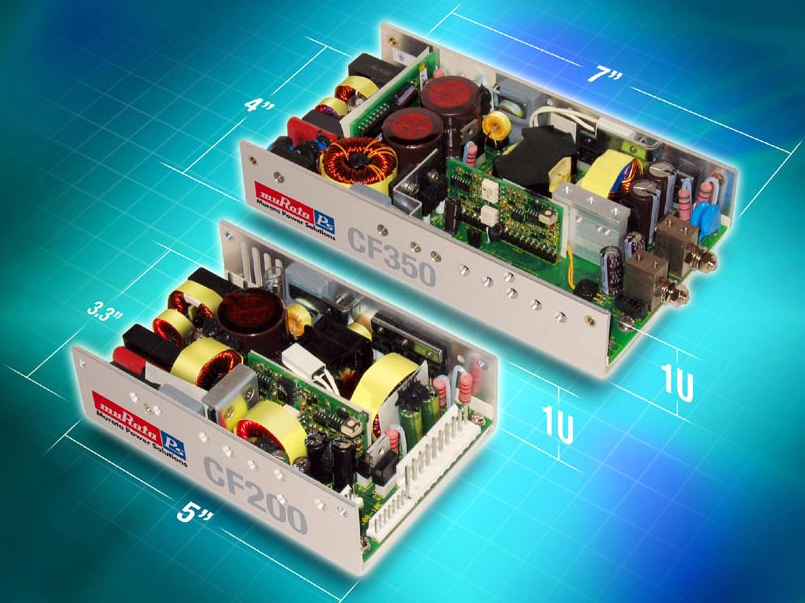

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 01, 2008 With active load current sharing and OR-ing diode for N+1 parallel operation, CF series features universal input of 85-265 Vac with active power factor correction and auxiliary 5 V standby output. Measuring 127 x 84 x 39.6 mm, CF200-A12C 200 W open frame unit has high power density of 8 W/in.³ and 12 V main output. CF350-A12C, A24C, and A48C 350 W power supplies measure 173 x 98 x 36.6 mm, have power density of 9.5 W/in.³ with choice of 12, 24, or 48 V main output.

Tornado® Industries, Inc.    West Chicago, IL 60185
Oct 01, 2008 BR 13/1 MW employs an environmentally responsible encapsulation system where carpet soils become crystallized and are easily extracted with vacuuming. Available with variety of brushes for all cleaning needs, including side brushes for getting at hard-to-reach corners and edges, it can also be used to scrub, clean, and dry hard-surface floors.

ETCO Incorporated    Warwick, RI 02888 1501
Oct 01, 2008 Straight Booter runs on shop air and is used for applying rubber insulator boots to terminated spark plug and distributor wire assemblies. Measuring 19 x 5 x 5 in., bench-top device is powered by twin rod guided pneumatic cylinder. Minimal tooling changes are required for depth of boot insertion, and flow control valves permit adjustments to different boot and terminal combinations. Foot pedal actuated, it is capable of processing up to 100 wire assemblies per hour.

Anver Corp. - Anver.Com    Hudson, MA 01749
Oct 01, 2008 With 2,800 lb capacity for feeding cutting tables and machining centers, Anver M250M Mechanical Lifter has 21 x 29 in. sealing ring suction pad for lifting heavy blocks of aluminum, steel, and plastic. Unaffected by power outages, self-contained unit lets users pick up loads from top, eliminating need for magnets, hooks, or grabs. Features include self-cycling valve and piston that creates vacuum, all-welded steel construction, vacuum loss sensor, and audible and visual alarm.

RNR Plastics, Inc.    Raynham, MA 02767
Oct 01, 2008 Compatible with most grommet presses, ClipShop(TM) Brass Grommets are available in 1/8 to 1½ in. ID sizes in various finishes, including brass, antique brass, nickel, black oxide, and custom colors, or with nickel-free construction. Chemical compounding of raw materials, processing, and manufacturing methods results in grommets with sharp edges, eliminating need for hole punching.

Stafford Manufacturing Corporation    North Reading, MA 01864-0277
Oct 01, 2008 Metric Shaft Collars come with metric clamping screws and are made from aluminum, steel, and stainless steel in 1-piece, 2-piece clamp-type, and hinged styles. Featuring smooth and threaded bore configurations, shaft collars can also be machined from Teflon®, nylon, and other thermoplastics in 1- and 2-piece styles and sizes from 6.35-102 mm to provide exact material match for applications requiring frequent wash-downs.

Mark-10 Corp.    Copiague, NY 11726
Oct 01, 2008 Designed for product integrity testing in quality control, manufacturing, and R&D areas, Model ESM301 is suited for range of testing applications including spring testing, peel testing, tensile testing, wire pull testing. It may be programmed and controlled via its front panel or PC. PC control enables user to control unit through custom program or Nexygen(TM) TCD control software. Unit can be programmed to stop at or cycle between travel positions, force values, or limit switches.
