ILSCO    Cincinnati, OH 45227 1426
Oct 06, 2008 UL-listed and meeting UL467 specifications and NEC Article 250.94, GBT lay-in intersystem grounding and bonding termination connectors accommodate from 250 kcmil-#8 AWG grounding electrode conductors. Units are designed for copper or aluminum conductor and install on ground electrode conductor below meter or panel. They include 4 x #2-14 AWG bonding taps, lay-in feature, stainless steel screws, and serrations in conductor wire way to minimize oxidation.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 06, 2008 Suited for use in ambient temperatures from 32 to 122°F, Model CDD Duct Mount Carbon Dioxide Transmitter monitors room occupancy by detecting concentration of CO2 in return air duct. Non-dispersive IR sensing technology automatically updates calibration of transmitter using logic feature that limits amount of error due to drift. With accuracy of ±40 ppm +3% of reading @ 22°C, product can measure up to 2,000 ppm in duct air flows less than 1,500 fpm.

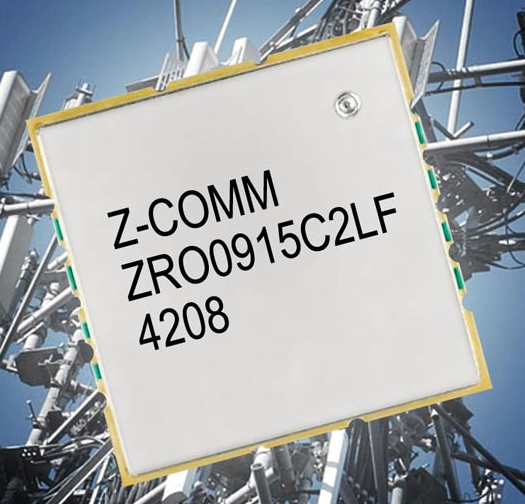

Z-Communications, Inc.    San Diego, CA 92126
Oct 06, 2008 Operating from 902-928 MHz with linear tuning voltage range of 0-11 Vdc, ZRO0915C2LF, RoHS compliant VCO in UHF-band features typical phase noise of -128 dBc/Hz @ 10 kHz offset and tuning sensitivity of 3 MHz/V. It can deliver constant typical output power of 5 dBm at 10 Vdc supply while drawing 23 mA from -40º to +85ºC. Typical 2nd harmonic suppression is -35 dBc. It is available in ZMX-14-SM package measuring 0.75 x 0.75 x 0.22 in. and in tape and reel packaging.

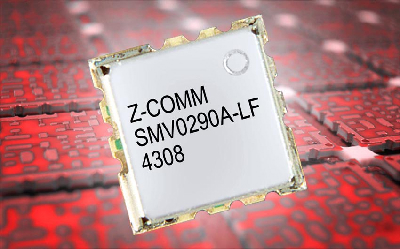

Z-Communications, Inc.    San Diego, CA 92126
Oct 06, 2008 Operating from 284-294 MHz with tuning voltage of 0.3-3 Vdc, Model SMV0290A-LF features typical phase noise of -118 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 9 MHz/V. Device delivers typical output power of -1 dBm at 3.3 Vdc supply while drawing 17 mA over temperature range of -40 to 85°C. Suited for automated surface mount assembly and reflow, RoHS-compliant oscillator targets handheld radio applications.

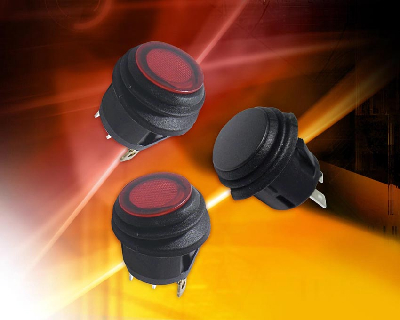

Cherry Electrical Products    Pleasant Prairie, WI 53158
Oct 06, 2008 Designed with silicone rubber actuator and snap-fit mounting, single-pole KC Series and double-pole KD Series comply with IP56 standards and are suitable for applications requiring resistance to dust and water intrusion. Both types use heavy-duty silver alloy contacts to achieve current ratings of 20 A at 14 Vdc and 16 A at 125 Vac. Available in lighted and non-lighted designs, switches fit industry-standard panel cut-out of 20.2 mm in diameter.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061
Oct 06, 2008 Integrating pumps, cooling systems, and heaters, Polystat® laboratory circulators are designed for optimal heat exchange efficiency, uniformity, and reservoir agitation. Digital, advanced digital, and programmable controllers are available in 6, 13, and 28 L models. Closed laboratory circulator, used for heating/cooling from -10 to +80°C, has sealed design that minimizes fluid evaporation and prevents fluid contamination. It maintains temperature to 0.1°C with flow rates to 12 Lpm.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Oct 06, 2008 Utilizing 3-phase AC technology in drive, hydraulic, and steering systems, EFG 213-220 and EFG 316-320 series offer capacities from 2,500-4,000 lb. Operator can charge and change battery via access from side of truck, and several battery extraction methods are available. On EFG 213-220 Series, there are six 3-wheel chassis variations suited for maneuvering in restricted spaces. Five 4-wheel chassis variations of EFG 316-320 Series are suited for applications involving longer runs.

Universal Package Systems, LLC    Dale, IN 47523
Oct 06, 2008 At 34 in. tall, plastic bulk container features 32 x 30 in. footprint and hopper style bottom designed to store and dispense fasteners, screws, and other small, uniformly shaped items. It has pallet-style base, accessible on all 4 sides, for movement with forklift or pallet jack when full or empty. Slide gate allows product dispensing via gravity at controllable flow rate. Unit has smooth, angled interior and is designed to handle up to 1,200 lb.

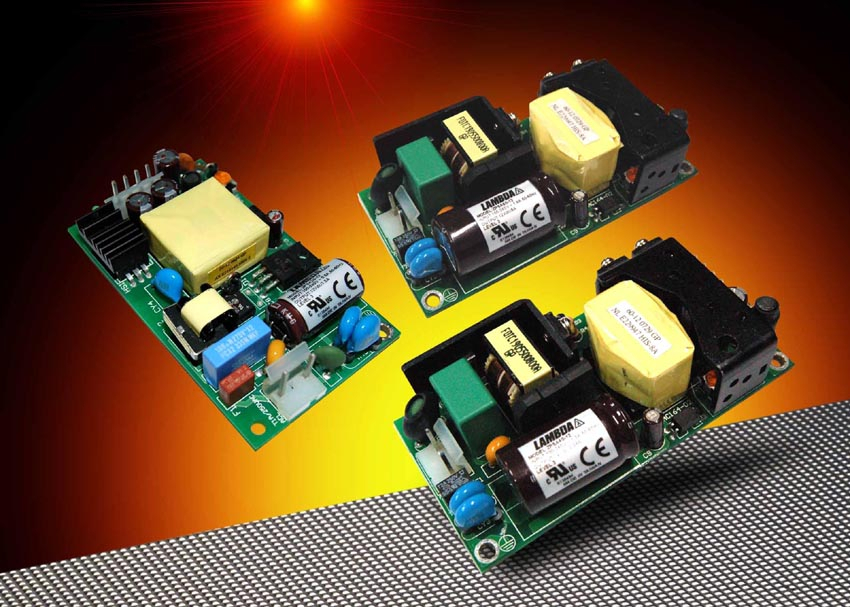

TDK-Lambda Americas Inc.    San Diego, CA 92154
Oct 06, 2008 With input voltage range of 90-264 Vac or 120-370 Vdc, ZPSA40 or ZPSA60 series suit applications such as LED signs and lighting, point-of-sale equipment, computer peripherals, datacom, and telecom. They offer output voltages of 3.3-48 Vdc, and are rated for operation in convection cooled environment from 0-70°C with derating. Measuring 2 x 4 x 1.07 in., units are offered in either open-board configuration with Molex I/O connectors, or with pins for PCB mounting.

Numatics    Mt. Pleasant, TN 38474
Oct 06, 2008 Available in ½, ¾, 1 1/16, 1½, 2, 2½, 3, and 4 in. bore sizes, NB Series interchangeable compact air cylinders have cylinder tube constructed of impact resistant and self-lubricating high strength composite material. They include composite bearing material Duralon®, which is resistant to corrosion, moisture, and temperatures up to 325°F. Options include non-rotating piston rod, multi-stage, and multi-position, as well as standard double-rod and single-acting configurations.

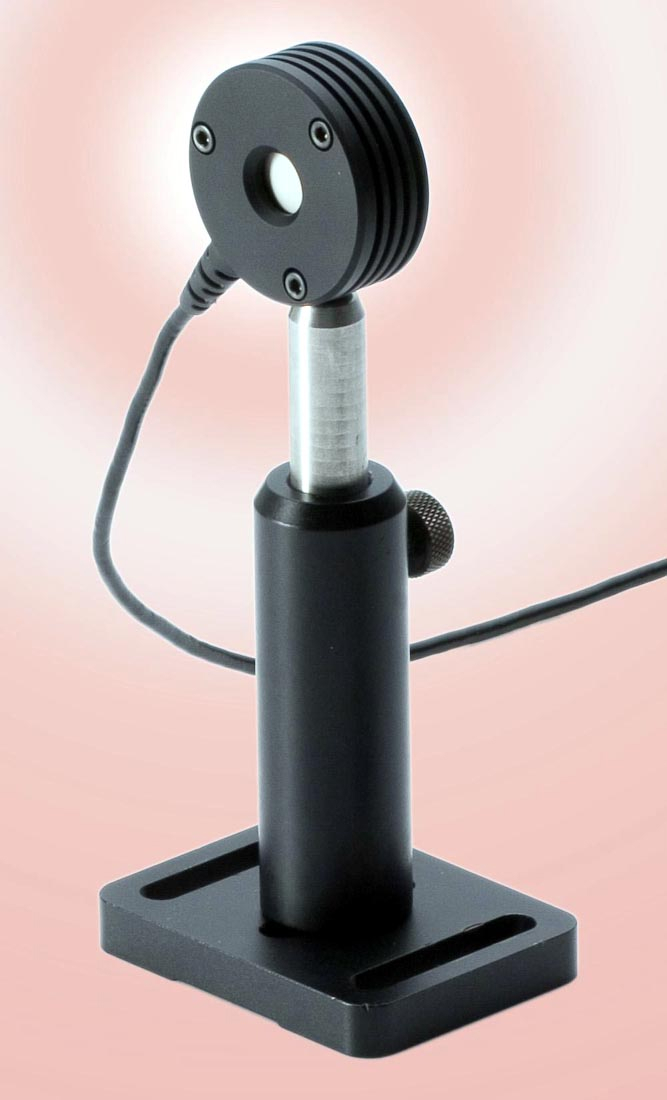

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Oct 06, 2008 With ability to operate at repetition rates of 10 kHz, J-10MT-10KHZ laser energy sensor delivers single-pulse noise equivalent energy level of 10 nJ on 100 nJ pulses, without averaging. It utilizes diffuse metallic coating, which incorporates automatic spectral compensation over 193-2,100 nm. Plug and play compatible 10 mm dia sensor features 3 m long molded cable with bend and strain relief, which protects unit against rough handling.

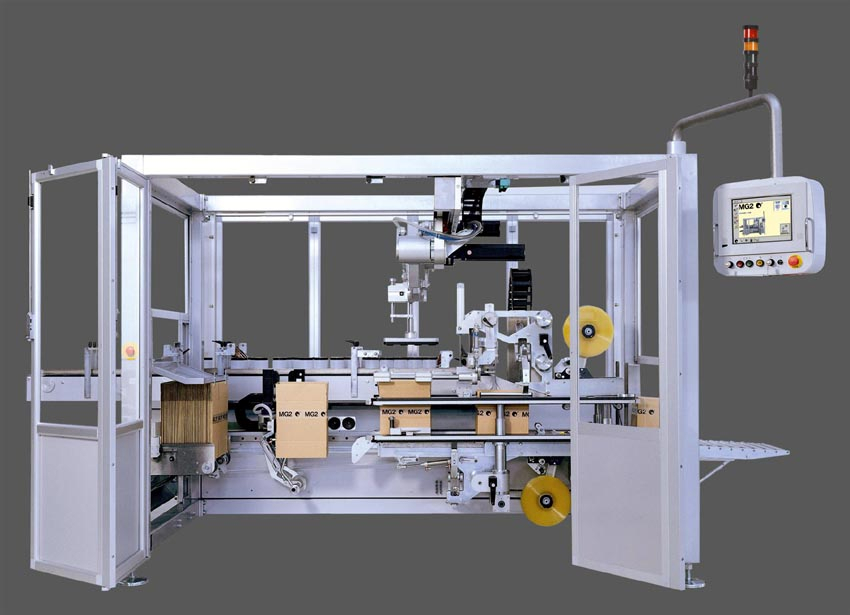

MG America    Fairfield, NJ 07004
Oct 06, 2008 Operated with PC-based control, GTL30 case packer incorporates servo-motors for main machine movements. It features operator touchscreen interface, balcony design for ease of cleaning and maintenance, and requires no change of parts for different case sizes. Pre-arranged for integration to supervisory control systems, unit delivers case erection from loading to machine discharge.

Image Industries, Inc.    Huntley, IL 60142
Oct 06, 2008 Ergonomically designed, ErgoWeld 3/8 in. compact drawn arc stud welding tool features stainless steel internal components housed in rugged body made of polymer plastic. Tool's lightweight design suits jobs where operator fatigue can play significant factor in productivity.

Safe Rack, LLC    Sumter, SC 29150
Oct 06, 2008 Featuring 4 wheeled towable trailer, Mobile Transloading Unit is designed for safe custody transfer of wide variety of liquids. Unit is suited for truck as well as railcar transloading, with common transfer equipment located on trailer beneath transloading racks. Truck side of unit features grounding protection, overfill monitoring, and metering of custody transfer, while railcar side allows options for unloading, as well as safe access to hatch area of railcar.

REAL Software, Inc.    Austin, TX 78746
Oct 06, 2008 Offering software development environment for creating range of applications, REALbasic 2008 Release 4 includes Control Locking function, which locks control in IDE so position and size cannot be edited. Program's compiler allows use of constants and enumerations in declarations, while Codesign enables developers to digitally sign REALbasic applications for security. With tab stops, users can specify controls to be skipped over when tabbing through user interface at runtime.

Sarantel    New York, NY 10023
Oct 06, 2008 Based on PowerHelix filtering technology, Sarantel LBS Pro will not lose energy and de-tune when held close to body, making it suitable for hands-free pedestrian navigation. Device includes integrated balun, which isolates it from device ground plane and rejects common mode noise from conducted power on device chassis. To optimize performance between tall buildings, antenna has beamwidth in excess of 130°, allowing it to pick up satellites close to horizon.

Konftel    Elgin, IL 60123
Oct 06, 2008 Connected to IP PBX system or directly to VoIP service provider, 300IP is based on SIP (RFC 3261) and also supports Power over Ethernet. It supports pre-programmed groups via included conference guide and allows calls to be recorded and stored on SD memory card. OmniSound 2.0 sound technology promotes sound clarity with wideband, and user profile creation enables saving of personal contacts and settings. Web-based configuration of contacts and settings facilitates operation.

Remy International, Inc.    Pendleton, IN 46064
Oct 06, 2008 Helping fleets meet fuel efficiency goals, 36SI(TM) heavy-duty alternator is designed to reduce engine horsepower needed to run itself so that more horsepower is available to run truck. Use of brushless design results in fewer moving parts that could wear, promoting durability and extended alternator life. While also optimized for cooling, design employs Remote Sense technology to help reduce battery charge time by up to 50%.

Americhem, Inc.    Cuyahoga Falls, OH 44222
Oct 06, 2008 Added directly during manufacturing process, nGrain(TM) enables production of building materials with consistent effects that emulate natural woodgrain. Color is built into formulation and will not delaminate, crack, or be nicked/cut. Formulations can be altered to exhibit wood effects from bold grains to subtle feathering. Effective with range of resins, product can be used in monoextruded, coextruded, and foamed products as well as with wood or cellulosic composite compounds.

Sifter Parts & Service    Wesley Chapel, FL 33544
Oct 06, 2008 Made out of 1018 cold roll steel, specialized tooling helps ensure jobs are done correctly and efficiently for Model CS-1 gyratory sifter. Tools include T27 for tightening/removing bearing adapter to upper spindle and T4 for pressing bushing (No. 44) in/out of knuckle casting. T24 Upper Bearing 3-Pronged Press can remove upper bearing off of upper spindle, while T48 Shim Tool levels sifter base to properly attach stabilizer assemblies to spider base and X-frame.
