Krylon Products Group    Cleveland, OH 44115
Oct 07, 2008 Atrium® latex paint suits interior applications on walls and ceilings of primed plaster, wallboard, wood masonry, and primed metal. Offered in flat, eggshell and semi-gloss finishes, it has zero volatile organic compounds (VOCs) and low odor properties, making it safe for use in occupied areas without causing disruption. Paint can be used in hospitals, schools, offices, manufacturing facilities and other high traffic, occupied areas.

TE Connectivity Ltd.    Berwyn, PA 19312
Oct 07, 2008 Available in bottom- and side-mount configurations, KILOVAC LEV100 contactor features inert gas in contact chamber and epoxy-sealed resin case. With coil voltage options including 12, 24, and 48 V, contactor's standard coil termination is 15 in. flying leads, and contact configuration is 1 Form X. Designed in accordance with AIAG QS9000 requirements, device is suited for ground power applications in aerospace as well as industrial and commercial power distribution.

Psion Teklogix Corp.    Erlanger, KY 41018
Oct 07, 2008 Featuring angled display with 2.7 in. QVGA color touch screen viewable indoors and outdoors, NEO handheld computer is pocket-sized, Windows CE.NET 5 device that offers up to 8 hr battery life. Applications include inventory tracking, stocking, back-dock shipping and receiving, meter reading, surveying, parking enforcement, asset tracking, and courier and parcel delivery, as well as ticket verification at theater and sporting events.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Oct 07, 2008 Pneumatic Housing incorporates series of 1 in. dia, 50 MgOe rare-earth tubes on staggered centers to ensure that all product flowing through housing makes repeated contact with magnets. Unit is suitable for processing dry, powder, granular materials, and can be used ahead of processing equipment and bulk load-out stations to ensure product purity and to protect machinery from tramp metal damage.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
Oct 07, 2008 Including 5 hp automatic tool change spindle and 5-spindle drill bank, LC Series Nesting Machine meets all needs of cabinet makers, exhibit, display, and point-of-purchase manufacturers. It features vacuum table hold-down system, 10 hp pump, material location pins, and nesting software. Unit offers automatic tool-drill bank calibration via tool calibration touch pad, and comes with PC and A.R.T. hand-held controller that gives operator complete control over all functions of machine.

Datastick Systems Inc.    Santa Clara, CA 95050
Oct 07, 2008 Offered as single-plane or two-plane balancing system, Model BAL-2000(TM) portable, USB-powered balancing system can be used with Windows desktop and laptop computers. Unit's phase-reference laser tachometer has programmable gain for optimizing performance in any environment, while visual readout shows signal level and phase tracking using analog waveform. Balancer is powered from USB port of laptop and uses any ICP®-compatible accelerometers.

Pentair Industrial    Sheboygan, WI 53082
Oct 07, 2008 Constructed from modified cellulose-based filter media, Carbflex(TM) OAC-20BB oil absorbing filter cartridge allows filter media to chemically bond with hydrocarbons instantaneously, absorbing up to 95% of total hydrocarbons in single pass. Unit removes dissolved and dispersed oils for applications including auto service stations, car and truck washes, oil and gas facilities, machine and repair shops, shipping bilge water and surface water runoff at truck stops.

Eriez Magnetics    Erie, PA 16506
Oct 07, 2008 Available in 2 magnet diameters, 1- or 5/8 in., Sight Glass Magnets are designed for removal of fine and weakly magnetic ferrous contamination from material flows traveling to molding machines. Offered in 4 sizes, they are equipped with super strength rare earth magnet material to remove fine iron contaminants and reduce product wash-off. Magnets help prevent product defects, plugged valve gates, machine damage, and downtime.

Misumi USA    Schaumburg, IL 60173

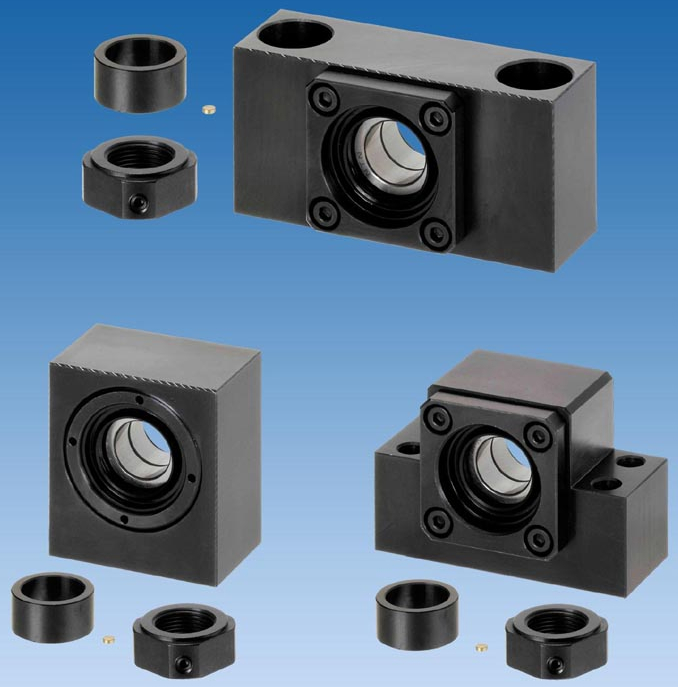

Oct 06, 2008 Comprised of 3 series, square supports for ball screws include bearing housing, angular bearing class 5, cover, hexagon socket head cap screw, spacer, clamping nut, and oil seal. Compact BSQ/BSQM suits tight spaces, low-profile BSV/BSVM series suits limited-clearance applications, and BSA/BSAM series has narrow-pitch mounting hole design. Each RoHS-compliant series is offered in 1045 carbon steel with electroless nickel plating or black oxide coating.

Crouzet    San Diego, CA 92154
Oct 06, 2008 Useful where programmable movement of simple mechanisms is required, Motomate incorporates brushless motor drive, 30 or 80 W motor, gearbox, and Crouzet Milleneum2 controller in one package. Motor incorporates power electronics, exhibits 90% efficiency, and produces up to 0.3, 3.5, or 30 Nm in direct drive, right-angle, or planetary configuration, respectively. Graphical function blocks facilitate programming of acceleration and deceleration in forward/backward motion.

ILSCO    Cincinnati, OH 45227 1426
Oct 06, 2008 UL-listed and meeting UL467 specifications and NEC Article 250.94, GBT lay-in intersystem grounding and bonding termination connectors accommodate from 250 kcmil-#8 AWG grounding electrode conductors. Units are designed for copper or aluminum conductor and install on ground electrode conductor below meter or panel. They include 4 x #2-14 AWG bonding taps, lay-in feature, stainless steel screws, and serrations in conductor wire way to minimize oxidation.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 06, 2008 Suited for use in ambient temperatures from 32 to 122°F, Model CDD Duct Mount Carbon Dioxide Transmitter monitors room occupancy by detecting concentration of CO2 in return air duct. Non-dispersive IR sensing technology automatically updates calibration of transmitter using logic feature that limits amount of error due to drift. With accuracy of ±40 ppm +3% of reading @ 22°C, product can measure up to 2,000 ppm in duct air flows less than 1,500 fpm.

Z-Communications, Inc.    San Diego, CA 92126
Oct 06, 2008 Operating from 902-928 MHz with linear tuning voltage range of 0-11 Vdc, ZRO0915C2LF, RoHS compliant VCO in UHF-band features typical phase noise of -128 dBc/Hz @ 10 kHz offset and tuning sensitivity of 3 MHz/V. It can deliver constant typical output power of 5 dBm at 10 Vdc supply while drawing 23 mA from -40º to +85ºC. Typical 2nd harmonic suppression is -35 dBc. It is available in ZMX-14-SM package measuring 0.75 x 0.75 x 0.22 in. and in tape and reel packaging.

Z-Communications, Inc.    San Diego, CA 92126
Oct 06, 2008 Operating from 284-294 MHz with tuning voltage of 0.3-3 Vdc, Model SMV0290A-LF features typical phase noise of -118 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 9 MHz/V. Device delivers typical output power of -1 dBm at 3.3 Vdc supply while drawing 17 mA over temperature range of -40 to 85°C. Suited for automated surface mount assembly and reflow, RoHS-compliant oscillator targets handheld radio applications.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Oct 06, 2008 Designed with silicone rubber actuator and snap-fit mounting, single-pole KC Series and double-pole KD Series comply with IP56 standards and are suitable for applications requiring resistance to dust and water intrusion. Both types use heavy-duty silver alloy contacts to achieve current ratings of 20 A at 14 Vdc and 16 A at 125 Vac. Available in lighted and non-lighted designs, switches fit industry-standard panel cut-out of 20.2 mm in diameter.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061
Oct 06, 2008 Integrating pumps, cooling systems, and heaters, Polystat® laboratory circulators are designed for optimal heat exchange efficiency, uniformity, and reservoir agitation. Digital, advanced digital, and programmable controllers are available in 6, 13, and 28 L models. Closed laboratory circulator, used for heating/cooling from -10 to +80°C, has sealed design that minimizes fluid evaporation and prevents fluid contamination. It maintains temperature to 0.1°C with flow rates to 12 Lpm.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Oct 06, 2008 Utilizing 3-phase AC technology in drive, hydraulic, and steering systems, EFG 213-220 and EFG 316-320 series offer capacities from 2,500-4,000 lb. Operator can charge and change battery via access from side of truck, and several battery extraction methods are available. On EFG 213-220 Series, there are six 3-wheel chassis variations suited for maneuvering in restricted spaces. Five 4-wheel chassis variations of EFG 316-320 Series are suited for applications involving longer runs.

Universal Package Systems, LLC    Dale, IN 47523
Oct 06, 2008 At 34 in. tall, plastic bulk container features 32 x 30 in. footprint and hopper style bottom designed to store and dispense fasteners, screws, and other small, uniformly shaped items. It has pallet-style base, accessible on all 4 sides, for movement with forklift or pallet jack when full or empty. Slide gate allows product dispensing via gravity at controllable flow rate. Unit has smooth, angled interior and is designed to handle up to 1,200 lb.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Oct 06, 2008 With input voltage range of 90-264 Vac or 120-370 Vdc, ZPSA40 or ZPSA60 series suit applications such as LED signs and lighting, point-of-sale equipment, computer peripherals, datacom, and telecom. They offer output voltages of 3.3-48 Vdc, and are rated for operation in convection cooled environment from 0-70°C with derating. Measuring 2 x 4 x 1.07 in., units are offered in either open-board configuration with Molex I/O connectors, or with pins for PCB mounting.

Numatics    Mt. Pleasant, TN 38474
Oct 06, 2008 Available in ½, ¾, 1 1/16, 1½, 2, 2½, 3, and 4 in. bore sizes, NB Series interchangeable compact air cylinders have cylinder tube constructed of impact resistant and self-lubricating high strength composite material. They include composite bearing material Duralon®, which is resistant to corrosion, moisture, and temperatures up to 325°F. Options include non-rotating piston rod, multi-stage, and multi-position, as well as standard double-rod and single-acting configurations.
