PolyScience Div. Of Preston Industries Inc.    Niles, IL 60714 4588
Oct 13, 2008 Portable DURACHILL(TM) Chillers are available with 1½-10 hp compressors and either air- or water-cooled condensers. They come equipped with user-adjustable temperature, pressure, and flow rate alarms as well as automatic condenser pressure cutouts. Models with 1½-3 hp compressors handle process temperatures from 5-35°C, while larger models can handle process temperatures of 0-30°C. Standard features include digital microprocessor temperature control and LED displays.

Fairchild Semiconductor    San Jose, CA 95134
Oct 10, 2008 Housed in thermally enhanced 6 x 6 mm MLP package, XS(TM) DrMOS FDMF6704 replaces 1 driver IC, 1 high-side MOSFET, 2 low-side MOSFETs, and 1 bootstrap Schottky diode. Device is compatible with both Tri-State and Non-Tri-State PWM controllers and is suited for synchronous DC-DC buck regulators used in computing, game consoles, and consumer Point-of-Load applications. With 92% peak efficiency, applications meet stringent energy-efficiency specifications.

Del City    Menomonee Falls, WI 53051
Oct 10, 2008 Battery isolators are suited for those who have high-power accessories that require use of second battery in their vehicle. They let user charge 2 batteries simultaneously and keep starting battery isolated during times when power is being used (without running engine) to ensure accessories do not drain start battery. Working on negative ground alternators, products are rated from 12-48 V and can only be used with batteries that have same voltage level.

MICRO-EPSILON AMERICA    Raleigh, NC 27617

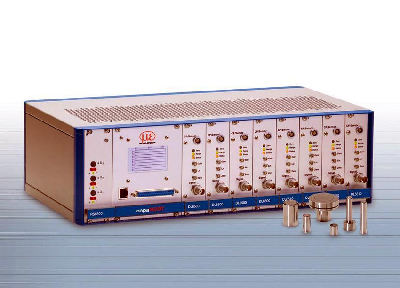

Oct 10, 2008 Accepting up to 8 measuring channels, non-contact capaNCDT 6500 Series uses active-driven, hermetically sealed, triaxial RF cable in combination with active guarded 3-electrode sensor for interference-free measurement data. Unit comes with 24-bit Ethernet port, so that measured data can be output error-free and shared with other technicians. Available as benchtop or 19 in. rack-mounted unit, system offers temperature stability of 5ppm/°C for controller and 11 ppm/°C for sensor.

Bausch Advanced Technologies, Inc.    Clinton, CT 06413

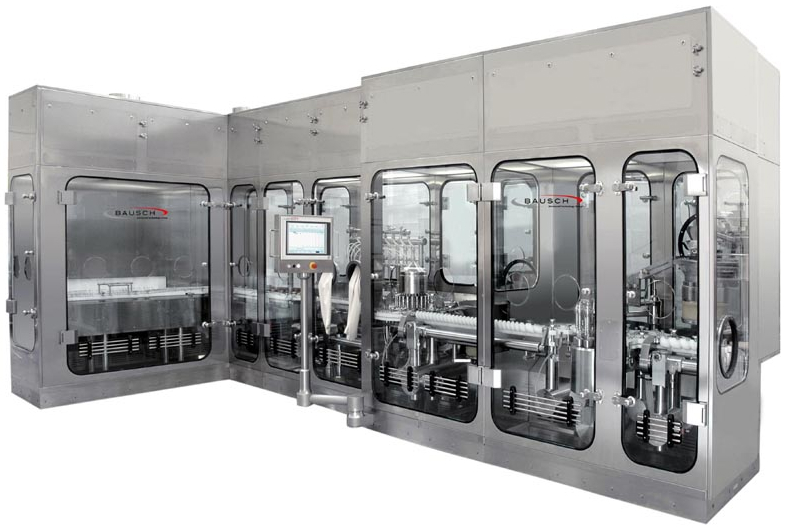

Oct 10, 2008 Offered in models capable of handling 300-600 vials/min, servo-driven machines feature balcony design compliant with cGMP guidelines as well as complete separation of drive from filling area to optimize laminar airflow throughout stations. Type 550 achieves aseptic filling and stoppering of vials, while Type 551 crimping machine can be used directly inline with Type 550 or as stand-alone unit. Also, Type 550 offers choice of 4 dosing systems as well as in-process checkweighing.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

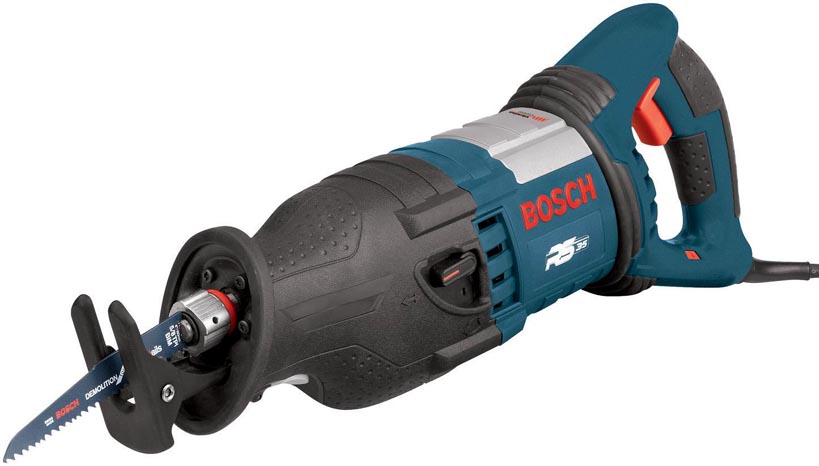

Oct 10, 2008 Along with 15 A motor, RS35 heavy-duty reciprocating saw features adjustable aggressive orbital action, variable speed control, and Constant Response(TM) circuitry that maintains consistent, controlled power. Anti-Vibration system, with shock absorbing handle and counterbalance mechanism, is custom-engineered to isolate user from tool vibration while also promoting all-day comfort and control. Also included, LockJaw(TM) blade holder enables one-handed blade changes.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Oct 10, 2008 With max operating voltage of 60 V, PolySwitch(TM) RKEF Devices offer hold-current ratings of 0.50-5.00 A and trip-current ratings of 1.00-10.0 A. All feature through-hole construction and operate at temperatures up to 85°C. Suited for general electronic products ranging from industrial controls to battery packs, devices are EU RoHS and ELV compliant and compatible with industry standard installation procedures.

Numerical Control Computer Sciences (NCCS)    Newport Beach, CA 92660

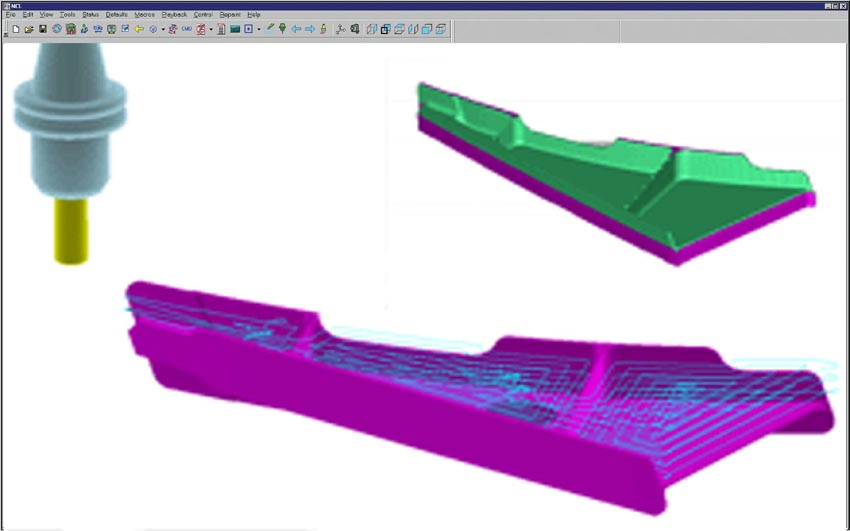

Oct 10, 2008 Used in aerospace, automotive, and turbo machinery industries, NCL helps facilitate part programming process while working with complicated model geometries. User-controlled geometry manipulation helps simplify complicated models in 5-axis programming, and geometry of model can be referenced using color and layer attributes, subscript range, and label wildcards. Programming techniques and ability to generate complex geometric entities are all offered within one interface.

Schunk    Morrisville, NC 27560

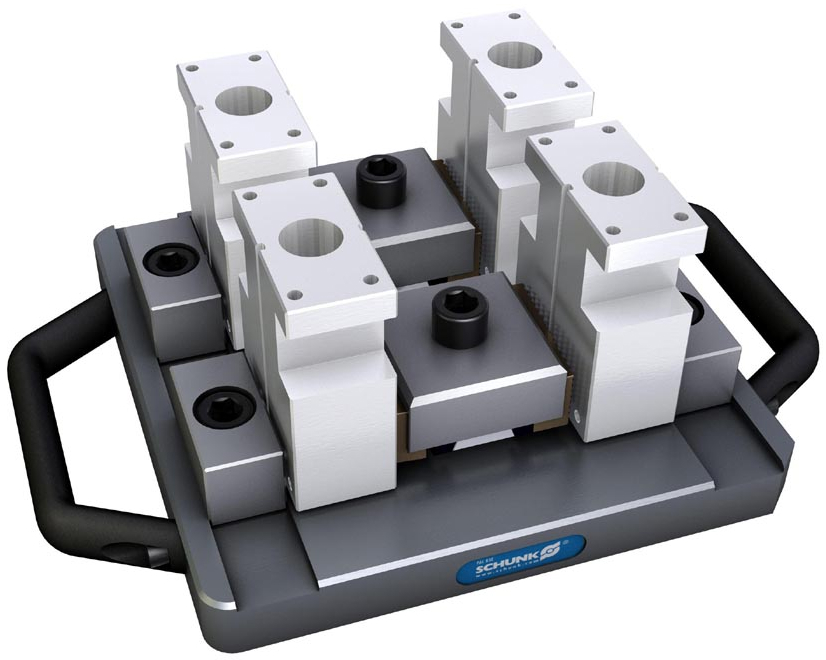

Oct 10, 2008 Measuring 22 mm high, KSE 50-PDB ensures secure hold with max gripping force of 30 kN and angle compensation of ±3°. Workpieces with angled clamping faces can be securely held due to oscillating design of chuck jaws, and active pull-down effect ensures workpiece is also pulled against support. Product is suited for multiple clamping applications because 2 workpieces can be clamped using one wedge clamping element.

Schunk    Morrisville, NC 27560

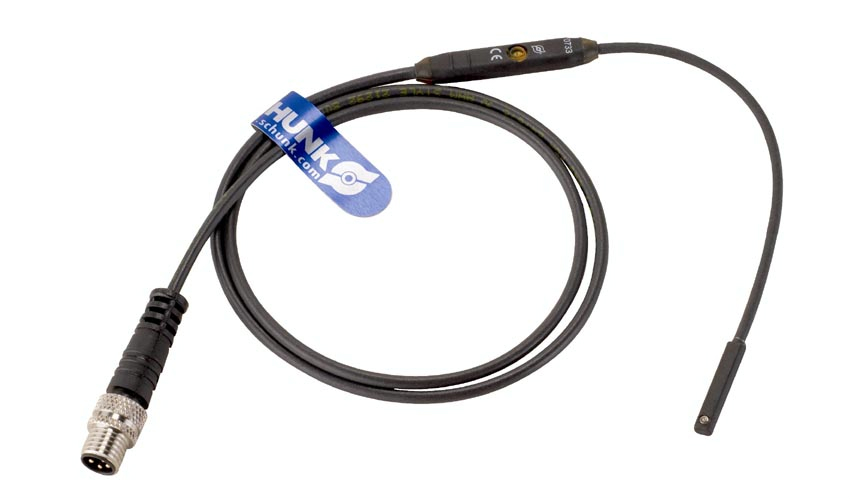

Oct 10, 2008 Featuring 2 programmable switching points, MMS-P mounts to piston, which is moved to desired switching position. It is programmed via push of button to switch-on point. Fitting into 4-C groove, teachable slotted switch is available in connector version with 4-pin M8 connector and cable version with open wires.

STMicroelectronics    Lexington, MA 02421
Oct 10, 2008 Supplied in 28-pin QFPN package utilizing RoHS-compliant ECOPACK® technology, AIS326DQ offers user-selectable full-scale range of ±2g or ±6g in all 3 axes and operates over -40 to +105°C temperature range. Along with 10,000 g shock survivability, product features 3.3 V single-supply operation, 1.8 V-compatible I/Os, and SPI/I²C serial digital output that supports direct connection to MCU. With 12-bit resolution, accelerometer can detect inclination changes as small as 1/10 of 1°.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Oct 10, 2008 Supplied in EIA 0201 case size (0.6 x 0.3 x 0.3 mm), BKP0603 series multilayer ferrite chip beads are designed for reducing power circuit noise in portable, battery-powered electronic equipment. Models BKP0603 HS220 and BKP0603 HS330, respectively, offer electrical performance characteristics that include 22 and 33 ohm impedance @ 100 MHz as well as 0.065 and 0.070 ohm RDC values. Maximum rated current for both models is 1.0 A.

Z-Communications, Inc.    San Diego, CA 92126
Oct 10, 2008 Operating in L-band from 1,250-2,350 MHz with tuning voltage range of 0-20 Vdc, RoHS-compliant V600ME02-LF features typical phase noise of -96 dBc/Hz @ 10 KHz offset and typical tuning sensitivity of 75 MHz/V. It delivers typical output power of 8 dBm at 5 Vdc supply while drawing 20 mA (typ) over -5 to +85ºC range and comes in 0.5 x 0.5 x 0.22 in. MINI package. Uses include test equipment applications requiring optimized wideband and phase noise performance.

Warsaw Chemical Co.    Warsaw, IN 46581
Oct 10, 2008 Producing thick lather for lubricity, Formula 577 Silky Suds High Lubricity Foaming Detergent penetrates and solubilizes road film; helps prolong life of foam, cloth, and brushes; and can be used in hybrid, conventional tunnel, and rollover washes. Rinseable, biodegradable product is non-corrosive and is available in 5 gal plastic tightheads and in 15, 30, and 55 gal plastic drums.

Omega Engineering, Inc.    Stamford, CT 06907
Oct 10, 2008 CE compliant HGL Series fan heaters help to protect failure of electronic components caused by condensation and corrosion by maintaining minimum operating temperatures in enclosures. Applications include electrical and electronic enclosures, display panels, access and parking control systems, and personnel booths.

Omega Engineering, Inc.    Stamford, CT 06907
Oct 10, 2008 When connected to enclosure heater or de-humidifier, MFR012 Series Mechanical Hygrostat turns heater on at set humidity level in order to raise dew point. It helps prevent damage and malfunction of electronic components caused by condensation and corrosion. DIN rail mountable and CE compliant product can also be used to control cooling fans, warning lights or other devices.

Cypress Semiconductor Corp.    San Jose, CA 95134
Oct 10, 2008 Integrating laser navigation sensor and programmable Flash-based MCU on one die, OvationONS(TM) II Laser Navigation SoC features surface tracking performance and power consumption of OptiCheck(TM) technology integrated with programmable CPU, USB interface, and configurable power management unit. It combines with optical lens for 2-piece assembly measuring only 8 x 8 x 4 mm and has form factor based on 0.13-micron SONOS mixed-signal process technology. It supports 0.8-5.5 V operations.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Oct 10, 2008 Operating at 2.5 MHz switching frequency, AAT1130 monolithic step-down converter keeps output voltage ripple low while supporting use of 1 µH chip-scale inductors. It operates across 2.7-5.5 V input range and quiescent current of 60 µA and delivers output from 0.6-1.8 V. Programmed output voltage is 1.2 V and unit maintains output accuracy to within ±5%. Operating from -40 to +85°C, it features internal soft start and over-temperature and current limit protection circuits.

Autodesk, Inc.    San Rafael, CA 94903
Oct 10, 2008 Autodesk FDO Provider for GE Smallworld and Autodesk FDO Provider for Microsoft SQL Server 2008 provide geospatial open source community with support for worldwide standards. Based on Feature Data Object (FDO) open data access technology, solutions promote utilization of native support for additional spatial data formats and let users access, view, edit, and analyze data within Autodesk geospatial software.

Benefitfocus.com, Inc.    Charleston, SC 29492
Oct 10, 2008 Standardizing way data is formatted in healthcare benefits industry, Benefitfocus® Max(TM) Standard Solutions lets users streamline operations through automated transaction exchange. Definition of data exchange standards helps carriers promote data integrity and automated maintenance of change and renewal information for large numbers of employers. Able to integrate with legacy systems, solution supports real-time or batch processing.
