Walls & Forms Inc.    Dallas, TX 75374
Oct 23, 2008 With 2 screws at each corner, 4-WayFrames can be assembled without special tools or installation crew. Frames are front-loading and do not need to be disassembled to change graphics. Standard backer is 1/8 in. thick low-pressure laminated hardboard surfaced white on front side for interior use. Available in choice of standard 3-mil clear satin anodized or black anodized finish, frames come in 9 sizes including 8½ x 11, 11 x 14, 18 x 24, 36 x 48 in. and more.

Anderson, W. E., Div., Dwyer Instruments, Inc.    Grandview, MO 64030
Oct 23, 2008 Requiring no external power sources, Series 38R feature die-cast aluminum housing with fully enclosed bellow assembly and internal over-range protection. Valves, offered in ½-6 in. connection sizes and 1/8-6 in. port sizes, are available with bodies in single-seated, direct or reverse-acting; double-seated, direct or reverse-acting; and 3-way designs with 4 choices of body material. Actuators are available with or without indicating dials or in Fail-Safe versions.

WAGO Corp.    Germantown, WI 53022
Oct 23, 2008 WINSTA® MINI 890 Series is offered as cord-end plugs and sockets as well as snap-in variants for through-panel mounting and distribution blocks. It fits through 5/8 in. (2-pole) or 7/8 in. (3-pole) knockouts and has voltage/current rating of 600 V/10 A. Connector features CAGE CLAMP®S Spring Pressure Connection Technology that terminates all conductor types, and tool-free PUSH WIRE® direct insertion of solid or ferruled-stranded conductors AWG 22-16.

Richardson Electronics, Ltd.    La Fox, IL 60147

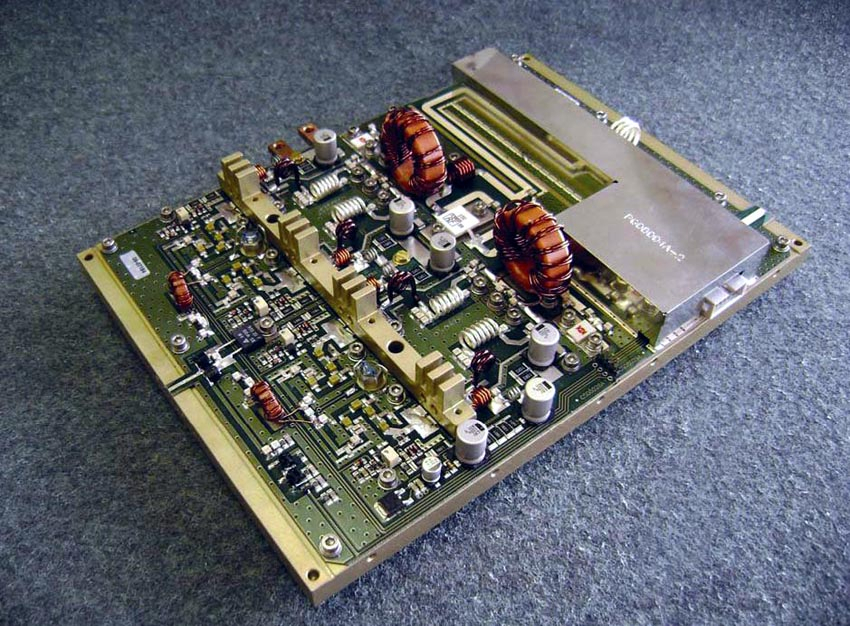

Oct 23, 2008 Designed for FM and HDFM radio broadcast applications, FM1K-108 provides 1 kW linear CW output power from 87.5-108 MHz and features 74% collector efficiency and -55 dBc harmonic suppression. Protection circuitry offers security against overdriving, SWR over-voltage, and thermal runaway, while 22 dB gain allows system designer to use input power of 7 W. Class B amplifier features 4 LDMOS transistors, and needs to be used with Wakefield 510-9M heat sink.

Alliance Scale Inc.    Canton, MA 02021
Oct 23, 2008 With operating capability of up to 350 ft, Alliance/CAS Caston-IIIBT wireless crane scale allows operators to position themselves safely away from large, heavy loads. Offered in capacities ranging from 10,000 x 5 up to 100,000 x 20 lb, unit comes equipped with 6-digit 1.5 in. LED display. It features rechargeable battery pack, spare battery pack and charger, manual or automatic on, off, zero, tare and hold functions, auto span adjustment, and auto zero tracking.

Rohde & Schwarz GmbH & Co      Germany
Oct 23, 2008 R&S AFQ100B is signal source with 528 MHz bandwidth used for developing and producing ultra-wideband (UWB) components. With R&S AFQ-K264 software option, instrument's interface facilitates generation of all test signals required for WiMedia UWB band. Baseband signal generator can deliver signals with modulated pulses or wide, nonlinear chirps for modern radar systems. R&S AFQ100B can also generate various digital communications standards, such as WCDMA, HSPA+, WiMAX, WLAN, and LTE.

EMC Corp.    Hopkinton, MA 01748-9103
Oct 23, 2008 Based on the Cisco Nexus 5000 Series Switches for data centers, EMC® Connectrix® NEX-5020 uses Fiber Channel over Ethernet (FCoE) standard to transfer data between physical and virtual servers and storage systems. Device provides line-rate, low-latency, lossless 10 Gb/s Ethernet switching for network connectivity. It is designed to meet I/O demands of multi-core processors, VMware Infrastructure, and other virtualized server and SAN environments.

Schurter, Inc.    Santa Rosa, CA 95403
Oct 23, 2008 Available in 1-, 2-, or 3-pole versions and 5 illuminated rocker colors, TA35 Series features extended operating temperature of -30 to +60°C and conditional short circuit I_nc of 2,000 A. Units combine switching and thermal overload protection over current range of 0.05-20 A for 1- and 2-pole types, and 0.05-12 A for 3-pole version. Dead Man Switch remains ON while actuator is depressed, and turns OFF when released, making breakers suited for equipment where danger of injury exists.

Eastman Kodak Co.    Rochester, NY 14650
Oct 23, 2008 Offered in 15 languages, KODAK Capture Pro Software v1.1 lets businesses integrate KODAK and third party scanners through one GUI. Users can manage virtually any scanning operation, from desktop to production, while scan-to function allows for sending electronic documents to email, PDF, and other applications. Automated capabilities - batch monitoring, thumbnail viewing, and selective image display - streamline how captured documents are organized, identified, and enhanced.

DocuLex, Inc.    Winter Haven, FL 33881
Oct 23, 2008 Enabling secure content access from any location, browser-based Archive Studio WebSearch v4.1 integrates SharePortal for secure content sharing and collaboration with third party individuals or organizations without user logins. Other features include Auto Notification for assignment to files/folders as well as inbox and folder routing; Records Retention for classifying records to particular series; and WebSearch browser-based file indexing.

On-Net Surveillance Systems Inc.    Pearl River, NY 10965
Oct 23, 2008 Suited for large-scale applications, Ocularis lets user view, manage, and record video from unlimited number of IP and non-IP video surveillance cameras. User can manage video storage, and correlate and fuse video and non-video events and alerts resulting in automatic video delivery to subscribers of interest. Intuitive interface intelligently reacts to user's actions, presenting only controls and tools indicated by current mode of operation and facilitating immediate investigation of events.

Emerson Process Management    Austin, TX 78754
Oct 23, 2008 Model 1057 combines up to 3 measurements, heterogeneously selectable from pH, ORP, and contacting conductivity/resistivity. Additionally, four 4-20 mA current outputs allow live measurement data, along with process temperature, to be communicated to SCADA, PLC, or DSC host monitoring systems. Modular design allows in-field signal input board replacement, while Quick Start programming screens, measurement board auto-recognition, and menu screens facilitate setup/use.

Ansys, Inc.    Canonsburg, PA 15317
Oct 23, 2008 Linking manufacturing and mechanical modeling, ANSYS® POLYFLOW® 3.12 facilitates analysis of plastic/rubber processing, glass forming, and food processing. Program can provide data to structural analysis software from ANSYS, optimizing accuracy of virtual prototyping predictions. With fully coupled, multifrontal, and iterative solvers, user can run simulations on large meshes. Thermal stress relaxation model lets user detect emerging defects in early cooling stages of glass forming process.

Eriez Magnetics    Erie, PA 16506
Oct 23, 2008 Electromagnetic and Permanent Magnetic Drums enable automatic, continuous separation of ferrous materials from high-volume and heavy-duty applications. Electro Agitator type uses 2 different magnets to grasp and agitate ferrous, while non-agitating unit uses deep field radial pickup magnet to transfer ferrous around drum shell to discharge area. Permanent Magnetic drums use Erium® permanent magnets to project deep magnetic field capable of removing ferrous from distances up to 15 in.

Datalogic Mobile    Eugene, OR 97402
Oct 23, 2008 Supplied with 7, 10.4, or 12.1 in. touchscreen and Windows® CE operating system, R Series(TM) (DLoG X-series) computers come in aluminum housing rated up to IP67, are powered via ARM-based architecture, and feature fanless operation. These computers survive applications in environments with operating temperatures from -22 to +122°F.

austriamicrosystems AG    Schloss Premstaetten A 8141  Austria
Oct 23, 2008 Supporting 0.35 µm process technologies C35 (CMOS), S35 (SiGe BiCMOS), and H35 (High-Voltage CMOS), HIT-Kit v4.0 analog/mixed signal process design kit helps speed time-to-market for designers creating solutions for complex systems. Plug-and-play toolset includes silicon-qualified digital, analog, and RF library elements as well as fully characterized simulation models for simulators, extraction, and verification run sets and automatic layout device generators.

Combilift Ltd.    Spring, TX 77389
Oct 23, 2008 Offering 6,000 lb capacity, COMBI-CB is available in LP gas, diesel, and electric models with all-wheel hydrostatic drive and lift heights up to 25 ft. Rubber tires enable indoor/outdoor use, while fully enclosed cabin with heat can accommodate harsh/wet environments. Fork carriage, measuring 55 in. wide, offers support for handling long products. Since there is no platform, goods can be stacked directly from floor up, enabling 100% use of lower storage areas.

Quest Innovations B.V.    Wieringerwerf   Netherlands
Oct 23, 2008 Built on Scalable Smart Camera platform, Condor-MS-5 holds 5 CMOS sensors with customer-specific waveband filters and dichroic coatings placed on 5 Channel prism to allow for parallel acquisition of images. PLC controls all integration and triggering parameters, adjusted by user via camera command line interface or software application. CameraLink, Gigabit Ethernet, or fiber optic interfaces enable transfer of data over distances ranging from 200 m to several kilometers.

Robocom Systems International Inc.    Massapequa, NY 11758
Oct 23, 2008 Suited for unionized/non-unionized warehouses and distribution centers, R-Labor v9 delivers tools, information, and insight needed to run efficient and effective operations. It includes interfaces to support SAP WM and other warehouse systems as well as options for sending array of planned and completed work records from WMS to R-Labor. Scorecard reports provide input to labor incentive plans, and R-Labor can be used with Benchmark standards.

Interactive Data Visualization, Inc.    Lexington,, SC 29072
Oct 23, 2008 Eye-Sys® v2.0 enables creation of player files that capture key elements of visualization system and can be viewed and operated standalone on any PC. It includes Collada file import, suite of graph theory objects, and ability to graph complicated systems in 2D or 3D. Graphs can be organized in various hierarchical views or mapped to Earth model or other 3D shape. Formats such as UCI Net, DL file, Tom Sawyer®, XML, and GML can be imported.
