austriamicrosystems AG    Premstatten   Austria
Nov 18, 2008 In addition to system-level power management, audio codec, and battery charging, AS3536 features core based on audio and video engines with post-processors acting as co-processors to ARM central programmable unit capable of 400 MHz. System level battery consumption is 120 mW for DVD-resolution movies and sub 15 mW for compressed audio. Fully static design and low leakage technology allow for 1.4 mW preserving context or 4 mW while refreshing display from on-chip 512 KB buffer.

Banner Engineering Corp.    Minneapolis, MN 55441

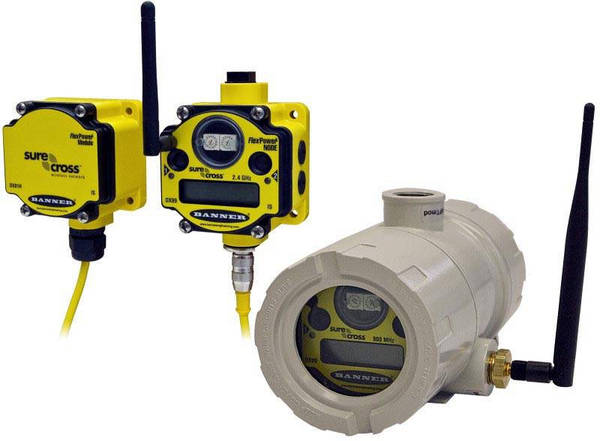

Nov 18, 2008 Designed for use in hazardous areas, DX99 Battery-Powered Node is standalone unit that can operate for up to 10 yr on single liquid lithium battery. It can transmit/receive up to 3 miles when used with 2 dBi antenna and includes site survey mode for assessing quality of wireless link. Placed by peel and stick, unit can be configured to sample each second and to report on change of state or only in alarm condition. It can power serial data radios and Class I sensors.

Schréder Lighting LLC    Elk Grove Village, IL 60007
Nov 18, 2008 Albany luminaires feature corrosion-resistant aluminum construction and ballast module that twists off for relamping and maintenance. They incorporate Sealsafe® hermetically sealed optical unit, which is constructed of aluminum and features reflector bonded to lens. Units can be installed on poles from 16-23 ft high and are available in Maxi size with luminaire height of 26.8 in. and 27.6 in. dia and Midi model at 23 in. tall with 23.2 in. dia.

Seal-It, Inc.    Farmingdale, NY 11735
Nov 18, 2008 Shrink sleeves can be produced in up to 10 colors with variety of metallic effects - sparkling glitter, subtle color changes, luster, light reflection - to differentiate products at retail. Color change effects occur due to use of special inks that can be printed in rotogravure or flexographic. Shrink labels with metallic effects suit manufacturers of specialty beverages, cosmetics, household products, snack food, gourmet food items, and other retail products.

NVIDIA Corp.    Santa Clara, CA 95051

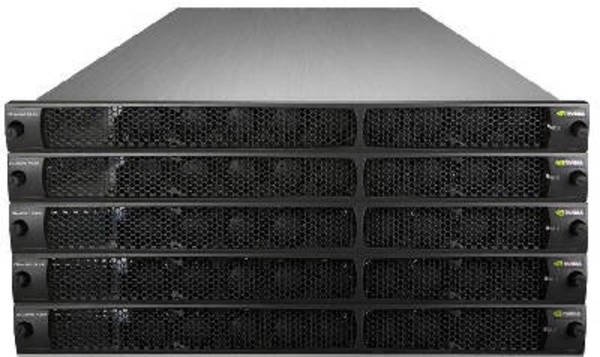

Nov 18, 2008 Containing 4 Quadro FX 5800 GPUs, NVIDIA® Quadro® Plex 2200 S4 Visual Computing System (VCS) addresses demanding remote graphics and offline rendering challenges. This 3D accelerator, available in 1U form factor for large-scale server deployment, offers NVIDIA CUDA(TM) parallel computing processor architecture, PCIe (x16 and x8) data transfer, and 16 GB total frame buffer. Its 10-bit per component color fidelity enables billions of color variations.

Spinwave Systems,Inc.    Westford, MA 01886
Nov 18, 2008 Offering plug-and-play functionality, field kit helps users monitor building's energy usage, indoor air quality (CO2), occupant comfort (temperature and RH), as well as equipment current consumption. Information is transmitted wirelessly for on-site and remote energy measurement, and Excel-compatible data can be viewed onsite, sent via FTP to remote server, or sent to Web server. Components include indoor environmental conditions monitor(s), wireless pulse counter(s), and receiver.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

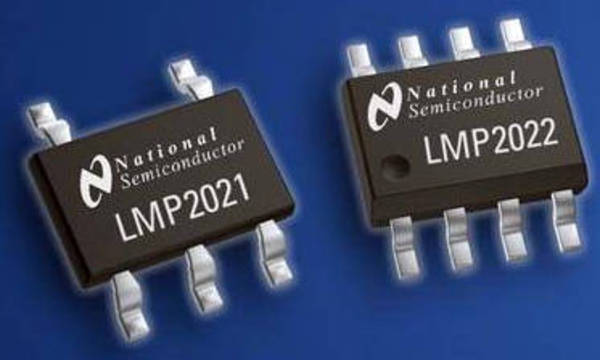

Nov 18, 2008 Featuring input voltage noise of 11 nV/sqrt Hz at gain of 1,000 V/V, LMP2021 single and LMP2022 dual op amps suit sensor interface applications operating at low frequencies and low supply voltage. Noise-shaping technology employs continuous-correction circuitry to auto-zero input offset error voltage, enabling uninterrupted accuracy over time and temperature with respective CMMR and PSRR exceeding 139 and 130 dB. Solutions also offer EMI/RFI suppression.

Esco Tool    Medfield, MA 02052
Nov 18, 2008 Powered by 1¼ hp pneumatic motor, Z Wart MILLHOG® End Prep Tool features 2 5/8 in. wide body and right-angle drive that turns at 90 rpm and produces 400 lb-ft torque. Two TiN-coated cutting blades are held 180° apart in cutter head for even distribution of cutting forces, and gear drive is supported by dual opposed tapered roller bearings for rigidity. Other features include handle with ratchet for clamping to tube, EscoLock(TM) wedge-style blade lock system, and safety lever throttle.

Cone Drive Operations, Inc.    Traverse City, MI 49685

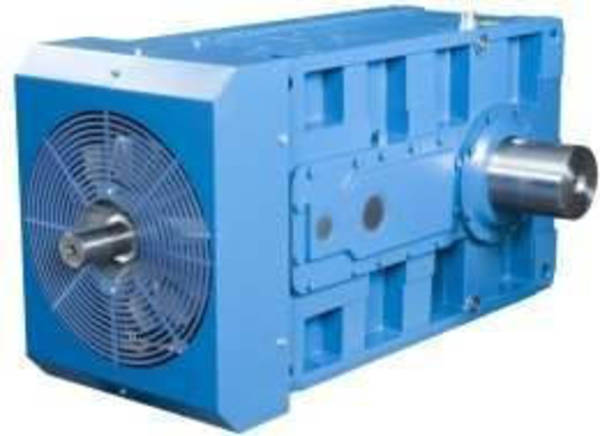

Nov 18, 2008 Available in 8 sizes up to 1,860 kW capacity, Series G features fan and cowl design that optimizes thermal ratings and allows gearboxes to run cool. Units are available in parallel shaft helical versions as well as right angle shaft bevel/helical models in double, triple, and quadruple reduction gear strategies targeting medium to heavy duty engineering market.

Photonic Products, Ltd.    Huntington Beach, CA 92647

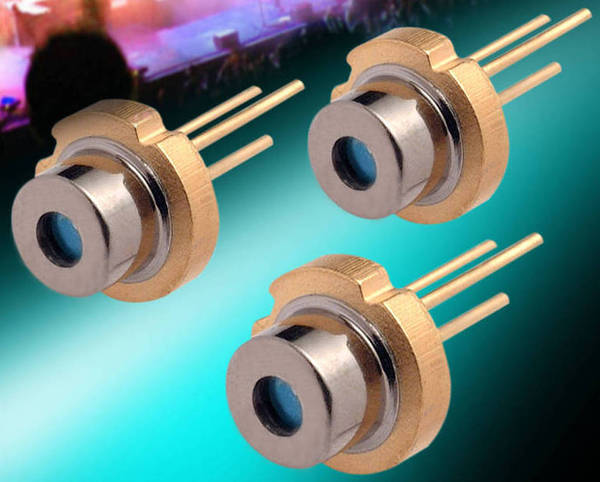

Nov 18, 2008 Designed as single longitudinal mode semiconductor laser diode with TE mode oscillation, Opnext HL6385DG offers 150 mW optical output power at 642 nm wavelength. Aspect ratio of less than 2:1, coupled with 3 x 1 µm emitting chip size, allows efficient combination of multiple diodes in high-power RGB white light sources. Registered with FDA, this RoHS-compliant solution has output optimized for clarity and visibility.

Maxxeon Inc.    Ottawa   Canada

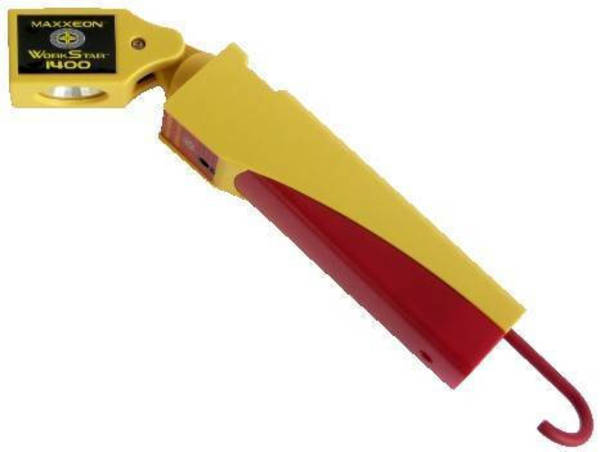

Nov 18, 2008 WorkStar(TM)1400 provides cordless, portable light for emergency situations as well as workshop and industrial applications. Along with hands-free capabilities, LED lighting tool has moveable head that can be directed by operator and runs for 5+ hr on one charge. Body is balanced and ergonomically designed for secure and comfortable grip, and hanging is facilitated via included 2 magnets and retractable hook.

Extech Instruments Corp.    Nashua, NH 03063
Nov 18, 2008 Featuring 6:1 field of view, RPM10 utilizes laser light source and measures 10-99,999 rpm from up to 6.5 ft away from target in photo mode. Contact mode supports measurements from 0.5-20,000 rpm, while linear surface speed measurements range from 0.2-6,560 fpm. Measurements of both modes are accurate to 0.05% with max resolution of 0.1 rpm. Also included, non-contact IR thermometer with laser pointer provides surface temperature measurements in -4 to +572°F range.

LumaSense Technologies    Santa Clara, CA 95054

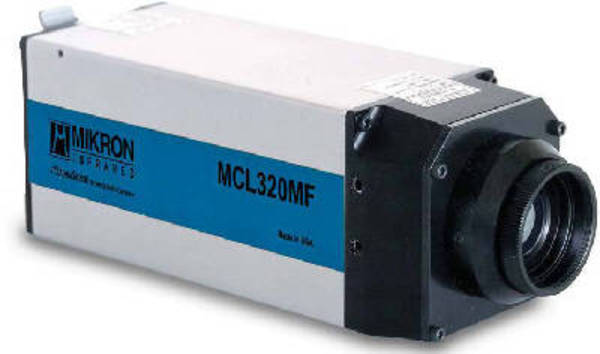

Nov 18, 2008 With 320 x 240 resolution, digital outputs, and streaming video, Mikron MCL320MF is intended for situations where thermal data is needed to interface directly with process control systems, without PC or external software interface. Unit detects thermal abnormalities without using multiple temperature sensors, and provides alarm notifications directly to process control system. Remotely mounted in protective enclosure, camera has no moving parts and is suited for harsh environments.

Raymond Corporation, The    Greene, NY 13778 0130
Nov 18, 2008 Featuring enclosed operator platform, Maintenance Platform Vehicle enables overhead maintenance and repair at elevations up to 371 in. Embedded ACR System(TM) regulates speed relative to elevated height at 1-6.5 mph when fully elevated. With capacity of 750 lb, platform provides room for operator, tools, and supplies. Lock on entrance gate ensures gate is closed before vehicle will operate.

Pentair Industrial    Sheboygan, WI 53082
Nov 18, 2008 Available for flows starting at 120 gpm, Multi-Round Liquid Cartridge Housings offer 11-205 cartridge capacity and accept 20, 30, or 40 in. filter cartridges. They provide 150 psi pressure rating and accept double open-end cartridges or 222 style cartridges with closed top caps. In addition to carbon and stainless steel construction options, features include duplexing housing for continual flow during maintenance as well as other housings with different connection sizes/types.

Krohne, Inc.    Peabody, MA 01960-3803
Nov 18, 2008 Able to measure aggressive and corrosive fluids, Tantalum OPTIMASS 7300 has straight-tube design resistant to blocking and fouling. Its Tantalum wetted-flange material construction is comprised of Tantalum Ta10W alloy (10% Tungsten and 90% Tantalum). Adaptive Sensor Technology (AST) is included for intelligent self-tuning, independent of external forces and fluid density. Product delivers accurate metering, for range of flow rates, in 7 full-bore tube diameters from ¼-3 in.

Ingersoll-Rand Co., Air Compressor Group    Davidson, NC 28036
Nov 18, 2008 Rated from 125-200 hp, continuous-duty Rotary Screw Air Compressors maintain steady 115°F running temperature, eliminating overheat events and nuisance shutdowns. Units feature sickle-shaped blade design that minimizes drag, and Star-delta starter design, which provides cushioned, controlled start-up and avoids power surges. Intelligent Controller includes LCD graphic interface, diagnostics, and built-in sequencer, which can coordinate up to 3 machines.

Novotechnik U.S., Inc.    Southborough, MA 01772
Nov 18, 2008 Operated by 5 buttons on front panel or remotely via serial interface, MAP 4000 Series includes programmable input selection and mathematical functions as well as up to 4 limit switches. Multifunctional inputs are programmable for potentiometers, DC voltage, current/voltage, resistance, and temperature sensors. Providing isolated RS 232 or RS 485 outputs, MAP 4000 Series offers measurement range of -99,999 to 999,999 with accuracy of 0.1% +1 digit of full scale.

Dickson Co.    Addison, IL 60101-4917
Nov 18, 2008 Multi-feature Digital Display Temperature and Humidity Data Logger Model SP425 features push-to-start and push-to-stop functions that help prevent unnecessary readings from getting mixed in with pertinent data. Digital displays let users keep track of temperature and humidity conditions between data downloads, and options are available for displaying current or min/max readings. Other features include user-replaceable battery and USB-enabled data downloading.

Hitachi Power Tools    Norcross, GA 30093
Nov 18, 2008 Delivering 460 lb-in. torque, DS18DSAL Compact Pro Series drill features variable speed trigger with 0-350 and 0-1,500 rpm settings. Compact, 18 V tool is 7.7 in. long, weighs 3.5 lb, and includes clutch with 22 driving stages and one mode for drilling. Keyless ½ in. ratcheting metal chuck accepts wide variety of bits. Drill also features ergonomic handle, LED job light, and metal belt hook. External access to carbon brushes facilitates their replacement when worn.
