CR Magnetics    St. Louis, MO 63122
Nov 05, 2008 Designed to sense phase angle difference between ac current and voltage signals, CR6300 Series includes 3 models with 0-5 Vdc, 0-10 Vdc, or 4-20 mAdc output. Units are powered by single 24 Vdc power supply, and have window openings to accommodate current carrying wires up to .26 in. diameters. They offer up to 500 V input voltage and up to 25 A of current. Housed in 3.26 x 1.42 x 2.99 in. package, transducers can be mounted on 35 mm DIN rails or surface panels.

Siemens Industry, Inc.    Elk Grove Village, IL 60007

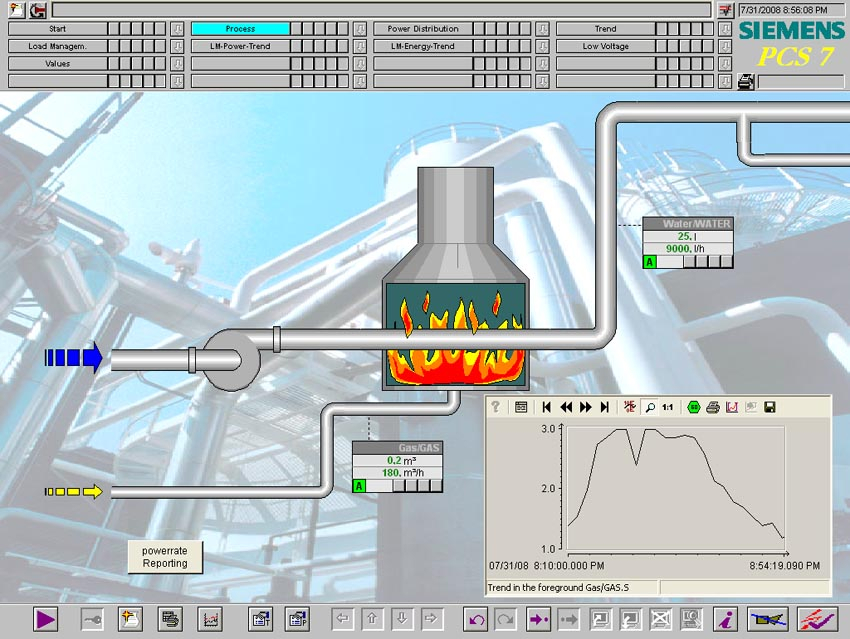

Nov 05, 2008 Simatic® WinCC powerrate and Simatic PCS 7 powerrate examine power behavior of different operating units and obtain information on plant status. By consolidating energy usage data from switching, protection, and measuring devices, solution provides comprehensive view of energy consumption. Individual functions, such as measured value acquisition and processing, cost center management, and load management, are implemented via ready-made S7 modules, faceplates, and Excel macros.

WireCrafters Inc.    Louisville, KY 40214
Nov 05, 2008 Featuring welded wire design, RapidWire(TM) accepts different combinations of standard parts to meet application-specific requirements. Basic components - panels, posts, doors - offer flexibility to design and install any configuration of security enclosure. Heavy-duty posts are pre-drilled with pilot holes, and welded wire mesh construction supports field-modification. Hinged, sliding, Dutch, and tunnel doors are available with various locks and options.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Nov 05, 2008 Providing standard single output of 12, 15, 19, 24, 36, or 48 V, TRA180 series features 94V-1 rated plastic case measuring 3.34 x 6.72 x 1.75 in. They offer wide input range of 90-264 Vac and can operate at ambient temperature range of -20 to +70°C, with 50% derating at +70°C. Including both class I and class II insulations, units contain power switch, power-on LED indicator, and 4-pin power DIN plug with output cable length of 4 ft. Standby power is less than 0.5 W.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Nov 05, 2008 ED6000S CNC small hole EDM drill equipped with Mitsubishi MELFA Robot that controls 20-or 40-position Automatic Electrode Changer (AEC) and 10-position Guide Changer for quick tool changing during production. It features M730 Series control, Windows XP-based, 15 in. touchscreen, and constant processing circuit (CPC) that improves wear characteristics of electrodes. Unit's power supply offers electrical power setting adjustments including on-time, off-time, and IP settings.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China

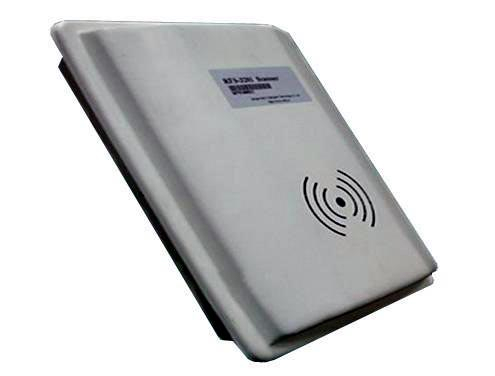

Nov 05, 2008 Designed for embedded UHF applications, Model DL910 multi-tag reader is capable of reading all tags that conform to EPC Generation Two (Gen2) and ISO 18000-6 B/C standards. It can be configured within frequency range of 860-960 MHz, and allows multiple configuration possibilities to support applications such as asset management, baggage handling, container and pallet tracking, item-level inventory management, and warehouse logistics.

Octava    Norcross, GA 30071

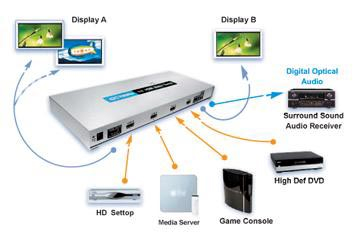

Nov 05, 2008 Featuring EDID engine that operates with either 1 or both HDTVs on, 4x2 HDMI Matrix Router Switch supports 2 HDMI outputs and 4 HDMI inputs with compatibility to full 1080P and V1.3 standards. Independent switching enables any of 4 HD source to be routed to any 2 HDTVs, while digital optical audio output is included for converting HDMI audio to Optical Toslink audio for integration with audio receivers. Unit supports both mirrored or picture-by-picture displays.

Phoenix Contact    Harrisburg, PA 17111 0100

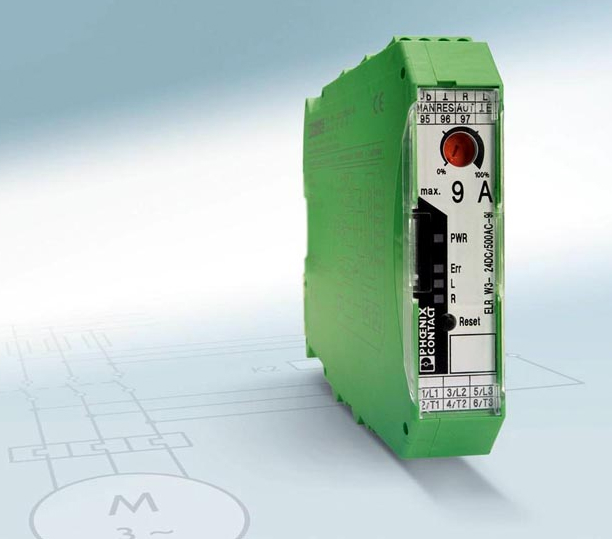

Nov 05, 2008 Designed for 3-phase ac motors up to 4 kW/5 hp in size, CONTACTRON 4-in-1 solid state reversing contactor provides forward, reverse, overload protection, and redundant emergency stop contactor functionality in 22.5 mm wide module. It features integrated input/output surge protection circuits and 16 separate motor overload settings. Rated for safety category 3, SIL 3 and ATEX zone 2, unit has LED and remote indication to acknowledge motor status.

Binsfeld Engineering Inc.    Maple City, MI 49664
Nov 05, 2008 Including software on CD, USB 2.0 cable, and printed manual, Op-Torq Field Test Data Acquisition System captures/analyzes mechanical torque, rpm and/or power data. Software is designed specifically for TorqueTrak 10K torque telemetry system and includes graphical tools and USB acquisition module to create plug-and-play interface. Timed acquisition mode enables Periodic or continuous data acquisition while high frequency acquisition mode can capture/analyze up to 500 Hz frequency.

Cree, Inc.    Durham, NC 27703
Nov 05, 2008 Screen Master® 4 and 5 mm oval LEDs, C4SMF RGS/GJS/BJS and C5SMF-RGS/GJS/BJS feature optically-matched radiation patterns in blue, green, and red. Available in wide range of intensities and colors, LEDs feature wide viewing angle and enhanced contrast, making them suited for digital billboard and full-color sign applications. In matched-radiation pattern, red pattern is inside blue and green, resulting in blended cool-white light.

General Monitors    Lake Forest, CA 92630
Nov 05, 2008 With ability to monitor combustible gases in lower explosive limit, IR400 combustible gas detector provides 4-20 mA analog signal proportional to 0-100% LEL concentration. Through 2-way digital communication protocols, users can access device configuration, warning/alarm, fault and maintenance records as well as monitor gas concentration, check status, and perform real-time diagnostics. Suitable for wide range of hazardous industry processes and plant applications, device uses 4.8 W of power.

Phihong USA    Fremont, CA 94539
Nov 05, 2008 Available with footprint of 5.51 x 2.55 x 1.42 in., POE36U-1AT, high-power, single port, power over Ethernet adapter provides fully compliant detection, disconnect, and voltage control. Incorporating diagnostic LEDs, cUL/UL and CE safety approved units offer full over-voltage and over-current protection. Gigabit-compatible adapters suit applications in IP telephones, wireless network access points, Blue Tooth access points, security cameras, and IP print servers.

Indium Corporation    Clinton, NY 13323
Nov 05, 2008 Colophony/rosin free, no-clean, cored wire solder, CW-501 comes in variety of alloys and wire diameters. Compatible with wave fluxes and Indium8.9, it provides wetting and solder spread with minimal smoking and low odor.

Z Corporation    Burlington, MA 01803
Nov 05, 2008 Featuring 10 x 15 x 8 in. build size, ZPrinter® 650 prints very large models in single piece and enables users to produce multiple models at once. Unit employs full-spectrum 24-bit color and 5 print heads for clear, cyan, magenta, yellow, and black to simultaneously print in multiple colors. Compatible with other professional office equipment, self-contained unit includes fully automated set-up and monitoring, no-touch powder and binder loading, and automatic powder recycling.

Latest Products Corp.    Syosset, NY 11791
Nov 05, 2008 With wide opening that spans nearly entire width of cart, Model 72L enables access to goods in bottom and corners of cart with minimal bending and reaching. To secure folded, stacked goods during movement, or for over-the-road transport, Model 72N includes netting that snaps onto edge of opening. Both models measure 48 x 28½ x 59 in. and come in 18 colors with 6 in. rubber casters, either 4 swivel or 2 swivel and 2 rigid.

Pylon Manufacturing Corporation    Deerfield Beach, FL 33442
Nov 05, 2008 Offering safe alternative for reviving dead battery in vehicle, SMART Jumper Cables(TM) include automatic polarity adjustment. Cable clamps attach to either battery post, eliminating guesswork, while LED indicator lights confirm connections made and that disabled vehicle is ready to start. Over 10 ft of heavy-duty, 8-gauge cable with insulated clamps stays flexible and tangle free while offering cold-weather resistance.

Broadcom Corp.    San Jose, CA 95110
Nov 05, 2008 Targeted for mobile devices, 65 nm Model BCM2049 integrates Bluetooth® v2.1 plus EDR baseband, radio, and software, along with FM stereo radio transceiver. SmartAudio(TM) voice processing optimizes audio quality of Bluetooth links, while packet loss concealment technology compensates for lost data packets and delivers clear digital voice communications. Supporting stereo Bluetooth audio streaming, Model BCM2049 enables simultaneous distribution of streams to multiple stereo headphones.

Other World Computing    Woodstock, IL 60098
Nov 05, 2008 Equipped with FireWire 800, FireWire 400, USB 2.0, and eSATA interfaces, Mercury Pro(TM) Blu-ray Drives feature plug-and-play connection, data transfer rate up to 150 MB/sec, and 4X Blu-ray disc write speed for burning up to 1 GB of data/minute. Units are compatible with Windows and Mac, and can read and/or write virtually all optical media, including Blu-ray, HD-DVD, DVD-RAM, and CD-R/RW.

EASEUS    Chengdu City   China
Nov 05, 2008 Suited for Windows Server users, EASEUS Partition Manager Server v2.1 enables users to resize, move, create, delete, and format partitions as well as attach labels to them. Program also enables viewing of disk or partition properties, marking partition as active, and hiding and unhiding partitions. Suited for small and medium-sized enterprises, school labs, and government agencies, software supports 32 hard disks, 2 GB to 1 TB, and hardware RAID array.

Ambios Technology Inc.    Santa Cruz, CA 95060
Nov 05, 2008 Offered as fully integrated solution, Q-View White Light Interferometer/SPM system combines benefits of white light interferometry and SPM technologies. Q-View Interferometric Module integrates seamlessly onto Q-Scope SPM platform. It uses optical profiler technology to render and measure areas as large as 500 µm within seconds. Users can switch to SPM mode and characterize surface structures at sub-angstrom level.
