GAO Tek Inc.    Toronto M1B2K4  Canada
Dec 03, 2008 Along with support for return path measurements, GAO1185B is capable of testing analog, digital (QAM), and FM channels as well as measuring and displaying amplitude at predefined frequencies or carriers. It performs FCC standard limit test, automatic timing measurement, as well as transmission and reflectivity characteristic testing. Other features include quick charging function and interface to PC and printer communication.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
Dec 03, 2008 Able to generate 50 MHz sine waves and 10 MHz arbitrary waveforms, Model 645 also offers conventional capabilities of pulse, ramp, triangle, noise, and DC waveforms; AM, FM, PM (PSK), FSK, and PWM modulation; and linear and logarithmic sweeps and burst. Unit addresses applications such as benchtop research and development, radar simulation, circuit testing, custom waveform generation, and throughput and response measurements.

Umetrics Inc    New Jersey, NJ 07405
Dec 03, 2008 SIMCA®-Q, v12 real-time multivariate calculation engine for continuous and batch processes is suited for OEM embedding/integration into other software systems. Customizable interface allows users to include calculated predictions into existing data platforms, from commercial databases to dynamic XML web pages. Software can be used in inferential sensors, rapid screening and discovery applications, process monitoring, advanced process control and quick response lab test validation.

Waldmann Lighting Co.    Wheeling, IL 60090-6051
Dec 03, 2008 FLAT LED machine luminaire has slim design that produces circular 60º beam pattern, ensuring large-scale, uniform illumination of area. High-performance LEDs have service life of 50,000 hr, and with waterproof rating of IP69K, light is maintenance-free for 6 yr of continuous operation. Available in surface-mounted or recessed versions, lights incorporate PLUG + LIGHT electronics, which allows for direct connection to low voltage, direct or alternating current.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Dec 03, 2008 Using 3 micron OmniPixel3-HS(TM) pixel, model OV6930 achieves low light performance of 3,300 mV/lx-sec. It has optical format of 1/10 in., packaged footprint of 1.8 x 1.8 mm, and image array capable of operating at 30 and 60 frames/sec in 400 x 400 and 400 x 200 resolutions, respectively. With serial I/O, which allows for 2-wire cabling up to 14 ft, sensor provides full-frame or cropped analog images in RAW RGB format and has power consumption of 80 mW with and 10 mW without I/O usage.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Dec 03, 2008 Incorporating one-wire, UART-compatible digital serial interface, PGA308 amplifies sensor signal and provides digital calibration for zero and span. Using auto-zero techniques, device achieves precision and noise over extended industrial temperature range of -40°C to +125°C and has operating voltage of 2.7-5.5 V. Amplifier can store 7 banks of one-time programmable memory of gain and offset calibration parameters.

USA SOLUTIONS    ST. JOSEPH, MN 56374
Dec 03, 2008 Constructed from pressed wood pulp and cornstalks without using glues or resins, Compost-A-Mats suit applications in farrowing and wean-to-finish barns. Measuring 4 x 8 ft in size, mats are designed to compost after use. They eliminate chance of pathogens being moved from one group of pigs to next.

Stone Construction Equipment, Inc.    Honeoye, NY 14471
Dec 03, 2008 Constructed of lightweight steel frame and extra-thick padding, Backpack model Right Built Concrete Vibrator weighs 24 lb and features patent-pending rotary throttle control to maintains proper vibrations/min. It handles all Stone shafts and heads up to 2½ in. which attach to unit with quick-connect coupler.

GOEPEL electronics LLC    Austin, TX 78759
Dec 02, 2008 SCANFLEX® I/O module SFX-9305 supports use of 9305-BAC/Bluetooth Bus Access Cable (BAC), which enables test of Bluetooth® interfaces in addition to nominal JTAG/Boundary Scan operations. BAC interface is recognized and configured automatically, while BAC type/number to be used are defined by user. Interface functions contain stepwise handling of protocol layers, including bi-directional data transfer. This lets users completely control interface target and clearly identify faults.

GOEPEL electronics LLC    Austin, TX 78759
Dec 02, 2008 Based on GigaPixel technology, OptiCon X-Line 3D features real-time, multi-angle image recording that enables test speeds to 40 cm²/s at full 3D PCB capturing. Integrated reconstruction methods, based on digital tomosynthesis, allows defined evaluation of board's single layers. During test of double-sided PCBs, upper and lower sides can be inspected separately within same process run. In-line, modular system enables configuration models for 2D/3D systems with various test speeds.

GOEPEL electronics LLC    Austin, TX 78759
Dec 02, 2008 Compliant with PCI Express (PCIe) External Cabling specification, SFX/PEC1149 SCANFLEX® Boundary Scan controllers combine PCIe bus performance with application flexibility of mobile peripheral devices. A/B/C performance classes differ in max TCK frequency - 20/50/80 MHz, respectively - and degree of implementation of SPACE(TM) chip set for scan operations. All controllers integrate signal path delay compensation as well as dynamic splitting of serial TAP vectors and parallel I/O vectors.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Dec 02, 2008 Diversion 165 AC/DC TIG welder can weld 22 ga to 3/16 in. material in single pass and offers infinitely adjustable 10-165 A. Unit connects to 230 V, 1-phase power using dryer-type 3-pronged plug and requires 25 A circuit breaker. Designed for first-time welders that want to take on motorsports TIG applications, 50 lb system has controls for heat input and for selecting metal type. It produces focused arc cone for optimized weld puddle control and directional control over heat input.

ID Technology Corp.    Fort Worth, TX 76106

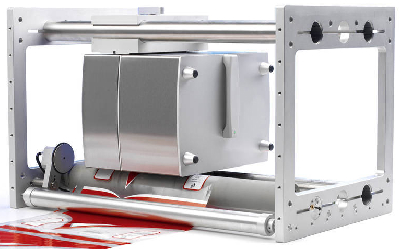

Dec 02, 2008 Able to integrate into range of flexible packaging machines used in high-volume manufacturing environments, COM II employs 300 dpi print head capable of producing text, bar codes, logos, and Data Matrix codes. Built-in intelligence eliminates need for attached controller, and communication with printer is accomplished via PC with web browser software, existing OEM interface, or optional touch-screen. Max print area is 2,400 x 128 mm, and max print speed is 1,400 mm/sec.

Hobart Welding Products    Lithonia, GA 30058

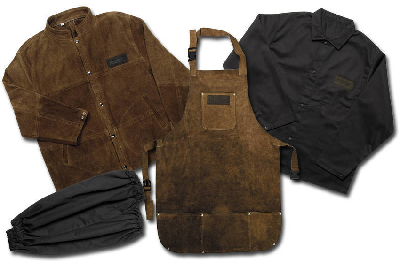

Dec 02, 2008 Leather welding jacket, made from split cowhide, features heavy-duty stitching and reinforced snaps. Made with INDURA 100% flame-resistant cotton, cloth welding jacket features reinforced snaps down front and on sleeves. Knee-length leather apron, focusing protection on chest and thighs, is made from split cowhide and features neck and waist straps with quick-connect buckles. Made from INDURA 100% flame-resistant cotton, 18 in. long welding sleeves offer cool, lightweight protection.

Spectrum Control, Inc.    Fairview, PA 16415
Dec 02, 2008 Utilizing ceramic capacitors as filter element, EMI Filter Plates feature epoxy potting for protection from physical stresses and rubber pin protector to prevent leads from being bent during transit and handling. Units provide EMI filtered signal line between electronic modules with isolation from 5 MHz to 18 GHz. Plates come in 2 mm high-density model with up to 74 lines/plate as well as .100 in. standard-density configuration with 60 pins/plate.

Sierra Instruments, Inc.    Monterey, CA 93940

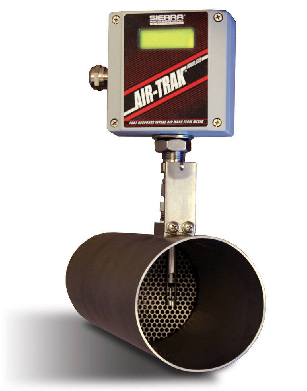

Dec 02, 2008 Designed to measure engine air intake mass flow rate, Air-Trak(TM) Model 628S uses Fast-Flo Sensor Technology® for 200 ms response time. Microprocessor-based instrument integrates flow-range adjustment, meter validation, and diagnostics encased in probe-mounted NEMA 4X housing. Integral Dual-Plate laminar flow conditioning elements and 15:1 turndown make Air-Trak(TM) a flexible solution for constrained piping environments found in engine test cells.

Oki Electric Industry Co., Ltd.    Tokyo 105-8460  Japan
Dec 02, 2008 Within one chassis, SUKIT(TM) offers common platform with basic devices and also enables users to add optional units such as 2D barcode and document readers. Flexibility lets customers configure settings according to usage, and 300 dpi, A4-size thermal printer is included for producing high resolution documents. Combining terminal with Internet, mobile terminals, or IC cards, companies can provide non-face-to-face services, safely and reliably on 24/7 basis.

Animatics Corp.    Santa Clara, CA 95054
Dec 02, 2008 Offered as servo systems with built-in controller, amplifier, and encoder, SM2316D-PLS2 and SM2316DT-PLS2 feature 4,000 cpr encoder resolution for smooth velocity and tight position control. Trajectory overshoot braking functions, programmable software over-travel limits, and absolute/relative CAM mode with CAM dwell are also included. While high-speed position capture input enables less than 5 µsec registration, interrupt subroutines enhance error handling and input-triggered events.

Advantech Automation Corp.    Cincinnati, OH 45240
Dec 02, 2008 Providing 1,280 x 1,024 resolution, 17 in. FPM-5171G features Direct-VGA and DVI-D signal transmission, which allows VGA control card to be used within system. Monitor includes lockable OSD keys with 2 user-defined contrast/brightness settings, front accessible USB connector, combo RS-232 and USB interface, and 10-30 Vdc power input. Housed in anti-rust chassis with NEMA4/IP65 compliant front panel, touchscreen monitor supports panel, wall, desktop, rack, or VESA arm mounting.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460

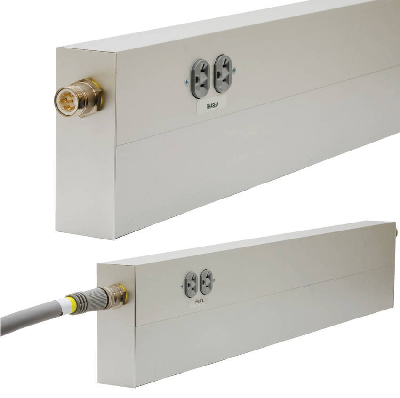

Dec 02, 2008 With LINKOSITY® connections, Pre-Wired Metal Raceway offers flexible, UL Listed System that allows users to relocate furniture and equipment without need to access internal wiring of raceway. Primary applications include school and university laboratories, pharmaceutical laboratory facilities, modular furniture manufacturers, and commercial kitchens.
