Kepware Technologies    Yarmouth, ME 04096
Dec 08, 2008 Available as plug-in module to ControlLogix PAC and as DIN rail module for standalone operation, cATM Kepware Universal Gateway delivers 130 protocols for connectivity to thousands of devices on plant floor. In PAC configuration, module offers Logix Backplane Communications Interface and is fully auto-configuring for Logix Tags. U-CON User Configurable Driver enables connectivity to variety of Ethernet or serial devices such as analyzers, bar code readers, and RFID systems.

Aqua-Aerobic Systems, Inc.    Loves Park, IL 61111
Dec 08, 2008 Designed to fit needs of plant operators utilizing Aqua biological processes, membrane systems, and cloth media filters, IntelliPro® offers link between operations, equipment, and treatment goals. System actively influences treatment process by proactively responding to changes as they happen. It provides operator input and instrumentation feedback, process variable trending and status response, and BioAlert(TM) operator notification and guidance system.

Axiom    Clearwater, FL 33765
Dec 08, 2008 With Global Workspace Manager(TM), CAD managers can set up, monitor, change, and copy MicroStation workspaces and workspace configuration settings on multiple workstations from single location. Projects, along with all resources, can be copied to another network server or to individual workstation, and machine configurations can be compared to pinpoint errors. Software also shows which MicroStation versions are installed on each workstation.

Marktech Optoelectronics    Latham, NY 12110
Dec 08, 2008 With 80 CRI and slim design, T5 LED light tube suits applications including general or indirect lighting of display cases, wall washes and alcoves, as well as backlighting of POP displays and vending machines. It operates at 24 Vdc and is available in low power, narrow angle 60º version and high power, wide angle 120º version. Available in 3 color temperatures of 3,300, 4,200, and 6,500 K, tube is offered in lengths of 1-5 ft, with metal mounting clips and clear or diffused cover.

Softros Systems    New York, NY 10010
Dec 08, 2008 Providing encrypted one-to-one or one-to-many communications, LAN Messenger v4.3.1 serverless, Windows-based instant messenger allows broadcast messages to be sent to any combination of defined groups and individuals. It auto-configures to work with Windows Firewall, and works on any TCP/IP LAN or WAN, with or without Internet connectivity. Individual computers automatically discover other computers running messenger, allowing operation without any central server.

Data Translation, Inc.    Marlboro, MA 01752
Dec 08, 2008 Providing ±75 mV voltage measurement range, models DT9871U for USB and DT8871U for Ethernet offer less than ±1.5 µV of noise. They feature up to 48 dedicated 24-bit A/D converters, up to 48 dedicated CJC circuits, and 1,000 V channel-to-channel galvanic isolation. With 16 (8/8) opto-isolated digital input and output lines for monitoring and driving relays, units provide constant throughput across all channels at rates up to 10 Hz/channel.

Pres-On Products, Inc.    Addison, IL 60101
Dec 08, 2008 Available in black, white, and clear versions, PHB Series high-bond acrylic foam tapes deliver necessary strength to replace spot welds, screws, mechanical fasteners, and rivets in wide variety of products. Double-coated tapes bond to low surface energy powder coated paints, metals, and plastics, while 100% closed cell acrylic foam creates durable shield as it bonds to product and compensates for differential thermal expansion or contractions.

Vicor Corp.    Andover, MA 01810 5424
Dec 08, 2008 Available in two models, VMB0004MFJ (J-lead version) and VMB0004MFT (through-hole version), MIL-COTS BCM(TM) bus converters operate from MIL-STD-704E/F 270 Vdc and deliver isolated 30.0-41.3 Vdc. Sine amplitude converter's output voltage is suitable as input to MIL-COTS PRM(TM) regulator and VTM(TM) current multiplier. Available in VoI Chip package compatible with standard pick-and-place and surface mount assembly processes, product is ideal for aircraft distributed power applications.

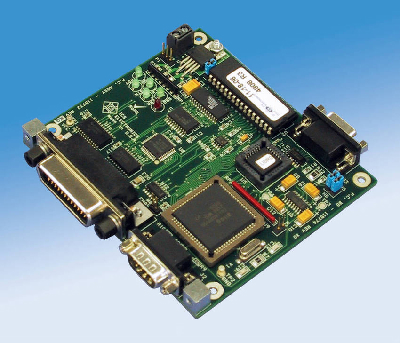

ICS Electronics Corp.    Pleasanton, CA 94588
Dec 05, 2008 Measuring 4 x 4.5 in., Model 4048 GPIB-to-Serial Interface Board adapts any device with RS-422 or RS-485 signals to GPIB or HP-IB bus. It provides serial device with IEEE 488.2 compatible interface that responds to all required IEEE-488.2 Common Commands and includes 488.2 Status Reporting Structure. Board also responds to SCPI commands that let user set GPIB address and serial parameters. All other GPIB messages are converted into serial strings and sent to serial device.

Doran Scales Inc.    Batavia, IL 60510 1460
Dec 05, 2008 Able to calculate dimensions to within 0.1 in., Model 1200C helps shippers reduce carrier charge backs incurred from inaccurate carton dimensions and also aids in calculating cargo capacity and warehouse space. System, which meets and exceeds the GS1/GDSN standards, uses safe and sensitive optical eyes protected in steel axis arms to calculate carton dimensions. After case is positioned on scale, system calculates weight, dimensions, and volume; results are displayed on backlit LCD.

Active Safety    Murray, UT 84107
Dec 05, 2008 Featuring clear and mirrored acrylic design, Eco-Clear 2003 utilizes environmentally friendly formulation of strontium aluminate crystals as power source instead of electricity or radioactivity. Sign works by absorbing ambient light during normal operations and then using stored energy to glow brightly and designate exit routes in emergency. Available in all mounting configurations, Eco-Clear 2003 is listed to UL 924 standard and compliant to IBC, NFPA, and UFC building codes.

Laser Photonics, Inc.    Lake Mary, FL 32746
Dec 05, 2008 Capable of stand-alone or in-line operation, FiberTower XP incorporates 20 W continuous wave laser, industrial PC controller, power supply, marking software, laser safety enclosure, and optional auto label feeder. Latter, which can also be removed for standard direct part marking, helps transform label marking process from series of manual operations into streamlined, laser-driven, automated process. Label perimeter is also cut using laser, enabling peel-and-stick application.

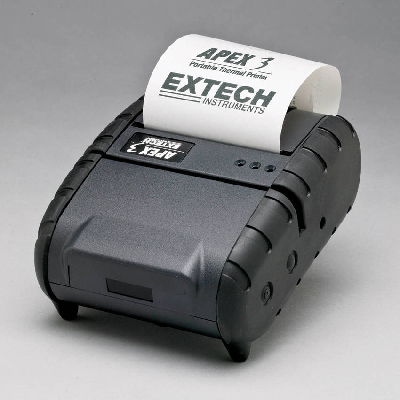

Extech Instruments Corp.    Nashua, NH 03063
Dec 05, 2008 Powered by 7.4 V, 2200 mAh Li-Ion battery, Apex 3 is equipped with 32-bit ARM 7 microcontroller and flash-based CPU that contains firmware, resident fonts, and rotated fonts, as well as downloadable fonts, graphics, logos, and barcodes. Unit incorporates 4 MB Flash and 2 MB SRAM memory that is under direct user control. Additional features include Short Range Bluetooth(TM) and Windows-based Form Fiesta utility that lets user create forms such as boarding passes and parking tickets.

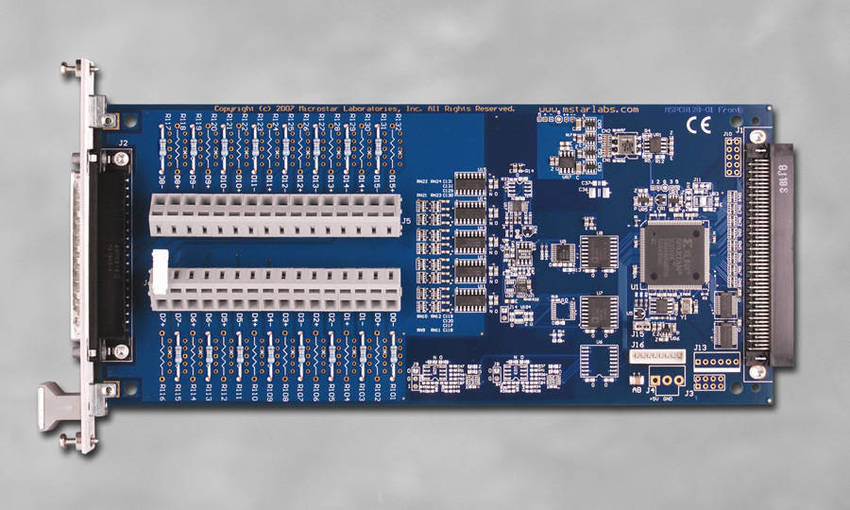

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039
Dec 05, 2008 MSXB 086 Isolated Input Signal Interface (SI) Module provides isolated analog inputs for DAP systems and enables data acquisition from 16 4-20 mA current loops for real-time processing or later analysis. Each board is calibrated for current inputs. It fits in backplane of industrial enclosure and connects to Data Acquisition Processor (DAP) board.

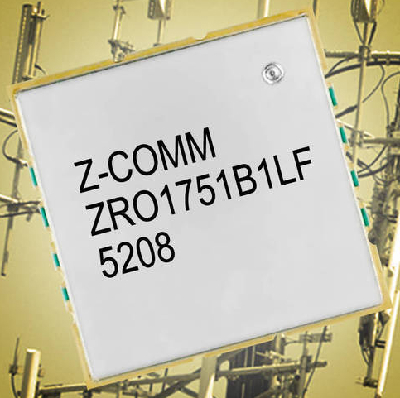

Z-Communications, Inc.    San Diego, CA 92126
Dec 05, 2008 Operating from 1,748-1,753 MHz with tuning voltage range of 0.5-4.5 Vdc, ZRO1751B1LF has typical phase noise of -119 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 8 MHz/V. It delivers typical output power of 8 dBm at 8 Vdc supply while drawing 33 mA (typ) over -15 to +65°C range. RoHS-compliant VCO (Voltage-Controlled Oscillator) features typical second harmonic suppression of -30 dBc and comes in 0.5 x 0.5 x 0.22 in. MINI-16-SM package.

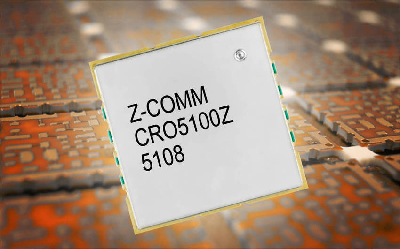

Z-Communications, Inc.    San Diego, CA 92126
Dec 05, 2008 Operating from 5,090-5,110 MHz with tuning voltage range of 0.5-4.5 Vdc, C-band Model CRO5100Z features typical phase noise of -104 dBc/Hz at 10 kHz offset and tuning sensitivity of 20 MHz/V. Unit delivers typical output power of 3 dBm at 5 Vdc supply while drawing 118 mA over temperature range of 0-85°C. Housed in 0.63 x 0.866 x 0.22 in. package, voltage controlled oscillator is suited for microwave radio applications.

Creform Corp.    Greer, SC 29652-0830
Dec 05, 2008 Suited for long, heavy, and awkward size container handling, Crate Cart enables manual transfer through tight aisle ways and limited space areas. Unit features 1,500 lb load bearing capacity and has overall dimensions of 155 x 31 x 16 in. Designed to withstand rigors of loading via forklift, modular cart is constructed with plastic-coated steel pipes, cross bracing throughout length, and 6 large diameter swivel casters.

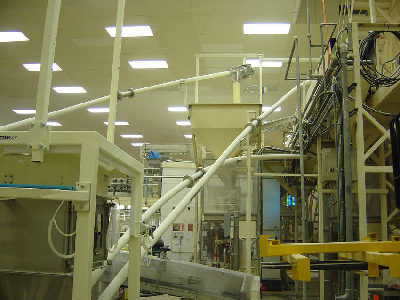

Spiroflow Systems, Inc.    Monroe, NC 28110
Dec 05, 2008 Spiroflow Mobile Flexible Screw Conveyor can be used to meter bulk ingredients and/or minor additives from storage or processes of any kind. Compatible with range of materials, particle sizes, and bulk densities, it can be controlled volumetrically or gravimetrically from source vessel or by gain-in-weight at receiving end. Only moving part is one motor-driven spiral that rotates within sealed tube to gently move material without degradation or risk of mixed product separation.

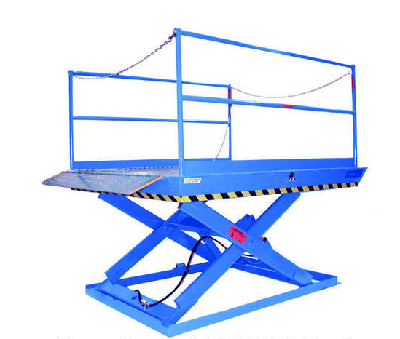

Advance Lifts, Inc.    St. Charles, IL 60174
Dec 05, 2008 Available in variable platform sizes and capacities, T-50608 Pit-Mounted Dock Lifts feature continuous-duty remote power units and UL approved electrical controllers. Units are suited for retail stores, schools, hospitals, and any location that must load or unload variety of vehicles with varying truck bed heights.

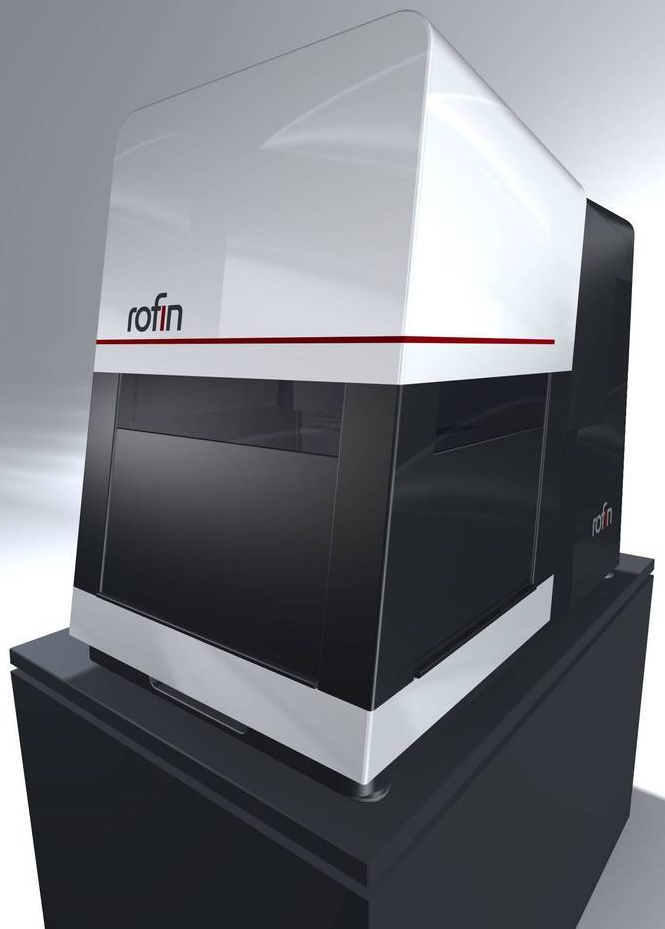

Rofin-Baasel Inc.    Boxborough, MA 01719
Dec 05, 2008 CUBE can integrate range of laser sources - solid-state, fiber, or diode - with array of focusing optics and axes, delivering configurability for various marking applications. Equally suited for production environments or research labs, workstation provides non-contact, abrasion-resistant, permanent laser marking onto various types of material with consistent results. It can generate alpha-numeric content, vector or rastered graphics, bar codes, or data matrix codes.
