Raymond Corporation, The    Greene, NY 13778 0130
Nov 18, 2008 Featuring enclosed operator platform, Maintenance Platform Vehicle enables overhead maintenance and repair at elevations up to 371 in. Embedded ACR System(TM) regulates speed relative to elevated height at 1-6.5 mph when fully elevated. With capacity of 750 lb, platform provides room for operator, tools, and supplies. Lock on entrance gate ensures gate is closed before vehicle will operate.

Pentair Industrial    Sheboygan, WI 53082
Nov 18, 2008 Available for flows starting at 120 gpm, Multi-Round Liquid Cartridge Housings offer 11-205 cartridge capacity and accept 20, 30, or 40 in. filter cartridges. They provide 150 psi pressure rating and accept double open-end cartridges or 222 style cartridges with closed top caps. In addition to carbon and stainless steel construction options, features include duplexing housing for continual flow during maintenance as well as other housings with different connection sizes/types.

Krohne, Inc.    Peabody, MA 01960-3803

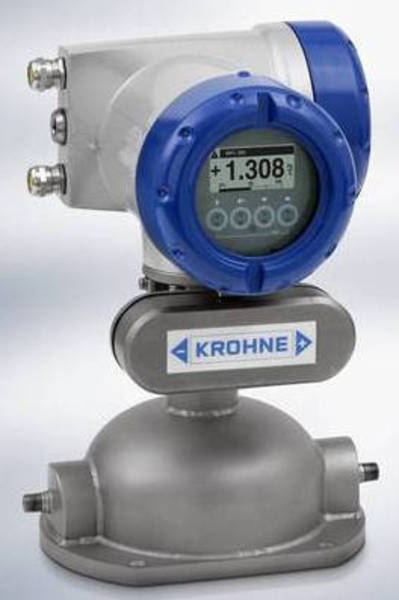

Nov 18, 2008 Able to measure aggressive and corrosive fluids, Tantalum OPTIMASS 7300 has straight-tube design resistant to blocking and fouling. Its Tantalum wetted-flange material construction is comprised of Tantalum Ta10W alloy (10% Tungsten and 90% Tantalum). Adaptive Sensor Technology (AST) is included for intelligent self-tuning, independent of external forces and fluid density. Product delivers accurate metering, for range of flow rates, in 7 full-bore tube diameters from ¼-3 in.

Ingersoll-Rand Co., Air Compressor Group    Davidson, NC 28036

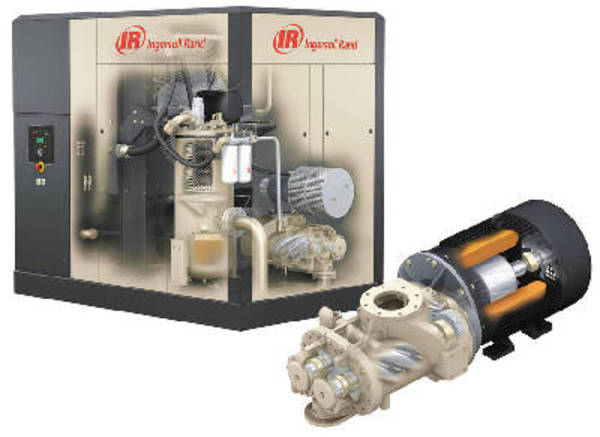

Nov 18, 2008 Rated from 125-200 hp, continuous-duty Rotary Screw Air Compressors maintain steady 115°F running temperature, eliminating overheat events and nuisance shutdowns. Units feature sickle-shaped blade design that minimizes drag, and Star-delta starter design, which provides cushioned, controlled start-up and avoids power surges. Intelligent Controller includes LCD graphic interface, diagnostics, and built-in sequencer, which can coordinate up to 3 machines.

Novotechnik U.S., Inc.    Southborough, MA 01772
Nov 18, 2008 Operated by 5 buttons on front panel or remotely via serial interface, MAP 4000 Series includes programmable input selection and mathematical functions as well as up to 4 limit switches. Multifunctional inputs are programmable for potentiometers, DC voltage, current/voltage, resistance, and temperature sensors. Providing isolated RS 232 or RS 485 outputs, MAP 4000 Series offers measurement range of -99,999 to 999,999 with accuracy of 0.1% +1 digit of full scale.

Dickson Co.    Addison, IL 60101-4917
Nov 18, 2008 Multi-feature Digital Display Temperature and Humidity Data Logger Model SP425 features push-to-start and push-to-stop functions that help prevent unnecessary readings from getting mixed in with pertinent data. Digital displays let users keep track of temperature and humidity conditions between data downloads, and options are available for displaying current or min/max readings. Other features include user-replaceable battery and USB-enabled data downloading.

Hitachi Power Tools    Norcross, GA 30093
Nov 18, 2008 Delivering 460 lb-in. torque, DS18DSAL Compact Pro Series drill features variable speed trigger with 0-350 and 0-1,500 rpm settings. Compact, 18 V tool is 7.7 in. long, weighs 3.5 lb, and includes clutch with 22 driving stages and one mode for drilling. Keyless ½ in. ratcheting metal chuck accepts wide variety of bits. Drill also features ergonomic handle, LED job light, and metal belt hook. External access to carbon brushes facilitates their replacement when worn.

Murata Power Solutions, Inc.    Mansfield, MA 02048

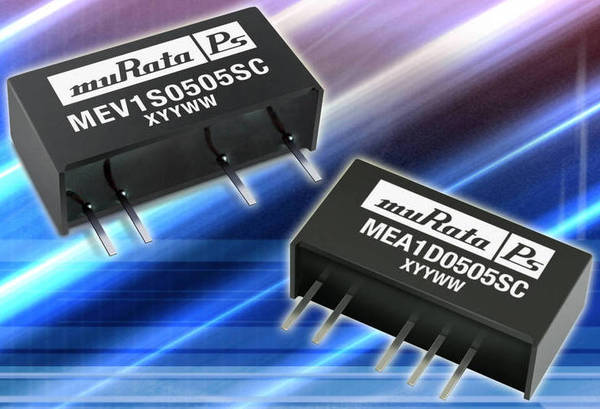

Nov 18, 2008 Single-output (MEV series) and dual-output (MEA series), isolated 1 W DC/DC converters offer efficiency levels from 84% and load regulation performance of less than 5%; overall load regulation tolerance envelope is 9%. While MEV series is suited for providing local supplies on control system boards with 3k Vdc galvanic isolation, MEA series has 1k Vdc isolation and is suited for dual rail supplies. Both series have 0.85 W/cm³ power density and come in 0.77 x 0.236 x 0.394 in. package.

Advantech Automation Corp.    Cincinnati, OH 45240

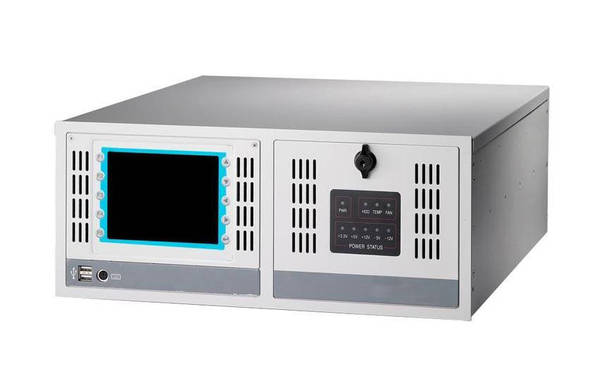

Nov 18, 2008 IACP-4000D is 4U, 19 in. rackmount workstation that supports both Pentium 4/Celeron D processors. Design reduces interconnections between backplane and CPU card, enhancing reliability. Features include shock-resistant drive bay that holds up to three 5.25 in. and one 3.5 in. disk drives, front accessible USB interface, dual front-accessible filtered cooling fans, front LEDs indicating system health, lockable front door, and supports 300 W single PS/2 and redundant ATX power supplies.

Firstsight Vision Ltd    Surrey GU10 1DW  United Kingdom

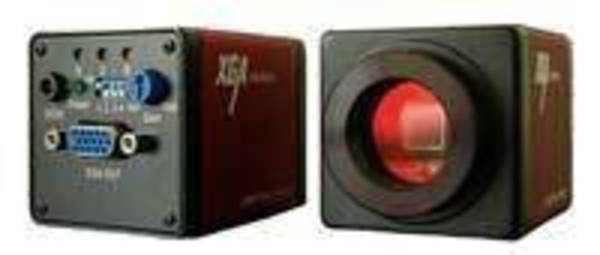

Nov 18, 2008 Designed purely for visualization, making it suited for applications requiring monitoring by human operator, XGA output camera connects directly to TFT or similar monitor and requires no computer interface. Built in cross hair generator ensures accurate alignment, and features include RGB and gain control along with HD quality imaging. Enhanced version is available with 4 horizontal and 4 vertical cross hairs, which are independently selectable. Power supply is included.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

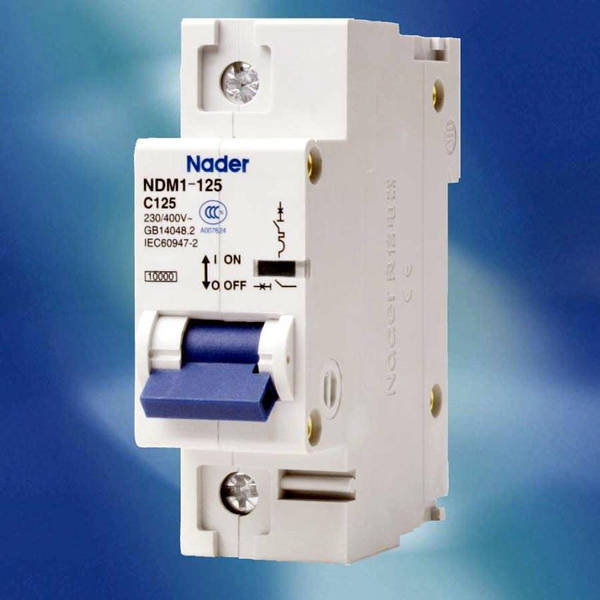

Nov 18, 2008 Available in 1, 2, and 3 pole versions, NDM1-125 series high current circuit breaker is UL1077 recognized for use as supplemental protector. With 10 kA interrupt capacity, visual trip indicator, and compact DIN rail mount design, it is suited for applications where current protection ranging from 50-125 A is required. Product is available in industry standard C or D trip curves.

GAO RFID Inc.    Toronto   Canada
Nov 18, 2008 Suited for personnel, patient, or baby tracking in hospitals, care centers, or other institutions, 2.45 GHz RFID Wristband Active Tag GAO 127006 features 0.18 µm CMOS ICs integrated within soft material and rigid waterproof housing. It has SOS button, 2 sensors to simultaneously detect body and ambient temperatures, and displays status of power consumption. Tag alerts administrators when strap is tampered with, and suits people in need of special care or strict protection.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China

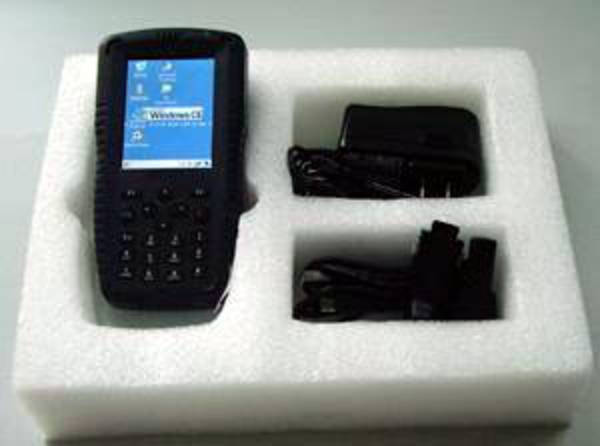

Nov 18, 2008 Supporting GPRS voice and data transfer, 13.56 MHz HF RFID Handheld Reader/Writer DL8033 can be used to find tagged items. It has multi-protocol capability, and supports Bluetooth 1.1 standard and various physical layer communication interfaces.

PANalytical, Inc.    Westborough, MA 01581
Nov 18, 2008 Axios FAST wavelength dispersive X-ray fluorescence spectrometer allows simultaneous fixed-channel measurements of up to 28 elements and incorporates 4 kW SST-mAX X-ray tube with ZETA-technology, which promotes stable tube output. Sample loading turret mechanism allows introduction of new samples even while measurement is in progress, while externally mounted measuring channels give users access for routine maintenance, addition or removal of channels, and initial alignment.

McQuay International    Minneapolis, MN 55440
Nov 18, 2008 Available in 50-140 ton capacities, R-410A condensing units feature average EER of 10.6 that exceeds ASHRAE 90.1-2010 requirements. All-aluminum, microchannel condensers help extend product life, and all-aluminum construction eliminates galvanic corrosion. If leak occurs, only lost refrigerant must be replaced. Split system air handling units are also available.

Cypress Semiconductor Corp.    San Jose, CA 95134
Nov 18, 2008 Suited for embedded control applications, CyFi(TM) Low-Power RF solution consists of CyFi protocol stack in PSoC Designer(TM) embedded design software, selected PSoC device, and CYRF7936 CyFi transceiver. Interference immunity results from Direct Sequence Spread Spectrum modulation and agility to move to 80 channels in 2.4 GHz band. CyFi protocol stack offers pre-configured, customizable PSoC firmware module that can be dropped into PSoC Designer 5.0 IDE with no complex coding.

MIE Solutions    Garden Grove, CA 92845
Nov 18, 2008 MIE Trak v10.2 facilitates processes for manufacturing industry by offering quick purchase order creation from requirements, automatic work order creation from MRP reporting, and nesting data collection to improve job costing. While various reports are available, including work-in-process and profitability, BoM includes labor summary and lets users see large assembly as well as its materials and labor requirements. Screens are resizable to fit larger monitors.

GAO Tek Inc.    Toronto M1B2K4  Canada
Nov 18, 2008 Featuring contactless, read-only design, LF Glass RFID Tag operates in 125 ±6 kHz band with capacity of 256 bits. Tag can be pre-programmed with specific IDs based on customers' requirements. Unit is insensitive to read interferences caused by liquids and metals and is resistant to immersion in salt water, alcohol, oil, 10% HCL, and ammonia. Packaged in waterproof and dustproof housing, tag is suitable for applications ranging from implanting into pets to laundry management.

Pinpoint Laser Systems    Peabody, MA 01960
Nov 18, 2008 Combining laser transmitter with receiver and digital display, 2-Axis Laser Microgage is suited for precision measuring, machine alignment, and calibration. As laser beam moves across receiver in vertical or horizontal path, display provides reading of motion, accurate to 0.0001 in. Machined of solid aluminum with hard anodized coating for wear resistance, unit includes sealed push button keypad, and both serial and USB interfaces for connection to laptop or PC.

Chromalox    Pittsburgh, PA 15238
Nov 18, 2008 Featuring triangular element pattern and one design that meets all major global certifications, ANSI Flange and Circulation Heaters mount in pipes or vessels to heat liquids and gasses in various process industries. Bussing and Octobox housing are designed to achieve optimal heat distribution and fluid flow, and vertical bussing facilitates installation. Housing works with NPT as well as Gland Plate Style connectors and offers 6 different angles for bringing in conduit.
