Del City    Menomonee Falls, WI 53051

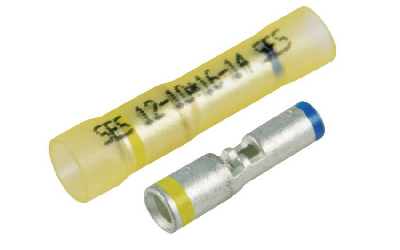

Dec 02, 2008 Available in vinyl- and non-insulated models, Step-Down Butt Connectors feature consistent wall thickness throughout entire length of terminal, providing secure crimp. Each is color-coded with industry standard gauge marks for identification. Translucent, vinyl-insulated units provide protection against wire corrosion and stripping.

Amphenol Socapex    74300 Thyez   France

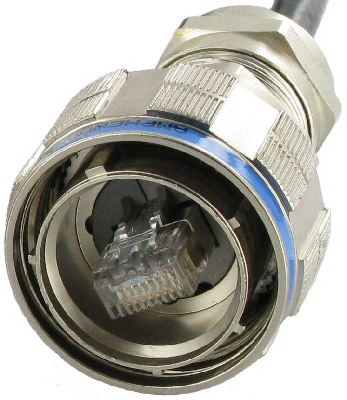

Dec 02, 2008 Designed for zone 2 and Class I Division 2 explosive environments, ATEX Ethernet connectors incorporate RJStop® system for turning standard Ethernet cable into connection with IP68 ingress protection against shock, dust, and fluid. Products offer II3G ExnAIIT6X ATEX protection with temperature ranges from -40 to +60°C for RJ45/RJ11 versions and -40 to +70°C for USB versions. Offered in metal cases, connectors feature power capacity of 20 W at max working voltage of 60 Vrms.

ICM Controls    Cicero, NY 13039
Dec 02, 2008 Featuring backlit digital display, Model ICM492 protects single-phase equipment against low and high voltage conditions and rapid short-cycling. Device continuously checks incoming line voltage for faults and displays RMS voltage. Response time on fault condition can be fine-tuned to minimize nuisance trips. Additional features include adjustable anti-short cycle time delay, control mode, universal line voltage input, and heavy-duty SPDT relay output.

Axiomatic Technologies Corp.    Mississauga, ON L4Z1Z8  Canada

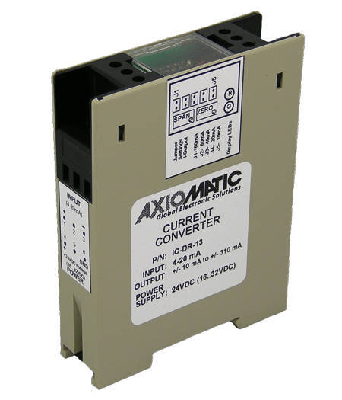

Dec 02, 2008 Featuring 16-32 Vdc input range and 0-10 Vdc to ±200 mA output, Model IC-DR-23 converts any analog or PWM signal to suit application. DIN rail-mounted unit includes short circuit protection and reverse polarity protection, as well as diagnostic LEDs to indicate operational status. Operating from -40 to 85°C, converter consumes 20 mA at 24 Vdc, no load. With IP40-rated housing and IP20-rated terminals, device is suited for industrial automation and machine controls.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
Dec 02, 2008 Available in models from 50 W to 3.5 kW, IndraDrive Cs provides open support of multiple Ethernet-based communication busses for SERCOS III, ProfiNet, EtherNet/IP, and EtherCat communications. Universal multi-encoder interface, also included, supports Hiperface®, EnDat 2.1/2.2, 1Vss, 5 V TTL, and Rexroth MSM servo motors. Product may also be equipped with drive-based PLC, integrating motion and logic according to IEC 61131-3 standards, as well as Safety On Board capability.

Hobart Brothers Co.    Troy, OH 45373-2900
Dec 02, 2008 Classified under AWS A5.29, class E81T8-Ni2 J, self-shielded Hobart® Fabshield X80 provides tensile strength of 94,000 psi, yield strength of 84,000 psi, and CVN impact values from 107 lb/ft at -20°F to 96 lb/ft at -40°F. Wire is available in 5/64 in. diameter and features fast-freezing slag that is nearly self-peeling, making it suited for welding in all positions. Product can be used for single- or multi-pass welding on fillet, lap, or deep groove butt welds.

Extech Instruments Corp.    Nashua, NH 03063
Dec 02, 2008 Model SL130 Sound Level Monitor includes 4 built-in red or green LEDs, readable to 100 ft, that alert personnel to sound level limits. Maximum readings are recorded with date and time and unit offers user-settable indications from 30-130 dB. It also includes output to drive remote warning indicator. Stand-alone or wall- or tripod-mounted, unit features detachable microphone which rotates 180°, while optional 15 ft extension cable allows remote monitoring.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Dec 02, 2008 Heavy-duty shark clamp models CL-500-SHRK, CL-501-SHRK, CL-650-SHRK, and CL-651-SHRK come in 2 sizes and are available with T handle for optimal tightening and leverage of straight handle optimized for comfort and ergonomics. Quick-acting pushbutton lets users slide handle freely in and out to max opening of 5 or 6.5 in., depending on model. Also offered with optional no-mar rubber pads, products suit welding, assembly, repair, woodworking, and general-purpose clamping applications.

Avago Technologies    San Jose, CA 95131
Dec 02, 2008 Qualified to AEC-Q100 automotive stress test requirements, ACPL-782T delivers typical isolation and common mode noise rejection of 15 kV/µs @ 1kV VCM typ. Its ±2% gain tolerance ensures accurate measurement and stability over time needed to monitor motor current or voltage in high-noise motor control environments. Rated for -40 to 125°C operation, amplifier offers characteristics such as 30 ppm/°C gain drift versus temperature, 0.004% non-linearity, and 0.3 mV input offset voltage.

ITT Interconnect Solutions    Santa Ana, CA 92705

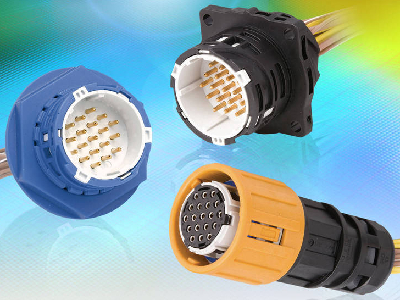

Dec 02, 2008 Able to withstand harsh and wet-area environments, APD 19-way features secondary locking mechanism and 19 contacts, expandable to 27 by utilizing smaller contact sizes. Conversely, for applications requiring larger load capacity, pin count can be reduced by employing higher power contacts up to 50 mm² and 0 AWG wire. This circular, 19-position APD (Automotive Product DIN) connector has plastic circular housing with visual and audible feedback for confirmed correct mating.

Schneider Electric    Palatine, IL 60067-7399
Dec 02, 2008 Leveraging thru-beam technology, XUV Fork Ultrasonic Sensor can detect labels of any material, size, color, or translucency and allows for manual adjustments on-the-fly. Keys on sensor allow for real-time modifications based on material thickness, which can range from 0.001-0.003 in. Rated to IP65, sensor also can be locked to avoid unnecessary adjustments and will retain its settings even if it is powered down and turned back on. Operating range is 41 to 131°F.

Strategic Test Corporation    Woburn, MA 01801-1915

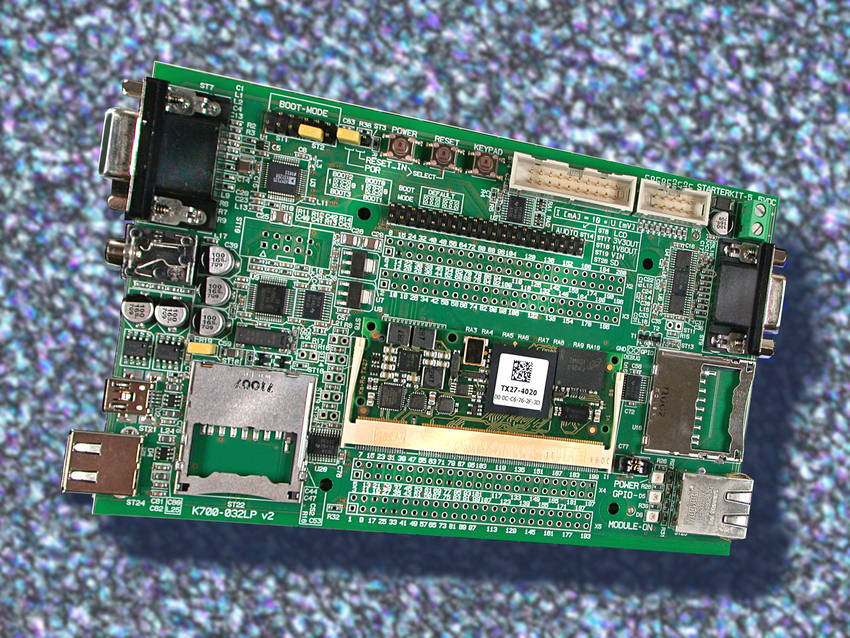

Dec 02, 2008 Development Kit-5 supports both Linux 2.6 and Microsoft Embedded Windows CE 5.0 and 6.0. TX27 SODIMM module contains 400 MHz i.MX27 processor, 64 Mb mobile DDR-SDRAM, 128 Mb NAND Flash memory, 10/100 Ethernet MAC, USB 2.0 Host/OSG, LCD controller, and MPEG4 H.263/H.264 hardware CODEC for D1 video and camera interface. Other features included in kit are socket for TX27 SODIMM, UCB1400 CODEC, touchscreen controller, 2 SD card sockets, LCD 40-pin header, and 2 RS232 headers.

KORENIX Technologies    Taipei 231  Taiwan
Dec 02, 2008 Intelligent JetI/O 6520 provides 12 bit resolution for voltage/current output. Each channel supports 2,500 Vms isolation, independent output operation of 0-10 V and 0-20 mA, and programmable output slew rate. ALong with DIN rail mounted aluminum case that disperses heat and provides IP31 protection, device provides Windows Utilities, SNMP, and Web for configuration, and Modbus/TCP protocol and OPC server driver for integrating JetI/O with existing HMI/SCADA.

Littelfuse, Inc.    Des Plaines, IL 60016

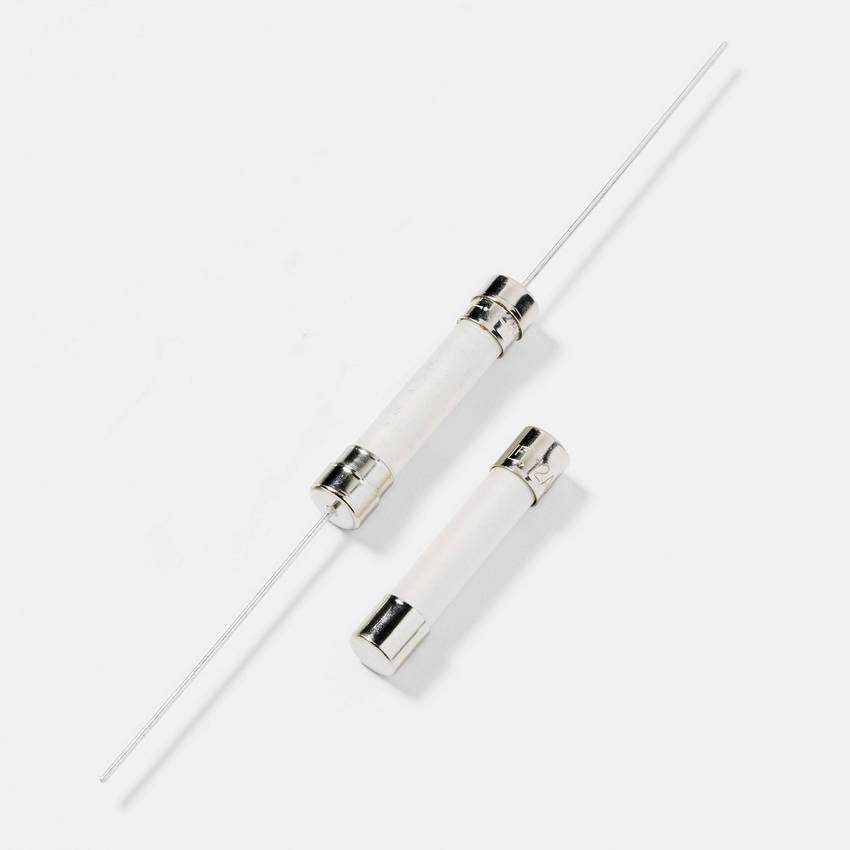

Dec 02, 2008 Featuring 6 x 32 mm ceramic body and Amp ratings of 10-30 A, 505 Series fast acting cartridge fuses can interrupt fault currents at 500 Vac or Vdc. AC and DC ratings make product suitable for both primary (AC) and secondary (DC) circuit protection. Suited for applications in uninterruptable power supplies (UPS) and other high-energy equipment, fuses are RoHS-compliant/lead-free, and are recognized under UL and CSA component programs.

ND SatCom, Inc.    Plano, TX 75081
Dec 02, 2008 Utilizing Army-approved light tactical trailer as baseline platform, terminal MTT2450 supports satellite communications at C-, X-, Ku- and Ka-Band frequencies, as well as troposcatter communications in 4.4-5.0 and 14.9-15.4 GHz bands. It combines 2.4 m antenna with on-board diesel generator, power distribution/protection system, and environmentally protected electronics. MIL STD 810 F certified terminal can be configured with SCPC-type modems or with SkyWAN® full-mesh capability.

Schenck AccuRate    Whitewater, WI 53190
Dec 02, 2008 PureFeed® AI-300 is designed for low feed rate applications and for customers who need to change materials frequently. It features dual arm external agitation system, and stepper motor that allows users to change penetration agitation speed on hopper without making any mechanical adjustments. Available in volumetric and gravimetric configurations, feeder suits applications such as metering micro ingredients, color pigments, and plastic additives in feed rates from 0.5-150 kg/hr.

Kontron    Poway, CA 92064

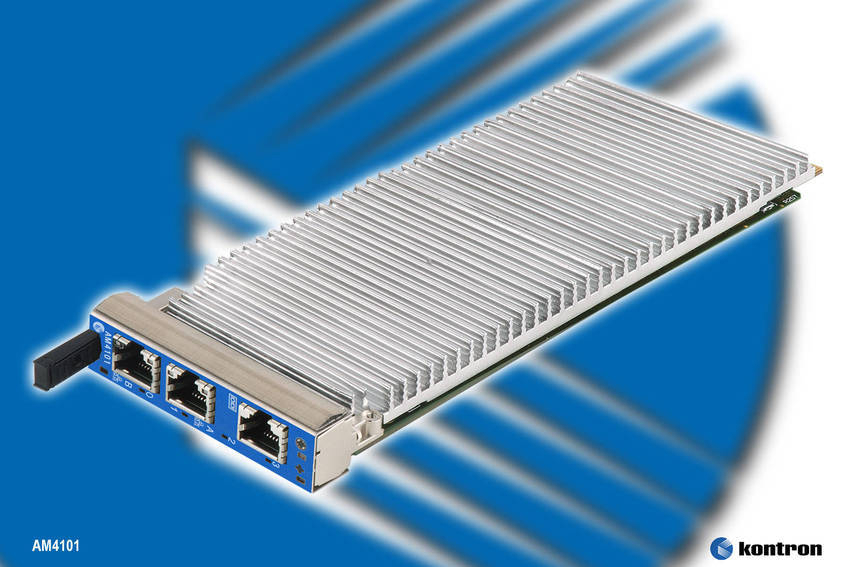

Dec 02, 2008 Based on 1.5 GHz dual core Freescale PowerPC MPC8641D, Kontron AM4101 advanced mezzanine card delivers up to 2.3 MIPS/MHz of computing performance. Device features integrated Altivec 128-Bit vector processing unit, 2 GB of soldered DDR2-SDRAM, and up to 2 GB of soldered NAND Flash and EEPROM for user and configuration data. Card supports 4 Gigabit Ethernet interfaces, 2 of them are routed to front panel and 2 are available at AdvancedMC connector.

Kontron    Poway, CA 92064
Dec 02, 2008 Designed for medical equipment OEMs, MediClient 104 offers dual Ethernet, dual USB 2.0, and serial RS232 connections. Resistant to disinfectants and detergents, 800 x 600 size TFT touch screen with 230 cd/m² brightness is usable with gloves and stylus pens. Scalable up to Intel Celeron M processor with 1.0 GHz, unit features up to 1,024 MB of RAM and compact flash socket plus optional 2.5 in. HDD for data storage. CE, FCC, cULus certified PC has MTBF of more than 40,000 hr.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401
Dec 02, 2008 Prochem PB and MD belt-driven, side-entering agitators feature standard belt drive service factor of 1.3 with optional 1.5 and 2.0 available. They suit applications such as pulp and paper, flue gas desulphurization, petroleum blending and storage. Configurable units use Ultra VX belts and sheaves.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Dec 02, 2008 Testmate Monitoring Unit measures solid particle contamination in hydraulic systems, and measurement accuracy is ±½ ISO code. It features automatic measurement and display of cleanliness ratings as ISO 4406:1999, SAE AS 4059, and NAS 1638. Unit has viscosity range of 46-1,622 SUS, and measures particles whose sizes are greater than 4, 6, 14, and 21 microns. Integrated pump and hoses with test point connections allow operation on reservoirs, control circuits, and high pressure circuits.
