Elma Electronic Inc.    Fremont, CA 94538
Dec 03, 2008 Offered in standard, EMC, and compact styles, Type 33 case features sturdy extrusion-based modular design, and is customizable. Chassis has mounting panels and grooves, optional tilt-up feet, and carrying handle, while screws to assemble enclosure are not visible and plastic bezels protect panel components and improve cosmetics. Case suits applications in test and measurement, laboratory, maintenance, and control designs.

SAS Automation, Ltd.    Xenia, OH 45385
Dec 03, 2008 Featuring twist-on design, Cable Saddle frame connector and wire tie system enables End-of-Arm Tool builders to easily attach air hoses and/or power cables to tools. Twisting cable saddle to lock into profile provides ability to move cables or hoses without having to cut wire ties off. Wire ties can be looped through opening built into base of cable saddle, allowing for it to be permanently attached to cables or hoses. Product is available in 15 and 25 mm sizes.

General Machine Products Co.    Trevose, PA 19053
Dec 03, 2008 Available in variety of sizes that accommodate 1-5 in. dia ducts, Duct and Innerduct Blowing Accessories eliminate air pressure leaks, air-flow control issues, inconsistent rope diameters, difficult equipment handling, over-crowded ducts, and other cable blowing problems. They include safety-locking control valve, 3/16, ¼, and 3/8 rope adapters, innerduct and conduit seal-offs, duct projectiles, and low-friction missile line carriers. Products aid in fiber optic cable placement.

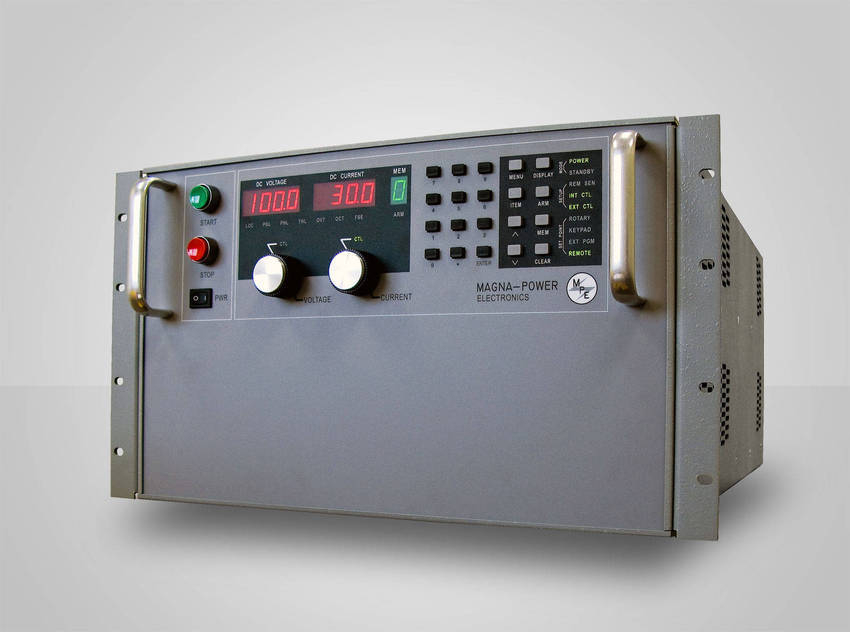

Magna-Power Electronics    Flemington, NJ 08822
Dec 03, 2008 Combining DC power processing with multiprocessor embedded control, dual polarity output tracking power supplies are available in systems ranging from 6.6-900 kW. They feature positive (+Vo), negative (-Vo), and common (ground) output connections, as well as over-voltage and over-current protection. Supplies are current fed and tolerant to abusive loads. Applications include brushless DC motor testing, aircraft ground support systems, and 270 Vdc DC bus testing.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Dec 03, 2008 Available with BIG-PLUS interface, ER16 and ER32 Collet Chucks are capable of supplying coolant through spindle or through spindle flange. Model ER16 is available in 2.5, 4, and 6 in. gauge lengths for 40 taper, and 3.5, 5, and 6 in. gauge lengths for 50 tapers, while ER32 chuck is available in 3, 4, and 6 in. gauge lengths for 40 taper and 3.5, 5, and 6 in. gauge lengths for 50 tapers. They are supplied with tool body and collet nut.

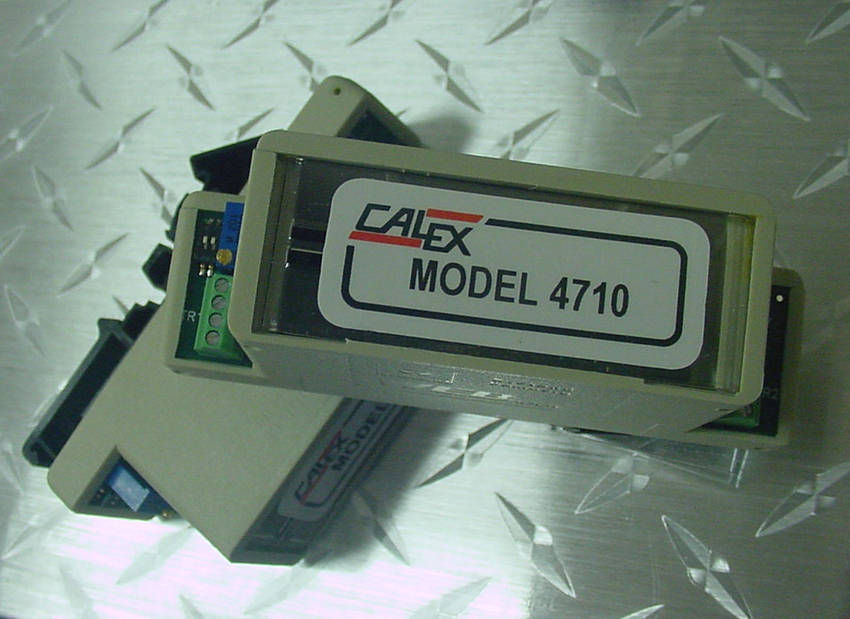

Calex Mfg. Co., Inc.    Concord, CA 94520
Dec 03, 2008 DIN Rail mount, self-contained DC powered module, Model 4710 is designed for load cell, strain gage, or single ended analog amplification and filtering. It contains built-in 10 V excitation supply capable of driving 350 W bridge, and provides 0-10 Vdc filtered output with frequency response of DC to 10 Hz. Measuring 3.78 x 1.06 x 1.65 in., unit features screw clamp terminal blocks, and externally located Zero and Span adjustment potentiometers.

Comeq, Inc.    White Marsh, MD 21162
Dec 03, 2008 Available in sizes from 4 ft x 40 tons to 20 ft x 650 tons, S-Series CNC Servo Hydraulic Press Brake comes with programmable Cybelec DNC-60 controller, powered X-axis, Y1/Y2 axes, and tooling package. Optional equipment includes Cybelec DNC-880 2-D graphical controller, offline programming, CNC crowning, and powered R and Z1/Z2 axes. By adding Lasersafe® light guards on front and safety interlock switches on rear and side access doors, machines can also be made CE/CSA compliant.

O.BERK Co.    Union, NJ 07083
Dec 03, 2008 Olympia Line of flint glass bottles come in 50 and 100 ml sizes with 15 mm crimp neck finishes. Oval shaped bottles are available with optional frosting, ceramic decorating, and labeling, as well as with variety of closure options.

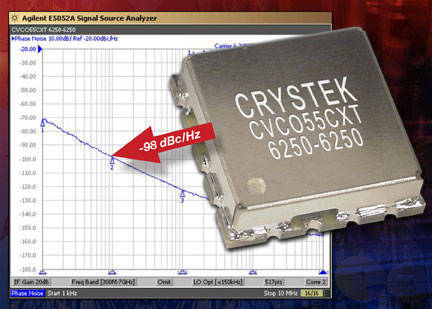

Crystek Corp.    Fort Myers, FL 33913
Dec 03, 2008 Coaxial resonator oscillator, CVCO55CXT-6250-6250 is available with tuning voltage range of 0.5-4.5 Vdc and typical phase noise of -100 dBc/Hz @ 10 kHz offset. It offers output power of 0.0 dBm typ. into 50 W load with supply of +8.0 Vdc and typical current consumption of 25 mA. Available in 0.5 x 0.5 in. package, unit features second harmonic suppression at -30 dBc typical, and pushing and pulling minimized to 1.5 MHz/V and 0.5 MHz, respectively.

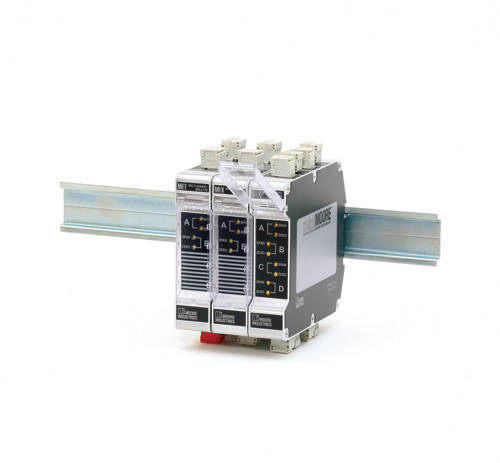

Moore Industries International, Inc.    North Hills, CA 91343
Dec 03, 2008 With 1 in. footprint, miniMOORE family multi-channel analog signal conditioners provide 1,000 Vrms input-to-output and channel-to-channel signal isolation. DIP-switch on 2-channel versions selects analog input types of 4-20 mA, or 0-5, 1-5, or 0-10 V, while 4-channel model accepts 4-20 mA inputs. All models provide isolated 4-20 mA outputs, ready for interface with indicator, recorder, DCS, PLC, or PC-based SCADA system, and feature industrial metal housings for RFI/EMI protection.

Viking Corp., The    Hastings, MI 49058 9706
Dec 03, 2008 Approved for up to 12 ft spacing between sprinklers on branch line, VK592 is cULus Listed and FM Approved as Control Mode Specific Application sprinkler to protect class I-IV commodities and cartoned unexpanded plastics, without using in-rack sprinklers. Storage sprinkler with 19.6 (280) K factor is UL Listed for up to 40 ft ceiling heights and FM Approved up to 35 ft. Product can also be used for warehouses with aisles as narrow as 4 ft as well as concrete tee construction.

VTI Microwave    Irvine, CA 92614
Dec 03, 2008 Designed for RF/Microwave test systems, EX72SF switching platform offers operating ranges from dc to 20, 26.5, or 40 GHz. Product's high-performance, modular, 2U rack mainframe is capable of housing up to 6 multi-throw and 6 SPDT RF/Microwave latching relays with self-terminating option. It routes RF and microwave signals between unit under test and resources in test system, and suits applications ranging from aerospace and defense to commercial wireless products.

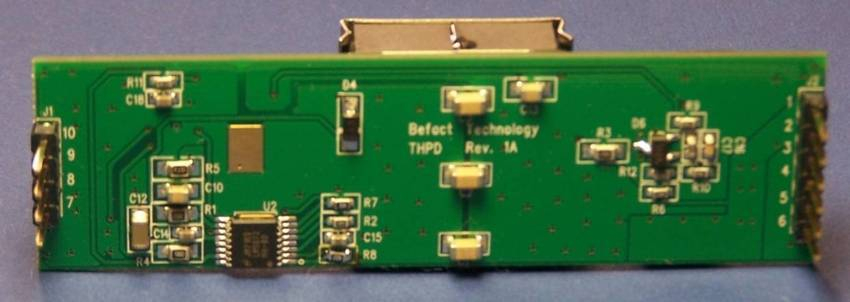

Befact Technologies Co., Ltd    Hsinchu city   Taiwan
Dec 03, 2008 Extracting power from PSE via Category 5 Ethernet cable, high power THPD and Normal power TPD Embedded Tiny PoE PD Modules support input voltage range of 36-55 and 39-55 Vdc, output power of 21 and 12 W, and measure 75 x 22 x 15.5 and 60 x 19.5 x 16 mm, respectively. IEEE802.3af compliant modules feature isolation level of 1.5 kV, and thermal cutoff and short circuit protection. Applications include wireless access point, IP and PTZ cameras, media converter, WiMax, and VoIP phone.

Tridium, Inc.    Richmond, VA 23233
Dec 03, 2008 Offering support for Redhat Linux, MySQL, and IPv6, NiagaraAX 3.4 device-to-enterprise integration platform includes Object Relational Mapping API feature, which provides mechanism for Niagara applications to store components in relational database for use by applications with large quantities of data. Niagara Virtual Points feature provides way to monitor data that is important but not required in control logic, alarming, or trend data.

KYOCERA Corporation    Kyoto 612-8501  Japan
Dec 03, 2008 Double-sided negative insert tool system provides 2 cutting edges, with sharp cutting edge equivalent to positive insert edge, promoting stability as well as chip control from roughing to finishing. PVD-coated grades include PR1005, optimized for wear resistance with titanium and free cutting steel, and PR1025, optimized for fracture toughness when working with stainless steel and general use. Toolholder design facilitates multiple tool-post locations without sub-spindle interference.

Linear Technology Corp.    Milpitas, CA 95035
Dec 03, 2008 Operating as constant current LED driver, Model LT3598 can drive up to 6 strings of LEDs, each with up to ten 30 mA white LEDs in series while delivering efficiencies up to 90%. Device features input voltage of 3-30 V, programmable 200 kHz to 2.5 MHz fixed frequency, and output voltage up to 44 V. Housed in 4 x 4 mm QFN package, DC/DC converter uses 1.5 A, 45 V internal switch to provide boost mode constant current source. When VIN exceeds VOUT, unit will continue to regulate LED current.

MIPAC PTY LTD    Albion   Australia
Dec 03, 2008 Designed to automate cell condition monitoring in tankhouse operations, CellView® consists of Wireless Cell Monitors communicating via mesh network to central operator interface. System provides continuous, real-time monitoring of cell performance and optimizes production through early detection of process problems. It is especially suited for electro-refining and winning operations.

BINDER GmbH    Tuttlingen D-78532  Germany
Dec 03, 2008 Available in 240 and 720 L interior volumes, KBF Climatic Chambers for constant conditions feature pressurized steam humidification system. Split evaporators work in parallel, cooling one section and dehumidifying the other, ensuring homogenous operation, even in lower temperatures up to 10°C. Doors and door frames are equipped with separately controlled heaters to prevent condensation, while heating, fans, and refrigeration are integrated into back wall, freeing up sidewalls.

Eurotherm Controls    Leesburg, VA 20175
Dec 03, 2008 While developed to monitor and record information in compliance with standards for secure electronic recording control, Store and Forward also overcomes challenges associated with inaccurate data reporting from communication failures. Features include redundant time- and event-based logging of process parameters; trend chart- and spreadsheet-based data presentation features; as well as secure electronic recording with total data integrity.

EASEUS    Chengdu City   China
Dec 03, 2008 With features such as disk/partition copy, EASEUS Partition Manager v3.0 Server Edition addresses data safety needs of corporate IT administrators. In addition to creating, deleting, and formatting partitions on hard disk, total functionality covers resizing or moving partitions, labeling partitions, and viewing properties of disk/partitions. Interface facilitates partition operations without causing data loss, while copy function supports 1.5 TB capacities and Windows Server 2008.
