Schunk    Morrisville, NC 27560
Dec 12, 2008 TRIBOS Mini toolholders and SVL extensions have clamping diameters as small as 0.012 in., allowing circuit board tools with straight shanks to be held directly in holder. Utilizing elastic forces of material to clamp tool shank, clamping process can be accomplished within 30 sec via clamping device - manual SVP-2 or automatic SVP-3 - together with corresponding reduction inserts. Run-out accuracy and repeatability are less than 3 microns, and basic counter balance is less than 4 g/mm.

austriamicrosystems AG    Premstatten   Austria
Dec 12, 2008 Suited for in-vehicle networks, AS8224 FlexRay Active Star Device has embedded bit-reshaper that reduces asymmetric delay caused by components in FlexRay networks or introduced by external interferences. It can reshape single bits in 12.5 ns steps up to 37.5 ns for shortened and lengthened bits. Besides timing reshaping, mechanism performs clock-deviation compensation between I/O stream of device while byte-start-sequence of FlexRay frame is shortened/lengthened by 12.5 ns.

Animatics Corp.    Santa Clara, CA 95054
Dec 12, 2008 Able to control entire machines, Models SM2316D-PLS2 and SM2316DT-PLS2 feature 4,000 cpr encoder resolution for tight position control, trajectory overshoot braking to stop large loads, and interrupt subroutines that optimize error handling and input triggered events. Integrated servos include RS-485 port and offer choice of absolute and relative CAM mode with CAM dwell. With drive-stage protection scheme, Model SM2316DT-PLS2 delivers more than 200 W of continuous shaft power.

Renishaw, Inc.    Hoffman Estates, IL 60192
Dec 12, 2008 Available in linear and rotary versions, TONiC works at speeds to 10 m/s and temperatures up to 70°C while providing resolution to 5 nm. High signal-to-noise ratio combined with dynamic signal processing ensure sub-divisional-error of less than ±30 nm. In addition to reading linear and rotary scales, TONiC reads gold scale featuring auto-phase IN-TRAC(TM) optical reference mark, which provides bi-directionally repeatable index over entire speed and temperature range.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Dec 12, 2008 Designed to detect liquid petroleum gas hazards before concentrations reach flammable levels, Xgard IR LPG features detection range of 0-100% lower explosive limit. Unlike catalytic pellistors, IR sensor detects flammable gas in inert backgrounds and is not damaged by high gas concentrations. Available in polyester-coated aluminum or 316 stainless steel enclosure, sensor offers life expectancy of 5 yr. Xgard IR LPG is Exd flameproof rated and UL approved for hazardous areas.

PDC International Corp.    South Norwalk, CT 06854

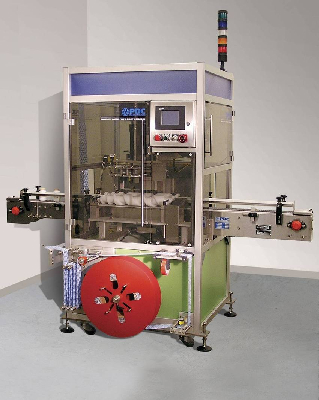

Dec 12, 2008 Engineered for continuous production or contract sleeving, 65 Series Shrinksealers operate at 50-175 containers/min with sleeve diameters from .375-3.25 in. and sleeve heights from .625-8 in. Systems can provide tamper evident banding, full height safety seals, and shrink sleeve labeling, which involves full height bodysleeve labels that contain primary graphics. Machines are compatible with all petroleum-based and sustainable films, including PVC, PET, PETG, OPS, and PLA films.

Astec America Inc.    Carlsbad, CA 92008

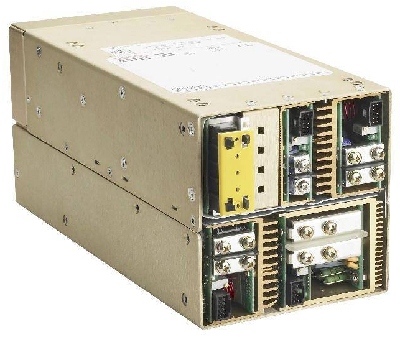

Dec 12, 2008 Capable of delivering up to 4,920 W of high-density (12 W/in.³) output, Intelligent VS (iVS) AC-DC power supply is designed for industrial, military, and medical instrumentation applications. It utilizes digitally configurable single and dual output power supply modules, available in 6 power ratings from 210-1,500 W, and supports 24 different output choices from 2-60 V. Integrated MCUs, paired with I²C GUI-based control software, let designers configure/reconfigure settings.

Ideal Industries, Inc.    Sycamore, IL 60178
Dec 12, 2008 Designed for use on equipment up to 600 V, 61-521 Phase and Motor Rotation Meter suits those involved in installation and repair of industrial motors. It combines 3 troubleshooting functions in one unit by identifying 3-phase sequence, indicating motor rotation, and checking for open phases to prevent motor damage. Use is facilitated via color-coded wired leads featuring large alligator clips. Red and green LEDs show rotation of de-energized motors.

IKey Ltd.    Austin, TX 78754

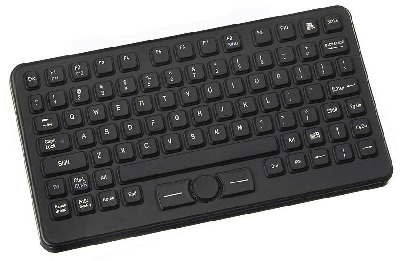

Dec 12, 2008 Supplied in 11.393 x 6.317 x 1.588 in. polycarbonate case, DW-860 rugged wireless keyboard has built-in battery compartment with sealed cap that enables access to 3 AA batteries. Sealed enclosure design is intended to readily accommodate mobile and wireless users, and integrated HulaPoint II(TM) joystick-like pointing device eliminates need for external mouse. Keyboard also offers WirelessUSB(TM) technology, 30 ft RF range, and no line-of-site limitations.

Mocon    Minneapolis, MN 55428
Dec 12, 2008 Offering manual and automatic sampling, benchtop PAC CHECK® Model 450 EC measures O2 concentration from 0-100% in package types ranging from small blisters to large pouches. Flo Smart(TM) sensing system knows when blockage has occurred in testing line and notifies operator. Utilizing ambient air and electronic controls, 1-button Cal-Smart(TM) feature performs 2-point calibration. Applications include nitrogen-flushed products such as case-ready meats, cheese, and snacks, plus certain pharmaceuticals.

Impco, Inc.    East Providence, RI 02914

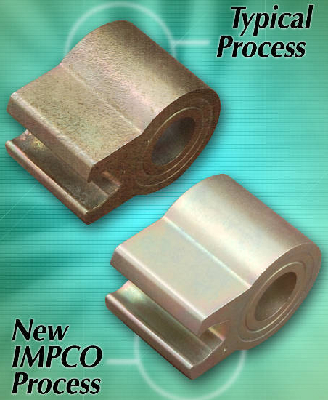

Dec 12, 2008 IMPCO impregnation process utilizes combination of resins, cleaning technologies, and process controls, which collectively prevent spotting, bleedout, and other plating defects to minimize reject rates for manufacturers and platers of powder metal parts. PoreSeal(TM) resins are formulated for unique sponge-like attributes of P/M porosity, and impregnation process employs thorough rinsing techniques, matched to part densities, to produce near-100% fill of complex porosity.

AirMotion Sciences, Inc.    Holliston, MA 01746
Dec 12, 2008 Available in 9-15 ft dia, AltAir High Volume - Low Speed (HVLS) fans are used for cooling, heat de-stratification, and ventilation in large facilities while conserving energy resources. Variable Pitch Technology enables Rotatair(TM) composite blades to be adjusted 0-20°, up or down, while fan is operating. In addition to manual, various modes of operation include those that address temperature-triggered events, speed/blade pitch adjustment, and external control.

Spectronics Corp.    Westbury, NY 11590

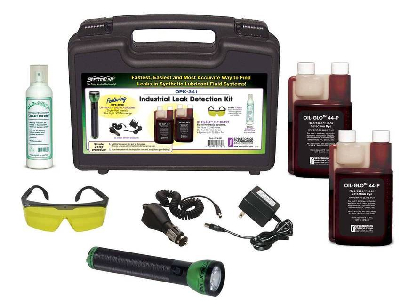

Dec 12, 2008 Equipped with OPTIMAX(TM) 3000 cordless, blue light LED inspection flashlight, OPK-341 Kit pinpoints exact source of fluid leaks in hydraulic equipment, compressors, engines, and gearboxes. Flashlight is powered by rechargeable NiMH battery and has inspection range of 20 ft. Kit also includes two 16 oz, twin-neck bottles of OIL-GLO(TM) 44 concentrated fluorescent oil dye, which is compatible with all synthetic and petroleum-based fluids, and glows to indicate leak when scanned with flashlight.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711

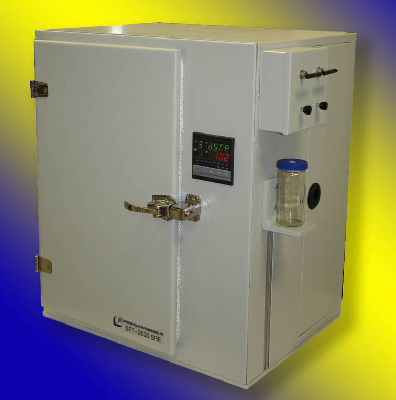

Dec 12, 2008 Designed for research chemists and process engineers, Model SFT-2000 accommodates 2 vessels up to 1 liter capacity each or single vessel as large as 2 liters. Pressurization of carbon dioxide at flow rates up to 250 ml/min is possible with Peltier-cooled SFT-20 CO2 pump, which is self-contained and does not require external cooling bath. Integrated pre-heater guarantees temperature of fluid delivered to extraction vessel is consistent for repeatable results.

EMCO Flow Systems    Longmont, CO 80501
Dec 12, 2008 Factory-calibrated and programmed, Turbo-Bar(TM) measures flow of liquids or gases (including steam) in 3-80 in. dia pipelines. EZ-Logic(TM) user interface allows local programming/display, and available output signals include scalable 4-20 mA current and scalable frequency/pulse 0-10 kHz. Capable of processing temperatures from -20 to +750°F and pressures from 125-5,000 psi, product delivers rate accuracies of ±1% or ±3% and rate repeatability of ±0.25%.

Gravograph - New Hermes Inc.    Duluth, GA 30096
Dec 12, 2008 Engraving machines from IS range (6000, 7000, 8000) and XP range are available with 150-1,000 W spindle that offers rotation speeds to 60,000 rpm for applications such as cutting or 3D marking on metal. Capabilities enable mass production via time cycle reduction, and user/machine interface promotes productivity as well as safety. Spindle is controlled by machine's electronic control system and driven by GravoStyle5 software, which offers CAD/CAM functions to augment marking options.

Riten Industries, Inc    Washington Court House, OH 43160

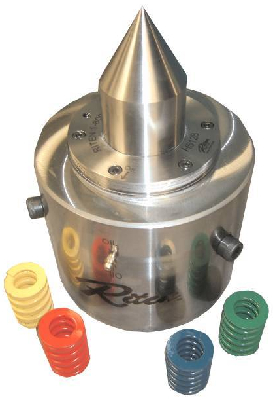

Dec 12, 2008 Heavy-duty, spring-loaded live center uses 4 interchangeable, color-coded springs that provide light, medium, heavy, and extra heavy linear force. Self-contained model can be chucked and is suitable for multi-function turning centers with sub-spindles and programmable tailstocks. Tapered and straight shanks and optional carbide tipped center points are also available. Accuracy is ±.00005 in. TIR, with concentricity up to one micron, and spring changes take less than 5 min.

Littelfuse, Inc.    Des Plaines, IL 60016

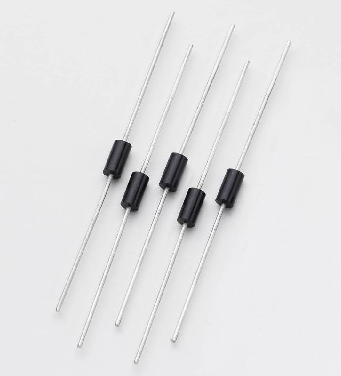

Dec 12, 2008 With max junction temperature of 125°C, Multipulse(TM) SIDAC Series is capable of switching speeds exceeding 8 kHz. Units optimize speed and consistency of lamp lighting by allowing multiple sparks per half cycle. During lamp outages, ignitor functions in active mode or in continuous operation until lamp is replaced. Suited for metal halide and high-pressure sodium lighting, devices potentially eliminate need for complex hybrid circuits for ignition and switching.

Linemaster Switch Corp.    Woodstock, CT 06281
Dec 12, 2008 Linemaster Hercules foot switch features cast iron housing and cast aluminum shields that accommodate standard sized shoes to large work boots with metatarsal guards. It is NEMA 2-, 4-, and 13-rated and meets requirements of IP56 specifications. Offered with momentary or maintained action, device is also available with various types of circuitry such as SPDT, DPDT, TPDT, 2-stage, and double-break contacts. It can be used on variety of equipment.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China

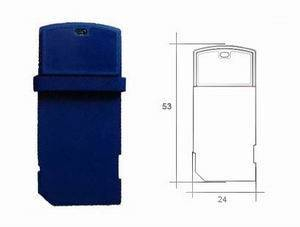

Dec 12, 2008 Designed to plug into laptop, PDA, and smartphone device with SD card slot, SDIO RFID reader suits applications in warehouse management, food anti-counterfeiting, parcel tracking, quality control, and pharmaceutical management. It can read and write most 13.56 MHz HF RFID tag formats, including ISO/IEC 14443A,ISO/IEC 14443B or ISO/IEC 15693 tags. Product transfers RFID tag information from mobile devices to centralized system for back end processing.
