Marktech Optoelectronics    Latham, NY 12110
Dec 17, 2008 With data exchange done at 25 MHz over serial I/O connections, TB62777FNG and TB62778FNG deliver continuous current that can be regulated for illumination in backlighting of LCD panels, TV displays, and notebook PCs as well as RGB panel LED displays. Both 8-channel, constant-current LED drivers have 3.3-5 V supply voltage range and regulate current source through one external resistor. Output range is 5-40 mA, and current accuracy between channels is ±3% at 0.4-4 V output.

SILIOS TECHNOLOGIES    Peynier   France
Dec 17, 2008 Tailored to specific requirements, compact mini-spectrometers are offered in various integration levels that combine optical micro-component, detector, and electronic board. Measurement is possible via transmission, reflection, or back-scattering mode, and resolution is rated down to 5 nm (FWHM). Compatible with various types of detectors, products suit range of chemical analysis and process control applications throughout various industries.

Turck USA    Minneapolis, MN 55441
Dec 17, 2008 Featuring IEC IP68 protection, 19-pin, 1 1/8 in. minifast® connectors come in standard and custom lengths with pigtails or extensions. Each male/female, straight or right-angle connector is rated for up to 300 V, 4 A per pin and suitable for manufacturing and packaging applications. Fully encapsulated mating receptacles with nickel-plated brass housing as well as ½ in.-14 NPT, ¾ in.-14 NPT, PG 16, and M20 mounting threads complete system.

Weidmuller, Inc.    Richmond, VA 23236
Dec 17, 2008 RIDERSERIES industrial relay modules and bases can be specified separately or as one kit with relay, base, LED indicator, retaining clip, and markers. Configurations include 24 Vdc, 24 Vac, 115 Vac, and 230 Vac ratings as well as SPDT/DPDT versions. Push-in technology accelerates installation, while heavy-duty industrial pinning prevents accidental pin bending. Relay can switch loads up to 16 A with 24 Vdc or 230 Vac, and 2 changeover contacts may be used to split signal.

Detector Electronics Corp.    Minneapolis, MN 55438
Dec 17, 2008 Designed to operate with wide range of toxic and combustible gas sensors, FlexVu(TM) Model UD10 Universal Display provides local event logging and 3rd party performance certifications. Outputs include analog 4-20 mA with HART, 3 alarm relays, 1 fault relay, and RS-485 Modbus. With FlexVu, single person can calibrate gas detectors without declassifying hazardous area. Unit has explosion-proof rating and is approved for use in Class I, Division 1, Groups A, B, C, and D classified hazardous areas.

Stone Construction Equipment, Inc.    Honeoye, NY 14471
Dec 17, 2008 Attaching to mixer's axle in place of tire, Locking Leg is suited for rental houses that need to assure return of inventory. It is available in small version that fits Stone Champion Mortar Mixer models 655PM, 655PMP, 755PM, 855PM, and 855PMP as well as EXD850 and EXD1100 models of Buddy by Stone mixers. Larger leg works on Buddy by Stone EXD1300GD and EXD1300BD models.

Analytical Technology, Inc.    Oaks, PA 19426
Dec 17, 2008 Model Q45D offers 2 measurement sensors; galvanic sensor uses 5 ml Teflon® membrane that serves as barrier to allow molecular oxygen to diffuse into reaction cell where sensor produces current proportional to oxygen concentration. Optical system uses fluorescence quenching technique. Both sensor versions incorporate integrated air blast Auto-Clean system to remove materials that build up on sensor membrane. Cleaning cycle is user-selectable to maximize cleaning effectiveness.

Micronor    Newbury Park, CA 91320
Dec 17, 2008 MR190 Universal Manual Pulse Generator/Handwheel (MPG) offers both A/A'/B/B' differential line driver and A/B pull-up quadrature outputs in single unit. It provides 100 detent positions per revolution and outputs one A/B quadrature pulse cycle per detent, while DIP switch configures both +5 or +12 V DC power supply options and A/B pull-up interface options. Features include COMBICON screw-down wiring plug and pin header system, metal housing, metal knob, and IP50 rating.

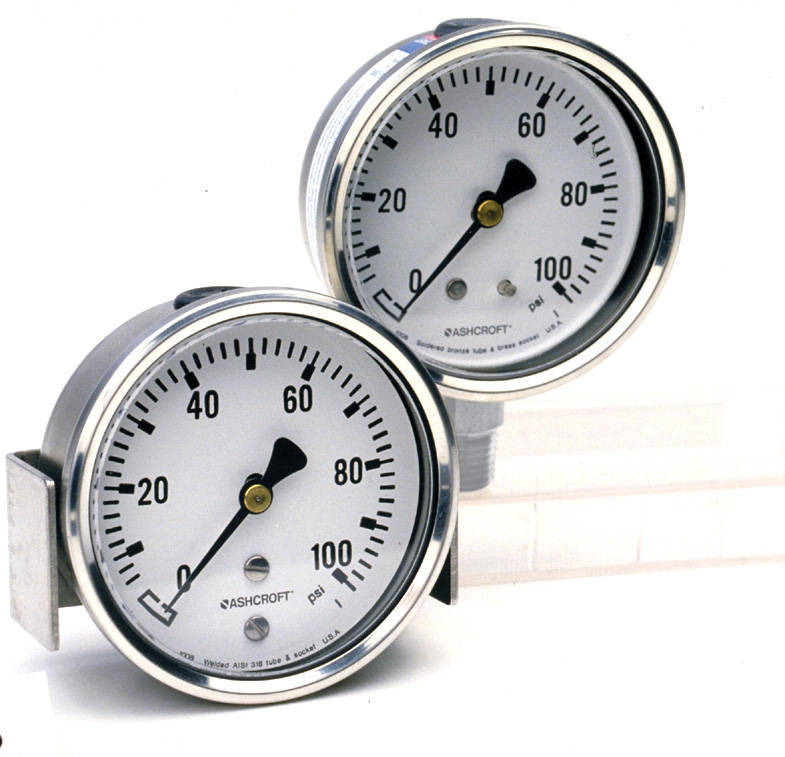

Ashcroft Inc.    Stratford, CT 06614
Dec 17, 2008 Ashcroft® Type 1008S is available in 2½ or 4 in. dial sizes and in ranges from vacuum to 15,000 psi. Sealed stainless steel case along with stainless steel wetted materials allow gauge stand up to most environments and service media, while PowerFlex(TM) movement protects device from shock and vibration. Optional PLUS!(TM) or liquid filled configurations are offered to counter pointer instability due to pulsation.

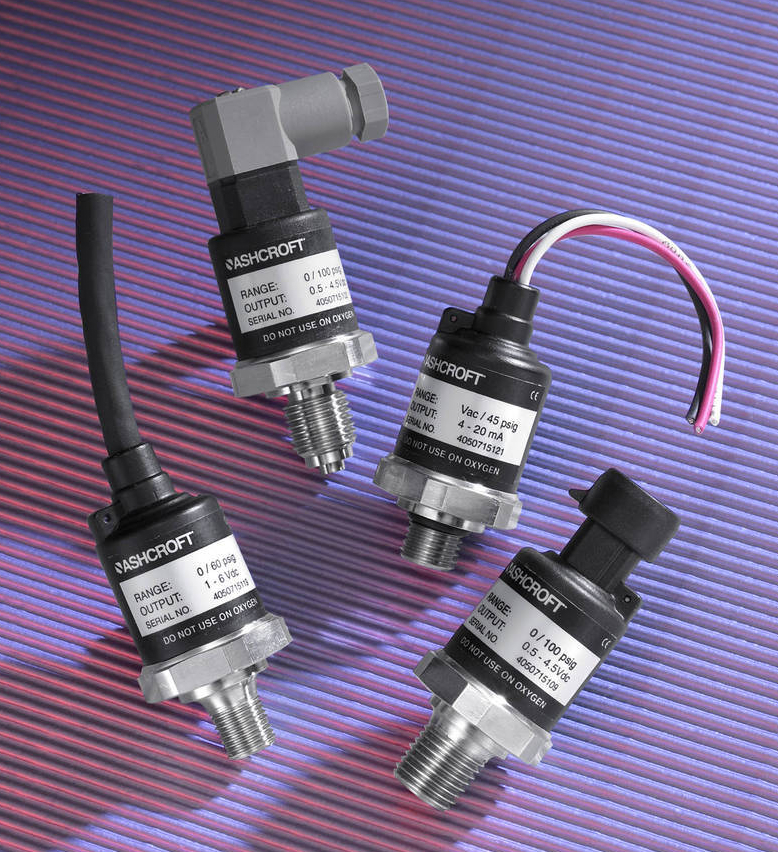

Ashcroft Inc.    Stratford, CT 06614
Dec 17, 2008 Available in pressure ranges from 0-30 to 0-20,000 psi and offering broad choices of outputs, electrical terminations, and process connections, Ashcroft® G2 is specifically engineered for critical OEM applications. With accuracy rated at 1% Total Error Band, G2 combines polysilicon thin film pressure sensor with ASIC enhanced circuit, which provides stability and reliability in applications where transducer is subject to shock and vibration.

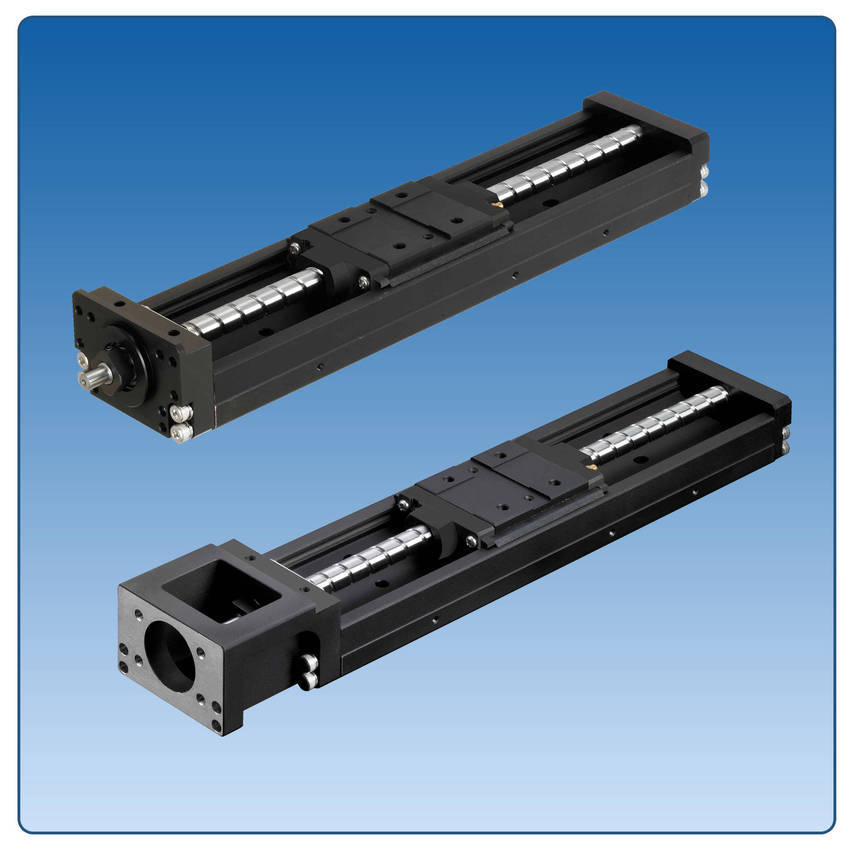

Misumi USA    Schaumburg, IL 60173
Dec 17, 2008 Offered with 15 or 20 mm lead and in lengths up to 590 mm, Model LX45 is available with or without cover and with or without motor bracket. Maximum stroke length is 497.9 mm for one short block, and brackets are available on LX Series to allow combination of 2 units on different axis. Actuator series has numerous applications providing precision linear motion to packaging, medical, semiconductor, automotive, and other automated assembly operations.

Tried Tool    Seattle, WA 98124-1069
Dec 17, 2008 Able to repair Windows registry with one mouse click, Easy Registry Repair v2008.12.1 scans for obsolete or error information and repairs any occurrence to accelerate PC performance and stabilize operation. AI detection algorithm identifies error references caused by uninstalled software, incorrectly removed software, orphaned start-up programs, or corrupt hardware drivers. Program also covers repair for 17+ categories, including ActiveX, start-up programs, and Windows services.

Harwin, Inc.    New Albany, IN 47151
Dec 17, 2008 With extended rear wall, Datamate male and female crimp jackscrew connectors enable customer to terminate cables themselves as alternative to over-molding. Deeper connector shell means customers can fill terminated connectors with potting material, which also resists ingress of dust and moisture. Designed to conform to BS 9525-F00033 requirements, connectors feature 4-finger beryllium copper contacts to ensure integrity of connection without loss of data.

Liberty Packaging Co.    Braintree, MA 02184
Dec 17, 2008 RIBS MVTR dry pack barrier bag has Map Bag style adhesive closure that eliminates need for vacuuming air out of bag. Intercept(TM) Technology on inside layer of bag neutralizes corrosive gases to protect static-sensitive electronic equipment. Self-sealing RIBS MVTR can be used with desiccant, is structurally tight material, and provides moisture barrier to guard against corrosion.

RADWIN    Tel Aviv 69710  Ireland
Dec 17, 2008 Along with support for multiple frequency bands from 4.9-5.8 GHz on single platform, RADWIN 2000 delivers 50 Mbps full-duplex net throughput with extended range of up to 120 km. Solution combines OFDM and MIMO technologies and air interface. It is designed as high capacity backhaul solution for WiMAX operators and ISPs.

Ashcroft Inc.    Stratford, CT 06614
Dec 17, 2008 Type 1005P general purpose utility gauge comes in 1½, 2, 2½, and 3½ in. dia with either back or bottom connection, and features PowerFlex(TM) movement and optional FlutterGuard(TM) pointer stabilization. Unit is suited for both stem and panel mount installations in wide variety of applications.

Graymills Corporation    Chicago, IL 60613
Dec 17, 2008 Super Sonic Liftkleen Parts Washer features heated, full-immersion cleaning coupled with ultrasonics to thoroughly wash intricate and difficult-to clean parts. Features include touchscreen interface, filter system, and automated lift, agitation platform, and lid that facilitate loading/unloading of parts. Heavy-duty stainless steel construction makes it rugged and reliable, and dual-wall fully insulated tank conserves energy.

DE-STA-CO Industries    Madison Heights, MI 48071
Dec 16, 2008 Featuring integral sensing capability that allows for precise control and monitoring of clamping position, 9500 series has no-backlash option, fixed orifice porting, and fully enclosed design. Clamps exert 41-212 lbf without deforming delicate parts and are adaptable to welding and assembly operations. Designed to allow for fixed and radially adjustable arm connections, series also features clamping arm with 90° swing that minimizes obstruction in workplace and reduces cycle time.

Edge Technologies    St. Louis, MO 63043
Dec 16, 2008 Designed for feeding round, square, and hexagonal bar stock into CNC lathes, 12 ft Minuteman 320 SE is equipped with hydrodynamic quick-change polyurethane guide channels. Dual anti-vibration devices stabilize bar stock at 2 critical points between guide channel and lathe spindle, maximizing rpm potential. Synchronization device employs electro-magnetic coupling, mechanically linking headstock's z-axis travel to bar feeder's pusher to ensure synchronous movement.

Edge Technologies    St. Louis, MO 63043
Dec 16, 2008 Rebel 102 Servo SE features 8-102 mm dia capacity for feeding round, square, and hexagonal bar stock into CNC lathe spindles. Magazine capacity (30 in. deep) allows for extended periods of unattended operation. While processing bar, lack of contact between bar stock and loading magazine enables high-speed machining. Servo-driven auto bar loading system accepts bar stock with lengths from 6-60 in., and feed force is automatically set by controller after touchscreen control input.
