Montalvo Corporation    Gorham, ME 04038
Nov 08, 2011 Offering either single or multiple tension zone monitoring, Model i4-HD can be supplied with analog or LCD digital meter displays. Unit provides excitation voltage as well as zero and calibration circuitry. Output can interface with PLC, PC, or DC/AC or servo drives. Compatible with most semiconductor strain gauge and foil gauge load cells, Model i4-HD delivers accurate and repeatable web tension.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Nov 08, 2011 Engineered for high-speed dry machining in light to medium milling of steel and stainless steel parts under stable conditions, Beyond(TM) KCPM20 Inserts are CVD coated and have post-coat treatment on all surfaces to minimize tensile stress and micro-chipping. After coating, inserts are top- and bottom-ground for optimized seating surface in toolholder. Styles are available for face milling, shoulder milling, and general purpose and die/mold machining.

Tipper Tie, A Dover Industries Co.    Apex, NC 27502
Nov 08, 2011 By automating netting process, TN4001 increases yield while maintaining product quality. Servo-driven pusher, for whole muscle meat applications, automatically nets one or more muscle sections in one operation. With or without collagen film or with casing only, end product is perfectly packaged in netting of choice. In addition to stainless steel gathering-voiding-clipping system with stationary clipper, machine features diagnostics, breech sizes from 3-8 in., and optional looper.

Admix, Inc.    Manchester, NH 03103
Nov 08, 2011 BenchMix(TM) Model OPLB-400 helps food manufacturers accelerate introduction of new products to market. Available with 3 hp at 12,000 rpm, low batch level adapter, and adjustable beaker clamp, system handles up to 15 L and delivers on versatility via multiple high shear heads as well as low-speed impellers and props. Once satisfactory results are obtained, manufacturers can accurately scale up to production volumes.

J.E. Grote Company, Inc    Columbus, OH 43230
Nov 08, 2011 Featuring dual-lane, stainless steel design, Horizontal Bread Cutter handles virtually all types of sandwich breads and rolls. Cut height is adjustable from ½ to 1½ in. and is accomplished with mechanical hand wheel. In addition to 12 in. wide transfer belt, cutter includes independently driven upper feed belt to maintain positive pressure on each bread top during cutting process. Accuband® Band Blade System cuts with ½ in. wide band blades running continuously between 2 pulleys.

J.E. Grote Company, Inc    Columbus, OH 43230
Nov 08, 2011 For purpose of sanitation, 530E model features sloped and hermetically sealed framing as well as open frame design with all control electronics located outside main body. Additional features include solid nylube clevis on main crank arm, scalloped bearing bar support mounts, and curved thickness tray that removes without tools. Built to survive harsh wash down environments, system features clutchless cluster drive system (electric models only) and full 6 in. stroke capability.

Endress + Hauser Inc.    Greenwood, IN 46143
Nov 08, 2011 Integrating with Rockwell Automation PlantPAx process automation system, Promag 53 measures electrically conductive liquids with minimum conductivity of 5 µS/cm and flow rates to 1,250 gpm. Integrated Web server allows authorized users to remotely view flow data, conduct diagnostics, configure flowmeter, or perform process optimization. By using EtherNet/IP, up to 10 variables can be configured, including volume flow, calculated mass flow, and totalized flow for remote access.

Philips Wide-Lite    San Marcos, TX 78667
Nov 07, 2011 Designed around LEDGINE LED platform, AeroScape series provides multiple distribution patterns, upgradability, and up to 86 lm/W efficacy. Modern edged design, which has low-profile architectural die-cast housing, comes in 2 pole mounted and 2 wall and surface housing sizes. While area and site fixtures feature straight and upswept arm style for daytime aesthetics, wall fixtures can be installed in up or down position for accent, task, or wall washing illumination.

Novatec, Inc.    Baltimore, MD 21225
Nov 07, 2011 Mobile NovaWheel(TM) Dry/Convey models (75, 100 and 150 lb/hr) come with color touchscreen control that, along with intuitive icons, aids setup and monitoring of all dryer and conveying functions. While standard package includes NovaWheel Dryer, vacuum blower, vacuum purge valve with slide gate discharge, and machine mount vacuum receiver, features include 7-day timer, maintenance alerts, dew point sensor, loader control, RTC with battery backup, and Ethernet communications option.

Baumer Ltd.    Southington, CT 06489 1534
Nov 07, 2011 Able to withstand aggressive cleaning processes of food and beverage applications, GE404 features Viton seals and ShaftLock bearing. Latter minimizes downtime by enduring vibration and shaft loads during processing/cleaning. Leak-proof and IP67-compliant, encoders resist harsh washdowns with aggressive cleaning agents over entire service life. Optical sensing principle allows 14-bit, single-turn and 12-bit, multi-turn resolutions for precision positioning at velocities up to 10,000 rpm.

Weidmuller, Inc.    Richmond, VA 23236

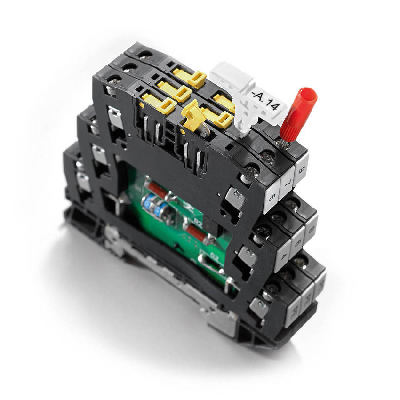

Nov 07, 2011 Featuring 4- or 6-pole terminal-sized housings for DIN-rail mounting, Varitector VSSC Series is rated for discharge currents up to 20 kA and is suited for measurement, control, and fieldbus applications, typically in water and waste sectors. Units combine wire-to-ground with wire-to-wire protection and utilize gas discharge tubes, varistors, and suppression diodes, in single- or multi-stage configuration to protect nominal voltages between 5 Vdc and 230 Vac.

Tingley Rubber    South Plainfield, NJ 07080
Nov 07, 2011 Made from flame-resistant, double-coated PVC on polyester, DuraBlast(TM) Outerwear is engineered for hydroblasting and power washing applications. Jacket features inner storm fly with snaps and full front hook and loop exterior closure system to completely seal out moisture, along with hook and loop throat guard and drawcord at sweep for added protection. Both jacket and plain front overall include hook and loop take-up straps at cuffs for secure fit.

LEDtronics, Inc.    Torrance, CA 90505
Nov 07, 2011 Featuring E12 candelabra base and 120 A input voltage, 0.9 W Model LED15T4-SIW-120A delivers more than 23 lumens and spherical candela of 1.84 while drawing 0.18 mA current. Bulb is constructed with shatter-resistant polypropylene lens and Rynite® sleeve. Operating in ambient temperature range of -22 to +122°F, Model LED15T4-SIW-120A provides warm white light from 2,800-3,200 K, suitable for indicator lamps, theater aisle seats, night lights, step lights, and decorative lighting.

Macro Sensors    Pennsauken, NJ 08110 1334
Nov 07, 2011 Constructed of stainless steel and rated to 212°F, intrinsically safe HLR series is UL-/ULC-listed for hazardous locations Class I, Division 1, Groups A/B/C/D and Class I, Zone 2. Contactless position measurement accommodates critical applications in hostile environments of gas/steam turbine plants, chemical process plants, and paper mills. Offering measurement ranges from ±1 to ±10 in. FS, series delivers repeatability better than 0.01% FS typ and non-linearity of less than 0.25% FRO.

NexTek, Inc.    Westford, MA 01886
Nov 07, 2011 Measuring 2.62 in. L x 0.90 in. D with N-type connectors and bulkhead mounting, SurgeGuard(TM) QWS 0500 Series provides weatherproof 60 kA bi-directional transient surge protection. Passive, always-on character of quarter wave stub lightning protectors means units will protect against both lightning and high-speed surge pulses. Optimized for C, X, and Ku band use, QWS 0500 Series is suited for wireless and satellite applications operating in frequencies from 5.2-180 GHz.

UV III Systems, Inc.    Alburg, VT 05440
Nov 07, 2011 Customizable to suit application requirements, Floorcure dries coatings at 20-30 fpm with 15-22 in. cure path depending upon coating used. System is available with cart, has forced-air cooling system, and can be used as handheld cure unit. Available in 120 V version on wheels for portability, machine has variable cure path and one-button operation. Featuring minimal moving parts, design is not computer dependent and allows for replacement of bulbs in minutes.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 07, 2011 Housed in aluminum, Series TTW combines 3 products into single package. TBU Series head-mounted temperature transmitter is factory mounted into A-709 weatherproof enclosure, and Pt100 RTD version of TE Series is wired to transmitter, giving insertion lengths up to 18 in. Each transmitter is factory programmed and calibrated to output 4-20 mA signal proportional to 32-212°F temperature range.

AutomationDirect.com    Cumming, GA 30040-9905
Nov 07, 2011 Available via iTunes App Store, C-more remote HMI application provides remote access and control to mobile users who have WiFi or cellular connection. Multilevel Logon Security is provided for up to 3 remote access user accounts that are configured and stored in panel project. Multilevel access control allows each user account to be configured in one of 3 access levels: full control, view only, and view and screen change only.

Dialight Corp.    Farmingdale, NJ 07727
Nov 07, 2011 Available in 180° forward throw or 360° circular optical pattern, DuroSite® LED Area Light delivers 79 lumens/W and CRI greater than 70 in cool white or neutral white CCT. Unit operates from -40 to +149°F with instant on to eliminate warm-up. Constructed with polycarbonate lens and polyester/epoxy powder coated aluminum housing, light is UL1598/A IP66 and NEMA 4X certified. Mounting options include direct conduit, stanchion, wall mount, and swing bracket wall mount.

National Instruments Corp.    Austin, TX 78759-3504
Nov 07, 2011 Designed for automated test systems with large numbers of channels, NI SwitchBlock relay cards provide option for switch configuration, routing, programming, and maintenance in variety of test applications. Products include multiple 2-wire switches for differential measurements and 16-row switches that provide multiple simultaneous connections. NI SwitchBlock comprises expandable carrier that accommodates up to 6 relay cards while occupying 4 slots in PXI chassis.
