Vollmer of America Corp.    Carnegie, PA 15205

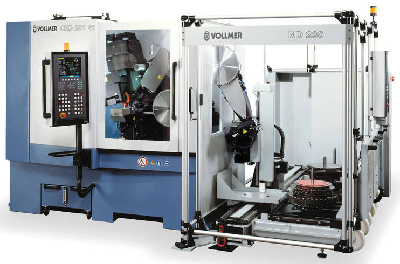

Dec 23, 2008 For consistent, accelerated machining of carbide tipped circular saw blades, Model CHD 251 R2 (The Service Center) incorporates automatic grinding machine, intelligent robotic system for loading/unloading, and PMC multiprocessor. Modular nature promotes machining flexibility by allowing for addition of other machines and carriages to expand scope of operation as capacities increase. Robotic handling system begins with 2/3/5/7 loading carriages capable of handling 50-600 saw blades.

Yaskawa Electric America, Inc.    Waukegan, IL 60085

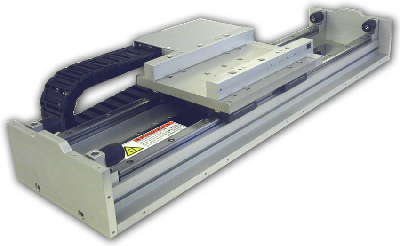

Dec 23, 2008 With peak forces from 86-1,200 N, Linear Sigma Trac Series is suited for precision positioning and general automation applications. Units provide accelerations to 5 G's and velocities to 5 m/s. Because Series was developed as integral component of Sigma II Series AC servo system, digital servo amplifiers utilize intelligent serial encoder feedback system that automatically recognizes which model of linear servomotor is connected upon power-up and performs self-configuration.

Yaskawa Electric America, Inc.    Waukegan, IL 60085

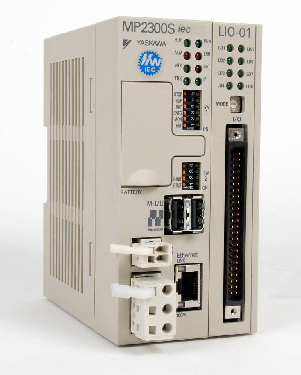

Dec 23, 2008 MotionWorks IEC Mechatronic Control System features 2.5 in. wide MP2300Siec controller that features Ethernet connection with EtherNet/IP scanner/adapter functionality and Modbus TCP/IP master/slave. Controller implements MECHATROLINK network connectivity for up to 16 axes of motion control. MotionWorks IEC software incorporates PLCopen function blocks for motion control. These standard, reusable code libraries store previously written logic to minimize development time.

SATEL North America L.L.C    ELMHURST, IL 60126
Dec 23, 2008 SATELLAR Digital System with TCP/IP-capabilities and Linux can run software applications as well as operating system, IP-router, and web configuration server. Different units can be combined to construct radio modem with functionalities for specific location; radio unit (basic building block) can be used to access RS-232-based devices or act as a radio repeater, while central unit, with TCP/IP-capabilities and Linux platform, can be added to locations where more functionality is needed.

AXIOMTEK    Taipei   Taiwan
Dec 23, 2008 Optimized for performance, management, and graphics, RoHS-compliant SBC86836 is powered by 45 nm, 1.6 GHz Intel® Atom(TM) processor N270 with 533 MHz FSB; Intel GMA 950 graphics engine; and Mobile Intel 945GSE Express chipset. One DIMM socket supports up to 2 GB DDR2 400/533 SDRAM, and displays can be connected via onboard CRT (2,048 x 1,536) and LVDS with single/dual channel (1,600 x 1,200). I/O includes 8 USB 2.0, 6 COM ports, DualView display, 32-bit PCI expansion slot, and dual GbE.

Hubbell Wiring Systems    Newtown, CT 06470

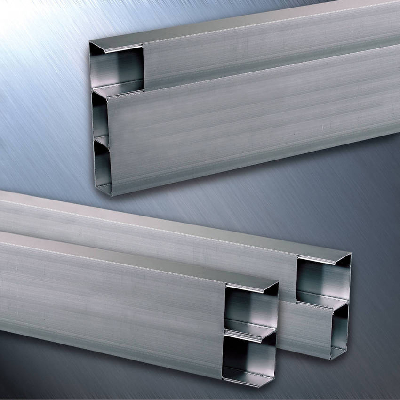

Dec 23, 2008 Available in pre-wired and unwired profiles, 2-channel Series HBLALU5000 and 3-channel Series HBLALU7620 are 1.75 in. and 2.25 in. deep, respectively, with satin anodized finish that resists oxidation, corrosion, and fading. Both have same channel width so covers can be shared. Single and 2-channel covers minimize amount of seams that dirt, bacteria, and debris can get into. Featuring 1.25 in. bend radius, fittings meet TIA/EIA requirements for high-speed data conductors.

Advantech Co. Ltd    Irvine, CA 92618
Dec 23, 2008 With AMD S1 CPU socket on board, SOM-5781 provides flexible CPU support options from 1 GHz Sempron 2100+ to 2.1 GHz Turion 64 TL-62 with dual core engine. Application reliablility is maintained through Smart and Secure utility, which dynamically adjusts fan speed to regulate CPU temperature. In addition to AMD M690E integrated chipset, ATI graphic engine, and various I/O, module supports dual-channel LVDS up to 48-/24-bit TFT panel, DVI, and PCIe x8 for external graphic cards.

Safety Technology International    Waterford, MI 48327

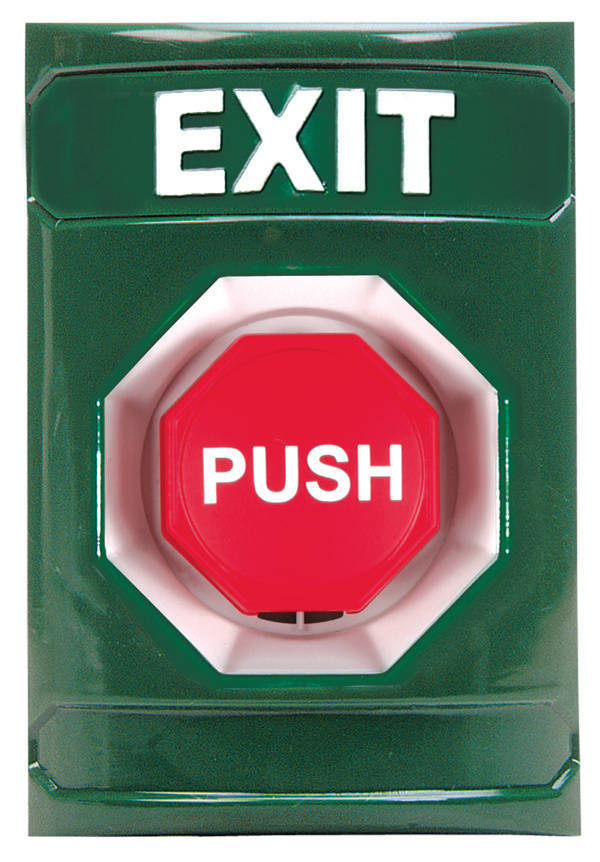

Dec 23, 2008 Pneumatic, adjustable timer push button Stopper® Station (SS-2108X) has design that helps to stop accidental activation. It has timed delay before reset, with timer range of 2-60 sec, and 10 A resistive 240 Vac rating. ADA compliant exit button is available with or without protective cover to combat vandalism and accidental damage, as well as battery powered local alarm to help stop malicious activation. Button faceplate has choice of wording and language.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada
Dec 23, 2008 Quadro® FlexSift, in-line, high-capacity, vibration-free sifter can be integrated below existing equipment or can be used as stand-alone unit. It is able to security screen APIs with varying screen/mesh sizes ranging from .006 in. for some products, with typical applications in .011-.009 in.

Hobart Brothers Co.    Troy, OH 45373-2900
Dec 23, 2008 Available in 1/8, 5/32, 3/16, 7/32, and ¼ in. dia, Rocket 7024 stick electrode features self-removing slag system that completely releases slag. Electrode is designed for DCEN, AC, or DCEP welding, and also suits general plate, tank and construction equipment fabrication, and SMAW applications. Offering smooth arc and low spatter levels, product meets AWS E7024 requirements for horizontal fillet and flat-position electrodes and welds through moderate dirt and rust.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Dec 23, 2008 With guide rails attached to floor serving as fixed tracks for dollies, material shuttles, and carts, FIFO (first in, first out) station helps to standardize material supply in production environments and ensure clear, transparent operating sequences. It supports 5S principles; sort, straighten, shine, standardize, and sustain, for material supply. Aluminum profiles integrated into guide rails enable further customized application options, such as enclosures and information supply.

Vollmer of America Corp.    Carnegie, PA 15205
Dec 23, 2008 Suited for manufacture of diamond tipped cutting tools, QWD 750H features 5 axis machining including rotating work head in E and A axes that enables precise, repeatable and continuous path profiling of complex tool shapes such as step and profile tools. It allows for cutting difficult axial and radial angles in single set-up. Unit can be equipped with magazines holding 4, 12, or 36 tools and multiple chucking systems, and can be fully automated to provide unattended operation.

Vollmer of America Corp.    Carnegie, PA 15205
Dec 23, 2008 Featuring 5-axis CNC loader, QWD 760H includes rotating work head in E and A axes that enables precise, repeatable, and continuous path profiling of complex tool shapes such as step and profile tools. ExProg Software allows for simulating parts machining for review prior to eroding first workpiece. With completely programmable generator, which can be set for 4 erosion stages for coarse roughing, roughing, finishing, and fine finishing, unit achieves surface finishes less than 0.2 microns Ra.

Yaskawa Electric America, Inc.    Waukegan, IL 60085
Dec 23, 2008 Ranging from 140-6000 N of linear thrust and offered in over 24 coil configurations, Linear Sigma Series PMBL is offered for use with Sigma II digital servo amplifiers. Available in 2 product levels, level-I group provides wide array of linear motors with plug-and-play Sigma II servo amplifiers, while level-II group provides range of fully-integrated linear positioning slides with linear encoders and amplifiers as Ethernet-ready motion control system for general automation industry.

HellermannTyton    Milwaukee, WI 53224
Dec 23, 2008 Designed to provide separation of 31 mm between mounting hole and bundle, 31 mm Stand-Off Bundling Clip protects wire bundle from heat and abrasion. It features anti-sliding bars, which prevent tape or cable tie from slipping off clip if bundle is pulled. Available for either single or dual bundle applications, clip has fir tree design requiring low insertion force for ergonomically friendly installation.

Elco Enterprises, Inc.    Jackson, MI 49201
Dec 23, 2008 Featuring hard chromed, u-groove drive rolls, Wire Pilot® Feed Assist is designed to help wire feeder move wire through conduit in welding applications where usage of large diameter wire or long conduit runs are necessity. Drive rolls are wear resistant, have rounded shoulders along grooves to prevent wire shaving and reshaping, and are compatible with both ferrous and non-ferrous wire. Unit comes standard with silencer/reclassifier to reduce noise.

The Claros GROUP Inc.    Arlington, VA 22201
Dec 23, 2008 Designed to humanize business operations and increase contact ratio, Rep Connect v2.0 connects sales people with prospects by phone within seconds after online applicant presses Submit. Features such as Prospect Chaser®, Rep Finder®, call recording, and real-time call notifications eliminate delays caused by Web inquiries, which would otherwise arrive by email or get posted to database, and ensures lead conversion occurs while prospects are at their peak point of interest.

Actel Corp.    Mountain View, CA 94043 4655
Dec 23, 2008 Libero® Integrated Design Environment v8.5 supports nano versions of IGLOO® and ProASIC®3 FPGAs, which are suited for portable systems. It also enables instantiation and configuration of embedded 18 x 18 bit mathblocks for use in radiation tolerant RTAX-DSP family. Mathblocks can be managed through Libero's standard synthesis, simulation, and layout flows and support various multiply functions and other RTAX-DSP applications.

Open Text Corp.    Bannockburn, IL 60015
Dec 23, 2008 Powered by Recommind, Open Text eDiscovery Early Case Assessment allows organizations to assess legal merits of case and defensibly manage legal holds and collection for discovery, regulatory, and compliance requests. Users can centrally search, explore in place, and preserve electronically stored information from disparate sources. To reduce volume of content to be reviewed, organizations can cull document sets by identifying duplicates in user files, emails, and attachments.

Waterlogic    Basingstoke   United Kingdom
Dec 23, 2008 Waterlogic 4 employs in-tank HC2P (High Cold Capacity Purification) technology, which can purify cold, ambient, and sparkling water. Available in freestanding or table top versions for workplace use, all models - Hot/Cold/Sparkling, Hot/Cold, Cold/Ambient, Cold/Sparkling, and Cold only - filter and purify water from mains supply to eliminate bottle waste. As safety feature, color-coded lighting illuminates dispensing area depending on selection as safety feature.
