ATI Industrial Automation    Apex, NC 27639
Jan 06, 2009 Able to pass current up to 28 A, 500 Vac/700 Vdc, MT9 module includes Amphenol MS-style connectors and protective earth safety ground. Additional elements of construction include fluid-resistant seal on contacts, specially designed contact pins for low resistance, and compact design. This high-power Tool Changer electrical module is compatible with ATI Tool Changer models QC-110, QC-150, QC-300, and QC-510.

Bel Fuse, Inc.    Jersey City, NJ 07302 4419
Jan 06, 2009 Offering efficiencies up to 91%, non-isolated Micro SIP Series is comprised of open-frame modules that operate over 4.5-13.8 V input range and have output voltage trim range of 0.59-5.1 Vdc. All 3, 6, and 10 A active-high enable as well as true active-high enable converter modules are RoHS-compliant and switch at fixed frequency of 500 kHz. While 3 and 10 A modules, offered in 5-pin SIP configuration, measure 0.65 x 0.41 x 0.32 in., 6 A modules measure 0.65 x 0.41 x 0.295 in.

Futek    Irvine, CA 92618
Jan 06, 2009 Suited for strain gage-based load cells, LSB200 Miniature S Beam Load Cell incorporates USB Digital Interface featuring 16-bit resolution and offers plug-and-play operation. Standard model has female threads, 2024 aluminum or 17-4 stainless steel construction, and 5 ft 29 AWG 4 conductor shielded silicone cable. Measuring 0.75 in. high, load cell uses metal foil strain gauge technology and exhibits ±0.1% nonlinearity, 0.005 in. deflection, and -60 to +200°F operating temperature.

Ellsworth Adhesives    Germantown, WI 53022
Jan 06, 2009 Consisting of polybutadiene modified polyurethane, UR3005 features water pickup of less than 1% during immersion at 60°C. Product adheres to many plastics and metals, gels in 10-20 min, and reaches full cure in 24 hr. As medium soft encapsulant, UR3005 induces little stress on sensitive parts, such as PCB level components and associated solder joints. Two-part system has 6:1 mix ratio and should be dispensed using meter mix dispense equipment.

Lathem Time Corporation    Atlanta, GA 30336 2801
Jan 06, 2009 Designed to sit on desktop or mount on wall, multi-function electro-mechanical time clock and document stamp, Model 900E features 14 selectable print formats, automatic Daylight Savings Time adjustment, and 13 optional preset comments. Large digital display always shows current date, time, and day of week, while internal lithium battery provides memory backup for up to 3 years without power. Setup takes less than 1 minute and unit never needs resetting.

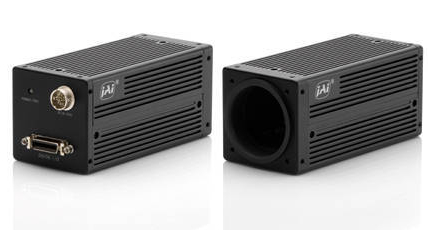

JAI, Inc.    San Jose, CA 95134
Jan 05, 2009 Incorporating Kodak KAI-16000 dual-tap sensor, 16-megapixel cameras deliver full 4,872 x 3,248 pixel resolution at 3 frames/sec. Monochrome Model AM-1600CL and raw Bayer color Model AB-1600CL feature Camera Link interfaces offering user-selectable 8-, 10-, or 12-bit output. In addition to pre-select and pulse-width trigger modes, progressive scan CCD cameras include electronic shutter with 10 preset speeds or user-programmable settings from 1/3-1/3,378 sec in increments of 98.66 µs.

Wexco Corp.    Lynchburg, VA 24502
Jan 05, 2009 Dura 686XL is wear-resistant, bimetallic barrel-lining alloy, with low coefficient-of-friction, that is compatible with various hard-faced flight materials. Abrasion-resistant material provides resistance to hardness losses caused by elevated temperatures and friction energy. Its alloy chemistry is suited for high-speed applications in blow molding and injection molding machines.

Red Lion Controls    York, PA 17406 9428
Jan 05, 2009 Featuring detachable LCD display/programming module, DIN rail mounted IAMS Series provides complete isolation and conversion capability to satisfy most applications. Universal input can accept RTD, TC, Ohm, potentiometer, mA, Vdc, and process input signals. With universal power supply that accepts 21.6-253 Vac or 19.2-300 Vdc, signal conditioners offer over 100 possible input-to-output combinations and are available in setpoint, analog, and analog output and relay control models.

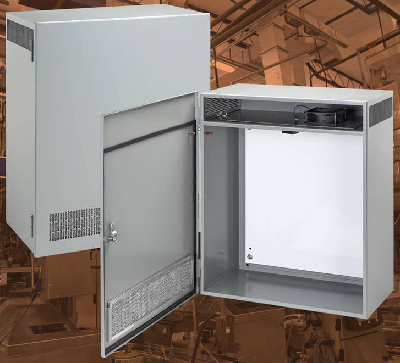

Hoffman    Anoka, MN 55303 1778
Jan 05, 2009 Desined to meet UL, NEMA/EEMAC, and CSA Type 1 standards, T1FLO(TM) uses active cooling ventilation system with 115 Vac fan, vent, filter, and thermostat to keep heat-sensitive drives and controls cool and protected. Off-the-shelf product is constructed with 14 gauge steel and offered with various airflow and enclosure size options. Other elements of construction include lift-off hinge door and solid or perforated accessory panels.

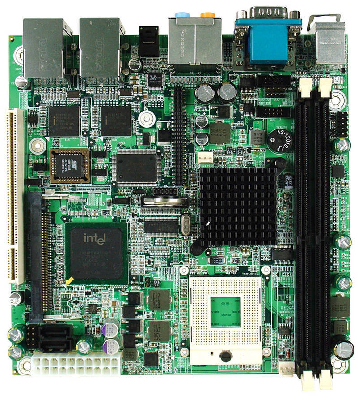

WIN Enterprises    North Andover, MA 01845
Jan 05, 2009 Featuring on-board TPM 1.2 chip and 2 SATA interfaces, MB-73170 supports dual independent display via Intel 965GME mobile chipset as well as HD audio with mic in and line in/out via ICH8M chipset. Intel 82573L Ethernet controller supports 2 GbE LAN ports and IEEE 802.3u standard for network connectivity. Dual DIMM sockets support up to 4 Gb of DDR2 system memory (533/667 MHz), and additional multimedia support is made possible by PCI slot, Mini PCI slot, and CompactFlash socket.

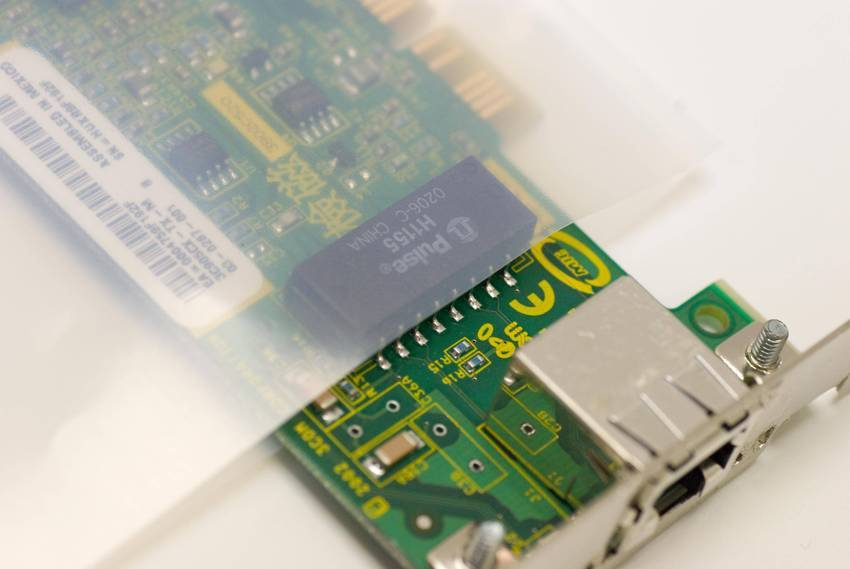

Northern Technologies International Corp.    Lino Lakes, MN 55014
Jan 05, 2009 Zerust ICT®520-CB1 Anti-Tarnish packaging is transparent plastic material impregnated with chemical formulations to absorb corrosive gas in surrounding atmosphere. It protects silver, copper, and electronic components from damage caused by oxidation, tarnish, and corrosion. Fully compatible with automated packaging systems, product is fully recyclable and has no acids or harmful materials. It can be customized into bags, gusset bags, and sheeting.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jan 05, 2009 Delivering up to 60 W of output power, medical-grade TMP60 series has 85-264 Vac input and comes enclosed in 94V-1 rated polyphenylene-oxide case measuring 2.95 x 5.79 x 1.65 in. Single-output models, featuring factory-preset output from 11-39 V or 46-50 V, have average efficiency of greater than or equal to 85% and standby power consumption of less than 0.5 W. Dual- and triple-output models offer combinations of +3.3, +5, ±12, ±15, and +24 V outputs.

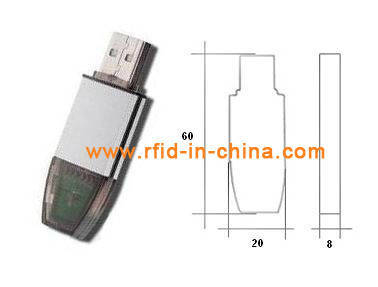

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Jan 05, 2009 USB interface RFID reader is compatible with 13.56 MHz frequency chips such as I-CODE Sli, Mifaere S50 1K, Mifare S70 4K, Mifare Ultralight, Inside 2K, and TI Tag-it. Featuring low power consumption, it is designed to provide read range of up to 30-70 mm. Device inserts into PC or PDA via USB and can be used with variety of RFID applications such as access control, industrial automation, process control, logistics, and supply chain management.

AAEON Technology Inc    Taipei   Taiwan
Jan 05, 2009 Built upon AMD Geode(TM) LX800 processor and AMD CS5536 I/O chip, Model PFM-541I offers up to 256 Mb onboard DDR333 system memory, two 10/100Base-TX Ethernet ports, 4 USB 2.0 ports, 4 COM ports, and PC/104 expansion. Storage needs are met by both IDE and CompactFlash(TM) interfaces. Available in temperature ranges of -25 to 70°C and -40 to 80°C, module is suited for harsh environments.

Baumer Ltd.    Southington, CT 06489 1534
Jan 05, 2009 Suited for harsh environments, VeriSens® Smart Vision Sensors feature shatterproof glass as well as special connectors and seals that protect against damage during washdown. FEX processor that calculates edges eliminates data detection problems associated with changes in environmental conditions. Equipped with 656 x 494 pixel CCD image sensors, units calculate 2-D position correction, provide data on position and angle of target, and perform measurement and location calculations.

Robert Bosch GmbH      Germany
Jan 05, 2009 FlexiDome camera series is offered with 9-22 mm varifocal lens, which provides wide-area coverage up to 31.2° horizontal and 22.8° vertical as well as telephoto coverage up to 12.8° horizontal and 9.6° vertical. These characteristics enable surveillance system operators to identify person positioned up to 40 m away from camera. Available for analog and FlexiDome IP cameras, this IR-corrected lens keeps day/night cameras in focus at all times and has f-stop of f/1.4.

Maplesoft    Waterloo, Ontario   Canada
Jan 05, 2009 Leveraging Maple(TM) computation engine, MapleSim(TM) multi-domain modeling and simulation tool provides physical modeling techniques that let users create system diagram. Model equations are automatically generated, and drag-and-drop modules can be calibrated to individual preferences. Application of symbolic preprocessing techniques to model equations accelerates code running for complex models, and multiple tools are supplied for dynamic analysis, control design, and optimization.

Gems Sensors Inc.    Plainville, CT 06062
Jan 05, 2009 Designed for drinking water and beverage dispensing applications, FT-330 Hall effect turbine flow sensor is constructed with over-molded electronics and plastic design that allows for multiple mounting positions. Its 316 SS shaft, coupled with Delrin® bearings, promotes accurate measurement and accelerated dispensing cycles in temperatures up to 176°F. Customizable for any application, sensor suits OEMs who require NSF-approved and PPO-reinforced materials.

Anver Corp. - Anver.Com    Hudson, MA 01749
Jan 05, 2009 Designed to handle porous blocks and construction materials weighing up to 4,000 lb, VPE-1 below-the-hook, self-contained vacuum lifter is constructed with all-welded steel frame. It incorporates electric vacuum power station, oversize vacuum pump with foam sealed-ring suction pad, remote pendant, and ergonomic handle. Parking stands protect foam sealing ring suction pad when not in use, and safety features include VacGuard(TM) control system with vacuum reservoir and leakage alarms.

Stafford Manufacturing Corporation    North Reading, MA 01864-0277
Jan 05, 2009 Suited for prototyping and repairs, Remachineable Shaft Collar Kits feature eight 1- or 2-piece fully assembled steel collars per kit, and each has pilot hole that can be machined by user to match their own bore requirements. Sizes range from 1 1/8 to 3 in. OD with 0.235 in. pilot hole for bore. Applications include building new machinery as well as maintenance for fabricating custom sizes to match worn or replacement shafts.
