Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 07, 2009 Supplied in PowerPAK® SO-8 package, SiR476DP Gen III TrenchFET® power MOSFET features max on-resistance of 2.1 milliohm at 4.5 V gate drive and 1.7 milliohm at 10 V gate drive. This 25 V n-channel device, featuring on-resistance times gate charge of 89.25 nC at 4.5 V, is used as low-side MOSFET in synchronous buck converters and in secondary synchronous rectification and OR-ing applications. Construction is lead (Pb)-free, halogen-free, and RoHS-compliant.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 07, 2009 Supplied in PowerPAK® SO-8 package, SiR440DP Gen III TrenchFET® power MOSFET is 20 V n-channel device offering max on-resistance of 2.0 milliohm at 4.5 V gate drive and 1.55 milliohm at 10 V gate drive. On-resistance times gate charge is 87 nC at 4.5 V, and construction is lead (Pb)-free, halogen-free, and RoHS-compliant. Product is used as low-side MOSFET in synchronous buck converters and in secondary synchronous rectification and OR-ing applications.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 07, 2009 Intermateable with I-PEX Co., Ltd. CABLINE®-VS products, 0.5 mm LCD Coaxial Embedded Display Interface Connectors replace existing LVDS 6/8 bit single/dual channel signal transmission. Units accommodate consistent digital data transmission through 1, 2, or 4 DisplayPort lanes at reduced bit rate of 1.62 Gbps or high bit rate of 2.7 Gbps through each lane. They offer high density for notebook PC applications, minimizing space and accommodating future pin out for LED backlight technology.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Built around SH-4A CPU core, 32-bit Models SH74504 and SH74513 offer 2 MB and 1.5 MB embedded flash memory, respectively, as well as 512 KB on-ship SRAM, providing support for driver-assist systems in automotive applications. Units operate at 240 MHz, allowing them to achieve processing performance of 432 MIPS. Fabricated using 90 nm process technology, MCUs come in 17 x 17 mm BGA package with 0.8 mm pitch and operate over temperature range of -40 to +125°C.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Based on 16-bit R8C CPU core and operating from 1.8-5 V, R8C/Lx Series includes controller that supports up to 416 pixels of segment- or dot matrix-type LCDs. Data transfer controller manages data transfers from memory to memory or memory to peripherals without CPU intervention, while data flash memory with background operation function allows CPU to execute instructions while data is being written or erased from data flash. On-chip oscillator provides clock signals at 40, 36.864, or 32 MHz.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 With their on-chip memory - up to 2 MB flash, 512 KB SRAM, 64 KB cache - and peripheral sets, SH74504 and SH74513 accelerate sensor data processing for implementing preventative safety features in driver-assist systems. Both MCUs use SuperH® SH-4A CPU and have 5-channel CAN function that accommodates multitude of sensor and actuator ECUs. Additionally, SH74504 includes higher-bandwidth, 2-channel FlexRay function. At 240 MHz, performance levels reach 432 MIPS and 1.68 GFLOPS.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Tailored for car information terminals, SH-NaviJ series model SH77721 SuperH® processor uses 32-bit superscalar SH-4A CPU core rated to 333 MHz, 599 MIPS, and 2.3 GFLOPS. Processing may be performed using only one DDR2 SDRAM chip (DDR333 type), and 32-bit extension bus is provided for connections to external Flash or SRAM. In addition to 2D/3D graphics processor, components include GPS baseband processing module, FM multiplex decoder, and multiple interfaces.

Semtech Corp.    Newbury Park, CA 91320
Jan 07, 2009 Operating from 0.8-1.7 V supply, SX1282 employs 8-bit CoolRISC® processor core, with DSP H/W acceleration, that can deliver up to 6.4 MIPS while drawing less than 1.3 mA of supply current. Dual UHF-band ISM transceivers, also included, enable simultaneous communication on 400 and 800 MHz ISM bands. Additional features include analog sensor front-end interface, 1-32 kB of low-power RAM, and variable 10- to 16-bit ZoomingADC (analog-to-digital converter).

Semtech Corp.    Newbury Park, CA 91320
Jan 07, 2009 Supplied in 5 x 5 mm package, SC417 high-current POL voltage regulator achieves optimal power density through power circuit layout and matching of driver to internal power switches. It has 3-28 V input range and programmable 150 mA LDO that can be used to provide 5 V for gate drive bias, allowing operation from one rail. Other features include internal crossover circuitry, pseudo fixed frequency adaptive on-time control, SmartDrive(TM) technology, and selectable ultrasonic power save.

Semtech Corp.    Newbury Park, CA 91320
Jan 07, 2009 Tested to withstand 100 A surges commonly required on telecom Ethernet interfaces, 2.5 V TClamp(TM)2502N can protect sub-micron transceivers against GR-1089 level lightning pulses. Silicon-based, RoHS-compliant unit features max line-to-line capacitance of 12 pF. Housed in 2.6 x 2.6 x 0.6 mm SLP package, device also protects telecom and networking interfaces against ubiquitous threats from electrostatic discharge, cable discharge events, and electrical fast transients.

Hendrickson International    Woodridge, IL 60517-4904
Jan 07, 2009 Available in 12,000 and 14,000 lb axle ratings, AIRTEK® Front Air Suspension optimizes ride, stability, and handling of IC Bus RE Series school and commercial buses. Rigid, box-shaped axle resists horizontal, vertical, and twisting forces. High-volume air springs support approximately half of vertical load to soften ride, while dual height control valves react quickly on rough roads to maintain proper ride height, and up to 50° of wheel cut provides maneuverability.

Trans Tech America, Inc., An ITW Decorating Co.    Carol Stream, IL 60188
Jan 07, 2009 Suited for dimensional product decoration, Mist photopolymer printing plate does not require use of chemicals during processing. Rugged plate features variable etch depth control and wide process window. Product is available in standard and custom sizes, as well as 50 packs and bulk packs.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan
Jan 07, 2009 Built entirely with RoHS-compliant materials and production processes, FW-7520 and FW-7560 suit low-end to midrange application markets. Model FW-7560 comes with one storage bay for either 2.5 or 3.5 in. hard drive, along with 2 Serial ATA interfaces for additional storage and one DDR2 SODIMM slot for up to 2 GB of memory. Measuring only 36 mm in height, fanless desktop system, FW-7520 includes 5 network ports, single pair with bypass support, and 2 USB ports for administration.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 07, 2009 Packaged in PowerPAK® SO-8, p-channel TrenchFET® power MOSFETs with ±20 V gate source voltage can be used as adaptor switch and for load switching applications in notebook computers and industrial/general systems. Model Si7633DP 20 V MOSFET offers ultra-low on-resistance of 3.3 mW at 10 V and 5.5 mW at 4.5 V, while 30 V model Si7135DP offers on-resistance of 3.9 mW at 10 V and 6.2 mW at 4.5 V. Devices are 100% Rg- and UIS-tested and are halogen-free.

Viewpoint Systems    Rochester, NY 14623
Jan 07, 2009 Aperio(TM) v2.0 provides tool for meeting regulatory and corporate guidelines for long-term data archive and has ability to interface with third party data archive systems, such as CAStor(TM) content storage systems. Product is suited for manufacturers in biomedical and aerospace industries, that are required to keep vast amounts of technical and test data generated during product development and manufacturing processes for years or over decades.

SWP, Inc.    Ontario   Canada
Jan 07, 2009 Available in 5 x 5 x 1.0 mm body, 32-pad, lead pitch 0.50 mm Micro Lead Frame package, CMOS ICs of Universal Frequency-to-Digital Converters UFDC-1 and UFDC-1M-16 can work with any sensors from frequency-time signal domain group and convert frequency, period, duty-cycle, duty-off factor, and rotation speed to digital. Model UFDC-1 and UFDC-1M-16 have programmable accuracy from 1 to 0.001% upto frequency range of 7.5 MHz, and scalable resolution from to 2.5 x 10-7 Hz to 45 Hz.

ControlAir Inc.    Amherst, NH 03031 2315
Jan 07, 2009 Type-595XP current-to-pressure transducer holds FM and CSA approvals as intrinsically safe and explosionproof and is also compliant with ATEX directive 94/9/EC. Able to be mounted in any position and stable in high vibration environments, specifications include ¼ in. pneumatic and ½ in. electric NPT porting; 4-20 mA input; 3-15, 3-27, 6-30 psig output; and max supply pressure of 22 psi (3-15 output) and 42 psi (other outputs). Flow capacity is 2.4 scfm and air consumption is 0.1 scfm.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Jan 07, 2009 Suited for harsh environments and for unsupervised applications subject to vandalism or abuse, J86-4400 features laser-marked non-removable keycaps and lip-sealed trackball made of heavy-duty phenolic material, designed specifically to resist attempted abuse by vandals. Keyswitches have over-travel protection, which means forceful impact will not damage electro-mechanical contacts. Rated IP65/NEMA4, it has been tested for ESD immunity to 10,000 V.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

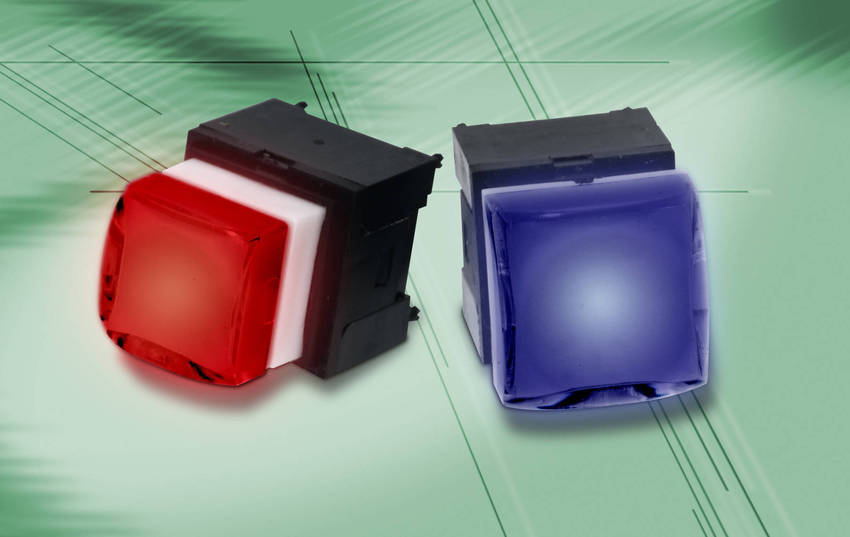

Jan 06, 2009 Operating in temperatures from -20 to +70°C, LP11 series offers operating force of 250 ±100 gf and travel of 4.50 ± 0.2 mm. Contact rating is 100 mA at 12 Vdc and switch features contact resistance of 200 mW minimum at 500 Vdc. Dialectic strength is 500 Vac. Targeting various markets, it is available with multiple cap and LED color options as well as with or without tactile feel.

J. W. Winco, Inc.    New Berlin, WI 53151

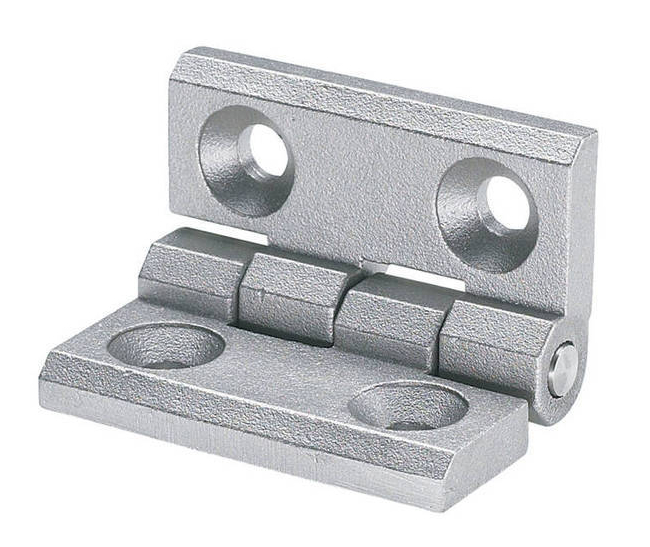

Jan 06, 2009 Suited for industrial machinery, GN 237-NI series Stainless Steel Hinges with Countersunk Thru Holes feature hinge body and pin constructed of SS. RoHS-compliant hinges are also available in zinc die-cast version with black powder-coated textured finish or in aluminum for certain minimum quantities. Various sized fasteners and kit packages are available.
