ControlAir Inc.    Amherst, NH 03031 2315
Jan 07, 2009 Type-595XP current-to-pressure transducer holds FM and CSA approvals as intrinsically safe and explosionproof and is also compliant with ATEX directive 94/9/EC. Able to be mounted in any position and stable in high vibration environments, specifications include ¼ in. pneumatic and ½ in. electric NPT porting; 4-20 mA input; 3-15, 3-27, 6-30 psig output; and max supply pressure of 22 psi (3-15 output) and 42 psi (other outputs). Flow capacity is 2.4 scfm and air consumption is 0.1 scfm.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Jan 07, 2009 Suited for harsh environments and for unsupervised applications subject to vandalism or abuse, J86-4400 features laser-marked non-removable keycaps and lip-sealed trackball made of heavy-duty phenolic material, designed specifically to resist attempted abuse by vandals. Keyswitches have over-travel protection, which means forceful impact will not damage electro-mechanical contacts. Rated IP65/NEMA4, it has been tested for ESD immunity to 10,000 V.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jan 06, 2009 Operating in temperatures from -20 to +70°C, LP11 series offers operating force of 250 ±100 gf and travel of 4.50 ± 0.2 mm. Contact rating is 100 mA at 12 Vdc and switch features contact resistance of 200 mW minimum at 500 Vdc. Dialectic strength is 500 Vac. Targeting various markets, it is available with multiple cap and LED color options as well as with or without tactile feel.

J. W. Winco, Inc.    New Berlin, WI 53151
Jan 06, 2009 Suited for industrial machinery, GN 237-NI series Stainless Steel Hinges with Countersunk Thru Holes feature hinge body and pin constructed of SS. RoHS-compliant hinges are also available in zinc die-cast version with black powder-coated textured finish or in aluminum for certain minimum quantities. Various sized fasteners and kit packages are available.

NewAge Industries Inc.    Southampton, PA 18966
Jan 06, 2009 Thermobarb® fittings in nylon, polyethylene, PVDF, and polypropylene are compact in design and feature multiple barbes for secure connections. They are offered in sizes from 1/8-1 in. tubing ID, with hose nipples from ½-4 in. tubing ID. Designed for soft-walled tubing, chemically resistant units offer high impact strength and are available in various styles. Single-use version is manufactured from FDA-approved polypropylene and is sterilizable by autoclave or gamma radiation.

Crystek Corp.    Fort Myers, FL 33913

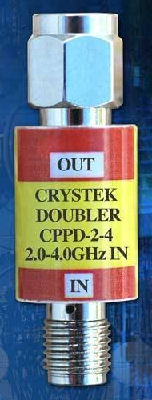

Jan 06, 2009 Crystek Pocket Passive Doubler (CPPD) series comes in SMA housing for inline assembly and operation in test equipment as well as general lab use. Model CPPD-0.85-2 accepts 0.85-2.0 GHz input frequency and multiplies by factor of 2 to achieve 1.7-4.0 GHz output frequencies. Likewise, input for CPPD-2-4 is 2.0-4.0 GHz and output is 4.0-8.0 GHz. Input drive level is +10 to +20 dBm, with typ conversion loss of 15 dB (CPPD-0.85-2.0) and 13 dB (CPPD-2-4).

Servo-Robot Corp.    Bruno, QC J3V6E1  Canada

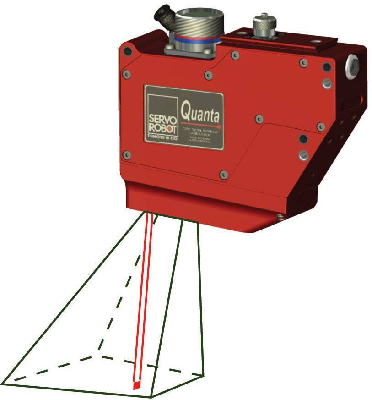

Jan 06, 2009 Used for joint tracking and weld bead inspection in laser, TIG, or plasma welding processes, Quanta features 2D video viewing system with its own welding area lighting for remote monitoring of process by operator and for calibration. Camera serves as essential module in Servo-Robot Modular DIGI-LAS Laser Welding System (DIGI-LAS/MDL), which includes automatic joint tracking, joint inspection, and inline QC functions.

CTC Parker Automation    Milford, OH 45150 9792

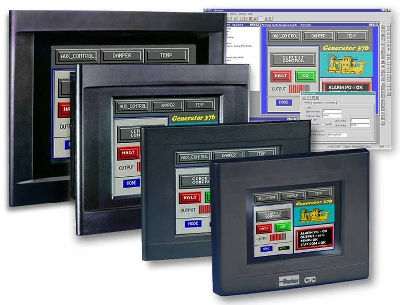

Jan 06, 2009 Designed to fit existing cutouts of 15 in. HMI products, PA15T PowerStation comes pre-installed with Interact Level 1 HMI software runtime and is 100% software-compatible with PS family applications. Passively cooled unit incorporates AMD LX700 CPU as well as 128 MB DRAM, 512 MB CompactFlash® card, 2 serial ports (one RS-232 and one RS232/422/485-configurable), and one 100 BaseT Ethernet port. With no rotating media storage devices or fans, platform suits harsh environments.

IEI Technology Corp.    Taipei Hsien 221  Taiwan
Jan 06, 2009 Available with 10.2 or 12.1 in. wide touchscreen, ALOHA-12A control unit allows access to single computer via VGA/DVI/USB KVMA console. It incorporates 87-key keyboard and TouchPad as well as two 1.5 W speakers, one 300,000 pixel webcam, and one digital microphone. Supplied in ruggedized aluminum die-cast base with IEI IQ VESA Mount design, console can also act as USB hub with its 5 ports and offers on-screen display menus controlled by cap-sensor.

Radio Frequency Co., Inc.    Millis, MA 02054

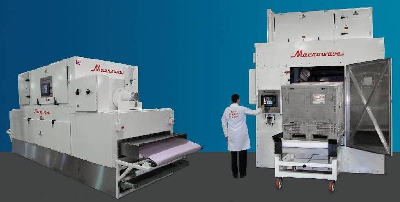

Jan 06, 2009 Available in conveyorized or batch configurations, Macrowave(TM) Pasteurization System uses high-frequency electric field to effectively control pathogens. Material to be treated is conveyed through high-frequency electrode array, where alternating electrical energy causes material to heat rapidly and uniformly throughout product thickness. Systems operate at 40 MHz and deliver instant-on, instant-off operation that wastes no energy drawn from grid.

Electron Microscopy Sciences Div., EMS Acquisition Corp.    Fort Washington, PA 19034
Jan 06, 2009 Replacing standard furnaces with conductive ceramic membrane that simultaneously supports and heats sample, Aduro(TM) HT system provides accurate and well-controlled operation with virtually no thermal drift. Its low thermal mass also allows for response times up to 1,000,000°C/sec to 1,200°C max. With stability and true reaction-rate heating, software-controlled heating system enables range of in-situ experiments on any electron microscope.

Ezell Precision Tool Co.    Clearwater, FL 33762 4420
Jan 06, 2009 Depending upon evaluation of broken part, Mold Core and Cavity Repair Service employs micro-, laser-, or TIG-welding, followed by regrinding and EDM to restore part's dimensions and surface finishes. Company can interchange steels to achieve optimal hardness and wear characteristics, and to help prevent future wear problems where appropriate. Cores, cavities, and other tooling can be repaired with tolerances down to 0.000050 in.

Flexaust Co., Inc., The    Warsaw, IN 46581
Jan 06, 2009 Available for wire-reinforced, wire stretch, and all-plastic vacuum hoses from 1-2 in. I.D., Flexaust Overmolded Cuffs can be molded from TPV, PVC, polypropylene, polyurethane, and other materials. Cuffs are injection molded over hose to insure system integrity, prevent contamination, and create hermetic seal for optimum air, liquid, and dust flow. Products are designed to customer specification in straight, angled, reduced, enlarged, and squeezable configurations.

FEI Company    Hillsboro, OR 97124
Jan 06, 2009 Using Magellen(TM) extreme high-resolution SEM, scientists and engineers can see 3D surface images at many different angles and at resolutions below 1 nm. Unit images samples at low beam energies, avoiding distortions otherwise caused by beam penetrating into material below.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
Jan 06, 2009 Designed with select operational blocks of 7.5-digit DMM, Model 1201 offers 11 measurement functions and 8 math functions. USB interface enables data transfers up to 2000 samples/sec, and option offers support for up to 10 channels (2-pole) of multi-point scan. Exhibiting noise immunity, USBTMC-compliant DMM also supports temperature measurements for thermocouples and RTDs. Areas of use span laboratories from microbiology and neuroscience to electronic engineering and manufacturing.

Electro Standards Laboratories    Cranston, RI 02921 3403

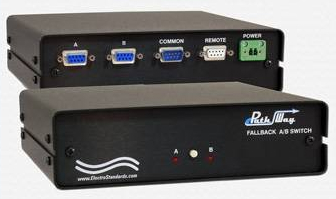

Jan 06, 2009 Model 4124 DB9 switch allows sharing of single device connected to Common port among 2 other devices connected to A and B ports, accepting Contact Closure commands to remotely control switch position, lockout local front panel pushbutton, and obtain switch status. Mounting with steel pass-through bolts through bottom of desktop enclosure, network switch offers Automatic Fallback mode based on loss of data on port A and can also operate simply as A/B switch.

GAO RFID Inc.    Toronto   Canada
Jan 06, 2009 Featuring 64-bit capacity and 1-6 in. read range, 125 kHz Low Frequency (LF) Clamshell Passive RFID Card (GAO 111202) is used for ticketing, security, industrial, or manufacturing automation and prepayment devices. This 85.6 x 3.98 x 1.8 mm tag uses Manchester, Bi-phase, PSK data coding and supports multi-detection. Construction is resistant to immersion in salt water, alcohol, oil, 10% HCL, ammonia, shock, and vibration. Silk screening or offset printing is supported on PVC side.

GAO RFID Inc.    Toronto   Canada
Jan 06, 2009 Featuring wireless inductive communication interface and 0-6 scan distance, 125 kHz LF (Low Frequency) handheld RFID reader (GAO221005) uses built-in intelligence to recognize and read tags in its vicinity. It can run for up to 2 years on one 3 V lithium battery, based on scanning 200 tags/day, and retains up to 30,716 records in memory. Also able to read tags under water, this shock-resistant product carries IP67 rating and measures 120 x 35 x 20 mm.

Simptronik Technologies, LLC    Cupertino, CA 95014
Jan 06, 2009 Generating data signals up to 1.5 GHz, Model SK-1500ULJ features rms jitter of less than 0.5 ps, suited for low-noise reference clocks. Unit offers 5-digit frequency resolution, 180 ps rise/fall time, and amplitude range of 100 mV to 3 V, as well as touch-screen control interface and built-in PRBS or customer data patterns. Frequency range is 2 MHz to 1.5 GHz.

AAEON Technology Inc    Taipei   Taiwan

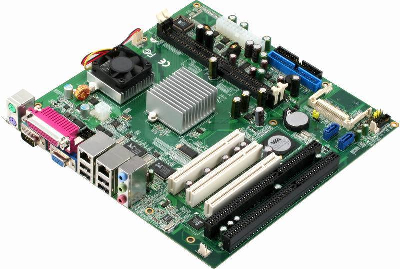

Jan 06, 2009 Based on VIA's CN700 and VT8237R+ chipset, fanless IMBM-700 supports both 1.0 and 2.0 GHz C7-M Ultra Low Voltage processors. Unit offers legacy interface support for ISA bus and includes 240-pin DDR II 400/533 DIMM sockets that support up to 2 GB. In addition to 2 SATA I ports, 1 IDE, 1 Type II CompactFlash, and 1 Floppy Disk interface, motherboard features 8 USB ports, 4 COM ports, 1 parallel, and 1 IrDA. Expansion needs are met by 2 ISA slots, 3 PCI slots, and 1 Mini-PCI connector.
