Synology Inc.    Taipei 103  Taiwan
Jan 08, 2009 Designed for SMB and corporate users, DS209+ 2-drive SATA NAS server can be configured for RAID 0/1 and is capable of reading at 42+ Mb/sec and writing at 36+ Mb/sec. Features include gigabit LAN port, external storage expansion via eSATA port, 2 hi-speed USB ports, and smart fan that adjusts speed according to environmental conditions. Compatible with Windows®, Macintosh®, or Linux-based networks, server comes with AJAX-based Disk Station Manager (DSM) 2.0 NAS management software.

Sunstream Corp.    Kent, WA 98032
Jan 08, 2009 Installed in 15 sec by attaching two clips, SunPort(TM) QuickCover(TM) integrated PWC cover attaches to boat lift to avoid being blown off, while edges of cover extend to deck of lift, hiding model of craft to discourage PWC theft. It comes standard in black, with custom colors available by special order. When not in use, cover can be stored in mesh bag attached to bow stop.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Jan 08, 2009 Complementing WM8350 integrated power management device, WM8351 and WM8352 integrated high fidelity audio CODEC and power management ICs deliver 98 dB SNR performance. They include 6 analog inputs, 2 stereo analog outputs and 2 mono line outputs, and can drive headphones directly. Model WM8351 incorporates 4 DC-DC converters while 6 DC-DC converters are found in WM8352. Programmable on-chip amplifiers allow direct connection of headphones and microphones.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 08, 2009 Offered in 2020 case size, IHLP-2020CZ-11 has inductance range of 0.10-22 µH, saturation current of 1.7-25 A, typical DCR from 2.6-250.0 mW, and maximum DCR from 2.9-260.0 mW. It is suited for voltage regulator module and DC-DC converter applications in mobile devices and automotive systems. Packaged with RoHS-compliant, 100% Pb-free shielded, composite construction, unit operates from 55-125°C and is resistant to thermal shock, moisture, mechanical shock, and vibration.

Men Micro Inc.    Lago Vista, TX 78645-4160

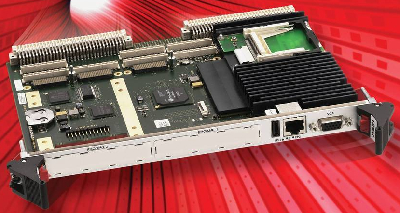

Jan 07, 2009 With computing flexibility tailored to application-specific requirements, A20 supports Intel processors - Core 2 Duo to Celeron M - and provides space for two 64-bit/66 MHz PMC or 2 XMC modules. Its 2eSST functionality, via Tundra TSI148 bridge controller, doubles theoretical VMEbus transaction bandwidth to up to 320 MBps. In addition to VGA, GbE, SATA, and USB I/O, this shock- and vibration-resistant, single-slot board features up to 4 GB DDR2 RAM main memory and CompactFlash socket.

Meter-Treater Inc.    Lake Park, FL 33403

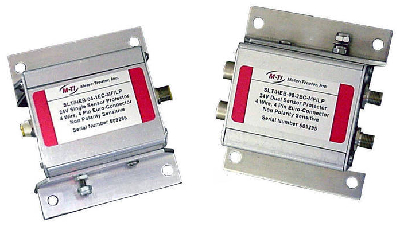

Jan 07, 2009 Comprised of stacked silicon avalanche diode arrays, HEB Series suits harsh instrument and process control environments. Protection circuitry, interfaced with 4- or 5-pin rigid euro-connecters, provides up to 10 kA surge energy handling per protected wire. Housed in potted aluminum enclosure, models with single (4- or 5-wire) or dual (8- or 10-wire) set of connectors offer 36 V max service voltage, less than 1 psec response time, and 54.4 V @ 200 A/450 V max clamp voltage.

Novatec, Inc.    Baltimore, MD 21225

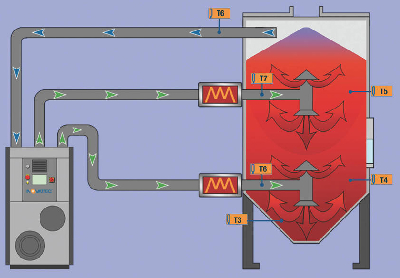

Jan 07, 2009 IntelliPET(TM) features desiccant wheel dryer design and airflow pattern that enable PET resin processors to conserve energy and plant space while obtaining consistent performance as result of automatic adjustment to rate and material variations. Specifically, automated temperature and speed controls adjust to variations in throughput rate, moisture level, and material temperature. Components include electric or gas-fired heater, cyclone, touch screen control, and 2-zone drying hopper.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan

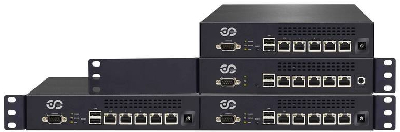

Jan 07, 2009 Suited for network security and acceleration applications, FW-7872 is built around Intel 945GME chipset and provides Core 2 Duo and Celeron M support, up to 4 Gb DDR2, 4 GbE LAN ports, and 2 internal 2.5 in. drive bays in 1U half-rack network appliance. Remote management features, via IPMI and IP-KVM support, let administrators monitor system and perform maintenance tasks. High-availability features include hardware bypass and redundant power supplies.

Schott Systeme GmbH    Gilching   Germany

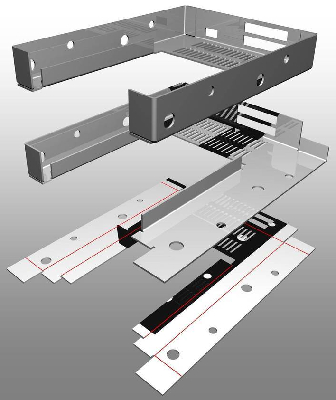

Jan 07, 2009 Supplied as integrated CAD/CAM solution for mold tool design and machining, Pictures by PC v3.4 offers non-parametric approach to modeling that lets user add/alter typical sheet metal features without requiring constraints associated with history-based modeler. This facilitates altering of parts imported from other CAD solutions while also aiding conversion of existing 2D drawings into sheet metal components. Tools also let users dynamically unfold flange work directly on 3D part.

Men Micro Inc.    Lago Vista, TX 78645-4160

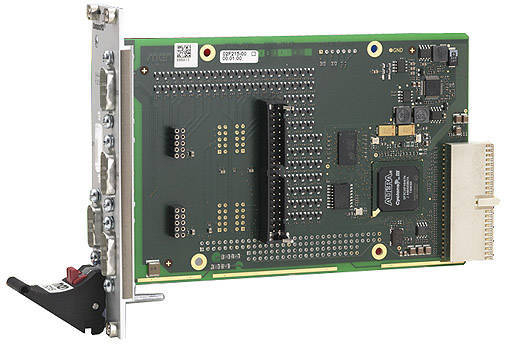

Jan 07, 2009 Based on 3U CompactPCI®, F215 utilizes SA-Adapters(TM), mounted directly on board via 9-pin D-Sub connector, for physical layer to be realized individually for each channel. It includes 2 CAN interfaces, 2 UARTs, 8-channel binary I/O interface, as well as RS232/422/485. Board also includes FPGA that is loaded automatically after power-up from 4 MB serial Flash. Designed for rugged environments, it operates in temperatures from -40 to +85°C.

ADLINK Technology Inc.    Irvine, CA 92618

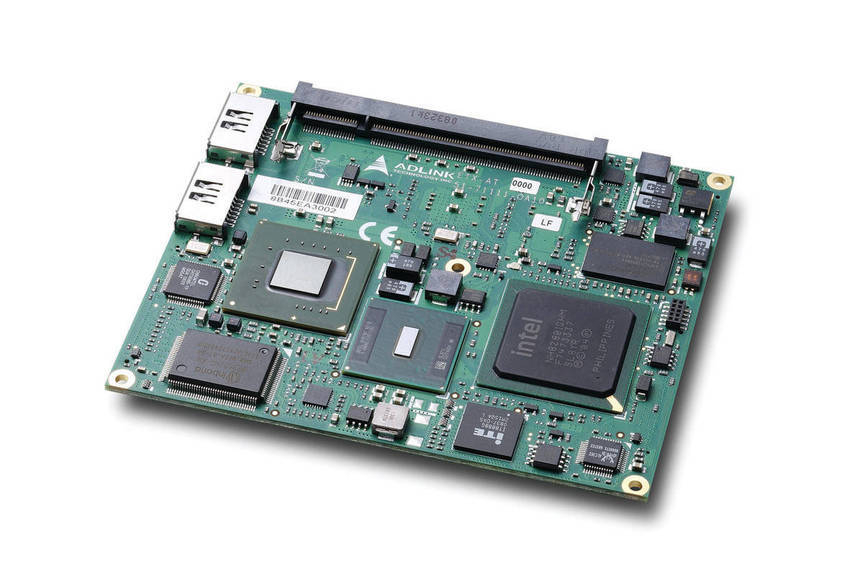

Jan 07, 2009 Based on ETX® 3.02 form factor standard, ETX-AT supports high-resolution CRT, single/dual channel LVDS, and TV-out. With power consumption below 10 W, it includes 45 nm Intel® Atom(TM) Processor N270 with 512 kByte L2 cache and thermal design power of 2.5 W peak. It supports up to 2 Gb DDR2 memory on single SODIMM, also incorporating Intel® based 10/100BASE-T Ethernet port, dual-port SATA controller, 4 USB 2.0 ports, 2 serial ports, parallel port, and PS/2 keyboard/mouse interface.

EOLITE Systems    Pessac   France
Jan 07, 2009 Featuring hermetically sealed single-piece aluminum block, BOREAS Series includes High Energy and High Frequency models. High Energy Models HE40 and HE80, rated at 40 and 80 W, respectively, feature 1,030 nm wavelength, 7 ns pulse duration, and 2 mJ pulse energy. High Frequency lasers are available in 1,030, 515, and 343 nm wavelengths with average power ranging from 7 W at 343 nm to 50 W at 515 nm. Laser heads are conductively cooled and temperature-stabilized by closed loop chiller.

Curtis Instruments, Inc.    Mount Kisco, NY 10549

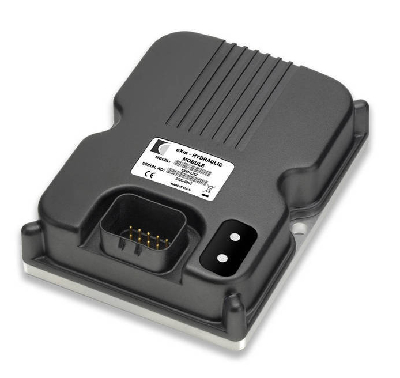

Jan 07, 2009 Offering 9 multi-purpose I/O pins in IP65-sealed enclosure, Model 1352 eXM Hydraulic I/O Expansion Module provides 3 analog inputs and allows configurable control of 6 proportional hydraulic valves. All I/O pins can also be used as basic digital I/O. Utilizing CANbus interface, module allows connection to any centralized or distributed vehicle control system that uses CANopen protocol. Additional features include short circuit protection, watchdog circuits, and LEDs for fault identification.

Morse, M.K., Co., The    Canton, OH 44711

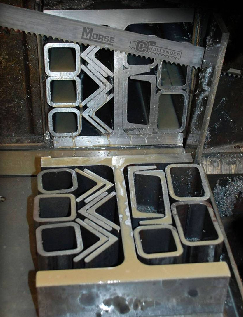

Jan 07, 2009 Available in 1¼, 1½, and 2 in. sizes, Challenger(TM) Bimetal Bandsaw Blades are constructed using PTP(TM) Technology, which ensures optimized performance during production cutting. Sawing applications include structural shapes, as well as thick wall and thin wall tubing made of carbon and alloy steels being cut as single, layers, and bundles. Both standard and heavy set blades are available.

Rockwell Automation / Allen-Bradley    Bloomington, MN 55438
Jan 07, 2009 Engineered to IEC 60439-1 and IEC 60529 standards, CENTERLINE 2500 features ArcShield option to protect against internal electrical arcs, and can withstand arcing durations up to 300 ms. ArcShield provides pressure relief system that exhausts gases through top of enclosure, away from personnel, without front ventilation. Offering 3- and 4-pole bus bar power systems, center includes variable speed drives, soft starters, electronic overload relays, and built-in DeviceNet network.

James Walker Group Ltd    Houston, TX 77060

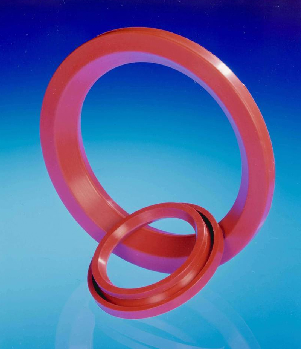

Jan 07, 2009 Made from Elast-O-Pure® EPDM synthetic rubber, Replacement Dome Seals are rated to USP 30 Class VI classification and formulated for use in pharmaceutical and bioprocessing environments. Compressed air operated valves use inflatable sealing mechanism, which provides pressure-tight seal against dome when in closed position. Available in standard diameters from 50-400 mm, dome seals are suited for controlling flow of bulk materials such as powders, pastes, and granules.

Westfalia Technologies, Inc.    York, PA 17402
Jan 07, 2009 Designed using v3.5 of Microsoft .NET Framework, Savanna.NET v2.0 can operate under all customary ERP systems. Open .NET architecture allows linkup of logistical data registration and processing via Web surface-based platforms. With support for Lightweight Directory Access Protocol, software can query directory service information from LDAP configured server. Modular design lets companies choose only functions they need now, with option to expand in future.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Jan 07, 2009 Along with 15 m max read range, UHF RFID reader DL910 features reading speed of less than 10 ms per 64 bits and operating frequency that can be customized from 860-960 MHz. Unit supports multiple protocols, including ISO 18000-6C (EPC Gen 2) and ISO 18000-6B, and offers multiple port interfaces: RS232, RS485, Wiegand, and TIP/IP. It can connect to Pocket PCs, PDAs, and other mobile devices and allows for multiple configuration possibilities.

GAO RFID Inc.    Toronto   Canada
Jan 07, 2009 GAO 211001 series low-frequency (125 kHz) RFID readers, equipped with RS-232 interface, can read RFID tags without contact as well as write unique code to each to each RFID during manufacturing process. Suited for personnel identification, POS, security, and access systems, products can be used for verifying code numbers of RFID transponders and operate as off-line, standalone units. Decimal or Hexadecimal code number is selectable, as is number of ID digits.

B & K Precision Corp.    Yorba Linda, CA 92887

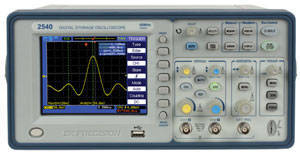

Jan 07, 2009 Models 2540 and 2542 are 2-channel DSOs featuring 60 and 100 MHz max bandwidths, respectively; up to 1 GS/sec sample rate; and 4,000-point record length for each channel. While auto measurement functions and analog-style knobs facilitate use, troubleshooting and debugging are aided by such features as various triggering capabilities, digital filtering, waveform recorder, delayed sweep/zoom, mask testing, automatic measurements, and FFT functions.
