PKP Process Instruments, Inc.,    Hudson, MA 01748

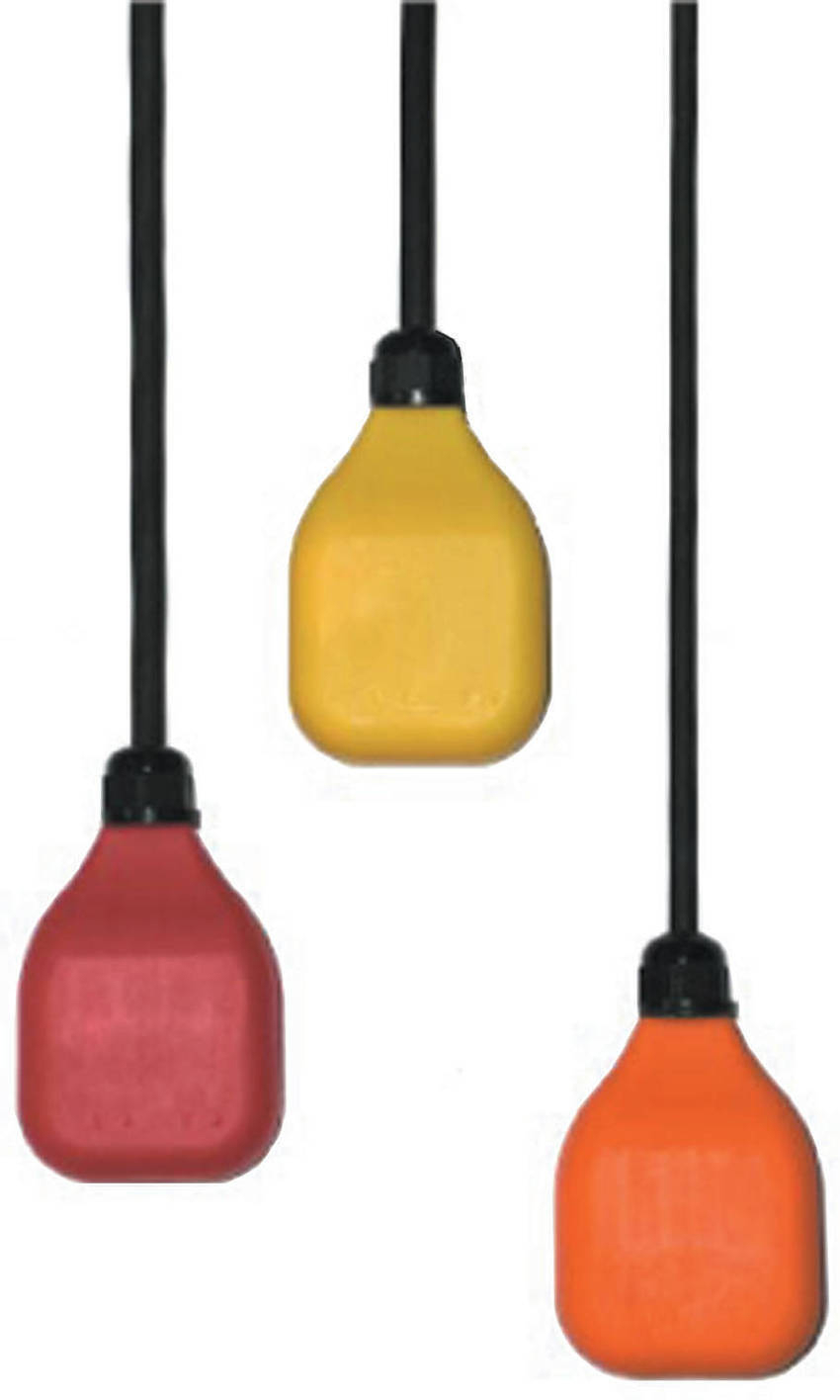

Jan 09, 2009 Consisting of polypropylene housing with integrated watertight and position dependent electromechanical micro switch, FS00Z float level switches work according to lift principle. Mercury free unit can be mounted to tank/container via through hole such as a ½ in. cable gland from tank top. Featuring contact rating of 10 (8) A, 250 V, for direct pump control, product can monitor level of compatible liquids.

PKP Process Instruments, Inc.,    Hudson, MA 01748

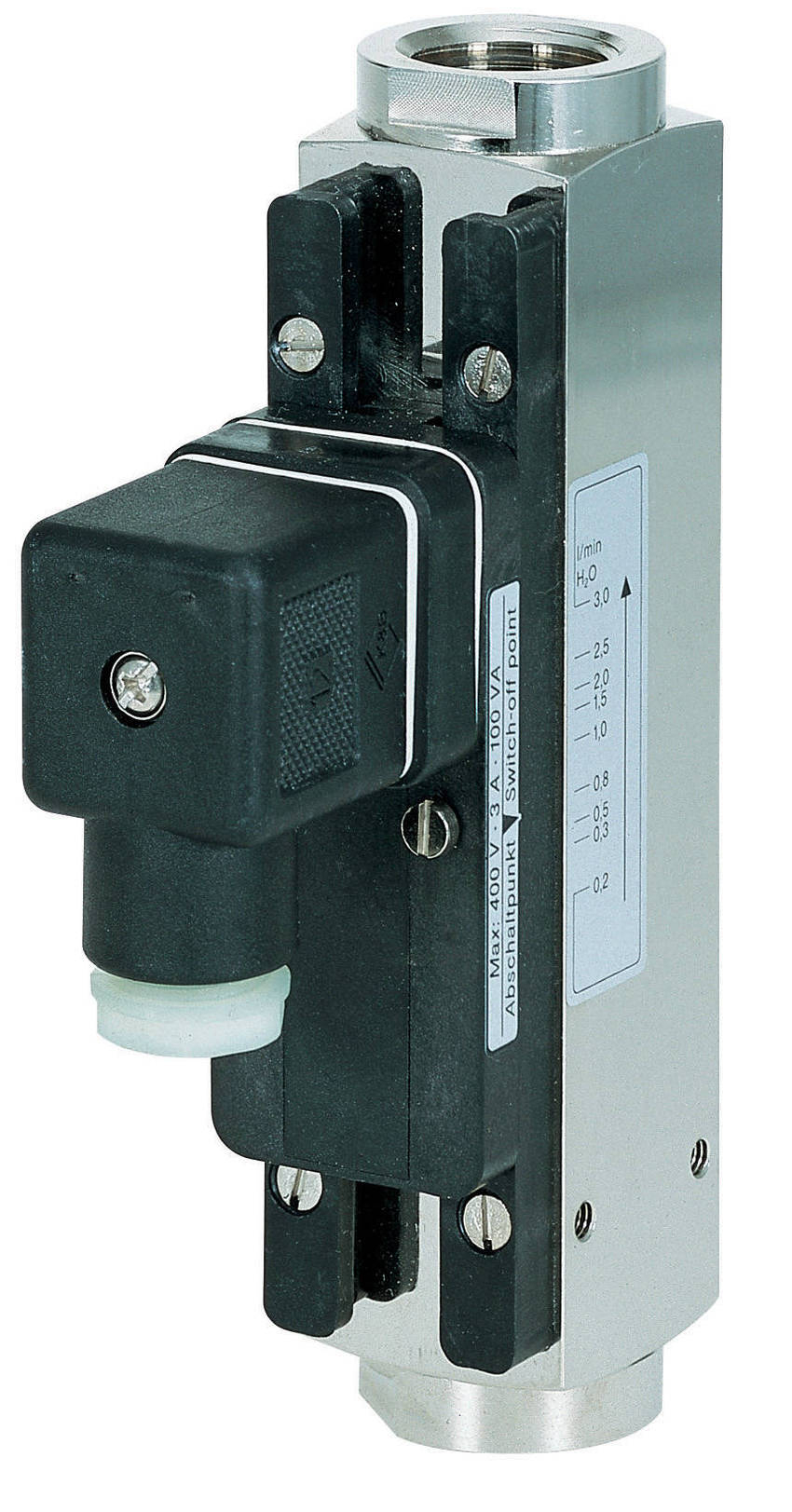

Jan 09, 2009 Suited for measuring and monitoring flow of low viscosity liquids and gases, Model DS04 Flow Switch measures liquid flows to 150 Lpm and gas flows to 1,400 Lpm. Available pipe sizes include ¼, ½, ¾, 1, and 1-¼ in. with full scale ranges from 1.5-50 Lpm water and 28-240 SLpm air. Switch can be supplied with brass or 316 stainless steel wetted parts and Buna or Viton seals, with pressure ratings of 2,900 psig for brass and 4,350 psig for stainless steel.

Davis Instruments    Baltimore, MD 21215

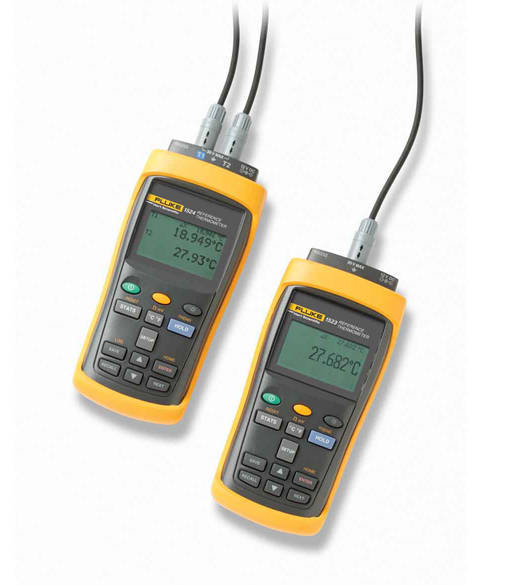

Jan 09, 2009 Hart Scientific 1523/1524 handheld reference thermometers measure, graph, and record using RTDs, thermocouples, and thermistors with accuracies of up to 0.004%, 0.005%, and 0.01%, respectively. Model 1523 is for single-channel use, where as Model 1524 is for simultaneous dual-channel use. Model 1524 can log up to 15,000 data points with time-and-date stamp.

Heyco Stamped Products, Inc.    Toms River, NJ 08754
Jan 09, 2009 Available in 6/6 nylon, RDD Pigtail Lockit(TM) strain relief bushings absorb forces of pull, push, twist, and flex to securely anchor, insulate, and protect cables at panel entry points. They self-lock themselves onto cable and can be preassembled offline for final assembly at remote location. Integral nylon spring eases cable into lazy bend, prevents sharp bending, and assures long cable life.

Red Lion Controls    York, PA 17406 9428

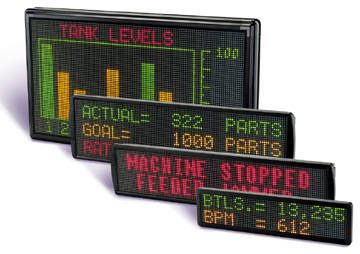

Jan 09, 2009 Utilizing green/yellow/red LEDs to present plant floor data, Plant Floor Marquee (PFM) series is available in 4 sizes ranging from 26 x 6.6 in. at 80 x 16 resolution to 39.3 x 22.5 in. at 120 x 64 resolution. Incorporating bar graphs, custom symbols, and graphics to display production trends and goals, units can send and receive data from 7 or more device types simultaneously. It conveys equipment status and alarm conditions, and sends SMS when alarms are triggered.

Melexis Inc.    Concord, NH 03301
Jan 09, 2009 Offered as 750 x 400 pixel global shutter image sensor, MLX75307 improves road safety for automotive front vision applications by proactively alerting driver of potential dangers. Pixel matrix extends input and output dynamic ranges, and low light response boost increases image brightness and contrast in low-light conditions. Combining both functions in single frame, sensor offers dynamic range up to 128 dB while achieving high image contrast in dark image areas.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 09, 2009 Intended for automotive in-vehicle networking applications, Model NCV7341 provides interface between CAN protocol controller and physical bus and is fully compliant with ISO 11898-5 standard for CAN physical layer transmission in automotive IVNs at rates up to 1 Mbit/s. IC is also certified to requirements of Generalized Interoperable Fault Tolerant CAN transceiver specification. Housed in 14-pin SOIC package, device includes sleep mode and 20 µA stand-by mode with remote wake up via bus.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 09, 2009 While transparent during normal circuit operation, NP0080/NP0120/NP0160 provide circuit protection for DSL chipsets and line drivers during surge and ESD events. Differential capacitance of less than 3 pF across operating voltage range precludes signal distortion on high-speed data line. Current withstand capability is greater than 50 A during 8 x 20 µsec surge event. Also available, NP-MC series offers capacitance of less than 30 pF for 100 A-rated device.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 09, 2009 Able to deliver 1.35 W of output power to 8 ohm speaker or 1.1 W to 4 ohm speaker, NCP2991 Class AB audio amp has THD of 0.015% and features -103 dB power supply rejection ratio that eliminates any noise generated by fluctuation of battery supply voltage. It is also resistive to TDMA noise that occurs during GSM transmission and exhibits zero pop-and-click noise at start-up and shut-down. Selectable start-up between 15 and 20 msec enables use of shut-down mode, which consumes 20 nA.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 09, 2009 Housed in 16-lead SOIC package, Models CAT4103 and CAT4109 are 3-channel, linear-based, constant-current LED drivers for RGB LED pixel control in high-brightness LED architectural lighting. Model CAT4103, offering fully buffered data outputs, features high-speed serial interface, which can support data rates to 25 MHz. Model CAT4109 uses parallel interface with dedicated PWM control on each channel. Both support constant current up to 175 mA on each channel, with dropout levels down to 0.3 V.

Vectron International    Hudson, NH 03051
Jan 09, 2009 Available in ½ in. NPT or ½ in. BPT thread configurations, solid-state IP67 threaded bolt ViSmart sensor provides instantaneous sample and/or continuous, real-time, in-process viscosity measurements and is rated for operation in temperatures to 125°C. It can be completely immersed in fluid, allowing full integration within tanks and enclosures, and also comes with smart sensor interface that facilitates installation and integration into embedded applications.

Vectron International    Hudson, NH 03051
Jan 09, 2009 Featuring smart sensor interface, ViSmart high shear extended range sensor measures fluid viscosity from 1,000-10,000 AV (acoustic viscosity) units and is available for integration into embedded applications. It is rated for operation in temperatures up to 125°C and designed to provide instantaneous sample and/or continuous, real-time, in-process viscosity measurements. Sealed for complete immersion, solid-state unit uses semiconductor technology.

Crossbow Technology Inc.    San Jose, CA 95134
Jan 09, 2009 Integrating camera, audio, and motion detection functionality into one platform, Imote2 Multimedia Board (IMB400) facilitates capture of rich media content for wireless sensor network applications. Built-in camera handles images with resolutions to 640 x 480 pixels and 30 fps, along with audio at sampling rates to 48 kHz. Passive infrared sensor picks up movement, which activates camera and allows for operation as low-power device.

Cypress Semiconductor Corp.    San Jose, CA 95134
Jan 09, 2009 Featuring 13.2 Gbps digital data throughput, 3.0 megapixel LUPA-3000 offers triggered and pipelined synchronous shutter with 485 fps frame rate and windowing capability for undistorted images and accelerated readout. Its 32, 8-bit on-chip digital LVDS outputs facilitate camera design for machine vision and holographic data storage applications. Also, dual slope capability maintains contrast quality in shadowed regions without saturating bright areas in scenes with high contrast ratio.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jan 09, 2009 Each model in AD911x and AD971x series integrates two 8-, 10-, 12-, or 14-bit DACs with sample rates up to 125 MSPS on one 6 x 6 mm device. Designers can adjust FS current from 1-4 mA or 4-20 mA with one, pin-compatible architecture and common software code. Products achieve 85 dB SFDR to 10 MHz and dissipate 220 mW at max sample rate, 53 mW @ 50 MSPS, or 37 mW @ 10 MSPS. Additional components include internal calibrator, voltage reference, and load and common-mode resistors.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jan 09, 2009 Available in 1.3 x 0.9 mm, 0.6 mm high wafer-level chip-scale package, ADP2121, 500 mA regulator requires just 2 small capacitors and one inductor. Device automatically transitions to low quiescent current power-save mode during light-load conditions and operates at input voltages ranging from 2.3-5.5 V, suitable for Li-Ion, Li-Ion polymer cell, and multiple alkaline/NiMH cell applications. Fixed output voltage options are available at 1.8, 1.82, 1.85, and 1.875 V.

Dassault Systemes    Suresnes Cedex BP 310, 92156  France
Jan 09, 2009 Supporting PLM 2.0, V6R2009x provides compliance capabilities for various environmental/FDA regulations as well as BOM configuration solution. It combines with 3DVIA Composer, letting users reuse PLM information to create 3D composite documents for all types of products. Configuration management for ENOVIA v6, as well as systems simulation within 3D digital mockup for CATIA v6, are included. Program also includes simulation capabilities for SIMULIA v6 as well as DELMIA V6.

Data Translation, Inc.    Marlboro, MA 01752
Jan 09, 2009 Designed to run completely on USB power, Model DT9818 provides 8 or 16 analog inputs, 2 analog outputs, 16 digital I/O lines, and 2 counter timers, and allows simultaneous operation of all subsystems at throughput rates up to 150 kHz. Galvanic isolation of ±500 V prevents ground loops, maximizes analog signal integrity, and protects computer. Ultra-smooth sine, rectangle, triangle, or other waveforms can be generated with less than 1.0 nV/sec glitch energy.

Avago Technologies    San Jose, CA 95131
Jan 09, 2009 Based on 1,310 nm DFB laser, SFP+ LR Model AFCT-57D5ATPZ operates over single-mode optical fiber at signaling rates up to 8.5 GBd for distances up to 10 km. Unit includes digital diagnostic interface and provides real-time monitoring of transmitted optical power, receive optical power, laser bias current, temperature, and supply voltage information. RoHS-compliant transceiver enables production of 8 Gb/sec SAN applications, such as inter-switch links and storage replication.

Avago Technologies    San Jose, CA 95131
Jan 09, 2009 Part of Moonstone(TM) family, 3 Watt Cool-White ASMT-Mx20 and Warm-White ASMT-Mx22 deliver typical output of 145 lumens at 700 mA drive current and offer 120° viewing angle. Low-profile units feature heat- and UV-resistant silicone encapsulation and ESD resistance of 16 kV. Pb-Free and RoHS compliant, LEDs are suited for use in streetlights as well as architectural, portable, and retail lighting applications.
