Performance Motion Devices, Inc.    Lincoln, MA 01773
Jan 19, 2009 Measuring up to 16 x 10.7 cm, Prodigy Stand-Alone card downloads motion control programs with on-board C-Motion Engine for onboard execution, off-loading, or eliminating PC host. It is available with horizontal connectors or optional vertical connectors for stackable configurations which aids in choosing mounting locations and cable options. Product supports Ethernet communications with UDP and TCP communication protocols. Multiple versions of card are offered for 1- thru 4-Axis applications.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 19, 2009 Suited for telecom power supply and power distribution applications, CROWN CLIP JUNIOR connector mates directly to power bus bar at less than 30°C temperature rise. Product mates with 3.0 mm thick plated bus bar, providing separable interface that eases assembly, inspection and troubleshooting. It is designed for use in core network energy systems, cellular base stations, PSU power distribution, servers, storage and network routers and industrial applications.

Conveyor Components Co.    Croswell, MI 48422
Jan 19, 2009 NEMA 9 dust ignition proof, dual rated enclosures encompass Model RS-D and Model RSB-D pull cord or cable operated stop control, Model TA-D belt alignment control, Model DB-100D belt rip detector, Model PCL/R/D-D pull cord, Model CR-D level control and plugged chute detector, and Model FS-D dry bulk material flow control series. UL listed and CSA certified units can be placed outdoors in hazardous areas.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 19, 2009 Based on 4.0 mm pin and socket terminal system, 2-position HVA 400 wire-to-wire, sealed, in-line plug and cap connector system handles high voltage and EMC shielding applications for alternative powered systems. Temperature class rating is -40C° to 125C° (underhood), and wire size ranges from 3-6 mm². The 4 mm terminal is capable of carrying 33 amps (continuous) at 125 C° on 3 mm² wire and nominal voltage rating is 300 Vdc (550 V max). HVA 400 connector is touch safe.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 19, 2009 Available in SPST, SPDT, DPST, and DPDT contact configurations, RoHS compliant PRC series power rocker switches are rated 20 A at 125 Vac and 10 A at 250 Vac. Actuation force is 400-2,900 g and operating temperature range is -20 to +80°C. Unit is sealed to IP66 and features snap-in mounting to a 21.2 x 36.6 mm panel cut-out. Switch provides protection against dust and liquids, and also offers screw, solder, or quick connect terminals as well as various rocker markings.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 19, 2009 Compatible with standard SMA jack connectors, Snap-Lock SMA series plug connector is offered in straight and right-angle cable plug configurations and as SMA jack to Snap-Lock SMA plug adapter. With impedance of 50 W, performance at frequencies up to 6 GHz, product is ideal for test/instrumentation purposes. Inner contact fingers of unit slide over threads of mating SMA jack and lock into place by engaging outer collar. Disengagement is achieved by pulling back on outer collar.

Celsum Technologies Limited    Leicester LE1 5XY   United Kingdom

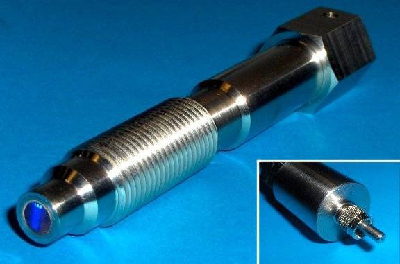

Jan 16, 2009 Transmission probe SWOPP03C has polished sapphire lens sealed into 316 stainless steel body, offering chemically inert, abrasion-resistant interface to material under test. Along with 2,040°C melting point and 0.17-5.5 micron optical transmission range, sapphire is trigonal crystal of aluminum oxide that has Young's Modulus of 330 GPa and shear modulus of circa 150 GPa. Probe comes with 600 micron internal glass fiber and permits measurements at pressures to 10,000 psi and 400°C.

Ripley Lighting Controls    West Columbia, SC 29171
Jan 16, 2009 Offered as integrated twist-lock photocontrol, PhotoClock® also incorporates radio receiver for continual synchronization with national atomic clock (NIST). This achieves precise time of day control for outdoor lighting while also providing turn-on at dusk and turn-off at dawn functionality. Solution addresses directives that concern areas of conserving energy, minimizing light pollution/trespass, and maintaining nighttime safety.

Scales Industrial Technologies    Carle Place, NY 11514

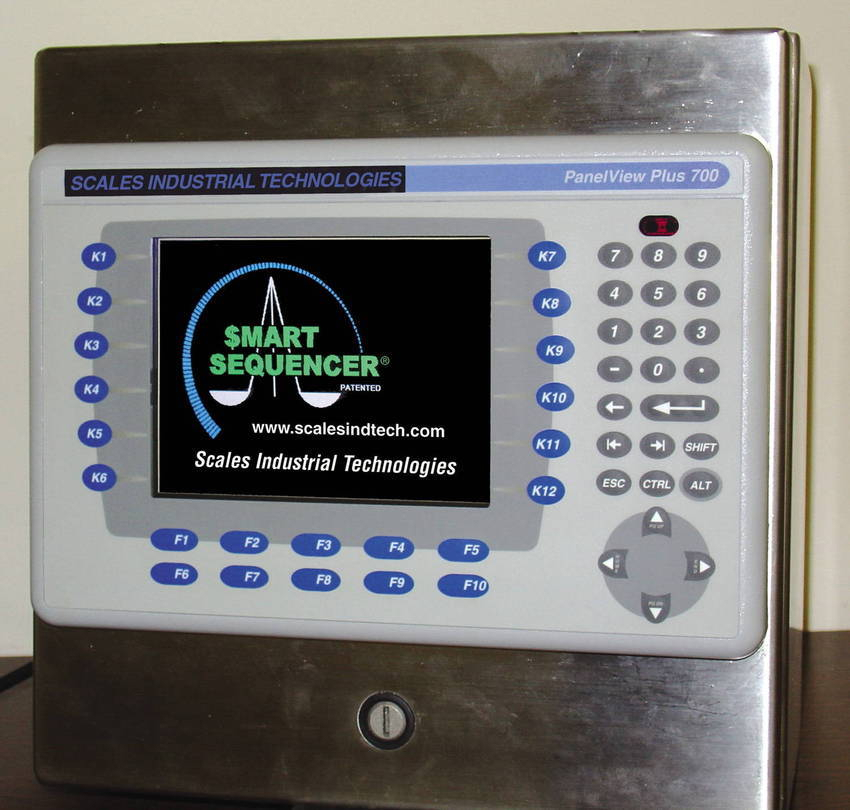

Jan 16, 2009 Supplied pre-programmed with information unique to user's compressed air system, $mart Sequencer® Controller continuously monitors plant compressed air pressure and demand. By combining monitored data with data stored in memory, system ensures minimum power is consumed to meet plant's compressed air demand. $mart Sequencer displays compressor status, system pressure, and compressed air demand, and includes alarm screen that displays up to 1,000 alarms with time and date stamps.

Ruger Industries, Inc.    Cleveland, OH 44139
Jan 16, 2009 Featuring totally welded fabrication, manual and full power floor cranes have structural tubing with ¼-½ in. wall thickness and may also be custom-engineered. Standard lifting capacities range from 2,000-6,000 lb, and construction accommodates continuous industrial use in pharmaceutical manufacturing, cleanroom, electronics manufacturing, and food processing applications. Lubricated casters make cranes capable of navigating standard door openings, narrow aisles, and elevators.

Taylor Tools    Denver, CO 80239
Jan 16, 2009 Developed exclusively for use with Taylor CaCl Test Kits, pocket-sized slide calculator determines Calcium Chloride concrete moisture emissions. By aligning number of hours exposed with gain in weight, calculator immediately yields pounds of moisture emitted over 1,000 sq ft in 24 hours.

Tol-O-Matic, Inc.    Hamel, MN 55340 9499

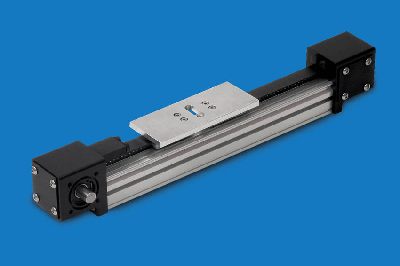

Jan 16, 2009 Belt-driven Model MXB-U features unguided carriage system that is capable of accelerations up to 1,200 in./sec², making actuator suited for automated assembly, milling, or work center positioning of externally guided parts. With Endurance Technology^SM and low guide plate height, rodless actuator handles most demanding motion control applications.

Rencol    Bristol   United Kingdom

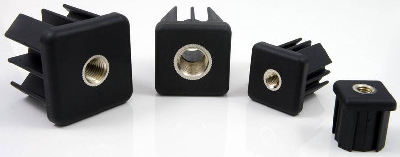

Jan 16, 2009 With square cross-section, threaded bushes are designed for press fit mounting into box section tubing for use with leveling feet. Impact-resistant nylon products are fitted with nickel-plated brass inserts as standard or stainless steel inserts as option. Supplied in matt black finish (standard), sizes range from 30 x 30 mm to 60 x 60 mm with standard wall thickness for use with mounting tubes from 1.5-4.0 mm. Available thread sizes include M8, M10, M12, M14, M16, and M20.

Luxo Corporation    Elmsford, NY 10523

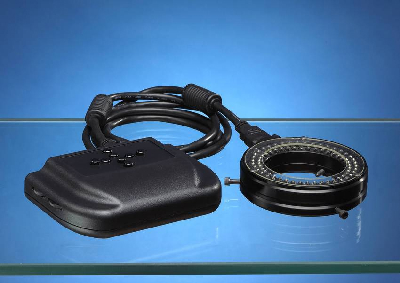

Jan 16, 2009 Intended for use with binocular and trinocular microscopes, Dimmable LED-High Output Ring Light features 80 LEDs that draw 18 W of energy while producing up to 5,800 ft candles at 4.5 in. working distance. LEDs are distributed among 2 concentric rings of lights and are controlled via 8 quadrant switches. Color temperature of 6,000°K, combined with dimming to 15% output, makes ring light suited for inspection of circuit boards, surface cracks and defects, welds, and solder joints.

PowerGate LLC    Santa Clara, CA 95054
Jan 16, 2009 Housed in SMD package, TES-1 Series consists of 18 models with input voltages of 5, 12, or 24 Vdc and single or dual outputs ranging from 5-15 Vdc. Devices feature ±10% input range, I/O isolation of 1,500 Vdc, and operating temperature range of -40 to +85°C. Qualified for lead-free reflow solder processes, converters comply with RoHS and IPC J-STD-020D soldering standard. Applications include ground loop elimination and voltage isolation in digital interfaces.

Cole Hersee Co.    Boston, MA 02127 2467
Jan 16, 2009 Smart Battery Isolator 48525/48530 prevents loads on auxiliary battery from draining starting battery, regardless of alternator type. Available in 85 and 200 A versions, product reduces charging system workload by not connecting to auxiliary battery until primary battery is charged to 13.2 V. This minimizes strain on charging components, and no diode efficiency losses occur during use. Product also allows bi-directional charging from alternator or other power chargers/converters.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939

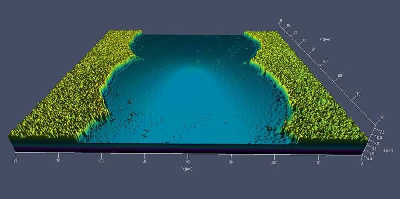

Jan 16, 2009 Suited for materials research, LSM 700 measures fine roughness and soft surfaces. Combination of fluorescence and reflection techniques enables precision examination of semiconductors, metal, glass, and polymers with high information content. Design, optimized for reproducibility of measured values, permits precise capture of 3D topography or determination of finest roughness without damaging surface.

Shat-R-Shield, Inc.    Salisbury, NC 28147

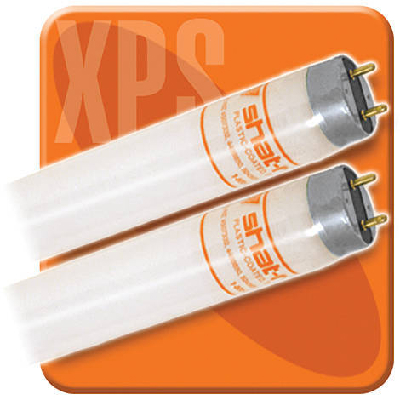

Jan 16, 2009 Available in range of color temperatures and CRI values, safety-coated XPS (eXtended Performance Super) T8 fluorescent lamps feature clear and skin-tight Shat-R-Shield coating that safely contains virtually all glass, mercury, and phosphors if lamp is accidentally broken.

Siemens    New York, NY 10022
Jan 16, 2009 Utilizing image processing and matrix of several belt conveyors, Visicon Singulator is designed to singulate items with appropriate gap between them and to align them for further sortation downstream. System can singulate up to 9,000 items/hr continuously without recirculation, minimizing required floor space. Software-based control system makes it possible to stipulate important singulation parameters such as gapping, orientation, and left or right take-away direction.

DIRAK    Chantilly, VA 20151-1220

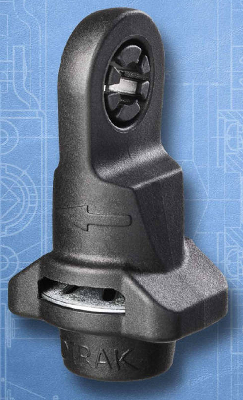

Jan 16, 2009 Assembly method for attaching round rods to latch in multiple-point locking applications eliminates need for screws and tools. Round rod slides into polyamide adapter and remains in place, and resulting assembly is clipped onto grooved stud of 2- or 3-point cam. Rattle-free solution accelerates assembly, and end-users can cut standard-length round rods to custom lengths. Once attached to rod, adapter will not loosen, separate from rod, or come off.
