AXIOMTEK    Taipei   Taiwan
Jan 21, 2009 WinPC32 Pro Builder v1.07 enables operators to monitor, upload and analyze status of entire application, and also can authorize 10 users to remote monitor concurrently. Software allows users to import GIF, bmp graphic objects and compose customized components as standard ones. It also supports index, sorting and filter functions for database operation. Diagnosis tool facilitates viewing of tag name, password, historical records, system information, and editing access format file.

Applied Robotics, Inc.    Glenville, NY 12302
Jan 21, 2009 Self-contained within sealed housing, Electrical Switches employ solid state pressure sensor and surface mount interface electronics. Switches have separate solid-state PNP (sourcing) and NPN (sinking) outputs, and are rated at 200 mA each. They are used with QuickSTOP collision sensors, which operate on air pressure to immediately send shutdown signal on impact.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 21, 2009 Model 8076 Network Switch accepts two 8-conductor Cat 5e cables input via two RJ45/110-block punchdown connectors. Removable top cover enables users to punch down connections inside unit to switch-through or break-from two output RJ45 exit ports. Compact Model 8076 manual switch features key shaped cutouts on bottom panel for easy wall mounting.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 21, 2009 Complaint to automotive AEC-Q101 standard, emitters are available in 1.8 mm (T¾) gullwing (VSMB2020X01), reverse gullwing (VSMB2000X01), PLCC2 (VSMB3940X01), and 0805 (VSMB1940X01) surface-mount packages. Model PLCC2 VSMB3940X01 features typical forward voltage of 1.35 V, and spectral bandwidth of 25 nm. Radiant intensity is 6 mW/sr for VSMB1940X01 and 40 mW/sr for model VSMB2020X01. Both VSMB1940X01 and VSMB3940X01 have half angles of ±60°, while VSMB2020X01 has half angle of ±12°.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 21, 2009 Offered in PowerPAK® SC-70 package, SiA850DJ, 190 V N-channel power MOSFET plus co-packaged 190 V power diode provides on-resistance values from 17 W at 1.8 V V_GS to 3.8 V at 4.5 V V_GS, and diode forward voltage of 1.2 V at 0.5 A. Lead free, halogen-free, and RoHS-compliant product suits applications in high-voltage piezo-electric motors and organic LED backlighting in portable devices.

RF Monolithics, Inc.    Dallas, TX 75244
Jan 21, 2009 TRC104 short-range RF Integrated Circuit transceiver radio delivers typical receiver sensitivity of -95 dBm at 250 Kb/s data rate and -90 dBm at 1 Mb/s data rate. When transmitting at its maximum data rate of 1 Mb/s, unit operates with 13 mA at 0 dBm TX supply current, 18.6 mA RX supply current, and 400 nA sleep current of power consumption. Product features both digital and analog RSSI, and is available in 4 X 4 mm TQFN-24 package.

V-Infinity    Beaverton, OR 97005
Jan 21, 2009 Enclosed in aluminum case measuring 4.25 x 4.00 x 1.50 in., VHK series provide 50-200 W of output power. They have input voltage range of 9-36 Vdc or 18-72 Vdc and output voltages of 3.3, 5, 12, 15, 24, or 48 Vdc. Standard operating temperature range is -40 to 85°C, with 50 W model operating up to 60°C under convection-cooled conditions. Other features include built-in heat sink, remote sense, and remote on/off control.

Saelig Co., Inc.    Pittsford, NY 14534
Jan 21, 2009 With 80 MSa/sec real-time sampling rate and input ranges from ±50 mV to ±100 V full-scale, PicoScope4000 scope can handle small signals from sensors as well as higher voltages from power supply circuits and motor drives. Deep 32 MSa memory allows scope to capture over 400 msec of data at maximum sampling rate. Powered from standard USB 2.0 port, unit features 12-bit 2/4-channel 20 MHz high-resolution, and suits noise, vibration, and mechanical analysis.

austriamicrosystems AG    Premstatten   Austria
Jan 20, 2009 Offering low-noise constant frequency operation, Model AS1302 is capable of output currents as high as 30 mA from input of 2.9-5.15 V. It includes 10 nA shutdown mode in which output is fully disconnected from input, and soft-start feature that prevents excessive inrush current during startup. With 1.2 MHz switching frequency, device provides up to 99% efficiency in 1:1 mode and up to 90% in 1:2 or 2:3 mode. Available in 1.2 x 1.2 mm WL-CSP 8-bump package, unit operates from -40 to +85°C.

Teseq, Inc.    Edison, NJ 08837

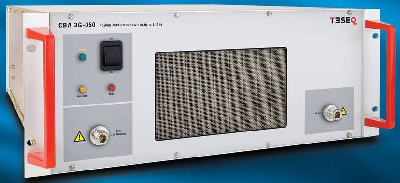

Jan 20, 2009 Offering power levels from 30-450 W, broadband power amplifiers are optimized for demanding EMC testing environments with non-ideal load conditions due to antenna mismatch caused by equipment under test (EUT) in antenna's path. Three Class A models are based on GaAs IC technology, which provides low-distortion linear performance across 0.8-3.1 GHz operating range. Two additional models, based on GaN IC technology, deliver consistent power into poor and variable match in 2-6 GHz range.

Xspect Solutions Inc.    Wixom, MI 48393

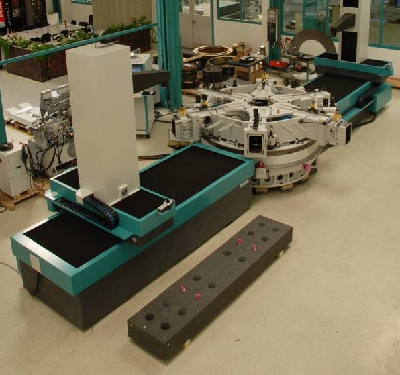

Jan 20, 2009 Able to determine complete circumference of rings with one inspection part program, system combines dual-arm CMM measuring technology with precision air bearing mechanics of Wenzel WGT series of Gear Checkers and Renishaw scanning probes. Arms are mounted to table, which is mounted on granite base, and feature precision linear guideways for X axis. Y and Z axes feature finely tuned preloaded roller bearings. Hydrostatic rotary table has 7.21 ft dia and handles loads to 100,000 lb.

International Radiation Detectors    Torrance, CA 90505
Jan 20, 2009 AXUV 100GX Absolute X-ray Photodiode possesses known active silicon thicknesses and 100% internal quantum efficiency, enabling absolute measurement of X-ray flux with energies 100 keV and beyond. Requiring no external voltage, detector has 10 x 10 mm square active area with room-temperature operation. Nitrided-oxide front window provides up to one Gigarad (SiO2) of radiation hardness. Photodiodes with directly-deposited, thin-metallic filters are available.

Newport Corp.    Irvine, CA 92606

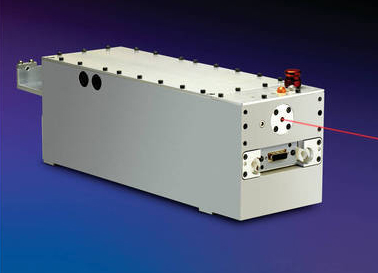

Jan 20, 2009 Based on industrial OEM product platforms, HIPPO(TM) 1064-27 delivers over 27 W of infrared average power at 100 kHz, while Explorer® 532-2 delivers up to 2 W of green average power. Both Q-switched DPSS lasers feature short pulse width to minimize heat-affected zones, minimize kerf height, and recast material. Pulse-to-pulse stability provides consistent scribe quality, while fixed polarization helps simplify optical system design requirements.

AXIOMTEK    Taipei   Taiwan
Jan 20, 2009 Supplied in 130 x 95.4 x 47.1 mm aluminum chassis, eBOX530-820-FL is based on up to 1.6 GHz Intel® Atom(TM) processor with Intel® System Controller Hub US15W and also integrates Intel Graphics Media Accelerator 500. Standalone, wall-mounted, or DIN-rail mounted unit and supports one 2.5 in. SATA HDD drive bay and CompactFlash(TM) card for high-capacity storage in addition to standard 2 GB DDR2 memory. I/O set includes GbE, 4 x USB 2.0, 2 x COM, VGA, audio, and PS/2 ports.

Electro Standards Laboratories    Cranston, RI 02921 3403

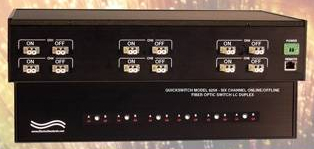

Jan 20, 2009 All-optic, online/offline QuickSwitch® Model 6258 is LC duplex, multimode switch that lets user connect or disconnect each input/output fiber optic cable to/from its respective input/output fiber optic cable. Utilizing mirror technology with wavelength of 1,300 nm, IP-addressable switch offers individual switching control for all 6 channels. All channels may be controlled either via front panel pushbuttons or remotely using Ethernet 10-Base-T connection and Telnet commands.

Advantech Automation Corp.    Cincinnati, OH 45240

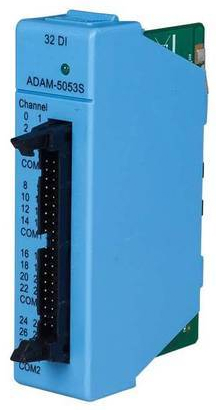

Jan 20, 2009 ADAM-5053S and 5057S are 32-channel digital input/output modules suited for critical environment applications requiring high-stability product with individual channel isolation protection. Both support isolation to 2,500 Vdc to avoid damage from different channels. While ADAM-5053S provides over-voltage protection of 35 Vdc, ADAM-5057S has operation time of 15 ms, insulation resistance of 1 G W @ 500 Vdc, and over-voltage protection with 70 Vdc.

Advanced Machine & Engineering Co.    Rockford, IL 61103
Jan 20, 2009 Operating with minimized environmental impact, AMSAW® R300R integrates rail hole drilling station for bolted joints at rail ends as well as carbide cutting blades, which accept 5 retips and up to 40 resharpenings before replacement. It includes onboard PLC, preloaded ballscrews, and 3 vertical and 2 horizontal hydraulic clamps enabling 90º cut on rail ends. Saw blade guide and dampening device maximize accuracy and electronic overload device stops saw feed if necessary.

Michell Instruments    Rowley, MA 01969

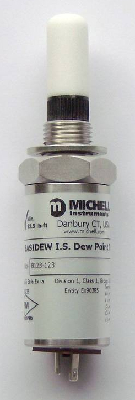

Jan 20, 2009 Offered as fully configured moisture transmitter, Easidew optimizes accessibility for measuring trace moisture and dew point. It can be instantly incorporated into air or gas management control system and provides features that facilitate installation and operation. Specifically, unit incorporates Michell Advanced Ceramic Moisture Sensor with microprocessor-based measurement circuitry to offer fully calibrated and interchangeable transmitter.

Aremco Products, Inc.    Valley Cottage, NY 10989
Jan 20, 2009 Black-pigmented, ceramic-filled Corr-Paint(TM) CP3015-BL inhibits oxidation of carbon steel and cast iron exhaust headers used in automotive, truck, and industrial applications to 1,500°F. Product is formulated using waterborne silicate binder system filled with blend of ceramic corrosion inhibiting pigments. Supplied in ready-to-use viscosity of 2,800-4,500 cp and solids of 51.5% by weight, coating is applied using spray equipment, drying to film thickness of 2-3 mils.

Universal Forest Products    Grand Rapids, MI 49525
Jan 20, 2009 Latitudes® Capricorn(TM) decking is offered in 2 tropical colors, adobe and koa, which resemble mahogany and ipe hardwoods. Featuring natural-looking woodgrain pattern on both sides, these barefoot-friendly boards are fortified with Strandex® technology and co-extruded for minimal maintenance. They will not splinter, split, or rot and are resistant to fading as well as moisture. Lengths of 12, 16, and 20 ft are available as slotted and standard planks.
