CHOPIN Technologies    Villeneuve-la-Garenne Cedex   France
Jan 20, 2009 Mixolab Profiler offers research, quality control, and testing functions for baking ingredients analysis and complete measurement of dough performance, including effects of protein, starch, fat, fiber, enzymes, and interactions between each of these elements. Approved to ICC 173, device allows assignable profiles to set limits of acceptability, suggesting modifications if flour does not meet required parameters. Standard values are reported in Farinograph Units for traceability of results.

GE Energy Services    Liverpool, NY 13088
Jan 20, 2009 Suited for self-cleaning applications, Nanomedia LP9 pulse filter cartridge utilizes Nanomedia technology to deliver sub-micron particulate removal, with initial efficiency greater than 80% at 0.3 microns, and is rated MERV 15. Minipleat filters F8MX and F9MX, rated MERV 15 and 16 respectively per ASHRAE 52.2, are designed for low pressure loss and provide dust-holding capacity that prolongs filter life. They suit operating environments across power generation and oil/gas industries.

GE Energy Services    Liverpool, NY 13088
Jan 20, 2009 Incorporating LM2500 aeroderivative gas turbine with Brush 170ER generator, Model TM2500+ achieves full power in less than 10 min with 41.1% efficiency and noise level of 88 dBa. It can be applied in 60 or 50 Hz applications and can operate on natural gas or liquid distillate fuels. Water injection can be used to achieve NOx levels down to 25 ppm. It is packaged on 2-trailer system with top-mounted air inlet filter and exhaust assemblies.

Kavlico    Moorpark, CA 93021
Jan 20, 2009 Able to operate with various fluids/gases, industrial pressure sensors feature stainless steel diaphragm in all-welded 304L stainless steel housing and utilize oil-filled piezo-resistive sensing technology along with ASIC. Models P250/P251, operating on 5 Vdc power, provide ratiometric 0.5-4.5 Vdc linear amplified output proportional to pressure. Operating on 9-32 Vdc, P250R/P251R have internal regulator and offer regulated 5 or 10 Vdc linear amplified output proportional to pressure.

Kavlico    Moorpark, CA 93021
Jan 20, 2009 Featuring piezo-resistive sensing element in low-profile surface mount package, P6060 Pressure Sensors use 5 V input to provide 0.5-4.5 Vdc linear analog amplified output proportional to pressure. Internal temperature compensation using ASIC insures accurate ±1% of span total error band over 0-60°C. Available in pressure ranges of 13 in. H₂O and 0-1 through 0-75 psia, psig, and psid, sensors are suited for oxygen concentrators, respirators, and ventilators.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jan 20, 2009 Featuring blind-mate design for mezzanine card applications, 1.0 mm pitch system MicroSpeed connector is available in 50 signal contact modules and is designed to be used in multiples between two parallel cards without mating issues from negative tolerance stack up. It is available in 16 different stack heights or board-to-board heights from 5-20 mm with every height in between in 1 mm increments. Male and female connectors are supplied in tape-on-reel packaging.

GE Intelligent Platforms    Charlottesville, VA 22911
Jan 20, 2009 Designed for building custom applications in manufacturing, aerospace, and infrastructure industries, DataViews v9.20 supports Intel Solaris 10 UNIX-based operating system running on X86 architecture. Features include graph configurability, fill effect properties/dynamics, and ability for transparent backgrounds. Visualization toolkit allows users to develop high quality visualizations within their applications in order to fit their specific needs.

Ircon Inc.    Niles, IL 60714
Jan 20, 2009 Automated Ircon Torpedo Car Inspection System enables continuous thermal inspections to minimize occurrence of hot breakouts in refractory-lined rail cars. Utilizing Ircon thermal imaging camera technology, it provides images of torpedo cars on computer running Microsoft® Windows® XP. Torpedo Car Inspection Software can identify different shaped torpedo cars. Software also provides thermal fingerprinting that helps identifying cars based on raised lettering on their surface.

Ircon Inc.    Niles, IL 60714
Jan 20, 2009 Designed for non-contact infrared temperature measurement applications, Modline 5R infrared thermometer utilizes dual detector assembly that measures temperature by comparing infrared radiation levels in 0.85-1.05 and 1.0-1.1 µ wavelength bands. Attenuation adjustment alarming operates independent from optional dirty window detector. Attenuation alarm settings are configurable from 5-95%, from either back panel of sensing head or from Ircon Modview program.

Hendrickson International    Woodridge, IL 60517-4904
Jan 19, 2009 Weighing 20,000 lb, PARALIFT(TM) PST(TM) comes with Westport axle and D22 spindle. Wheel cut is extended to 25°, while driveline clearance is optimized due to axle seat design and location of stabilizers inside tie rod, connected to axle brackets. Adjustability of frame width and ride height enables one unit to accommodate various truck configurations. Parallelogram design maintains proper wheel tracking and ensures lift plates remain parallel for prolonged air spring life.

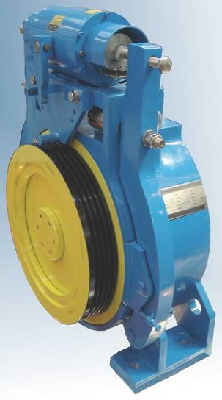

Imperial Electric, A Kinetek Co.    Akron, OH 44306
Jan 19, 2009 Offering max lift capacity of 4,000 lb at 500 fpm with 2:1 roping, Model 478 is suited for high-passenger traffic areas in low-rise buildings. Motor, sheaves, and brake assemblies, integrated into one compact unit, reduce dimensional requirements. Capacity will accommodate larger car size, capable of transporting disabled patient, medical personnel, and life support equipment without restrictions. Brake torque is 1,400 lb-ft per shoe, and max sheave shaft load is 11,025 lb.

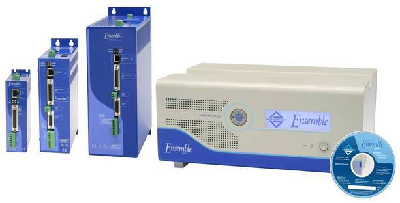

Aerotech, Inc.    Pittsburgh, PA 15238
Jan 19, 2009 Ensemble(TM) range includes Epaq, a bench or 19 in. rack-mount multi-axis solution, as well as CP/MP/CL single-axis intelligent drives. Device driver for EPICS (Experimental Physics and Industrial Control System) provides coordinated control for up to 10 axes of motion and associated I/O, with choice of open-loop stepper or closed-loop brushed and brushless servo motors in standalone or rack-mount packages. EPICS compatibility also permits access to Aerotech positioning systems.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Jan 19, 2009 With 4kVac reinforced input-to-output isolation and output-to-ground isolation of 1,500 Vac, EFE300M Series meets international safety standards of IEC 60601-1 for medical equipment. Units deliver 300 W continuous power with nominal outputs of 12 V/25 A or 24 V/12.5 A. Featuring 3 x 6 in. footprint with less than 1U profile, power supplies include 8-bit microcontroller for full digital control of output, and integrated magnetic transformer to boost efficiency to 90%.

Cap Wireless, Inc.    Newbury Park, CA 91320
Jan 19, 2009 With no warm-up or turn-on delay, CHPA0618-1-G45 provides 40 W typ saturated power across 5.85-18.4 GHz bandwidth. Ability to achieve solid-state power levels across frequency range is enabled by Spatium(TM) broadband spatial combining technology. This multiple-element architecture provides protection from single-point failures and facilitates even, dispersive, 3D heat dissipation. Other features include soft-fail in case of device failure, and flat gain without equalization.

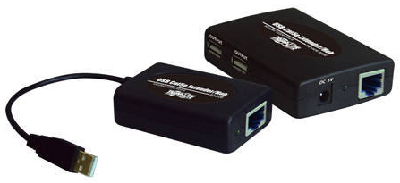

Tripp Lite    Chicago, IL 60609
Jan 19, 2009 Model U224-1R4-R consists of 3-port USB 2.0 hub and 1-port remote receiver, while U224-4R4-R consists of transmitter and 4-port USB remote hub. Both enable peripheral devices to be located up to 150 ft from computer using Cat5e/Cat6 cabling. While U224-1R4-R enables up to 4 peripherals (3 local and one remote) to be connected to one computer, U224-4R4-R enables 4 remote devices to be similarly connected. No drivers or special software are required to install/use extenders.

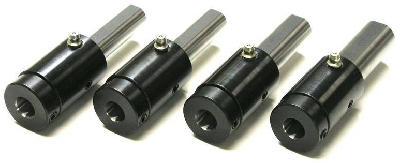

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Jan 19, 2009 Available with 5/8 and ¾ in. as well as 16 and 22 mm shanks, 0700 series Swiss Type Adjustment Free Rotary Broaching Tool Holders are used for producing hexagon and square holes in metal parts while eliminating secondary operations. While .500 in. tool bore in spindle accepts Slater standard-length hex, square, and 6-lobe rotary broaches, special form broaches with serration, spline, involute spline, and polygon shapes can also be made for 0700 series.

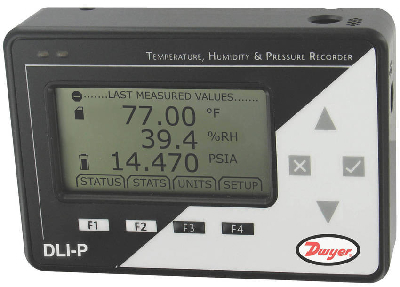

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jan 19, 2009 Equipped with backlit LCD and 8-button keypad that facilitate access to current data and recorder setup as well as memory and battery levels, Series DLI gives instant remote readings of temperature, humidity, or atmospheric pressure. Wall-mountable unit can store at least 87,000 readings per channel and comes with software creates permanent records as well as calculates and graphs data. Operation may be started/stopped from PC or triggered via time/reading.

Laser Photonics, Inc.    Lake Mary, FL 32746
Jan 19, 2009 Equipped with fiber laser, direct drive motion control platform, and single pallet shuttle table, Titan Series utilizes TurboPiercing(TM) technology, which completes accurate hole, eliminating unnecessary craters in material. With Cutting-on-the-Fly feature, laser beam is turned on and off as needed and is accurately positioned via computer-aided alignments. Materials are fixed in place directly under laser and pattern can be cut without stopping or braking axes.

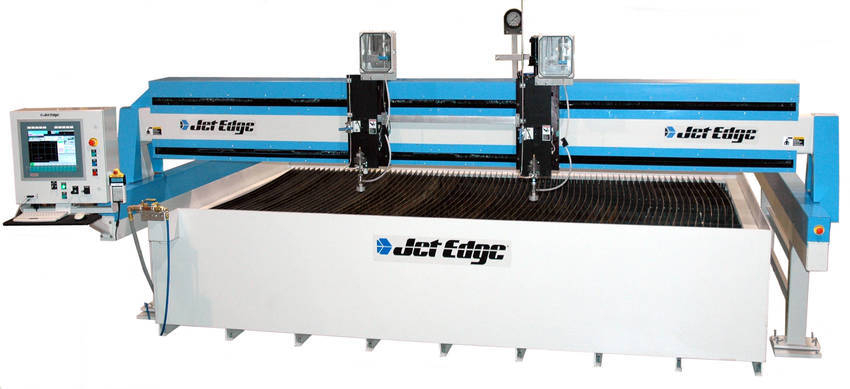

Jet Edge    St. Michael, MN 55376
Jan 19, 2009 Featuring 21 x 13 ft work envelope, Jet Edge large-format Mid Rail Gantry Waterjet System includes exposed tank that accommodates overhead loading. Ball-screw driven system features abrasive jet cutting head and heavy-wall tubular steel construction that eliminates vibration. It utilizes industrial PC controller, with 3 axes fully programmable, direct-couple AC brushless digital servo motors, and single or double carriages. System is also available in 8 x 13 ft version.

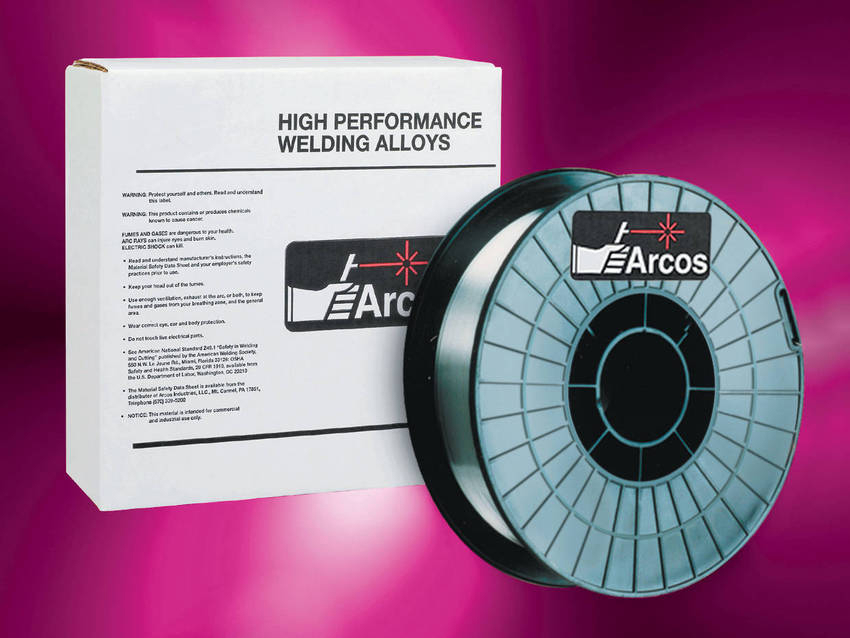

Arcos Industries, LLC    Mount Carmel, PA 17851
Jan 19, 2009 Arcos 2209 bare wire (ER2209) and covered (E2209) stainless steel electrode resist stress corrosion cracking in environments containing hydrogen sulfide and chlorides. Bare wire electrode is available in dia from .035 - 3/16 in., while covered version is offered in 3/32 - 3/16 in. dia. Both models provide high resistance to intergranular corrosion and pitting. Arcos 2209 electrodes are designed for joining 22% chromium duplex stainless steels, including 2205.
