Florida Casters & Wheels    Tampa, FL 33634
Jun 18, 2008 Providing consistent smooth spring action with loads from 100-1,200 lb, Albion 41 Series features fully heat-treated double ball bearing raceway. Top plate and legs are ¼ in. cold-formed steel, and springs are encapsulated by urethane Spring Guard(TM) for added safety. Designed to fit 5 x 2, 5 x 2.5, 6 x 2, and 6 x 2.5 wheels, casters are suited for institutional, laboratory, and medical equipment, as well as food processing workstations and mobile storage racks.

SNK America Inc.    Elk Grove Village, IL 60007
Jun 18, 2008 Featuring traverse rates of 1,181 ipm and feed rates of 592 ipm on heavy-duty box ways, Niigata HN80D achieves full 50 hp cuts through advanced range geared headstock. Large diameter ball screws, coupled direct to ac digital servo motors, provide high thrust drilling. Spindle chiller unit removes excess heat from spindle and bearing housing. In addition, machining center includes automatic rotary-type pallet changer, Fanuc CNC control, and built-in diagnostic features.

Symons    Elk Grove Village, IL 60007
Jun 18, 2008 Able to adapt to any tread and riser dimension, with no limit to number of steps, Concrete Step Wizard® facilitates process of forming concrete stairs with lumber. Rise and run of steps are determined using change in elevation, step locations are marked on stringer boards (~36 in. spacing), and Concrete Step Wizard is suspended from each mark. Riser boards, ripped across bottom edge (45° angle) for facilitated finishing, are attached to each Concrete Step Wizard to form step.

Hardinge Workholding Division    Elmira, NY 14902
Jun 18, 2008 Super-Precision® DD100/DD200/DD300 models incorporate frameless rare-earth permanent magnet torque motor, with no mechanical gearing, that wraps around spindle to eliminate need for separate motor extension. A ±.077 arc/sec resolution, ± 2.19 arc/sec accuracy encoder is mounted directly on spindle to provide accurate positioning. Direct-drive design eliminates backlash, enabling repeatability of ±2 arc/sec, and drawbar actuator lets products accept multiple workholding devices.

Enmet Corp.    Ann Arbor, MI 48106
Jun 18, 2008 Featuring compact design with color LCD, RECON/4 is capable of simultaneously monitoring for CO (0-1,000 ppm), H₂S (0-100 ppm), O₂ (0-30% by volume), and combustible gas (0-100% LEL Methane). Instrument features STEL, TWA, and 2 instant alarms with audio/visual and vibratory indicators; rechargeable battery; and one-button operation. Belt-clip-style product, designed to be intrinsically safe, also offers adjustable alarms and calibration points.

FieldServer Technologies    Milpitas, CA 95035
Jun 18, 2008 Model FS-B2510 Dual-Serial Port Converter/Gateway includes 2 serial ports and 1 Ethernet port for integration from serial-to-serial (RS-232 or RS-485) or serial-to-Ethernet applications. Using extensive protocol library and configuration capabilities, unit allows integration of devices to building automation or process control networks, such as integrating fire alarm control panel to a BACnet MSTP or Metasys N2 network.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 18, 2008 Single channel Smart Indicator Series 4215A-104 and dual channel 4215A-204 feature bipolar range, ±999,999 display with 24-bit resolution; nonlinearity of 0.005%; TEDS-Tag® Auto Load Cell ID; and setup for 25 load cells. They combine force channels, encoder position channels, print capabilities, and RS-232/485 serial communications into single platform. Microprocessor-based units are designed for measurement/control of strain gauge transducer based systems.

Greenray Industries Inc.    Mechanicsburg, PA 17055

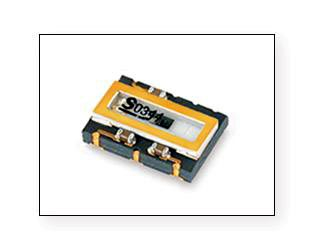

Jun 18, 2008 Featuring G-sensitivity of less than 1 x 10^-9 and phase noise of -155 dBc/Hz, T77 TCXO is available at 5.0 V, 3.3 V, or 3.0 Vdc supply voltage and within frequency range of 10-50 MHz. It is offered in 5 x 7 mm ceramic package stable to ±0.5 ppm -40 to +85°C with current consumption down to 1 mA typical. Incorporating Statek Corporation Crystal, high precision quartz based oscillator is suited for GPS, WiMax, exploration tracking, and navigation equipment.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Jun 18, 2008 Including Models PIC18F13K50 and PIC18F14K50, Series PIC18F1XK50 8-bit PIC® microcontrollers include host of serial communication interfaces, such as USB 2.0, I2C(TM), SPI, and USART, enabling them to transfer data between USB and other embedded serial networks. They also provide 10-bit, 9-channel ADC and dual comparators with S/R Latch. Model PIC18F13K50 has 8 Kb Flash and 512 Bytes of RAM memory, while PIC18F14K50 has 16 Kb Flash and 768 Bytes of RAM.

Mono Nov Group    Manchester M34 5JA  United Kingdom
Jun 18, 2008 With capacity of up to 16,000 m³/hr, Discam can capture up to 95% of solids at 5 or 9 mm aperture sizes. It combines self-cleaning Discreen® with high torque Muncher, requiring no manual attendance/cleaning, and features high-flow side rail which increases fluid velocity through Muncher. Available in range of channel depths with 1,000, 1,500, and 2,000 mm options as standard, unit can be retrofitted into existing sewage pump stations or inlet works, as well as installed in new build facilities.

Renishaw, Inc.    Hoffman Estates, IL 60192

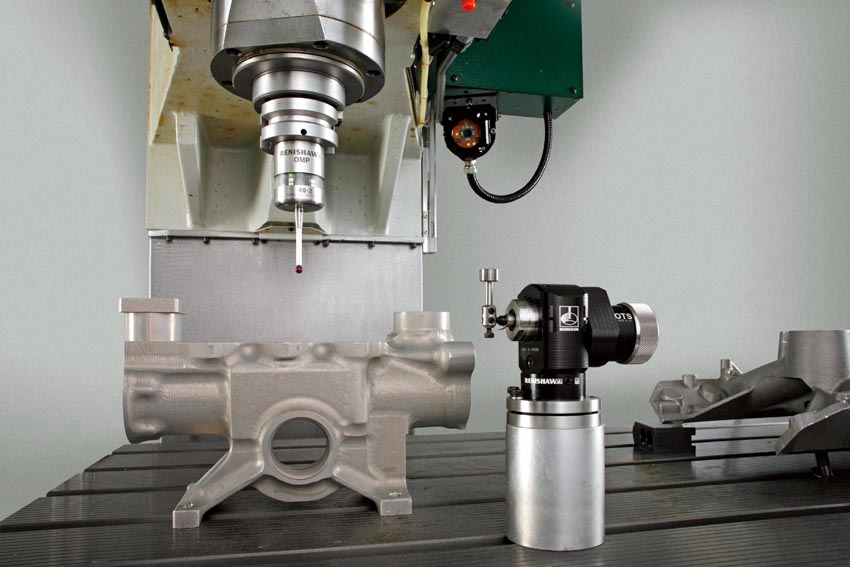

Jun 18, 2008 Combining part set-up and measurement with tool setting and broken tool detection, Twin-Probe System uses OMI-2T optical receiver to process signals from spindle-mounted OMP40-2 inspection probe and OTS tool setting probe. Sealed to withstand harsh machine tool environments, OMP40-2 is resistant to false-triggering from shock and vibration. Fully compatible with Renishaw optical systems, it can be used with high-speed, single-or double-touch probing routines.

B & R Industrial Automation Corp.    Roswell, GA 30076
Jun 18, 2008 Designed for X20 controller and I/O system, X20 stepper motor controller features 4 inputs for end switches/encoders, and automatic motor detection when booting and stall detection that identifies overload situations or any unwanted blocking of motor. Stepper motor connections can resolve each full step into up to 256 microsteps. Offering integration with Automation Studio and Soft CNC, unit is designed for bipolar 2-phase stepper motors, 1 A (24 V) or for 3 A (18-48 V) rated current.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Jun 18, 2008 Suitable for flat belt conveyors transporting dry products as well Intralox style belts conveying wet products in food/beverages, pharmaceuticals, and tobacco industry, Milltronics Weighdeck 600 features corrosion resistant components that are virtually maintenance-free. Belt support bed is made of Ultra High Molecular Weight polyethelene. IP67 protected WD600 is available with nickel-plated alloy steel or hermetically sealed SS load cells of different sizes.

EAO Switch Corp.    Milford, CT 06460
Jun 18, 2008 Suited for buses, trains, and trams fitted with large areas of glass, Series 58 touch-sensitive switch mounts directly by adhesive and operates through double-glazing up to 16 mm thick. Touch-surface is anodized aluminum surrounded by thermoplastic housing. Offered in single- and double-sided versions, door opening switch is fitted with electronic switching element and contains no moving parts. IP67 protected unit operates from -40 to +80°C, and meets CE and e1 standards.

Malish Corp., Plastic Div.    Willoughby, OH 44094
Jun 18, 2008 Constructed of damage-resistant, rotational-molded polyethylene, Shampoo Tank (890010) has machined, brass hardware and flow control valve that allows operators to manage amount of solution used during cleaning. It features multiple mounting options, 2 ft water feed tube, and seal material used in main valve is resistant to d-Limonene substance found in floor cleaning chemicals. Visual gradation marks help operators monitor volume levels and properly mix solution to avoid waste.

Composite Advantage    Dayton, OH 45420
Jun 18, 2008 FRP Pads and Mats offer corrosion resistant foundations and support surfaces that minimize amount of soil preparation required prior to starting development work. Providing portable access for heavy traffic or equipment to environmentally sensitive or challenging areas, lightweight, molded, and non-slip pads can be used as temporary roadways, helicopter landing pads, outrigger pads, trench plates, or supports for building relocation.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797

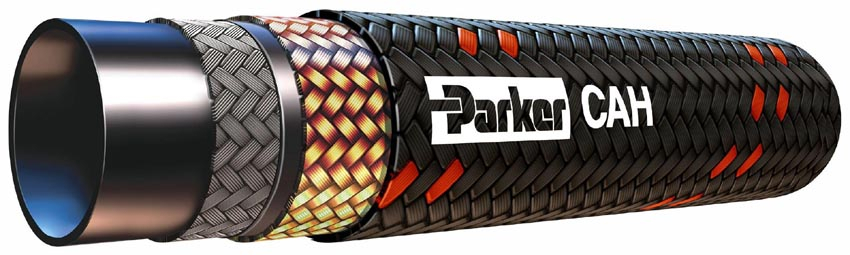

Jun 18, 2008 Available in 3/16 to 2 3/8 in. sizes, Compressed Air Hose (CAH) has inner tube of Nitrile synthetic rubber, wire and fiber reinforcement, and outer fiber braid cover. It handles pressures to 500 psi and air temperatures up to 158°F, and is also compatible with petroleum base hydraulic fluids, lubricating oils, and antifreeze solutions in temperatures from -10 to 235°F; polyol ester fluids up to 175°F; and water, water/oil emulsion, and water glycol fluids up to 185°F.

Phoenix Contact    Harrisburg, PA 17111 0100

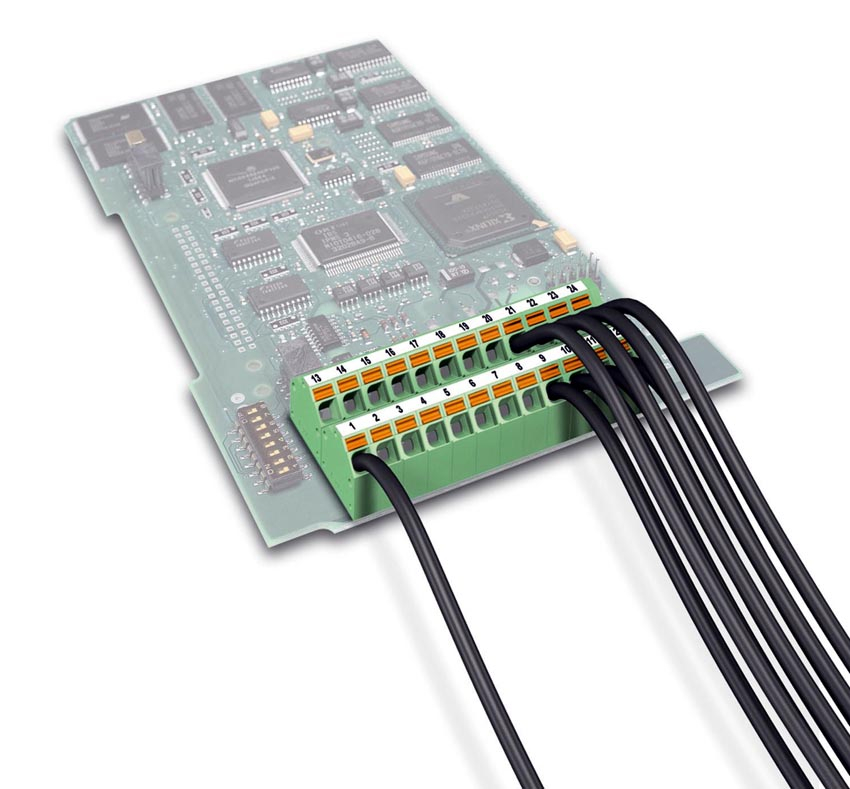

Jun 18, 2008 Utilizing push-in spring technology that allows solid and flexible wires with ferrules to be connected quickly without use of tools, SPTA is angled PCB terminal block that provides space-saving connections for up to 10 A with minimum outer dimensions. Available in 2-12 positions, SPTA's integrated test point allows quick verification of signals.

Broadcom Corp.    San Jose, CA 95110
Jun 18, 2008 Intensi-Fi® XLR BCM4323 dual-band (2.4 and 5 GHz) 802.11n solution enables use of 20 x 52 mm USB adapters for connecting devices without built-in wireless capabilities to network. Accelerange(TM) technology offers wireless performance and range to transfer HD content between devices, while ARM® processor and on-chip RAM can offload wireless functions from host processor. Direct packet transmission enables Wi-Fi client devices to communicate directly at max bandwidth of 300 Mbps.

Enea    San Jose, CA 95134
Jun 18, 2008 Occupying as little as 8 KB of memory, OSEck (OSE Compact Kernel) is DSP-optimized RTOS that delivers preemptive, event-driven, real-time response and offers built-in error detection and handling. It is available in CEVA-TeakLite-III(TM) cores, which feature native 32-bit processing and dual Multiply-Accumulate (MAC) architecture. As scalable VLIW-SIMD DSP architecture with OSEck, multipurpose CEVA-X supports 2-16 MAC units with added computational resources and memory bandwidth.
