Dynabrade, Inc.    Clarence, NY 14031
Jan 22, 2009 Featuring grinding head that pivots 360° to facilitate use in heard-to-reach areas, air-powered Dynafile II employs 20,000 rpm, direct-drive air motor that powers abrasive belts ¼-¾ x 18 in. long. Air motor can be converted to die grinder by adding ¼ in. collet or to air drill by adding chuck. Along with interchangeable contact arms, features include trouble-free belt tracking, thermal-insulated housing, and ergonomically designed motor handle with 7° pitch.

Laser Photonics, Inc.    Lake Mary, FL 32746

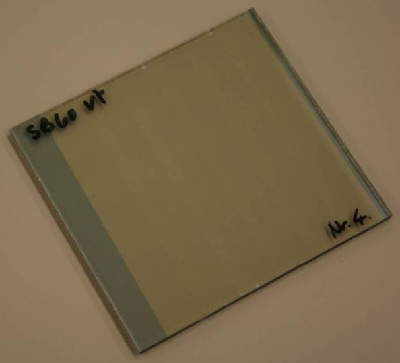

Jan 22, 2009 Oven-less process, used for annealing glass coatings, involves laser beam swept over surface to anneal coating applied to glass. Heat Affected Zone (HAZ) is limited, and material can be handled relatively soon after annealing is complete. Process promotes light transmission efficiency while reducing electrical surface resistance and preventing delamination. It also performs recrystalization of glass.

FANUC Robotics America, Inc.    Rochester Hills, MI 48309 3253

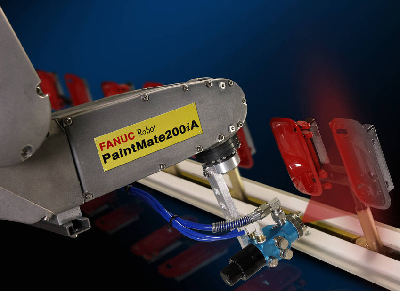

Jan 22, 2009 Designed to paint small parts, Paint Mate 200iA offers wrist load capacity, repeatability, work envelope, and speed suited for hazardous coating environments. It comes with FANUC standard purge control system and incorporates intelligent functions such as internal programmable controller, Ethernet, iRVision, iPendant, line tracking, HandlingTool, and PaintTool. Multiple mounting positions are supported, and functionality is designed to meet automation needs of various industries.

Midwest Motion Products    Watertown, MN 55388

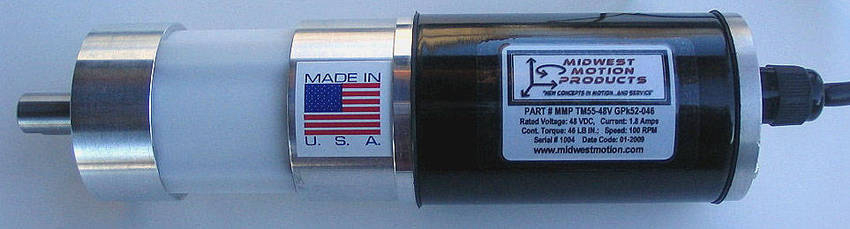

Jan 22, 2009 Accepting any 48 V DC source, Model MMP-TM55-48V GPk52-046 measures 2.14 in. dia by 7.2 in. long, and has keyed output shaft of 12 mm dia by 25 mm long. Unit weighs 3.5 lb, requires only 1.8 A at 48 Vdc to generate its full load torque, and provides 89 oz-in. peak torque. Rated at IP 54 protection level, compact unit suits battery powered electric vehicles, robotics, and automation applications. Motor windings for 12, 24, 36, 60, and 90 V are available.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jan 22, 2009 Offering momentary and latching switching, RoHS compliant BT Series comes in 7 single LED colors and 6 dual LED colors, with round, square, or no frame with 9 cap style options. Cap colors come in semi-transparent, transparent, and opaque styles with 10 laser etching choices. Electrical rating is 100 mA at 30 Vdc, contact resistance is less than 50 MW max, dielectric strength is 500 Vrms min, and switch is rated for 10,000 cycles. Operating temperature range is -40 to 85°C.

Alpha Source    Milwaukee, WI 53223
Jan 22, 2009 Designed to make unplugging safer for healthcare professionals, RingPlug is built with 6 o'clock and 9 o'clock angle configurations. It features ergonomic design that minimizes cord damage and emphasizes safer way to unplug cords. Cord is UL approved for hospital use on equipment such as defibrillators.

Littelfuse, Inc.    Des Plaines, IL 60016
Jan 22, 2009 Compact 215 Series Fuses come in 15, 16, 20 and 25 A ratings for up to 250 Vac service. Ceramic body, time-lag fuses are suited for use in power supplies, white goods, air conditioner compressors, and other high-amp equipment that needs protection against high fault-current conditions. RoHS compliant fuses can interrupt currents as high as 500 A at 250 Vac under fault conditions, and are recognized under UL and CSA component programs.

Mettler Toledo, Inc.    Columbus, OH 43240
Jan 22, 2009 Ensuring necessary pressure equalization within pipette tip, RAININ Pos-D handles difficult to aspirate fluids that are viscous, dense, or high in vapor pressure. Disposable piston embedded within plastic capillary makes direct contact with all liquid contents inside pipette and ensures that given sample is completely dispensed. Ergonomically designed, pipette features large handle and finger-hook, with volume control setting facing user.

Eco-Tech    Burlington, WI 53105
Jan 22, 2009 Available in custom lengths, Protective Products® PolyRail® is made from recycled polyethylene and is itself recyclable. Product is designed to enhance safety and is not subject to the same damage as wood. Durable, long-lasting railing will not warp when stacked in inventory.

Advanced Inspection Technologies    Melbourne, FL 32940

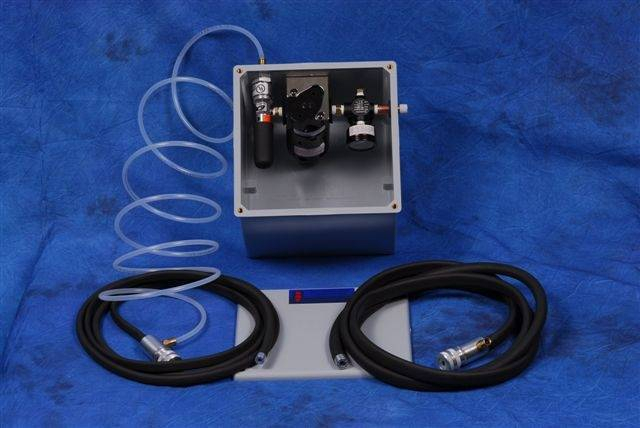

Jan 22, 2009 Videoscope cooling sleeve allows borescope inspectors to insert a videoscope into sleeve for remote visual inspection of high temperature applications. It keeps scope cool by surrounding it in vortex of compressed air, allowing users to inspect steam lines and turbines. Shop air is connected, which maintains appropriate temperature for videoscope to operate. Constructed of high temperature polyurethane, sleeve works with 3.0 m long videoscope.

BLUEline Equipment Co.    Prescott, AZ 86301

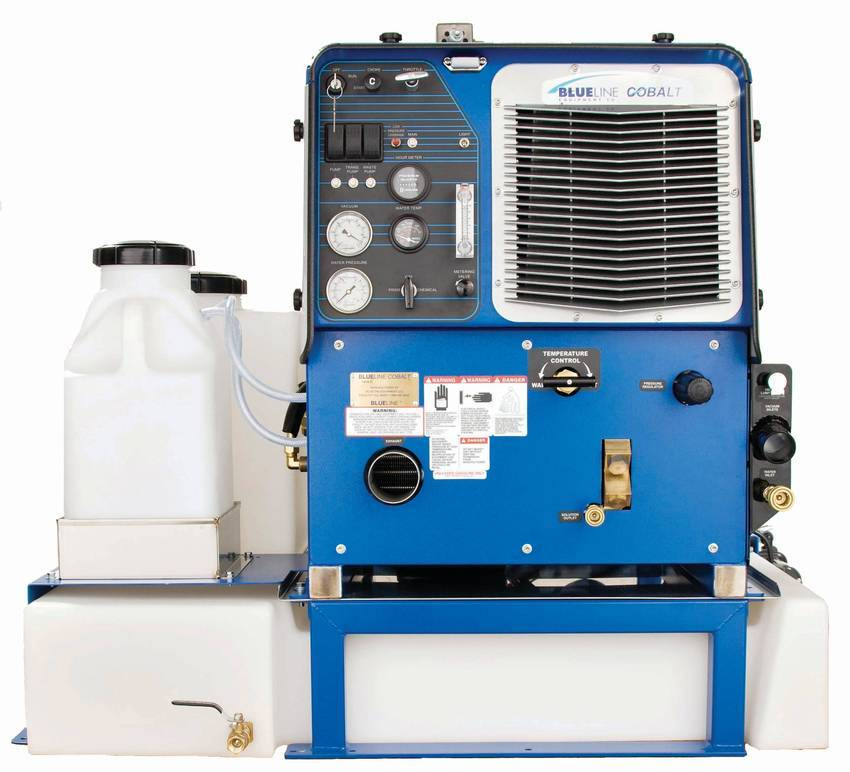

Jan 22, 2009 Suited for residential and light commercial jobs, truckmount COBALT® has minimal back pressure heat exchange design for safeguarding engine and other components against premature failure caused by excessive back pressure. It features Kohler Command 20 hp air-cooled engine, Gardner Denver Ti-406 trilobe vacuum pump, and CAT 3CP 1120 water pump, which supplies 4.3 gpm flow rate for carpet, tile, and hard surface cleaning.

Fox Electronics    Fort Myers, FL 33905 5022

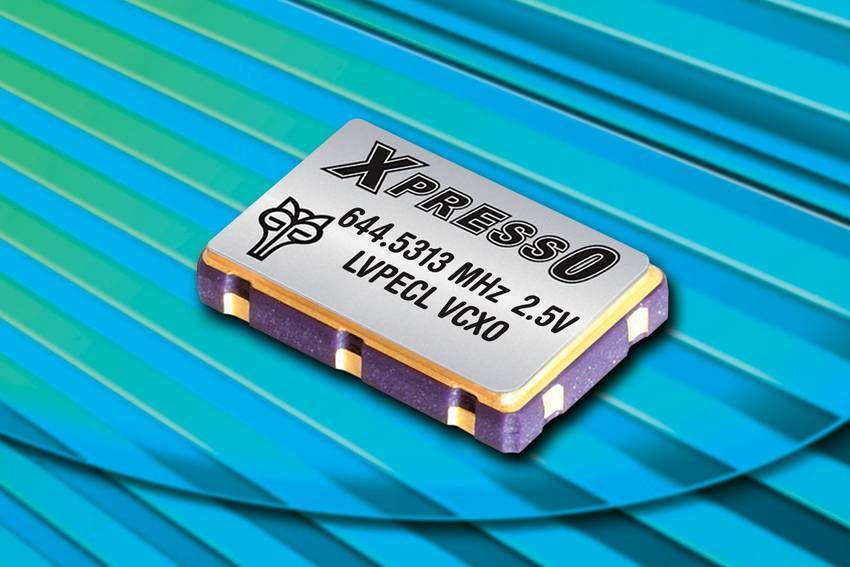

Jan 22, 2009 Available in 7 x 5 mm package, 2.5 V LVPECL VCXO, FVXO-PC72 oscillator suits SONET, Ethernet, storage area network, broadband access, microprocessors, DSPs, FPGAs, industrial controllers, test and measurement equipment, and fiber channel applications. RoHS compliant product employs third-order Delta Sigma Modulator which helps reduce noise levels. It also offers frequency resolution to 6 decimal places, absolute pull range of +50 ppm, and operating temperatures of -20 to +70°C or -40 to +85°C.

Technifor, Inc.    Charlotte, NC 28273

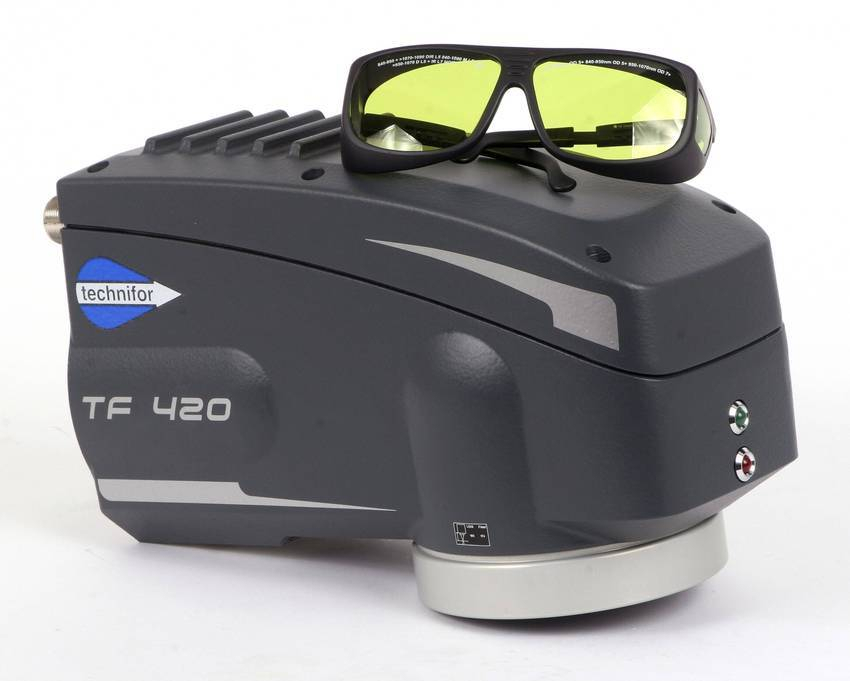

Jan 22, 2009 With skipping speed of up to 5 m/sec, TF420 fibre laser marking solution suits applications involving medium to large production runs like motor vehicles, medical fields, and electrical or mechanical components. Product features light source operating at 1.06 mm (diode) placed remotely in control unit. Marking head takes up volume of just 10 cu. dm. Remote control unit can be fitted in 19 in. rack and it features integrated buffer memory. Marker has diode service life of 100,000 hr.

AAEON Technology Inc    Taipei   Taiwan
Jan 22, 2009 Equipped with Intel® 945GSE+ICH7M chipset and Intel® 82574L for Gigabit Ethernet connection, Model COM-945GSE supports DDR II SODIMM 400/533 up to 2G and includes both parallel and serial ATA interfaces. Unit deploys versatile expansion interfaces including three PCI-Express (x1), option for 5 additional PCI-Express (x1), four 32-bit PCI, as well as LPC, SMBus, and I2C. At less than 8 W of power consumption, COM-945GSE meets demand for low power fan-less solution.

Emerson Network Power    St. Louis, MO 63136
Jan 22, 2009 Liebert PSI-XR provides 5+ min of battery backup at full load, with optional external battery cabinets for extending runtime. Configured at 110/120/127 Vac with range of output capacities, it offers remote communications and shutdown options for network closets, IT rooms, and small data centers. Also available, Liebert PSA provides up to 5 min of battery backup at full load for small office computers and electronic equipment. Various output capacities are available for 120/230 Vac models.

ESI Group    Bloomfield Hills, MI 48304
Jan 22, 2009 Reducing time-to-production as well as production expense, WELD PLANNER lets users evaluate and control Welding Distortion Engineering at early stage of Preliminary Design and Planning. Access to welding-induced distortion simulation is provided for those unfamiliar with Finite Elements Simulation, and other abilities cover generation or automatic finding of weld seams between parts; defining welding sequence as robot plan; and possibilities for visualization of computed distortion.

FKI Logistex North America    St. Louis, MO 63132
Jan 22, 2009 NetLok(TM) provides closed-loop login procedure, with restricted login provision, that allows secure, one-time access to network by authorized technical support staff. In addition to proactively detecting connectivity problems, solution can automatically track, record, and archive remote network access. It supports multiple industry-standard connection types, centering around VPN, and can handle PLC/PC systems from same connection.

MOBIFORM Software Ltd.    Vancouver V6B 2K4  Canada
Jan 22, 2009 Serving as HMI designer for process control and manufacturing industries, Status Vision Designer can also be used to create executive dashboards and digital signage applications for displaying real-time data. Program has built-in connectivity to real-time OPC data with extensibility to bind to other data sources. Design resources include XAML-based clip-art, primary .NET controls used in Windows development, as well as over 70 custom .NET 3.5 and Silverlight controls.

Greif    Creola, AL 36525
Jan 22, 2009 VantagePoint Trend captures and displays live, dynamically updated, real-time data in Line Chart format as well as indexed historical data when used in conjunction with Status Vision Designer. Designers can define multiple axes in vertical and horizontal directions, zoom in/out to arbitrary ranges, and scrub through available data history. Ability to customize plot point shapes and fills as well as define location of Legend box makes it possible to create intuitive layouts.

Inclinix, Inc.    Wilmington, NC 28412
Jan 22, 2009 Integrating numerous public and private databases, Critical Population Research® analyzes each investigator site for multiple criteria to identify optimal sites for clinical trials. Program identifies where patients with specific conditions are concentrated by providing color-coded maps of disease prevalence. With profiles on over 100,000 investigators, including thousands of international investigators, CPR database enables global analysis of prospective sites.
