Aven, Inc.    Ann Arbor, MI 48108
Jan 28, 2009 As replacement for LCR multimeters, Quick-Test Tweezers simplify QA inspections of incoming circuit boards or loose components as well as troubleshooting and production checks by electronic manufacturers. Battery-powered products allow one-touch identification and testing of SMDs as well as short-circuit diagnosis or PCB extraction. One-hand use allows note-taking while checking component's impedance; testing its diode polarity; or measuring currents in operating circuits.

CAS Data Loggers    Chesterland, OH 44026
Jan 28, 2009 Designed to record and display temperature measurements from thermocouple, MadgeTech TCTemp2000 supports J, K, T, E, R, S, B, and N thermocouples. LCD can simultaneously display real-time data from thermocouple input and ambient temperature sensor while recording data to internal non-volatile memory. Run by battery or ac power, device stores up to 131,000 readings/channel and features sample rate of every 2 seconds to 24 hours. Data can be downloaded via serial or USB port.

Kontron    Poway, CA 92064
Jan 28, 2009 Based on 1.5 GHz Intel® Core(TM)2 Duo LV processor, ITC-320 3U CompactPCI® CPU Board supports LynxOS-SE 5.0, providing secure computing solution. Board uses Error Correction Code DRAMs and includes PCI-Express port, which is backwards-compatible with PCI supporting software and configurable as x4 or quad x1. Operating system provides open APIs, Linux ABI compatibility, full POSIX conformance, and medium-assurance security via single-level operating-system-protection profile.

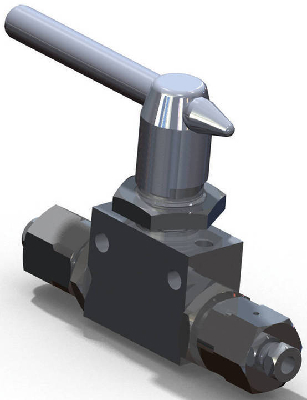

Innovative Pressure Technologies, Inc.    Erie, PA 16509
Jan 28, 2009 Rated for pressures to 10,000 psi, valves feature 2-way floating ball design with independently adjustable, spring-loaded seats that provide repeatable, leak-tight performance. Adjustable packing and blow out-resistant stem with stem bearing deliver optimal cycle life and low-torque operation. Standard port sizes are 3/16, ¼, 3/8, or ½ in., and standard connections include Male of Female NPT, M/P Cone and Thread, and H/P Cone and Thread.

Enercon Industries Corp.    Menomonee Falls, WI 53052
Jan 28, 2009 Suited for conductive and non-conductive material, Dyne-A-Mite(TM) IT Elite etches, cleans, activates, sterilizes, and functionalizes surface. Concentrated blown-ion discharge causes micro-etching or scrubbing effect, removing organic and inorganic contaminants and facilitating application and adhesion of coatings, adhesives, inks, labels, and markings of all types. Quality control is self-regulated by real-time Plasma Integrity Monitoring system.

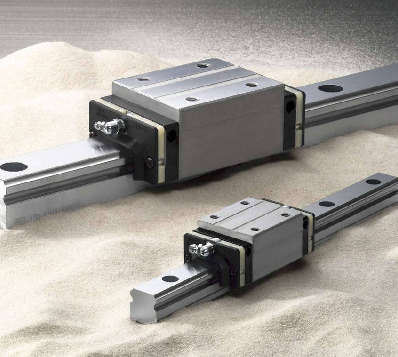

NSK    Ann Arbor, MI 48105
Jan 28, 2009 Available with low-temperature chrome or fluorinated chrome plating surface treatments, V1 Series features multi-lip seal structure, as well as caps for rail mounting holes that minimize entry of fine contaminants. K1(TM) Lubrication Units allow for long-term, maintenance-free operation in environments where grease is difficult to replenish or easily washed away. Guides are suited for applications with heavy exposure to particles, such as graphite powder and sawdust.

ABB Inc.    Auburn Hills, MI 48326
Jan 28, 2009 Designed for use with any process automation solution, Industrial IT eXtended PAT promotes integration of analytical measurements into manufacturing process to optimize product development, quality, and safety of end product. Program combines process data collection and analysis with traditional process control and data management. In addition to host of resident analyzer drivers, xPAT utilizes OPC/UA interface to provide connectivity to virtually every other analyzer available.

Magnaflux, A Div. of Illinois Tool Works, Inc.    Glenview, IL 60026
Jan 28, 2009 Constructed with splash-proof and grease-resistant keypad, battery-powered Multi-Station Process Control Digital Timer lets users simultaneously monitor up to 4 Zyglo liquid penetrant inspection stations on one LCD. There are 4 distinct audible and visual alarms - Penetrant Dwell, Rinse Time, Emulsification Time, and Developer Dwell - which cause corresponding LED to flash and specific number of beeps to sound. Each station can be set to max count-down/-up time of 99 hr, 59 min.

Hitachi America Ltd., Industrial Systems Division    Tarrytown, NY 10591
Jan 28, 2009 With sensor-less vector control algorithm, SJ700 Series can develop more than 200% starting torque at 0.3 Hz and 150% torque at 0 Hz. Units incorporate true servo-like position control, micro-surge voltage suppression, trip avoidance functions, and configurable sink/source logic on I/O. Models up to 30 hp offer built-in dynamic braking circuit, while models up to 75 hp feature built-in EMC filter. SJ700 Series can be configured via front-mounted keypad or using ProDrive PC-based software.

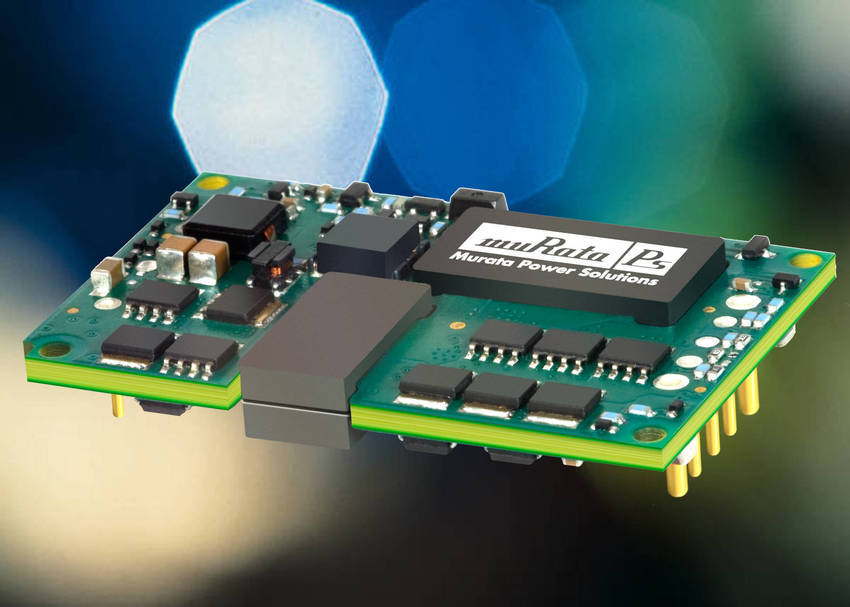

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jan 28, 2009 Providing 3.3 Vdc fixed output and output current of up to 50 A, HPQ series isolated DC/DC converters offer input range of 36-75 Vdc and utilize synchronous rectifier topology for efficiency up to 90%. Advanced planar magnetics design provides full magnetic and optical isolation, with insulation to 2,250 V. Measuring 58.4 x 36.8 x 10.2 mm, RoHS compliant units have open frame design and operate in temperatures from -40 to +85ºC. Units also include various self-protection design features.

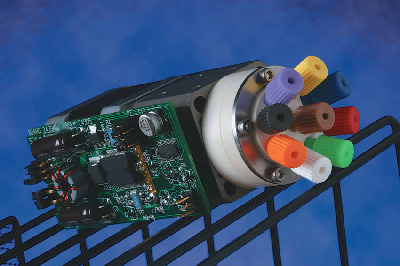

VICI Valco Instrument Co., Inc.    Houston, TX 77255
Jan 28, 2009 Using Cheminert LC valve design and 24 V motor, Cheminert C65 Series Liquid Handling Stream Selector needs only to be connected to instrument's power supply. Unit comes in 4-, 6-, 8-, and 10-position configurations with choice of ¼-28 fittings for 1/8 in. OD tubing and 10-32 or ¼-28 for 1/16 in. OD tubing.

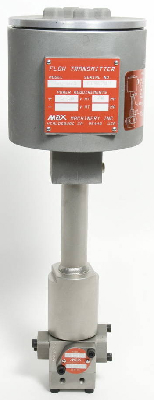

Max Machinery, Inc.    Healdsburg, CA 95448
Jan 28, 2009 Model 286 offers 2-phase, quadrature output that can be used to monitor flow direction. In combination with Model 121 MPU-based indicator, any of Max Machinery's 11 sizes of flow meters can create bi-directional flow metering systems. High-resolution output, with up to 1,000 ppr, combines with Max flow meters ability to operate below 1 rpm, enabling near zero flow measurement and zero crossing without cross over valves or dual meters.

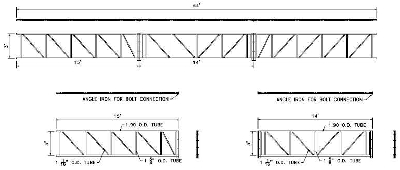

Universal Manufacturing Corp.    Zelienople, PA 16063
Jan 28, 2009 Suited for all types of scaffolding, 3-piece truss system is constructed from high strength steel tube and galvanized for extended use. Each truss - two 15 ft sections and one 14 ft section - can be used in any combination, enabling one package to cover 14, 15, 29, 30, and 44 ft spans. Rated for 85 plf and designed for max 5 ft spacing, package will work with any manufacturer's scaffold.

Reed Manufacturing Co.    Erie, PA 16512
Jan 28, 2009 RGCOMBO2 Roll Groover forms standard rolled grooves in steel, stainless steel and aluminum from 1¼ to 6 in. on Schedule 10-40 pipe. Two-in-one service tool changes in minutes from power machine operation to manual work. Compact and designed for portability, RGCOMBO2 Roll Groover meets jobsite grooving requirements of mechanical piping system installations. Two wrenches are included, one for power grooving and angled one for manual grooving.

Instron    Norwood, MA 02062-2643
Jan 28, 2009 Suited for industrial and athletic helmets, 9250HV-Helmet Tester (HT) is designed to identify shock distribution and enery absorption. It has capability to perform shock attenuation and force transmission tests when outfitted with appropriate head forms. Optional high speed video camera can be added to unit for capturing impact for reanalysis, and when used with Impulse(TM) Software, output data can be synchronized with video.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 28, 2009 With Intel® Core(TM) 2 Duo processor and Intel® 965GME chipset on integrated Mini-ITX motherboard, ARK-6310-6M01E offers fanless design. It features onboard Intel® Graphics Media Accelerator X3100 and 2.5 in. SATA HDD/SSD, while I/O includes dual Gigabit Ethernet, 4 USB, 2 COM ports, DVI, VGA as well as Intel HD Audio. Operating from 14-24 Vdc, unit measures 232 x 65 x 232 mm, and has bottom access cover, ruggedized handle, and built-in mounting bracket for wall- and table-mounting.

Crydom    San Diego, CA 92154
Jan 28, 2009 Featuring full load life cycle ratings of greater than 2 million operations, RHP line of high power Hybrid Solid State Contactors can be used in heating and lighting applications, in place of Mercury Displacement Relays or Definite Purpose (DP) contactors. They mount identically to standard 3 phase DP contactor, and are rated at 120, 240, 280, or 600 Vac at 40 or 50 A load ratings/phase at 65°C ambient temperature. Units are UL and cUL approved and CE certified.

J. W. Winco, Inc.    New Berlin, WI 53151
Jan 28, 2009 Composed of black polyglass-filled nylon, SN 992 series RoHS-compliant tube ends provide means to attach leveling mounts and glides to tubes and pipes that are commonly used to construct frames, conveyor bases, and industrial machinery. Various inch sizes are offered, and additional inch and metric thread sizes are available upon request. Square threaded tube ends are also offered.

Omega Engineering, Inc.    Stamford, CT 06907
Jan 28, 2009 OM-CONV-SER, powered from computer's serial port, converts RS-232 data transmit (TXD) and data receive(RXD) into balanced half-duplex RS-485 at data rates up to 115,200 BPS. Point to multi-point, up to 32 RS-485 devices can be connected. Converter is CE compliant and can be used in range of applications including industrial automatic control and measuring systems as well as PLC applications.

Glas-Col    Terre Haute, IN 47802
Jan 28, 2009 Allowing for safe operation within lab hood or on lab bench, Flameless Electro-Catalytic Solvent Fume Abatement System implements correct catalyst for chemistries to encourage oxidation reaction to occur at temperatures between 500-600°F. System is can be integrated with evaporators or it can be custom designed for specific user application.
