Kyocera Mita America Inc.    Fairfield, NJ 07004
Jan 30, 2009 Featuring secure network connectivity that supports IPv6 protocol, FS-1350DN offers rated output of 32 ppm, standard paper capacity of 300 sheets, and maximum duty cycle of 30,000 pages/month. It can print on range of media at resolutions to 1,200 dpi and also provides duplexing capabilities: 2-sided letter and legal. Along with standard 128 Mb memory (upgradeable to 1.15 Gb), workflow optimization and management options include 2 additional paper feeders for 800 sheet total capacity.

Quantum Controls Inc    Chanhassen, MN 55317
Jan 29, 2009 Suited for variety of speed and positioning control applications, QC6210 Series operates across range of 7-24 Vac or 10-30 Vdc at up to 30 A. Open-frame amplifier offers adjustable current limits, loop gain, and independent ramp times for each direction, as well as multiple operating modes. Unit is suited for industrial vehicles, conveyors, machine tools, packaging machines, assembly machines, and other equipment that requires bi-directional speed, torque, or position control.

Gigahertz-Optik Inc.    Newburyport, MA 01950 4009
Jan 29, 2009 Model VL-6000 employs large-area silicon photodiode with precise photometric correction filter (f1' less than 5%) and front barrel housing 50 mm dia achromatic corrected lens. In combination with single- or multi-channel optometer, illuminance resolution is less than 1 microlux (50 µlx with SNR of 50). Absolute calibration is in amperes/lux (typ sensitivity 477 nA/lx), and optional calibration in cd/m² for luminance measurements (typ sensitivity 0.3 nA/cd/m²) is also available.

Quantum Controls Inc    Chanhassen, MN 55317
Jan 29, 2009 With operating voltage of 8-48 Vdc, QC7000 Series provides speed, torque, and braking control in variety of applications, including electric and electro-hydraulic powered vehicles and equipment. Microprocessor-based units measure 2.7 in. in height and are designed to meet IP65 environmental requirements while delivering 500 A peak and 200 A continuous power.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Jan 29, 2009 Dynasty® 200 DX TIGRunner(TM) and Maxstar® 200 DX TIGRunner systems are supplied on 2-wheel trolley cart with cylinder rack as well as cable and torch holders. Respectively, power source options include Dynasty 200 DX (AC/DC TIG/Stick output) and Maxstar 200 DX (DC-only TIG/Stick output) rated 1-200 A. Systems also include 25 ft Weldcraft® WP20 water-cooled torch, Coolmate(TM) 1 cooler, 1 gal coolant, remote amperage control, and everything else necessary to begin welding.

Quantum Controls Inc    Chanhassen, MN 55317

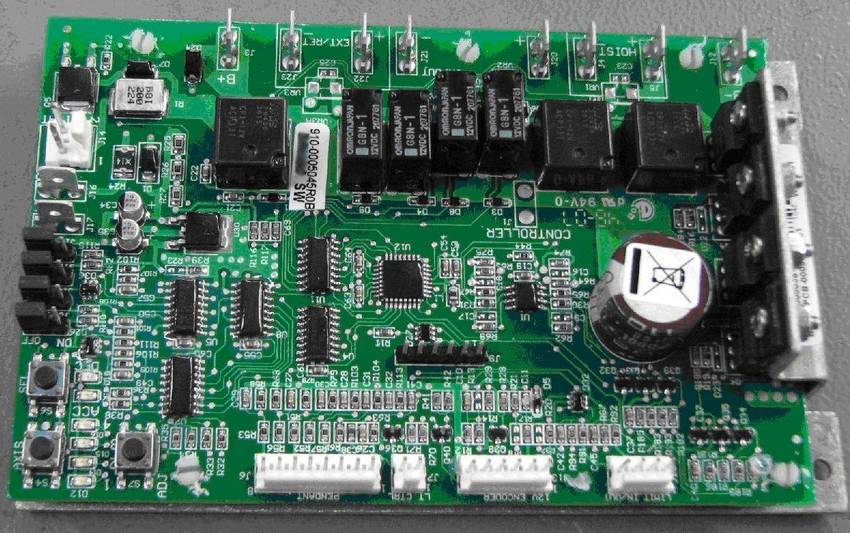

Jan 29, 2009 Suited for medium-volume applications, QC4500 12 Vdc/30 A motor control can drive up to 30 A variable speed, reversible loads and includes encoder input and on board controls for field set up. Available in 1-, 2-, or 3-channel versions, microcontroller-based board is designed for vehicle accessories such as hoists, winches, positioners, and pumps as well as small vehicles and stand-alone equipment.

nLight Photonics    Vancouver, WA 98665

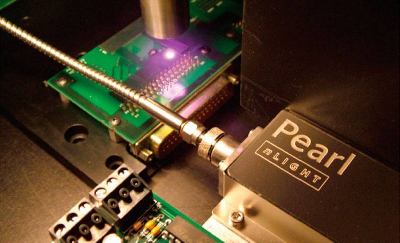

Jan 29, 2009 Featuring nXLT(TM) single emitter diodes, Pearl(TM) Fiber-Coupled Diode Lasers are available in 915, 940, and 980 nm wavelengths with up to 100 W power from 200-800 µm PowerCore(TM) fiber, which provides consistent beam quality and power transmission independent of fiber layout and movement. Units are specifically designed for industrial applications such as plastic welding and soldering.

AICSYS, INC (Advanced Industrial Computer Systems)    Taipei Hsien   Taiwan
Jan 29, 2009 Designed for storage server applications, RCK-410MA features six 5.25 in. external, two 3.5 in. external, and two 3.5 in. internal drive bays. Support for PS/2 ATX power supply ensures minimum downtime, and appropriate temperature is maintained via two 80 mm-high fans and fan monitor circuit board. Suitable for RAID applications, chassis is constructed of heavy-duty steel, offers 2 USB 2.0 ports, and features dual lockable front doors as well as replaceable air filters.

Newport Corp.    Irvine, CA 92606
Jan 29, 2009 Models 5700-30-5 (30 A, 5 V) and 5700-80-7 (80 A, 7.5 V) are designed for single-bar multi-emitter diodes while 5700-100 (100 A, 30 V) and 5700-150 (150 A, 20 V) models, utilizing 3,000 W supply, are suited for stacked multibar, multi-emitter lasers. All models include USB 2.0 interface enabling full LIV characterization of laser diodes. Various protection features are included and DB25 connector satisfies signal I/O requirements. Units offer continuous wave or pulsed-current mode of operation.

Van der Graaf Inc.    Lithia Springs, GA 30122
Jan 29, 2009 Available in 6.5 and 8.5 in. dia, internally driven Cross Drive(TM) has no external moving parts and thereby eliminates possibility of employee injury and/or product contamination. Transfer of power from motor's drive shaft to drive roller's outer shell is 96% mechanically efficient, made possible via hardened-steel, precision-cut gear assembly. Latter is housed in sealed conveyor drive roller and connected directly to external motor, eliminating need for chain/sprocket or belt/pulley.

Advantech Co.Ltd.      Taiwan
Jan 29, 2009 Offering CF Type-I interface, SQF-P10 series includes SUSI-SQFlash software package to help protect end-users' IP and maintain system stability. SLC Flash type device, available in capacities from 1-16 GB, is RoHS-compliant and supports PIO Mode-6, WMDMA Mode-2, as well as UDMA Mode-5 data transfer modes. Able to be used as boot device, solution delivers sustainable read/write performance of 43/30 MBps (2 channel) and 22/15 MBps (1 channel).

Advantech Co.Ltd.      Taiwan
Jan 29, 2009 Equipped with 1 GB DDR2 dual channel memory, Models IPPC-6152F and IPPC-6172F feature 15 in. XGA and 17 in. SXGA TFT LCD displays, respectively. Fanless units include 2 PCI expansion slots, front-accessible USB design, CompactFlash slot, and CD-RW/DVD drive, as well as dual LANs and 5 x USB 2.0 ports. Featuring NEMA4/IP65 front panel, PCs resist harsh conditions and are suitable for machine vision, SCADA, OCR, and packing industry applications.

C&K Components    Newton, MA 02458
Jan 29, 2009 SensoNav(TM) combines 14 sensitive touch and tactile functions in 9.9 x 11.3 x 2.0 mm package. Combination of switch signals to software in one device negates need to add another switch, pad, or component. Sensitive and tactile technologies enable standard 5-way center, up, down, left, and right directions with tactile feedback; free-direction scrolling on sensitive level; 2 scrolling directions with variable speeds; and 4 scrolling directions with double speeds.

Optical Research Associates    Pasadena, CA 91107

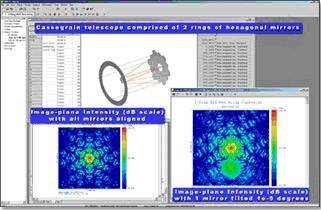

Jan 29, 2009 Taking advantage of parallel processing on multi-core CPUs, CODE V® v10.0 helps users quickly solve complex lens design problems. Beam Synthesis Propagation(TM) feature uses beamlet-based diffraction propagation algorithm to include diffraction effects through optical system design. BSP is also useful for near-field diffraction analysis and for optical systems where amplitude or phase is modified near focus. Pre-analysis feature provides input recommendations for specific lens system.

Craft Animations    Gothenburg   Sweden
Jan 29, 2009 Craft Camera Tools(TM) for GCS3(TM) lets users direct real-time virtual camera controls within Autodesk® 3ds Max® and Maya® with actual camera hardware. Used for virtual cinematography, software and hardware bundle completely eliminates traditional keyframing of virtual cameras in 3D animated scenes. Users can direct animation through viewfinder of GCS3 virtual camera controller, with start-to-finish control over virtual camera of 3D animation, visual effects, and previsualization scenes.

Optical Research Associates    Pasadena, CA 91107
Jan 29, 2009 Illumination design and analysis software, LightTools® v6.2, provides features that facilitate design of applications from LEDs to displays and luminaires. In addition to backward ray tracing capability, solution offers Backlight Pattern Optimization utility as well as support for import and interactive editing of SolidWorks® models. White light LED modeling is also supported, with ability to specify materials featuring multiple phosphor particles, size, density distributions.

Smart Technologies Inc.    Calgary, AB T3C 0M5  Canada
Jan 29, 2009 Available in 12 languages, SMART Notebook v10 is compatible with Mac, Windows®, as well as Ubuntu v8.04, openSUSE(TM) v10.03, Red Hat® Enterprise Linux v5.1, Fedora(TM) Core v9, and Debian(TM) v4.0 r3. It includes tool to create table from toolbar, allowing user to insert/drag/drop text, images, and objects into any cell. Object animation, alignment, and shaping tools are included and program enables pages to be filed into groups. Also, system administrators can install it on networked computers.

Nextreme Thermal Solutions    Durham, NC 27003
Jan 29, 2009 Designed for optoelectronics and telecommunications industries, OptoCooler HV14 is optimized for standard circuitry and power requirements. It can pump up to 1.5 W of heat and operates at max voltage of 2.7 V and peak current of 1 A. Occupying 2.8 mm² footprint, unit can create temperature differential up to 51°C between its hot and cold sides. Thermal Copper Pillar Bump acts as solid-state heat pump to add thermal management functionality locally on surface.

Ophir-Spiricon Inc.    Logan, UT 84321
Jan 29, 2009 Compact, portable LBS-300 Beam Samplers provide measurements of beams with up to 15 mm dia and power levels from 10 mW to 400 W. Devices transmit nearly all of beam, with less than 0.1% passed on to camera. They include 3 neutral density filter sets, fixed or continuous, and attach to C-mount, CS-mount, or Ophir-mount cameras. Available in 4 configurations, units enable 2 filters to be combined for adjustable attenuation down to 100,000,000:1.

ORing Industrial Networking    Taipei County   Taiwan
Jan 29, 2009 Offering 802.11b/g WLAN interface support up to 54 Mbps, IAP-6701-WG+ is compliant with IP67 as well as IEEE802.3af PoE specifications. Unit supports WEP/WPA/WPA-PSK/WPA2/WPA2-PSK/802.1X authentication and allows user to configure it through Web via LAN port or WLAN interface. Water- and dust-proof system also supports HTTPS and SSH protocol for secure management and remote monitoring via wireless connection. Event notifications can be sent by Syslog/email/SNMP trap/relay/beeper.
