Acromag, Inc.    Wixom, MI 48393 7037
Feb 03, 2009 Featuring Xilinx® Virtex(TM)-5 FPGA with hard core PowerPC block, PMC-VFX module enables users to offload CPU-intensive operations such as video/3D data processing or floating-point math for system performance. It offers DDR2 DRAM and dual-port SRAM for high-speed DMA transfer to PCI bus. PMC base card provides 64 I/O channels or 32 LVDS lines accessible via P4 rear connectors, while PowerPC core also enables system-on-chip functionality with real-time processing capabilities.

Blancco Ltd    JOENSUU 800110  Finland
Feb 03, 2009 Capable of performing data erasure at multiple sites, Blancco Kit is portable end-of-lifecycle solution that comes in carry-on aluminum case. Included hardware and server platform uses specially developed management console software for erasure client license management, label printing with included printer, report sharing and database backup. Kit includes necessary networking cables for multiple and simultaneous erasure, quick set up guide, and software manual.

CADDIT.net CAD CAM Software    Liverpool   Australia
Feb 03, 2009 CP-System Building Design for AutoCAD v6.11 suite has HVAC, Electrical, Mechanical, and Architectural toolboxes that turbocharge supported CAD systems into complete building design studio. It's 2D parametric drawing editor allows users to draw electrical wiring, piping or duct elevation plans and then insert relevant symbols from large libraries of associative drawing objects. Drawings can be exported or printed as Bill of Material or in formats like CSV, XLS, XML, RTF, HTML, and PDF.

AXIOMTEK    Taipei   Taiwan
Feb 03, 2009 Supporting PICMG backplanes up to 15 slots and ATX motherboard, AX61460 provides front access to 2 USB ports and one each of 5.25 and 3.5 in. drive bays. It has 2 internal 3.5 in. drive bays for storage, and offers power options from single PS/2 300 W/400 W to redundant 400 W power supplies. Measuring 19 in., unit also features 2 LEDs to show power status and HDD activity, clamp bar with adjustable clips for securing add-on cards, and 2 51 CFM cooling fans for heat dissipation.

Ethernet Direct    Newburyport, MA 01950
Feb 03, 2009 Featuring conformal coating and extended temperature of -30 to 70°C, 5-port Unmanaged Gigabit Switch IUG-500EC supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half duplex and MDI/MDI-X auto-sensing RJ45 ports. It offers Ethernet isolation of 1,500 Vrms and frame ground for EMS protection. Other features include DIN rail mounted housing, 10-30 Vdc power inputs, 3,000 Vdc surge protection for power line, power saving technology, and reverse polarity and over current protection.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 03, 2009 With ability to operate under supply voltage range of 2.4-5.5 V, SiP4613A/B suits applications including load switching, battery switching, USB peripheral ports, hot-swapping, and power management applications. User-defined current limit level protects input supply voltage from excessive load currents. In shutdown mode, switch reduces supply current to less than 1 µA. Available in Pb-free 6-pin PowerPAK® TSC75-6 package, it operates within industrial temperature range of -40 °C to +85 °C.

ORing Industrial Networking    Taipei County   Taiwan
Feb 02, 2009 Supplied in rigid IP30 slim type housing, IGS-1050A/1041GPA are unmanaged Ethernet switches that support 5 x 10/100/1000Base-T(X) ports or 4 x 10/100/1000Base-T(X) ports plus 1 x 1000Base-X SFP port. There are dual redundant dc power inputs at terminal block, and relay output can carry 1 A @ 24 Vdc. Operating from -40 to +70°C, products support DIN-rail or panel mounting and have DIP switches for enabling/disabling relay output alarm.

Control Co.    Houston, TX 77258 8307

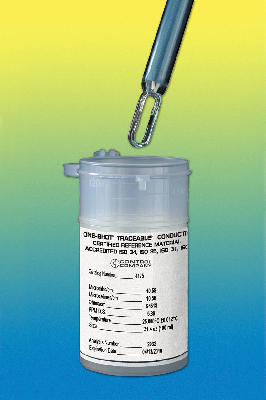

Feb 02, 2009 With 1¾ in. diameter and 3½ in. depth, Traceable® One-Shot(TM) single-use Conductivity Standards allow probe calibration to take place in polyethylene container, eliminating concerns about external container contamination. Standards accommodate virtually all conductivity probes and are suited for lab or field conditions. Each container is supplied with instructions, temperature compensation chart, traceability information, and Traceable® Certificate.

Details    Caledonia, MI 49316
Feb 02, 2009 Walkstation helps employers encourage healthy heart (exercise) habits for their desk-based office workers. It integrates height-adjustable worksurface with slow-moving treadmill, allowing office workers to burn calories while reading, computing, meeting, or making phone calls. Not intended to be strenuous enough to work up a sweat, integrated treadmill operates within limited range of .3-2 mph so that users can focus on their work but burn up to 100 calories per hour.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Feb 02, 2009 Designed to facilitate proactive maintenance, WTS10 diffuse mode sensors check quality of welding cap fronts and detects faults such as inclusions, faulty dressing, or burrs. They provide stability against discrepancies in position and angle of welding cap, check upper/lower welding caps simultaneously, and provide pre-fault indication. In addition to scratch-resistant mineral glass lens, features include coaxial optics with parallel beam path.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Feb 02, 2009 Equipped with built-in microprocessors and photocells, Creston Green Light(TM) Occupancy Sensors minimize ON-time for lights. Ultrasonic and passive infrared sensing detects motion while minimizing effects of false triggers. Upon activation, each sensor initiates in walk-through mode, which is active for 2½ minute interval, during which lights turn off when person enters and exits room. After 2½ minute period of occupancy, sensor shifts into occupied mode.

Martin Engineering    Neponset, IL 61345 9766

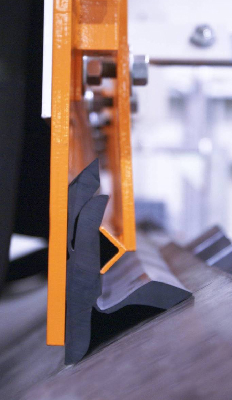

Feb 02, 2009 Double APRON SEAL(TM) Skirting provides 2 wear surfaces on one elastomer sealing strip installed along bottom of skirtboard in belt conveyor loading zone. When bottom side of strip against belt is worn, sealing strip is inverted to double service life. Product helps contain material, eliminate spillage, and reduce cleanup effort. Primary seal is clamped to steel skirtboard to keep lumps on belt, and secondary/outrigger strip captures any fines or dust that passes beneath primary seal.

HBM, Inc.    Marlborough, MA 01752 3014

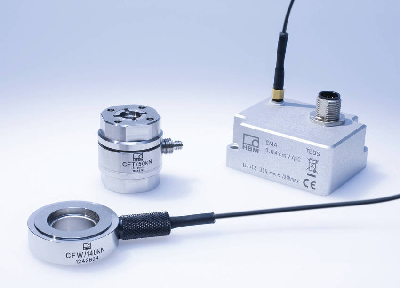

Feb 02, 2009 Available with nominal forces of 50 and 140 kN, CFW Piezoelectric Force Washers feature split diaphragm measuring body and compact design for direct integration into force flow. Design automatically centers sensor through external and internal diameter without producing hysteresis errors. Integrated plug protection prevents mechanical damage to measuring lead. Since sensitivity of 4.3 pC/N is independent of measuring range, all common assembly and testing applications can be covered.

Edmund Optics    Barrington, NJ 08007
Feb 02, 2009 Designed to create surface that diffusely reflects light back, Diffuse Reflectance Grid Distortion Targets allow user to avoid glare across image surface. Units feature chrome pattern on substrate and produce no glare with either on- or off-axis lighting sources. They are available in 2 x 2 in. configuration with dot sizes of 0.0625, 0.15, or 0.25 mm, as well as 3 x 3 in. configuration in dot sizes of 0.125, 0.25, and 0.5 mm.

Bosch Rexroth Corp., Industrial Hydraulics Div.    Bethlehem, PA 18017
Feb 02, 2009 With flows up to 60 gpm and pressures up to 5,000 psi, Modular Flow Diverters multiply hydraulic controls, allowing operators to perform 2 distinct operations under control of 1 valve. Units are available as 3- or 6-way single valves with option of creating up to 14-way flows. Standard ports allow for electric, manual, or pilot pressure operation. Featuring zinc-plated steel bodies and IP69 rated coils, diverters withstand severe operating conditions found in mining and heavy industry.

Schaeffler Group USA, Inc.    Fort Mill, SC 29715

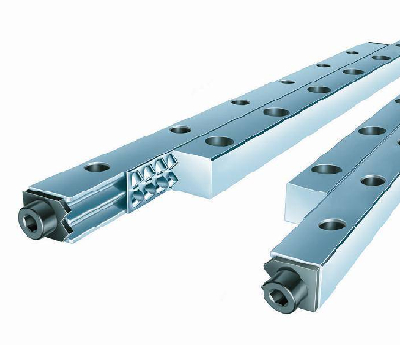

Feb 02, 2009 Comprised of at least 1 inner and 1 outer guideway pair, cylindrical roller flat cages, and end pieces, Miniature Linear Guidance Sets can support forces from all directions, apart from direction of motion. Arrangement of rolling elements enables systems to transmit loads at contact angle of 45°. Made from through-hardened steel and ground on all sides, guideways are screw mounted from above to adjacent construction and have fixing holes with counter bores for screw heads.

Molex Inc.    Lisle, IL 60532-1682
Feb 02, 2009 FlexBeam(TM) Tool-Less Copper Flex Interposer is flex-to-board interface that provides densities of .039 in. or less in various pin-matrix configurations. It integrates proprietary high-speed copper flex assembly with Neoconix HD/S PCBeam(TM) interposer and features durable, all-metal spring beams permanently embedded onto FR-4 substrate. Design allows differential signal speeds of greater than 10 Gbps and single-ended speeds of 4 GHz and higher.

Hollywood Banners    Copiague, NY 11726
Feb 02, 2009 Available in 33 x 80 in. and 47 x 80 in. versions, Rollup Retractable Advertising Banners are complete portable displays including graphic, stand, and carrying case. Banner fabrics are available in satin, nylon, poplin, and canvas. Weighing less than 10 lb and requiring just 30 seconds to set up, Rollup Banners are suitable for sales meetings and presentations, office lobbies, and tradeshows.

Dwyer Instruments, Inc.    Michigan City, IN 46361

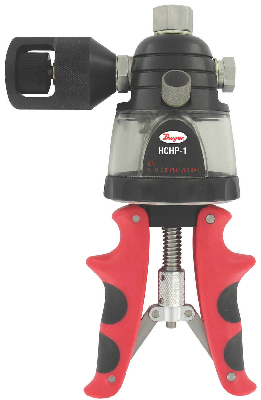

Feb 02, 2009 Utilizing fully adjustable stroke control, Series HCHP Hydraulic Calibration Hand Pump allows for pressure generation up to 10,000 psi. Built-in triple filtration system maintains pump operation in dirty conditions, while oversized check valve ensures smooth and controlled operation. Also, industrial-grade materials - stainless steel, anodized hard coat aluminum, shatterproof plastic - promote extended structural integrity life.

Lowell Corp.    West Boylston, MA 01583
Feb 02, 2009 Designed to loosen and tighten operating nuts on US-style hydrants, Model 252F is 33 in. long and available with 1½, 1¾, and 2 in. pentagonal sockets. Tool is suitable for use by one operator and may be used by 2 workers to turn difficult hydrant operating nuts. For safety, wrench's design allows user to always face roadway when working. Reversing control located in head of wrench reverses action safely and is semi-enclosed to protect against fouling.
