Astrosyn International Technology Ltd    Kent   United Kingdom

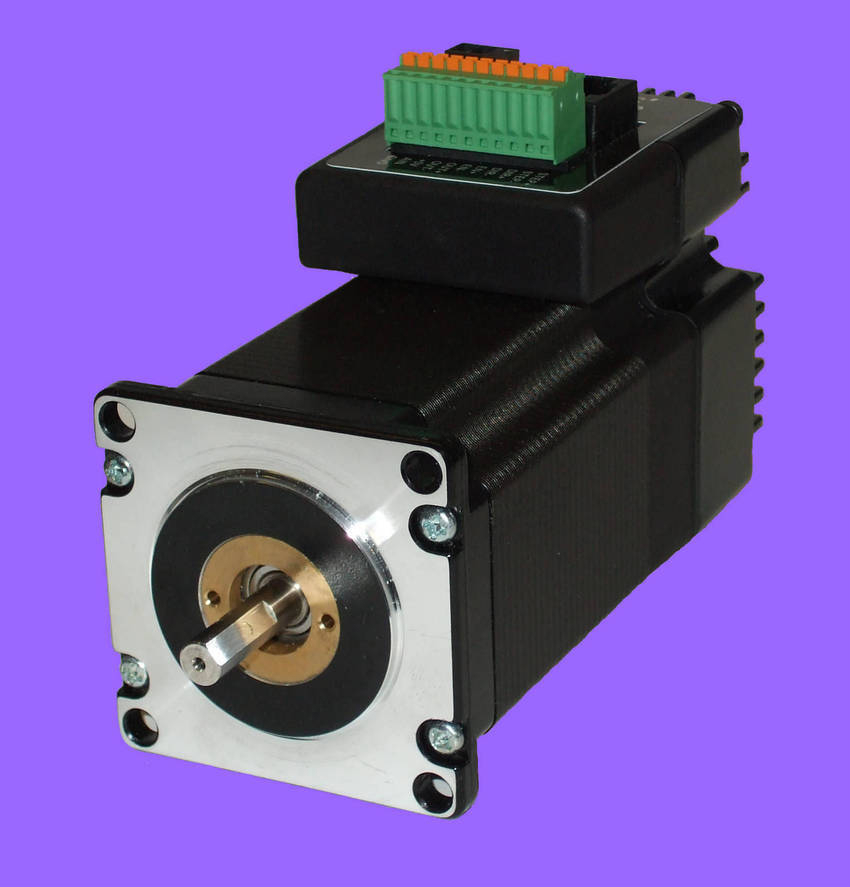

Feb 04, 2009 Model STM23 is size 23 motor and drive, contained in aluminum heatsink housing, with RS232/RS485 interfaces for programming drive using rich instruction set software. Motor operates in closed loop mode and coding can be downloaded to drive or unit can be controlled using commands from attached controller. With supply of 12-80 Vdc and 0.2-5 A peak output current, it is offered in single or double stack versions and can be supplied with encoder fitted to rear shaft.

PAM Fastening Technology    Charlotte, NC 28208
Feb 04, 2009 Developed for precision cutting and producing perfect miter corner joints, Inmes IM-350 employs two 350 mm blades capable of cutting up to 8¼ x 4 1/8 in. molding at 45°. Cable-activated adjustable molding clamps securely hold molding during cutting, and 2 dust ports on rear facilitate connection to collection system. Featuring 2 heavy-duty 2 hp motors that turn saw blades at 4,450 rpm, saw has output rated at 320+ frames per day. Included molding stop promotes production accuracy.

Southco    Concordville, PA 19331 0116

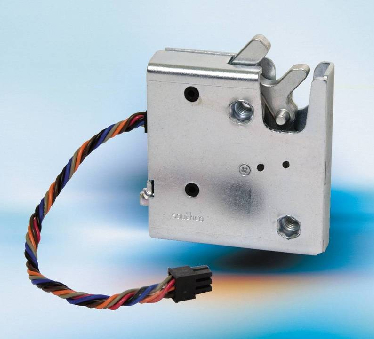

Feb 04, 2009 Measuring 2.56 x 2.72 x 0.75 in., Model R4-EM features gear-motor drive and all-metal construction for vandal resistance. Microprocessor control accepts variety of electronic actuation signals including proximity cards, hard-wired numeric keypads or swipe-card terminals, smart-reader devices, biometric devices, and remote computer or network security system signals. Designed to install with 2 bolts, latch operates on 12-24 Vdc with current draw during actuation of less than 500 mA at 12 Vdc.

Air Technical Industries    Mentor, OH 44060

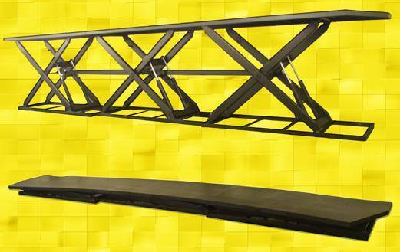

Feb 04, 2009 Featuring all-welded steel construction, circular stage lift relies upon 6 hydraulic cylinders with chrome-plated shafts for smooth and quiet operation. Cylinders are synchronized for uniform, level lifting by precision-built flow divider, and each cylinder is equipped with pilot-operated safety holding valve to prevent accidental lowering in case of power/hydraulic failure. Various sizes, lifting heights, and capacities are available to meet specific needs.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887
Feb 04, 2009 Utilizing 7 different tube sizes, 313D pumphead offers flow range of .25-3,000 ml/min and pressures to 30 psi. Flavorings, colorings, and additives are given true positive displacement with no siphoning. To maintain purity of pumped product, pumphead has no valves, is self-priming, and can run dry without incurring damage. It delivers 99.5% accuracy rate and can be cleaned in-line at full velocity without bypass. Secure clamps optimize clearance during loading and prevent tampering.

Unitronics Inc.    Quincy, MA 02169

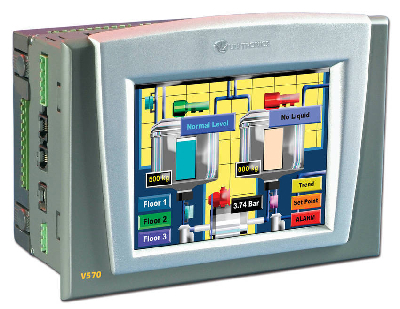

Feb 04, 2009 Equipped with 5.7 in. TFT QVGA display, Model V570-57-T20B provides multiple auto-tuned PID loops and internal 120 K database for datalogging and recipe programming. Display offers more than 1,000 user-designed screens and up to 500 images per application. On-board I/O can be added by snapping module onto back of unit. Communication options include TCP/IP Ethernet, GSM/SMS, MODBUS, and CANopen networking plus remote access for data acquisition and program download.

Schurter, Inc.    Santa Rosa, CA 95403
Feb 04, 2009 Providing overcurrent protection up to 20 A, Series 6135 offers C14 appliance inlet, while Series 6136 features C20 inlet, according to IEC 60320. Both provide snap-in mounting and are equipped with thermal positively trip-free release circuit breaker. Series 6135 features 2-pole switch with or without 1- or 2-pole overcurrent protection, while 6136 is offered in 1-pole with switch only or switch and overcurrent protection. Ability to manually reset circuit avoids need for fuse replacement.

Zoneworks    Milwaukee, WI 53223
Feb 04, 2009 Customized to match installation requirements, SCL Series lets users create new environmental zones and/or alter existing space of industrial or commercial facilities to better meet needs of operation and/or building occupants. Curtain is constructed of Vinyl®, fire-retardant fabric that meets NFPA-701 standards, and weighted bottom firmly holds curtain in position at floor level. Wall slides via galvanized track and hanger configuration that incorporates use of 2-wheel trolleys.

Toshiba America Information Systems, Inc    Irvine, CA 92618-1697
Feb 04, 2009 Mounted on wall or ceiling, IK-DF03A features rugged, IP65-rated metal housing measuring 4 in. around and 2.7 in. high. Not requiring tools/disassembly to change angle of pan, unit's pan direction is adjustable up to 350° by rotating cover ring by hand. Including high-sensitivity 1/3 in. CCD sensor that captures images in lighting down to 0.5 lux, adaptable dome camera has backlight compensation and 480 TV line resolution for detailed color video. Available in 3.6, 8.0, or 12.0 mm lens size.

SAS Automation, Ltd.    Xenia, OH 45385
Feb 04, 2009 Featuring over-center locking design that require return air pressure to open, HDC heavy-duty pneumatic toggle clamp is suited for holding and managing heavy/bulky parts. With holding torque of 1,584 lb-in, device provides consistent gripping forces for operations such as degating/fabricating/machining. With large cylinder enabling clamping force of 675 lb-in., unit features manual release button which opens clamp without air pressure and closed linkage to protect device from contaminants.

Men Micro Inc.    Lago Vista, TX 78645-4160
Feb 04, 2009 Designed for rugged, communication-intensive applications, F302 3U CompactPCI switch features 8 Ethernet channels on front via RJ45, M12, or D-Sub connectors and optional channel accessible through rear J1 connector for fast/secure communication within embedded system. Utilizing FPGA-based low-power CPU, EN 50155 railway standard compliant product offers operating temperature of -40 to +85°C as well as shock/vibration resistant soldered components. It also features built-in self-test mechanisms.

Mercury Computer Systems, Inc.    Chelmsford, MA 01824
Feb 04, 2009 Ensemble(TM) MCH2020 MicroTCA Carrier Hub provides control and switching infrastructure for MicroTCA system configurations, with single-module support for 3 system fabrics: Gigabit Ethernet base interface, RapidIO® switch fabric, and intelligent platform management interface. 4U, 19 in. rack-mountable MicroTCA chassis with 12 AMC slots and 2 switch/hub slots, supports high-bandwidth backplane communications with dual-star RapidIO topology.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 04, 2009 Optimized for sensor and light barrier systems, Compact SMD IR Receiver TSOP5038 is insensitive to supply voltage ripple and EMI noise, and offers low supply current of 0.85 mA typical at 5 V. It offers high fixed gain in all ambient light environments, 0.5 mW/sqm typical irradiance, and supply voltage of 2.7-5.5 V. RoHS 2002/95/EC and WEEE 2002/96/EC compliant unit features photo detector and preamplifier, as well as internal IR filter that suppresses visible light.

Adcole Corp.    Marlborough, MA 01752-3067

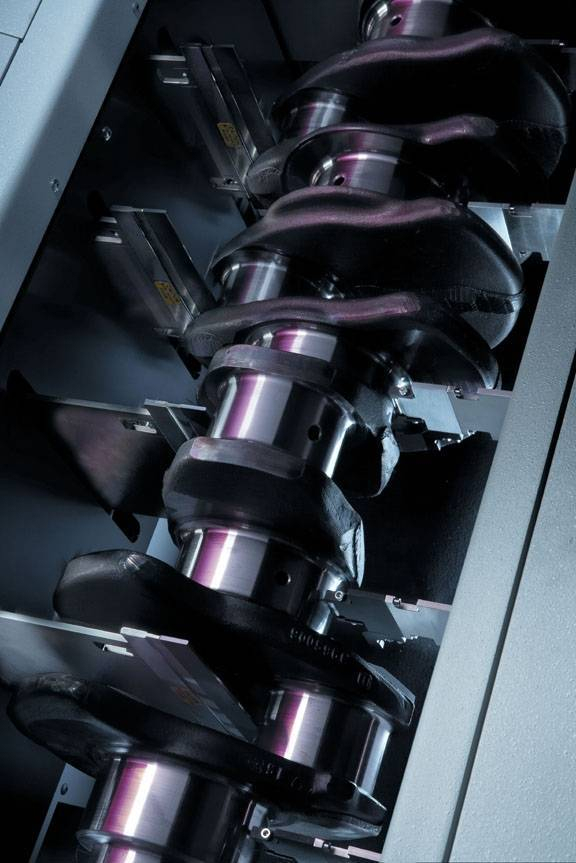

Feb 04, 2009 Designed for operating 2 or 3 shifts per day, Model 1300 has granite surface and incorporates touch-screen control, air bearings, and optical linear scale for end-of-line accuracy. It permits automatic loading on horizontal axis and features less than 1 min cycle times with sub-micron accuracy for 3 micron roundness tolerances. Gage enables statistical production control of journal grinders for diameter, roundness, 3rd harmonic analysis, cylindricity, straightness, stroke, and index.

Meller Optics, Inc.    Providence, RI 02940
Feb 04, 2009 Made of spinel, in sizes up to 8 in. OD with hardness of Moh 8, Optical Domes provide protective cover for electronic sensors and detectors from moving sand, dirt and water. Domes can transmit from UV to IR and provide up to 85% transmission uncoated and less than 0.25% reflectance per surface with A/R coatings. Featuring 160° maximum included angles, domes protect and extend viewing angles of missile guidance systems, cameras, or telescopes.

Sharpe Mixers    Seattle, WA 98124

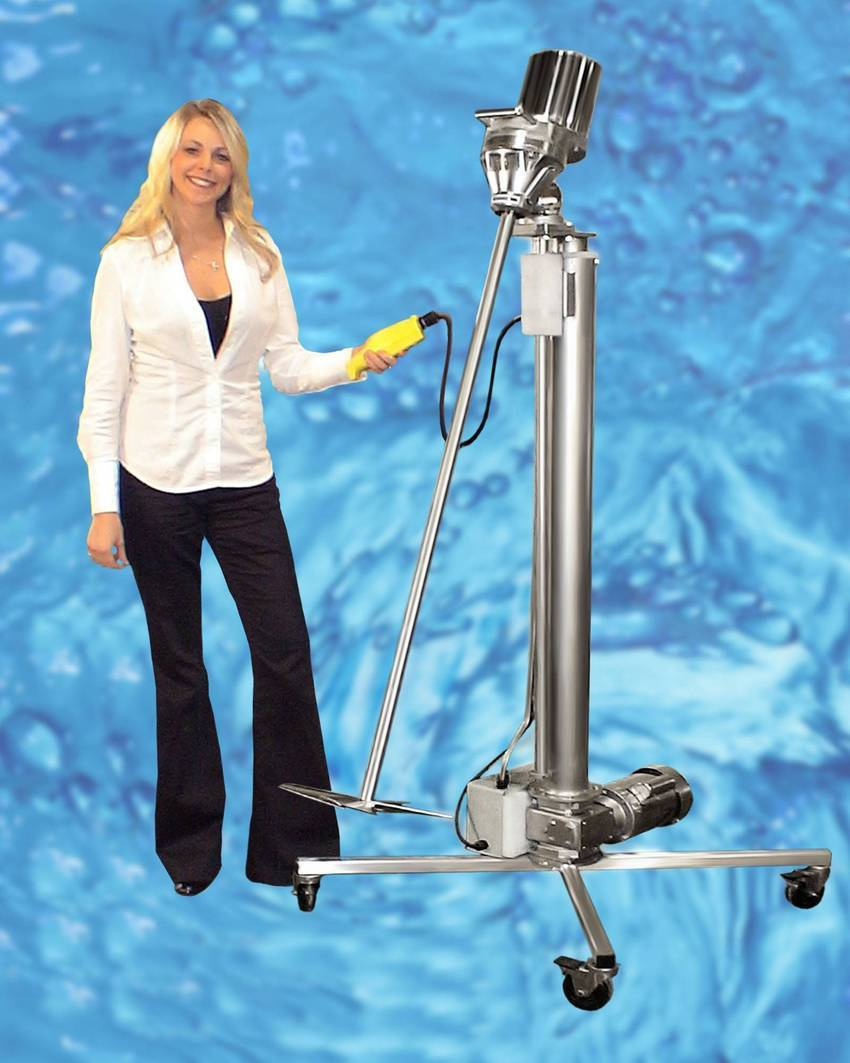

Feb 04, 2009 Providing push button control to raise and lower portable mixer's shaft into tank, ELS-Series Electric Lift Mixer Stand allows one mixer to mix several tanks in food and beverage, clean room, pharmaceutical, and biotechnology applications. It features all stainless steel construction, precision machined 316SS components, and ½ hp all-stainless worm gear drive to power lift cylinder. Available with 36, 48, and 60 in. stroke length, unit meets USDA paint-free equipment mandates.

Advantech Automation Corp.    Cincinnati, OH 45240
Feb 04, 2009 With Intel Celeron M or Pentium M CPU and 512 MB/1 GB DDR SDRAM, UNO-1170 features fanless and diskless design and comes in aluminum chassis. It has 512 Kb SRAM battery back-up system as well as 2 Ethernet, 3 serial (RS-232/422/485), 3 external USB 2.0 ports and one internal secure USB port. Suited for machine builder applications, DIN-rail mountable unit is available with pre-configured Windows CE and XP Embedded image with optimized onboard device drivers.

Chicago Miniature Lamp, Inc.    Hackensack, NJ 07601
Feb 04, 2009 Available in cool and warm white color, 18 in. linear module, Light-Line(TM) has internal driver circuitry to insure that LEDs are supplied with proper current to insure bright even illumination. Requiring 12 V supply voltage to work, ROHS compliant, energy-efficient light strips have life of over 50,000 hr. They utilize Connect and Glow technology.

Electro Standards Laboratories    Cranston, RI 02921 3403
Feb 04, 2009 Providing 4-port switching, Model 7424 allows sharing of single RJ45 interface device connected to common port among four other devices connected to A, B, C, and D ports. Front panel pushbutton allows for manually controlling switch, while RS232 interface allows user to remotely control switch, query switch position, or lockout front panel controls using ASCII commands. All 8 switch ports are transparent to all data, and switched signals are passed via copper contact relays.

Cellexus Limited    Cambridgeshire PE29 6FY  United Kingdom
Feb 04, 2009 Suited for cell culture systems, Oxygenator separates oxygen from compressed air by pressurized adsorption process utilizing molecular sieves, which adsorb nitrogen and allow remaining oxygen to pass through system as product gas. Standalone unit can be hooked up to any general system requiring oxygen gas input, such as chemistry and life science related applications, for military use, and in hospitals. Units can be ordered to provide oxygen at 0.5, 4, 8, and 10 Lpm.
