Sakor Technologies, Inc.    Okemos, MI 48864-3547
Mar 09, 2009 Engineered for low power applications, MicroDyne(TM) four-quadrant dynamometer is capable of testing all types of small rotary devices such as motors, pumps, generators, and compressors. It also includes advanced features for inertia simulation, engine simulation, and NVH testing requirements. Available in versions from 100 W to 5 kW, unit features drive technology that allows for seamless crossover between motoring and loading modes.

Samtec, Inc.    New Albany, IN 47151 1147
Mar 09, 2009 Vertical SBS Series SiliconBlade(TM) Socket offers USB Blade insertion and extraction while consuming less PCB space. It features high speed Edge Rate(TM) contact system, which is designed for impedance control with reduced broadside coupling. With 40-pin design, socket is capable of hosting array of interfaces offered by Blade, including USB, SD, MMC, SATA, and PCIe, and allows designer to utilize any of these interfaces simultaneously in one socket.

3M Co., Electronic Products Div.    Austin, TX 78726
Mar 09, 2009 Dynatel Locators 2200M Series 12 W transmitter provides four active frequencies (577 Hz and 8, 33, and 200 kHz), which can be used individually or simultaneously to compensate varying field conditions and 3 induction frequencies (8, 33, and 200 kHz). It uses either internal 6 x C-size alkaline batteries or rechargeable sealed gel-cell battery that plugs into external power plug. Unit features ohmmeter function and high voltage detection, with 240 Vac output protection.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Mar 09, 2009 Featuring embedded Windows CE OS, IndraControl VEP series is suited for applications such as machine start-up, inputting values, jogging axes, recipe management and supervisory level HMI functions. It has 600 MHz processor with 512 MB of RAM and 1 GB of memory to handle multiple software applications. Available with display sizes ranging from 8.4-15 in., device features USB port on front, offering functionality for memory stick, keyboard, or mouse.

ICS Triplex ISaGRAF    Brossard J4Z3V6  Canada
Mar 09, 2009 Incorporating IEC 61131-3 and IEC 61499 standards, ISaGRAF v5.21 provides field device manufacturers with ability to turn their equipment into IEC 61499 product. It features integrated HMI ISaVIEW that enables users to build custom graphical screens for visual debugging and simulation for each ISaGRAF project. Software also offers ability to use standard or custom library objects and compatibility with HiBeam, web-based HMI solution with embeddable event-driven data server.

BASF Corp.    Wyandotte, MI 48192
Mar 09, 2009 Producing paint colors with low odor and zero VOC content per U.S. Environmental Protection Agency Method 24, PureOptions colorants are designed for paint manufacturers, and retailers. These colorants are also free of alkylphenol ethoxylates, and do not require special equipment to prevent drying and clogging at tip of dispensing nozzle.

Solar Metrology    Holbrook, NY 11714
Mar 06, 2009 Featuring 600 x 1,200 mm lateral X/Y range of measurement, SMX-FPV is designed for near-line film composition and thickness control of CIGS and CdTe film stacks. It also provides process control of active, contact, and TCO layers. Detailed analysis of full photovoltaic panels is possible, including copper and gallium ratio determination as well as panel gradient analysis. Areas of use include research and process development, in-process monitoring, and post-process QC.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada

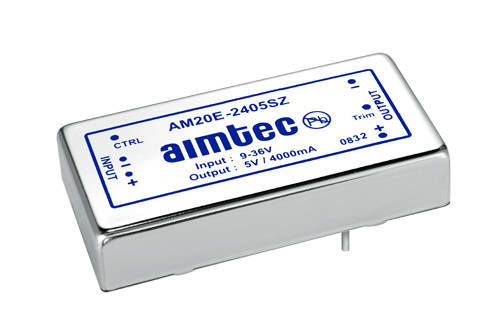

Mar 06, 2009 Series AM20E-Z 20 W converters offer inputs of 9-18, 18-36, and 35-72 Vdc and ±0.5% balanced and 1,500 Vdc isolated single and dual output voltages of 3.3, 5, 12, 15, and ±12 V and ±15 Vdc. With short circuit and overvoltage/overcurrent protection, 2 x 1 in. units offer isolated outputs, eliminating output interaction problems while allowing reverse polarity of output with reference to input. They feature temperature range of 40°C to +70°C and to +85°C with derating.

Omron Electronics, LLC    Schaumburg, IL 60173
Mar 06, 2009 Allowing inspection time of 60 sec for 4 BGAs, depending on board layout, VT-X series minimizes tact time for in-line, post-solder inspection of PCBs. Dual-mode x-ray inspection system combines CT scanning, to eliminate clutter from bottom side parts while top side is inspected, and high-speed tomosynthesis scanning for when bottom side components are not present. It can inspect boards up to 10 x 13 in. and can also be used with Qup-Navi software to identify root cause of failure.

Control Co.    Houston, TX 77258 8307
Mar 06, 2009 Traceable® GIANT-DIGITS(TM) Radio Atomic Clock model 1087 is 16½ x 10½ x 1¾ in. and 3¼ lb and displays date, 12/24 hr format, and day, with 4¾ in. digits viewable from 200 ft. Featuring 2¼ in. digits, model 1088 is 11½ x 7¾ x 1 in. and 1 1/8 lb. Both automatically adjust to daylight savings, leap year, and Earth's wobble in leap seconds. With temperature range from 23-122°F, they simultaneously display ambient and remote F/C temperatures. Desk stand and wall mount are included.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Mar 06, 2009 Combining heat resistance of fine grain cemented carbide with wear resistance of PVC coating, GC1115 Grade is suited for production systems where unstable conditions occur. Grade is designed for finishing to medium machining in stainless steel and medium to roughing in heat-resistant super alloys and titanium. It is available in wide selection of positive and negative basic-shape inserts, as well as full -M, -G, and -E tolerance range for different insert edge sharpness.

Sena Technologies, Inc.    Seoul 137-130  Korea (south)
Mar 06, 2009 Parani-UD100 class 1 type Bluetooth USB adapter supports Bluetooth Specification 2.0+EDR (Enhanced Data Rate, making it suitable for industrial applications. Bluetooth driver CD is included and unit is also compatible with other SENA Bluetooth devices. Working distance can be extended up to 1,000 m with optional replacement antenna.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 06, 2009 Approved to IEC-60945 and IACS-E10 for marine industry applications, FPM-8192V is 19 in. SXGA TFT LCD with transflective display and DNV certification. It accepts up to 4 video inputs and offers 3-stage picture-in-picture (PiP). OSD control is available for PiP, which can check multiple inputs: navigation/GPS, wind, vibration, and temperature. To modify brightness for piloting during day or night, display provides dimming control knobs for backlight adjustment from 0-100%.

Kontron    Poway, CA 92064
Mar 06, 2009 Along with 6 Mb L2 cache and 800/1,066 MHz FSB, scalable CP308 is equipped with 45 nm Intel® Core(TM)2 Duo processor up to 2.26 GHz, Intel GS45 Graphics and Memory Controller Hub, and Intel I/O Controller Hub ICH9M. This 3U solution supports up to 8 Gb DDR3-SODIMM RAM and offers connectivity via VGA, 7 x USB 2.0, 2 x COM, 2 x GbE, and 4 x SATA interfaces. One USB port is reserved for mounting USB NAND Flash module, and data/system security is provided by Trusted Platform Module.

Red Lion Controls    York, PA 17406 9428
Mar 06, 2009 With USB programming cards, CUB5 and PAX Panel Meters can be connected to any computer, with no serial converters or other external devices needed. Cards offer plug-and-play usability, and with Crimson® software, allow operators to set parameters, download configurations, and save program files. Cards are available separately and require user-supplied USB cord, or users can select programming kits, which include USB card, USB cable, and Crimson software.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 06, 2009 Housed in surface mount package with 0.7 W/cm³ power density, 1 Watt NTF Series comprises 9 models with tightly regulated output voltages of 5, 12, or 15 V and choice of 3 input voltages, including 4-6, 9-15, and 18-36 V. Devices offer efficiency levels up to 70%, 1 kVdc isolation, and voltage trim feature. Converters are suited for battery powered products and applications where high volume is expected.

Yokowo America Corporation    Arlington Heights, IL 60005
Mar 06, 2009 Available with FPC Type and Wire Type plugs, connector employs 2-point contact structure for resistance to vibration and repeated mating cycles while securing 0.6 mm-long effective joint area. While 0.4 mm contact pitch and 1.5 mm profile (mounted) conserve space and allow for high-density mounting, vertically mated and top-loaded connectors eliminate need for additional space to insert plug. Also, plug dimensions of 1.2 x 2 mm enable connector to run through 3 mm dia hinge hole.

IntelLiDrives Inc.    Philadelphia, PA 19152
Mar 06, 2009 Built with LSMA-175 Series motorized actuators, LSMA-175-XYZ Multi-Axis Systems offer load capacity of 8 kg and straightness of 5 microns. Motorized stages are driven by brushless or stepper motor with precision ground ball screw, and offer resolution up to 0.1 micron. Actuator has low-profile, monolithic design, making systems suited for integration in high precision measurement and manufacturing systems.

GBI Cincinnati, Inc.    Cincinnati, OH 45237
Mar 06, 2009 Featuring 1,000 x 520 x 505 mm X/Y/Z axes and dimensions of 2,800 x 2,185 x 3,000 mm, SMS SMV-40 Series can be used for precision die/mold work as well as mixed-volume, short-run operations or dedicated high-volume production. Table, equipped with 5 table T slots, measures 1,150 x 520 mm and has max load of 500 kg. Rapid traverse rates are 60 m/min in X and Z axes and 30 m/min for Y axis, all with max acceleration of 10 m/sec². Positioning accuracy is 8 µm and repeatability is 4 µm.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 06, 2009 Weighing only 52 lb, 60 A plasma cutter Spectrum® 875 measures 13.75 x 8.5 x 18 in., runs on 208/230 V single-phase power, and operates at full output when powered on 12,000 W generator. It features Auto-Refire(TM) technology, which eliminates retriggering when cutting fences, grates, and other expanded metal material, while Line Voltage Compensation provides steady cutting arc even when input power varies by ±10%. Unit suits construction, maintenance, and fabrication applications.
