EXFO    Quebec G1M 2K2  Canada
Feb 20, 2009 FTB-8130NG Transport Blazer and the FTB-8130NGE Power Blazer modules allow network operators to test Ethernet-over-OTN (EoOTN) through generation and mapping of 10 GigE LAN traffic directly into OTU1e and OTU2e payloads. With ability to analyze and manipulate OTN overhead bytes, FTB-8120/8120NG/8120NGE, FTB-8130/8130NG/8130NGE and FTB-8140 modules intrusively test OTN signals in through mode up to 43 Gbit/sec. Portable modules support single- or multi-application testing capabilities.

Strahman Valves, Inc.    Bethlehem, PA 18020
Feb 20, 2009 Offered in 1- and 2-piece designs and ranging from PN 10 to PN 630-4500 lb, trunnion-mounted ball valves feature chromium carbide coated metal seating. Floating seats allow expansion and purge of body inner seat cavity, while integral shoulder in valve body and shoulder machined on stem prevent blow-out. Anti-static design prevents accumulation of electric charges on ball, and separate ball and stem assures proper centering of ball between 2 seats.

Telatemp Corp.    Fullerton, CA 92831
Feb 20, 2009 Designed to prevent burn injury to personnel from accidental contact with dangerously hot surfaces, Hot Hand Indicator can be used over range of -30 to +90°C in environments where ultraviolet exposure is not excessive. Bright yellow, adhesive label appears blank when cold, and when surface to which label is adhered exceeds 50 or 70°C, word 'Hot' and warning graphic appears. Applications include electric motors, gas and diesel engines, pumps, valves, furnaces, and boilers.

IBASE Technology Inc.    Taipei   Taiwan
Feb 19, 2009 Based on 1.6 GHz Intel® Atom(TM) processor N270 with 533 MHz FSB, ET820 leverages 945GSE Express chipset and Intel Graphics Media Accelerator 950 core, which supports CRT VGA and 18-bit single-channel LVDS displays. On-board DDR2 SO-DIMM socket implements up to 1 Gb system memory, and 95 x 114 mm platform offers max TDP of 12-15 W. Connectivity is fostered via 10/100 Ethernet, 4 x USB, 2 x SATA II, audio, PS/2 keyboard/mouse, IDE, parallel, and 2 x serial interfaces.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 19, 2009 With resistance range from 100 W to 20 kW, Models 300144Z and 300145Z combine low typical TCR of ±0.2 ppm/°C from -55 to +125°C, tolerance matching to ±0.005%, and load-life stability ratio of ±0.005% at +70°C for 2,000 hours at rated power. Z-Foil resistors provide almost instantaneous thermal stabilization time of less than 1 sec. Power rating is 0.2 W at 70°C, divided proportionally between 2 elements, over max working voltage of 200 V.

Mitsubishi Electric Automation, Inc.    Northville, MI 48167
Feb 19, 2009 Offering range of display sizes from 8.4-15 in., GT16 Series can transform applications from still images to motion images with video capture and store features, monitor display/RGB input, and sound output interface. Real-time video playback and record function allows personnel to play GT16 recordings or MPEG4 files from terminal. Additional features include front-mounted USB port, integrated RS232/422/485 and Ethernet communication ports, and built-in 15 MB flash memory.

Mono Nov Group    Manchester M34 5JA  United Kingdom
Feb 19, 2009 Installed into new plants or retrofitted into existing Compact C installations, EZstrip(TM) PC Pump has been specifically designed to enable disassembly, de-rag, and maintenance in-situ, eliminating downtime. No electrical disconnection is required and suction and discharge pipes remain untouched. Available in cast iron or stainless steel, pump offers run dry protection and has capacity up to 165 m³/h and 12 bar pressure.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334
Feb 19, 2009 Measuring 2.3 x 2.2 x 1.7 in., MDrive® NEMA Size 17 Linear Actuators are available in non-captive and external shaft styles. With non-captive shafts, screw extends through MDrive and moves axially as motor rotates. With external shafts, rotating screw integral to MDrive motor moves screw-mounted nut axially, with choice of general purpose or anti-backlash nuts. Operating from -40 to +85°C, actuators are capable of full 256 x 200 microstepping with +12-48 Vdc integrated driver.

Servoflo Corp.    Lexington, MA 02421
Feb 19, 2009 Using capacitive polymer to measure humidity, KFS Series offers long-term stability and dew resistance. Surface mount Model KFS-MSMD, measuring 2.0 x 4.0 x 3.8 mm, does not require compensation circuitry and is suited for white goods, HVAC, and automotive applications. Housed in 2-pin package measuring 3.81 x 5.0 x 0.4 mm, Model KFS-140D features temperature range of -30 to 150°C and is suitable for climate monitoring, HVAC, and other environmental monitoring systems.

APS Resource    Mequon, WI 53092
Feb 19, 2009 Designed with LED optics, E-Saver(TM) LED Lamp features PAR38 base that fits into most existing dock light housings, providing maximum illumination throughout truck trailer. Unit uses 27 W and has 50,000 hour lamp life. Durable construction allows lamp to withstand impact at dock, while LED technology keeps lamp head cool to touch.

SensComp, Inc.    Livonia, MI 48150
Feb 19, 2009 Connected to PC, X1 Ranging Module Pro(TM) lets users view critical sensor parameters for instruction, analysis, alignment, and gain calibration. It combines all standard functions of ultrasonic ranging module as well as multi-channel, USB-based oscilloscope feature. Analog output is 0-5 Vdc, with pushbutton Min and Max range setting of 6 in. to 20 ft. Along with X1 module, developers kit includes electrostatic ultrasonic transducer (with housing), power supply, USB cable, and software.

Schneider Electric    Palatine, IL 60067-7399
Feb 19, 2009 Powered by Citect® SCADA technology, PowerLogic® SCADA v7.1 is designed to meet needs of customers that require real-time monitoring and control of electrical distribution systems. Program includes dynamic GUI, alarm management, 1-sec response time for control operation and status, and transparent redundancy. In addition, software features Sequence of Events Recorder logs with time stamps of 1 ms resolution and web-based client for remote viewing capability.

Newport Corp.    Irvine, CA 92606
Feb 19, 2009 Available in X/XY/XYZ configurations, NPX linear stages use frictionless guide design. Multi-axis XY and XYZ devices utilize parallel motion principle, ensuring parallel and straight motion up to 400 micron travel. Mounted between microscope and objectives, NPO NanoFocusing stages allow up to 250 micron focusing range. NPA Translators can generate forces up to 1,000 N, while PSM Ultrafast Piezo Steering Mirror provides sub-microradian resolution, tip, tilt, and z-motion for optics.

Warner Electric    South Beloit, IL 61080
Feb 19, 2009 With internal component mounting and external housing fin design, Gen 2 Clutch/Brake Modules feature optimal heat dissipation and stop/start frequencies, particularly in enclosed configurations. Input-to-output axis alignment minimizes vibration, noise, and wear, while integrated mounting bolts facilitate installation and allow conduit box to be located directly on top of unit. Modules are suited for motion control in material handling, food processing, and packaging applications.

FasTest, Inc.    Roseville, MN 55113-1317
Feb 19, 2009 Featuring 1¾ in. ACME connector design, FasFuel connectors uses SlideMate technology to facilitate and accelerate connections for 33 and 43 lb motor fuel/forklift and bulk bobtail tank filling applications. Full-flow design ensures maximum flow rate while in operation, and internal shut-off valve minimizes propane vented into atmosphere (less than 4 cc) upon disconnect. Stainless steel parts and components withstand adverse weather conditions.

Blockmaster Electronics, Inc.    Elk Grove Village, IL 60007
Feb 19, 2009 Suitable for HVAC equipment, switch gear, and lighting panels, Model OTB-80-3P splits higher power, large gauge wiring into low power needs for smaller wire gauge current ratings. With input power side rating of 80 A at 600 V utilizing 4-10 AWG wire, OTB-80-3P will load and split board circuits up to same input current level for 6-16 AWG branch wire sizes. Terminal block comes in 91.5 x 40.5 x 50.0 mm polycarbonate black housing with operating temperature of -40 to +90°C.

Ideal Industries, Inc.    Sycamore, IL 60178

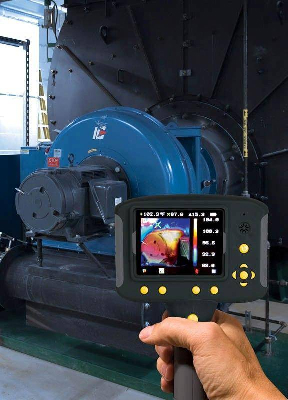

Feb 19, 2009 Designed for predictive maintenance of electrical and mechanical systems, HeatSeeker(TM) incorporates Auto Hot/Cold Tracker, which automatically indicates hottest and coldest temperature within single screen, identifying current or potential problems. Once image is captured, technicians move toggles to navigate tracking cursors across LCD screen to measure surface temperature ranging from 14-660°F. Full 1,849 temperature measurements can be viewed live on LCD with accuracy of ±2% or ±4°F.

Alliance Scale Inc.    Canton, MA 02021
Feb 19, 2009 Designed to fold up and roll on 2 rear wheels, Alliance-Rice Lake Wheelchair Scale features 700 lb x 0.2 lb capacity, 29.5 x 32 in. platform with built-in ramp, and 1 in. LCD display. Scale lets users manually enter wheelchair's tare weight and includes BMI, reweigh, and hold functions. Powered by internal 9 Vdc rechargeable battery and ac adapter, scale has automatic power saving shut-off that is programmable up to 20 minutes. Results are provided in lb only, kg only, and lb/kg.

Megger    Dallas, TX 75237
Feb 19, 2009 Able to be used on every part of industrial installations, LT300 carries CAT IV, 300 V rating as defined by IEC 61010-1. Its 3-phase safe design protects instrument against damage and user against potential injury if attempt is accidentally made to carry out tests on live circuit. Suitable for single-phase and phase-to-phase testing, product uses test current of 30 mA and offers choice of 2 loop impedance ranges: 0-20 and 0-200 W, with respective resolutions of 0.01 and 0.1 W.

Oakland Instrument Corp.    Newport, MN 55055

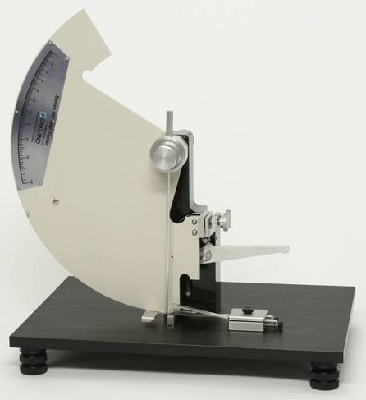

Feb 19, 2009 ME Series, comprised of 4 Elmendorf mechanical tear tester models, measures tear resistance of film, paper, sheet, laminated materials, and converted products. Available in 800, 1,600, 3,200, and 6,400 g capacities, these manual and non-instrumented testers promote usability and flexibility in labs and on plant floors. Each comes equipped with multiple pendulum capacities, integral cutting knife options, sample grip configurations, calibration accessories, and sample data sheets.
