ESI Group    Bloomfield Hills, MI 48304
Mar 03, 2009 Providing access to welding-induced distortion simulation, WELD PLANNER enables evaluation and control of welding distortion engineering at early stage of preliminary design and planning. Program includes generation or automatic finding of weld seams between parts, definition of welding sequence as robot plan, typical industrial clamping conditions, and possibilities for visualization of computed distortion.

TnT Release    Greenbush, MN 56726
Mar 03, 2009 Made up of chrome molybdenum handle and industrial-grade aluminum rail, TnT Release helps drivers release 5th wheel and open cargo doors without injury by minimizing strain and awkward positioning. Release works consistently in all weather conditions and will not affect internal operation of 5th wheel assembly. Unit installs in minutes with no drilling, welding, or special tools required.

Schneider Electric    Palatine, IL 60067-7399
Mar 03, 2009 Square D® PowerLogic® ION® enterprise energy management solution, featuring Emissions Tracking and Reporting module, correlates relationship between company energy consumption and consumption-based CO2e emissions. This helps increase energy efficiency while reducing energy-related emissions, expense, and downtime. For accurate CO2e emissions monitoring, modeling, and reporting, capabilities follow guidelines presented by Greenhouse Gas (GHG) Protocol for direct/indirect GHG emissions.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 03, 2009 Packaged in TO-240AA-compatible ADD-A-PAK, Gen VII Power Modules each integrate 2 active components in series and include standard diode, thyristor/diode, thyristor/thyristor, and Schottky rectifier combinations. Units feature blocking voltage up to 1,600 V, dV/dt of 1,000 V/µs, RMS voltage isolation capability of 3,500 V, and surge capability up to 3,000 A. In addition to being lead-free and RoHS-compliant, modules are constructed with exposed direct bonded copper substrate.

Parker Hannifin Corp    Greenfield, TN 38230
Mar 03, 2009 Designed for open circuit mobile equipment and industrial applications, P1/PD Variable Displacement Pumps are rated for continuous operation at 2,600 rpm and pressures to 4,060 psi. Torque limiter adjusts flow in circuit to keep prime mover from stalling under heavy loads. Available in 5 configurations, single spring unit monitors pressure and displacement as measured by pump's hanger angle. As pressure rises, flow is reduced according to zero adjustment spring rate.

Galil Motion Control    Rocklin, CA 95746
Mar 03, 2009 Equipped with 32-bit processor, RIO-471x2 provides 400 lines of program memory, 254 symbolic variables, and 6 programmable PID loops. Each unit contains 8 analog inputs, 8 analog outputs, 16 optically isolated inputs, and 16 optically isolated outputs. Multiple devices can be networked together for unlimited I/O expansion. In addition to Ethernet and RS232 communication, PLC supports Modbus TCP/IP as master and slave, web interface, and ability to send email alerts.

C & H Distributors, Inc.    Milwaukee, WI 53214
Mar 03, 2009 Jet Heavy-Duty Industrial Toe Jacks feature electrically welded base and cylinders for maximized strength as well as heat-treated steel rams that resist rust, pump handles, and safety valves for overload protection. Compliant with ANSI/ASME B30.1 standards, they are suited for use in machinery installation and house moving. Systems are available in 2, 5, and 10 ton lift capacities, with lift toe heights ranging from 5/8-6 15/16 in. and lift head heights ranging from 9¼-18 9/16 in.

RedPrairie Corp.    Waukesha, WI 53186
Mar 03, 2009 Duty Management 2009.1 International Trade and Customs solution lets companies delay payment of all Customs duties and VAT until latest possible time. Replacing existing paper forms, solution specifically enables users to comply with HM Revenue and Customs (HMRC) initiative to implement electronic Alcohol and Tobacco Warehouse Declarations. It also lets users hold Authorized Economic Operator certificate details in system and include them in declarations.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Mar 03, 2009 Designed as dc stick welder and ac power generator, Outback® 185 has smooth dc welding output of up to 185 A for welding steel, stainless steel, or cast iron, as well as hardfacing projects due to its ability to operate up to 5/32 in. stick electrode. It features front accessible engine control panels, 6.8 gal fuel tank, and Low-Lift(TM) grab bars that allow for lifting unit on and off truck beds. Unit's high-capacity ac generator provides 5,700 W of peak and 5,200 W of continuous power.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Mar 03, 2009 Offered in compact case, Vantage 500 Perkins® is powered by 4-cylinder, 1,800 rpm turbo-charged diesel engine that meets EPA Tier 4i standards. Unit offers stick, TIG, MIG, flux-cored, and arc gouging mode, and can produce up to 12,000 W of continuous 1-phase ac generator power for common construction tools, while simultaneously welding at up to 250 A. With 20 gal fuel tank, unit offers 9 hr of welding at 500 A/40 V/100% duty cycle output, or 33 hr at high idle.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Mar 03, 2009 With digital meters for monitoring as well as MIG-STT® capabilities, dual power LN(TM)-25 PRO can be powered by either control cable or across arc cable, which allows operator to adjust voltage and wire feed speed remotely. It features heavy-duty spindle design with adjustable brake, and MAXTRAC® Wire Drive system with tool-less wire guides that eliminate birdnesting and set-up variability with no need for adjustment. Replacement cases are available in aluminum and polycarbonate.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Mar 03, 2009 Suited for receiver and transmitter applications, MAAM-009116 IP3 Intermediate Frequency (IF) Amplifier features 18.0 dB of gain, 22 dBm of output P1dB power, and 40 dBm of output IP3 linearity while maintaining low noise figure of less than 2.4 dB. Housed in industry standard SOT-89 package, single stage device meets demands of complex communications systems.

Trans/Air Manufacturing Corporation    Dallastown, PA 17313
Mar 03, 2009 Designed for use in heavy duty transit applications, UL Series has chassis design that utilizes lightweight recyclable materials for reduced fuel consumption, overall weight reduction, and reduced noise emission. UL500, 700, 800, 900 operate with heavy duty transit type compressor, while UL500 is also available with hermetic compressor for use on electric/hybrid vehicles. All models work with either high efficiency R134a or optional environmentally friendly CO2 refrigerant (R744).

Trans/Air Manufacturing Corporation    Dallastown, PA 17313
Mar 03, 2009 Rated at 120,000 Btu/hr, RTC-120 roof mounted condenser is designed for severe duty transit applications or where skirt space is limited or unavailable. Lightweight condenser utilizes 6 high capacity fans for maximum air flow, and features ABS or powder coated metal cover.

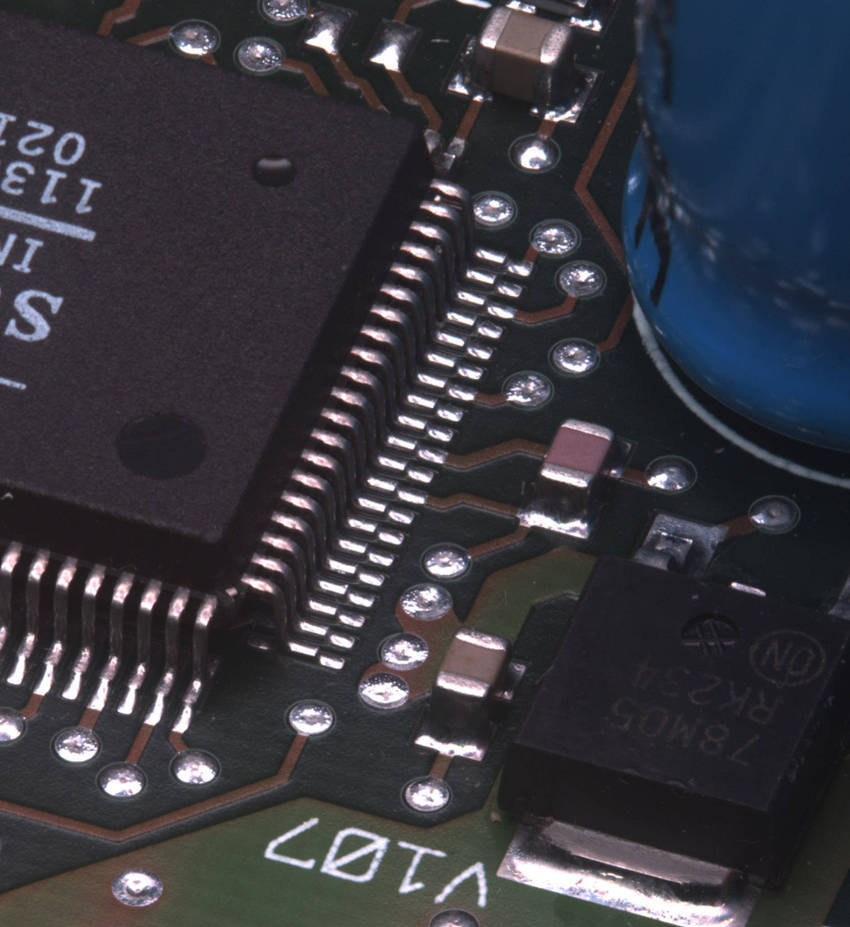

GOEPEL electronics LLC    Austin, TX 78759
Mar 02, 2009 Designed for Automated Optical Inspection (AOI) systems, module provides maximized image quality at 45° angle that covers entire inspection area of orthogonal camera. Images can be captured from any angle position in 1° steps. Various illumination variants and inspection functions are incorporated and unit is suited for inspecting concealed solder joints and components as well as PCBs. It is available with OptiCon BasicLine, OptiCon AdvancedLine, and OptiCon TurboLine systems.

Astec America Inc.    Carlsbad, CA 92008
Mar 02, 2009 Capable of delivering 12 V @ 12 W total power, DA12-M series single-output power adapters feature universal 90-264 Vac inputs in 4 AC plug configurations (US, UK, EU, AU). All are engineered to meet Level V Efficiency standards and fully certified by Energy Star 2.0 as well as CeC. With form factor that enables use of multiple adapters in dual wall outlet configurations, products offers built-in protection against overvoltage, over-temperature, and short-circuit/overload conditions.

OYSTAR USA    Fairfield, NJ 07004
Mar 02, 2009 With HDGC Fluid Bed Dryer-Granulator-Coater, all functions can be performed in one product container. HDGC Fluid Bed features Diskjet air distribution plate for thorough, uniform mixing and fluidization of batches. Tangential, high-velocity exit of process air prevents sticking/clogging and container dead zones. When granulating, particle size can be controlled/reproduced by selecting specific parameters. Uniform, homogenous granulate produces optimal flow/pelletizing characteristics.

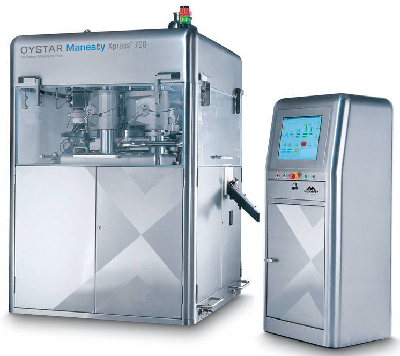

OYSTAR USA    Fairfield, NJ 07004
Mar 02, 2009 OYSTAR Manesty Xpress® 700 double-sided press, designed to facilitate flexible batch production, features stepped cabinet design that promotes access to upper and lower compression zones for tool-free turret exchange. With bi-layer system, press features automatic weight control of each tablet layer. Independent monitoring of each layer is controlled via unique algorithm, and complete segregation of materials results in clearly defined demarcation line between layers.

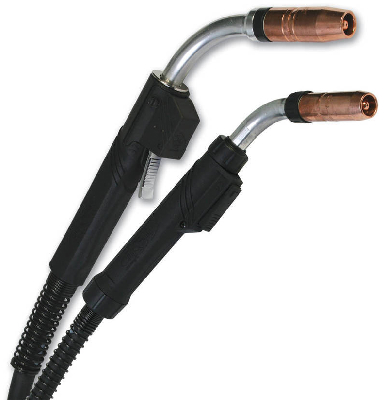

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0  Canada
Mar 02, 2009 Built-to-order, semi-automatic TOUGH GUN(TM) MIG Guns come in air- and water-cooled models with respective capacities of 350-650 A and 400-600 A. While air-cooled versions include aircraft-grade aluminum armored gooseneck, water-cooled guns feature stainless steel gooseneck. Both types integrate cable strain relief on both ends, TOUGH LOCK(TM) Contact Tips for extended wear life, and QUICK LOAD(TM) Liner system for accelerated liner replacement.

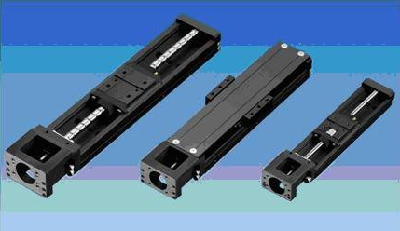

Misumi USA    Schaumburg, IL 60173
Mar 02, 2009 Available with 5 mm pitch, Models LX20 and LX26 feature travel rates of 250 mm/s, and include low dust raise grease, which significantly minimizes particle generation. Models come in standard or cover type with brackets that allow combination of 2 units on different axis. With 1,000 possible configurations, actuators can provide precision linear motion to packaging, medical, semiconductor, automotive, and other automated assembly operations.
