Asymtek    Carlsbad, CA 92008
Jul 31, 2008 Featuring jetting-on-the-fly, dot on dot, and Calibrated Process Jetting(TM) technologies, DispenseJet® DJ-9500 is designed for high-speed underfill applications and jetting silicone for LEDs. Fluid jetting valve controls fluid break-off at nozzle tip for clean and consistent dots and line patterns on substrate. Enhanced temperature controls maintain fluid at consistent viscosity for high throughput applications.

CUI, Inc.    Beaverton, OR 97005
Jul 31, 2008 Offered in sizes 15 x 15, 20 x 20, and 30 x 30 mm with heights ranging from 3.3-5.1 mm, CPXXXXX Series Peltier Devices have no moving parts and are suited for applications where size and weight are limited. They provide input of 2.0-8.5 A, solder melting point of 138°C, and maximum compress of 98.07 N/cm². Available with heights from 3.8-4 mm, 40 x 40 mm version features input of 6.0-8.5 A.

Omega Engineering, Inc.    Stamford, CT 06907
Jul 31, 2008 Offering independent shutdown for thermal processes, Series CN63500 temperature limit controller has dual 4-digit displays that allow simultaneous viewing of process temperature and limit setpoint. Unit has plastic case with tinted front panel that meets NEMA 4X (IP65) specifications and accepts signals from variety of temperature sensors. Comprehensive programming allows it to meet wide variety of application requirements.

Omega Engineering, Inc.    Stamford, CT 06907
Jul 31, 2008 Compatible with range of wireless sensors including UWTC, UWRTD, and z series, wiDR Series wireless DIN rail monitoring and control device is offered with choice of either 2 Form C relays, or 2 solid state relays for control functions/alarms. Wireless inputs include thermocouple, RTD, temperature, humidity, and barometric pressure. Monitoring can be done locally, or through embedded Ethernet or Internet connection without any additional software other than web browser.

Omega Engineering, Inc.    Stamford, CT 06907
Jul 31, 2008 Model PX409 Series with 316SS construction is ruggedized with minimum of 4x overpressure protection, and secondary containment rated to even higher pressure. Micromachined silicon sensor is protected by stainless steel diaphragm which transfers pressure to sensor by thin film of silicon oil. Unit is suited for industrial, automation, test, automotive, aerospace, and gas product applications, as well as calibration and test applications in oil industry.

ABB Instrumentation    Warminster, PA 18974
Jul 31, 2008 Including head mounted TTH300 and field mounted TTF300 that has configurable display, smart HART temperature transmitters offer sensor calibration and backup redundancy for 2 Platinum 100 resistance thermometers with 3-wire connections. Units feature sensor adjustments based on 1- and 2-point calibration or linearization via Callendar van Dusen equation. Measuring accuracy is ±0.1 K for Pt resistance thermometers along with long-term stability of ± 0.05% per yr.

Chloride Systems    Burgaw, NC 28425
Jul 31, 2008 Designed to fit any architectural space, white LED edge-lit Caliber Signage offers computer-generated custom graphics and wording to match wayfinding or informational needs. Installation accommodates recessed ceiling, surface ceiling, surface end, and surface wall mount configurations. Panel is manufactured from high-impact acrylic with silk-screened computer-generated artwork. IC rated unit is listed to UL 48 standards, and meets damp location listing standard.

International Rectifier Corp.    El Segundo, CA 90245
Jul 31, 2008 Combining HEXFET® MOSFET silicon and DirectFET packaging technology, 25 V DirectFET® MOSFET chipsets deliver synchronous MOSFET solution in SO-8 footprint and with 0.7 mm profile. Model IRF6710S2 is used as control MOSFET due to low gate resistance of 0.3 W and low Miller charge (Qgd) of 3.0 nC, which reduces switching losses. Suited for high current synchronous MOSFET circuits, IRF6795M and IRF6797M have low integrated Schottky that reduces diode conduction and reverse recovery losses.

Vicor Corp.    Andover, MA 01810 5424
Jul 31, 2008 Providing EMI filtering and transient protection, M-FIAM9 28 V front-end module meets conducted emission/susceptibility per MIL-STD-461E and input transients per MIL-STD-704A/E/F and MIL-STD-1275A/B/D. With input voltage of 10-36 Vdc and output power up to 500 W, ruggedized unit can be mounted onboard or inboard for height-critical applications. It comes in 2 environmental grades, including -55 to +100ºC operating and -65 to 125ºC storage, with 4 pin and 3 baseplate options.

Netherlocks BV    Alphen aan den Rijn 2408  Netherlands
Jul 30, 2008 Without requiring any valve details, extra parts, or customized adaptors, SHL Smart Handwheel Lock can be added onto any existing size or type of handwheel-operated valve to mechanically prevent operation until safe. Solution locks wheel into pre-set safe positions, controlled by interlocking key release mechanism, and leaves space to grip handwheel. Coded key used to unlock valve is only released for use once correct sequence of precautions has been completed.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
Jul 30, 2008 Suited for prototype or limited production work, Model C315/350 features 14 in. HSS blade, 3.5 hp 3-phase TEFC motor, 2-speed spindle, totally enclosed transmission, 24 V controls, and built-in flood coolant. Double vise assembly, with 6¼ in. max opening, provides holding power on both sides of cut for burr-free operation. Machine cuts round shapes up to 4 in. dia at 90° and 3¾ in. dia at 45°; plus square and rectangular shapes up to 3¾ x 5 in. at 90° and 3¾ x 3¾ in. at 45°.

Walls & Forms Inc.    Dallas, TX 75374
Jul 30, 2008 Featuring snap-open and snap-closed rails, EuroSign(TM) Marquee frame facilitates changing of graphics in larger interior and exterior applications. Frames snap directly to face of print, holding it firmly in place along entire perimeter, and allow for tolerance of 1¾ in. in poster size. All-aluminum profile has round, beveled edges that flow into precision-mitered corners. It is available in satin and black finishes with or without various types of backers.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
Jul 30, 2008 Along with vertical column design for vibration-free sawing, Model C360SA features 14 ½ in. HSS blade; 4 hp, 3-phase TEFC motor; 2-speed spindle, 18 and 36 rpm; totally enclosed transmission; 24 V controls; and built-in flood coolant. Controls facilitate setup and operation, while full guards are removable for cleaning. Cutting capabilities include round and square profiles or solid mild steel as well as rectangular shapes of various sizes.

THK America, Inc.    Schaumburg, IL 60173 5340
Jul 30, 2008 LG bushings employ rotation prevention function, where 4 rows of circular arc grooves are arranged on shaft, to ensure precision movement. Product is dimensionally interchangeable with linear bushing, as outer tube has same OD. Since outer tube and shaft are interchangeable, combination of outer tube and shaft may be selected. Tube OD ranges from 8-15 mm, with tolerances from 0 to -0.011, while tube lengths range from 12-30 mm, with tolerances from 0 to -0.2 and shaft ODs from 4-8 mm.

Slideways, Inc.    Worcester, MA 01605
Jul 30, 2008 Manufactured to specification from specialty plastics for use in hostile environments, Slideways Custom Profiles include chain and belt guides as well as related components. Typical wear-resistant materials include oil-filled UHMW, UHMW-HT for 275°F service, glass-filled PTFE for -350 to +500°F applications, oil-filled or MD-Nylon, and Eratalyte® TX for resistance to bleach and other harsh chemicals. Sizes range from 1.25-12 in. wide and up to 20 ft long, with tolerances to ±0.005 in.

Pres-On Products, Inc.    Addison, IL 60101

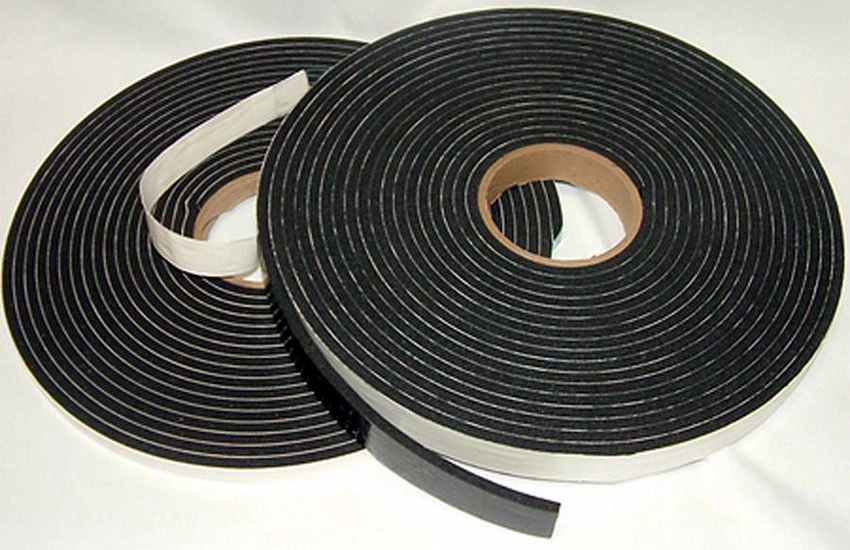

Jul 30, 2008 Coated on one-side with long-aging, high-tack acrylic adhesive, Pres-On® U6000 tape is suited for use in OEM product applications where gasketing, cushioning, and recovery is required. Two-sided U6200 can also be used in assembly applications as well as for secure mounting. Uniform cell structure allows application to clean, dry materials. While cushioning characteristics isolate vibrations, absorbent property traps moisture, light, dust, and contaminants.

Grupo Premo    Barcelona   Spain

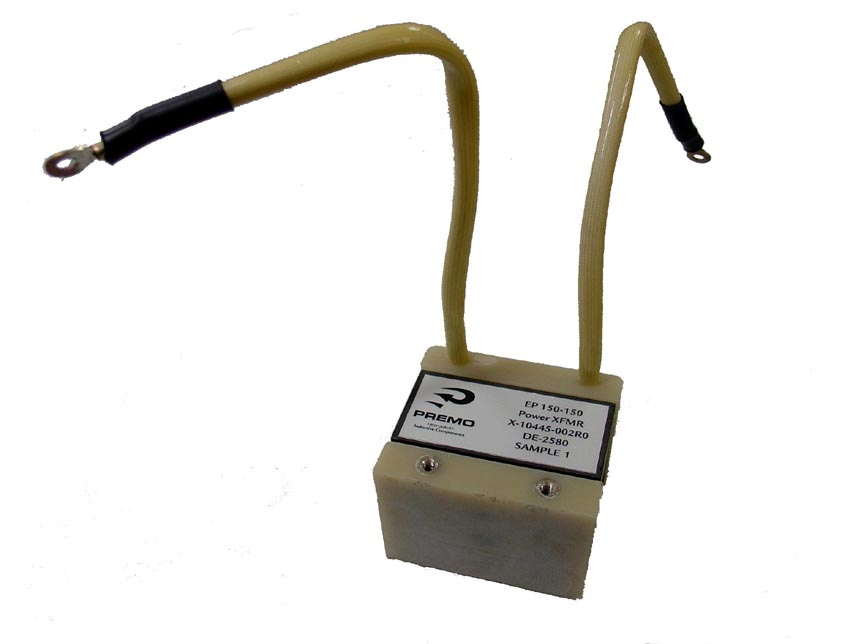

Jul 30, 2008 Developed under vacuum potting technique that allows high isolation level up to 10 kV, inductive planar set is designed for dc/dc converters and traction inverters in hybrid vehicles. With 2.5-7.2 kW power management range, unit features 5 cm height profile and occupies 50 cm², with output chokes measuring 4 cm in height and occupying 30 cm². Offering temperature resistance of up to 180ºC, unit has rated losses below 1% of total output power.

2E SysCom, Inc.    Framingham, MA 01702
Jul 30, 2008 Connector and cable assembly are designed for attaching to spade terminals on IGBT modules. Connectors have integrated automatic locking clips and are suitable for 2 faston tabs 2.8 x 0.5 mm with available grid spacings of 4.0, 4.7, and 6.0 mm. Color coded red, black, grey, and white, wires are 20 AWG stranded, rated at 600 V, and 125°C, separated by spacer, and terminated in 4 pin PCB mount connector.

John Deere    Research Triange Park, NC 27709
Jul 30, 2008 With arm breakout force of 7,194 lb, 75D hydraulic excavator weighs 17,637 lb, and features 15 ft, 1 in. dig depth, 54-net hp diesel certified to EPA Interim Tier 4 emission standards, and Powerwise(TM) engine/hydraulic management system. E working mode and auto-idle features contribute to fuel efficiency. Excavator also incorporates tungsten-carbide coated surfaces, oil-impregnated boom, arm and bucket bushings, isolation-mounted cab, climate control, and multi-position seat.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

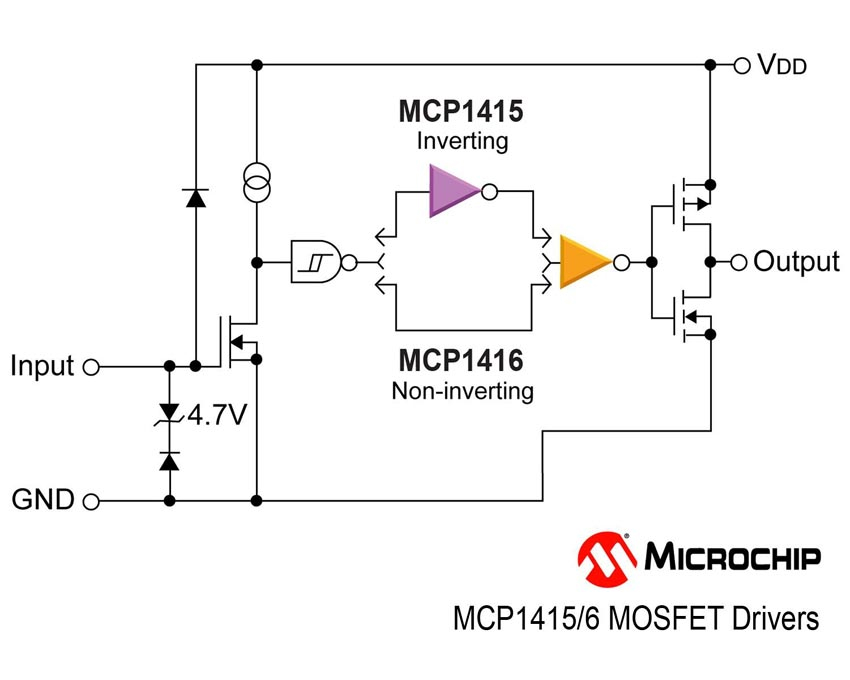

Jul 30, 2008 Inverting MCP1415 and non-inverting MCP1416 MOSFET drivers are rated for peak output current of 1.5 A over operating voltage range of 4.5- 18 V. Both devices exhibit latch-up immunity and are available in miniature 5-pin SOT-23 package. Small package size allows designers to position gate driver close to MOSFET's physical gate connection, minimizing gate bounce, rise-and-fall times, propagation-delay times, and shoot-through current, all contributing to system efficiency.
